Plan 801080PM
Multi-Generational Modern Home Plan Under 2500 Square Feet
Heated S.F.
2,481
Beds
4
Baths
2.5
Stories
3
Cars
1
What's Included
Plan Details
  • This multi-generational house plan has 3 second floor bedrooms and a lower level apartment. The home gives you 2,481 square feet of heated living and a 1-car garage, 270 square foot garage. Each floor is 827 square foot.

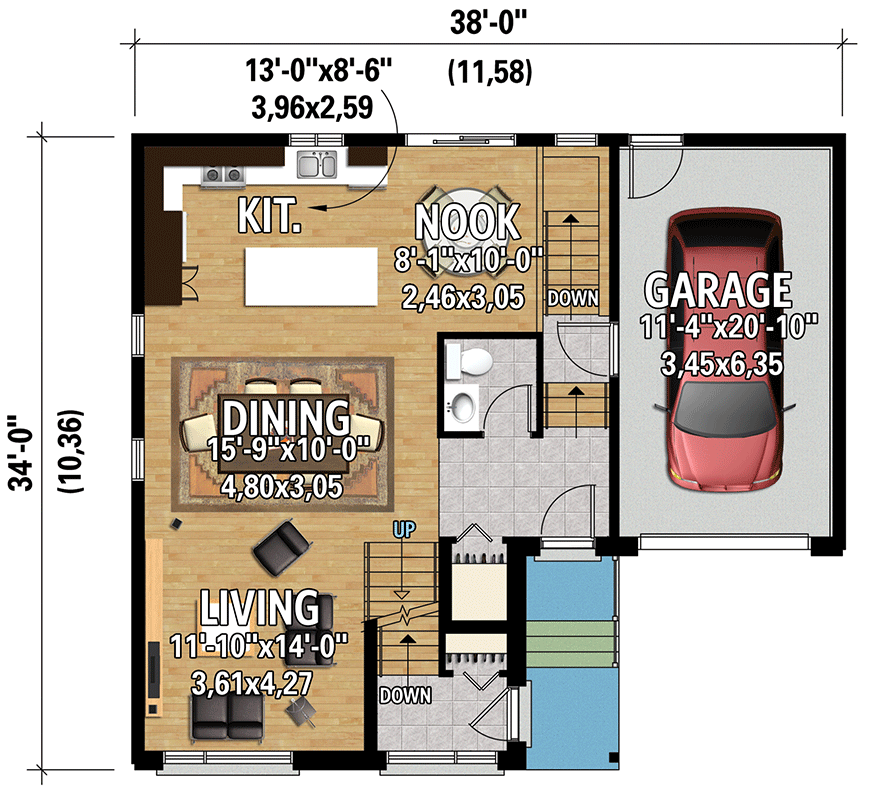

  • The open concept ground floor features a large vestibule, an entrance hall, a living room, a dining room, a kitchen with an island and a breakfast nook.

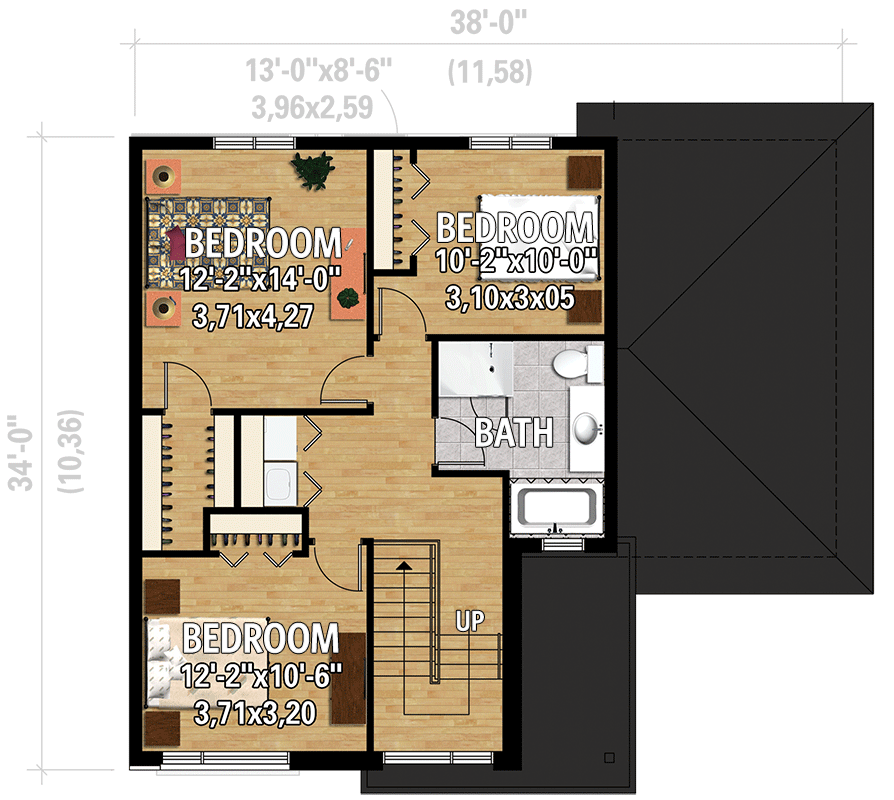

  • The upper floor features a bathroom with a ceramic-tiled shower and a podium bathtub, a laundry closet, as well as three bedrooms, including a master bedroom with a large walk-in closet.

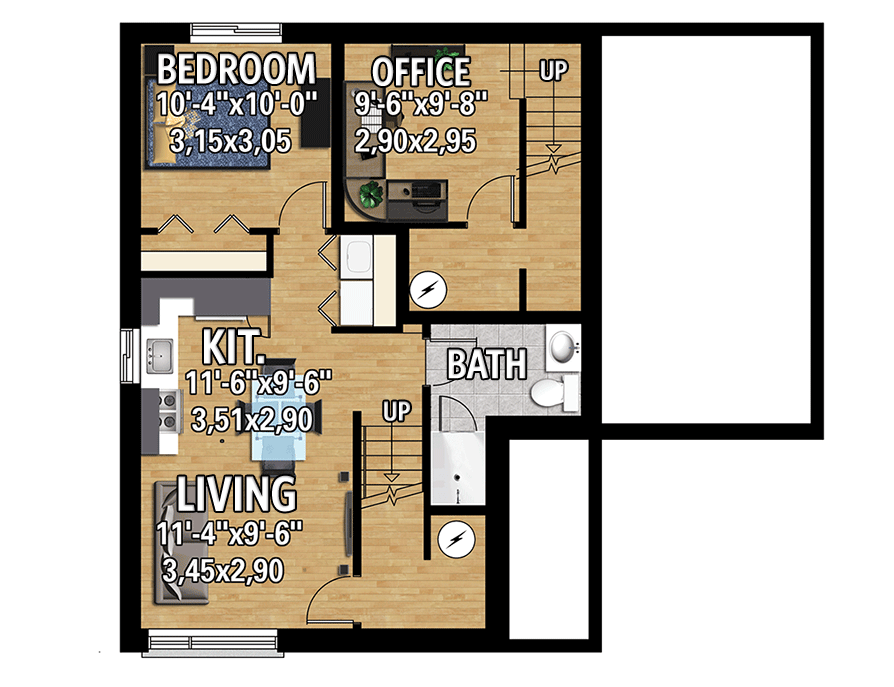

  • The lower level apartment features a small den used by the homeowner as well as the apartment that includes a bathroom, a bedroom, a laundry closet, a kitchen, a living room, and a storage area.
What's Included
Please note this plan is designed to the National Building Code of Canada.

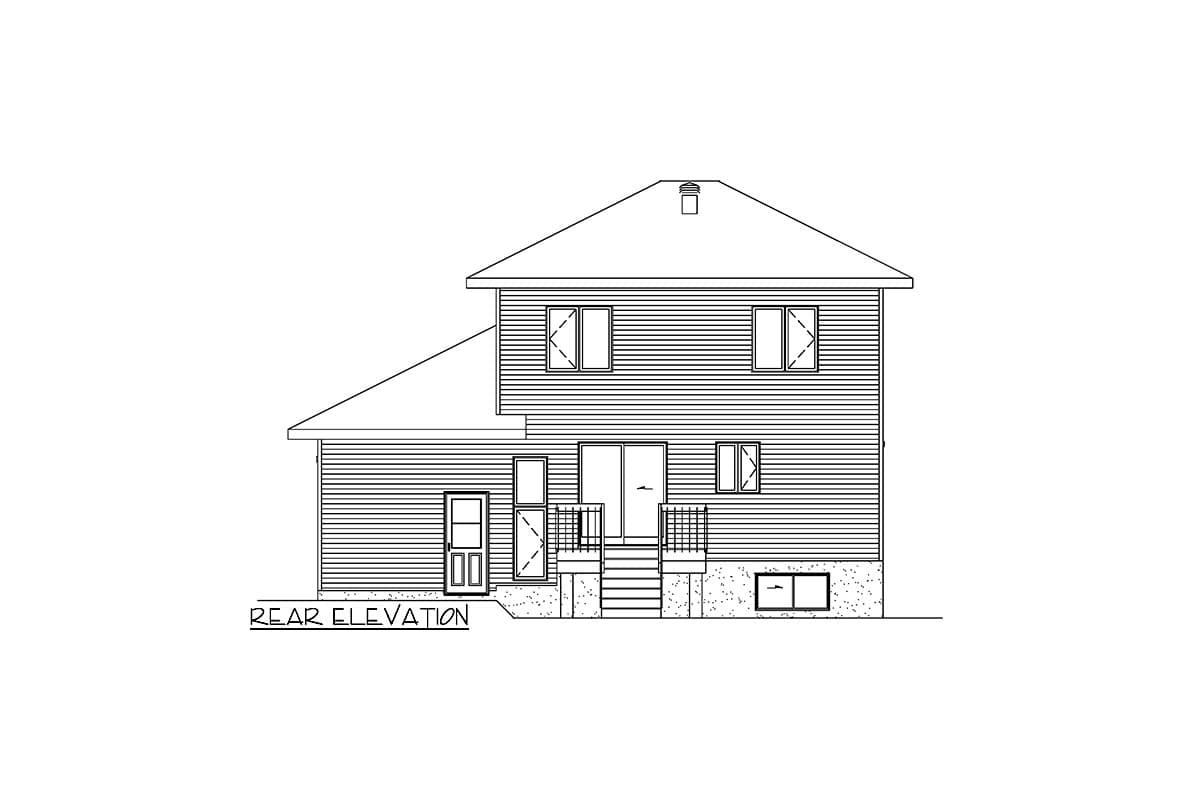

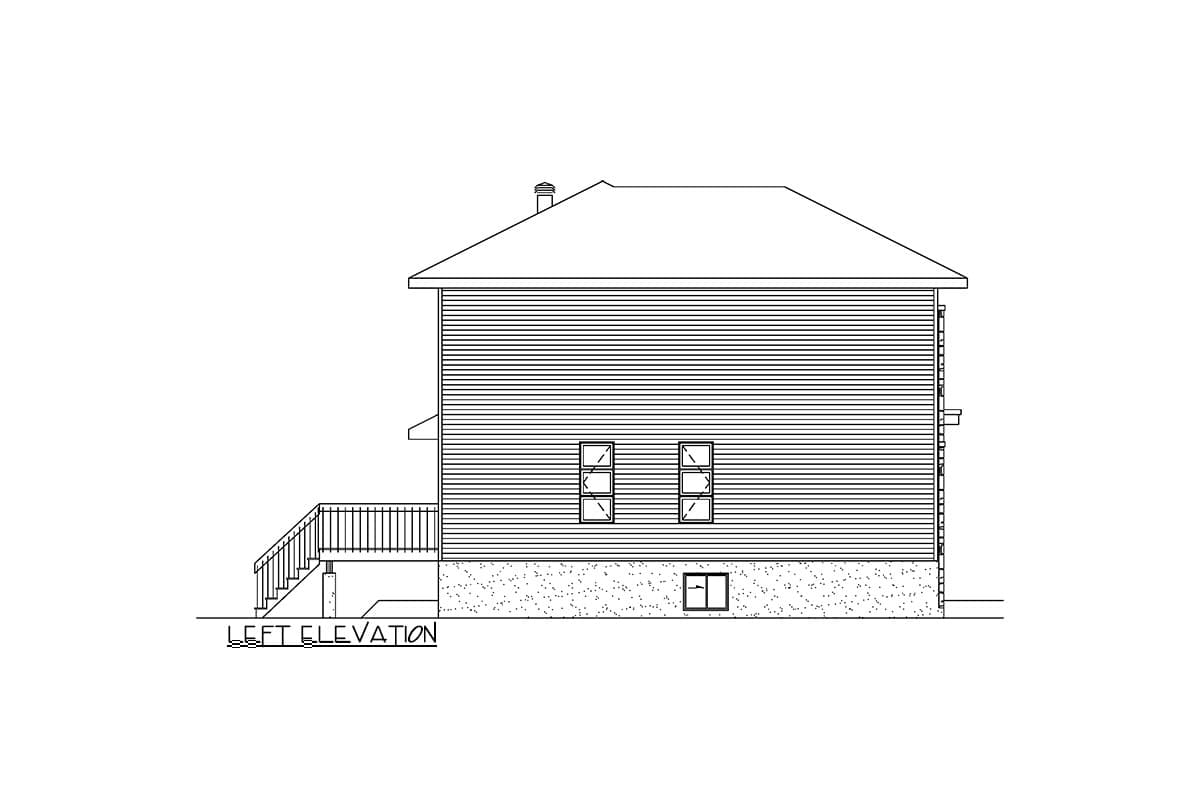

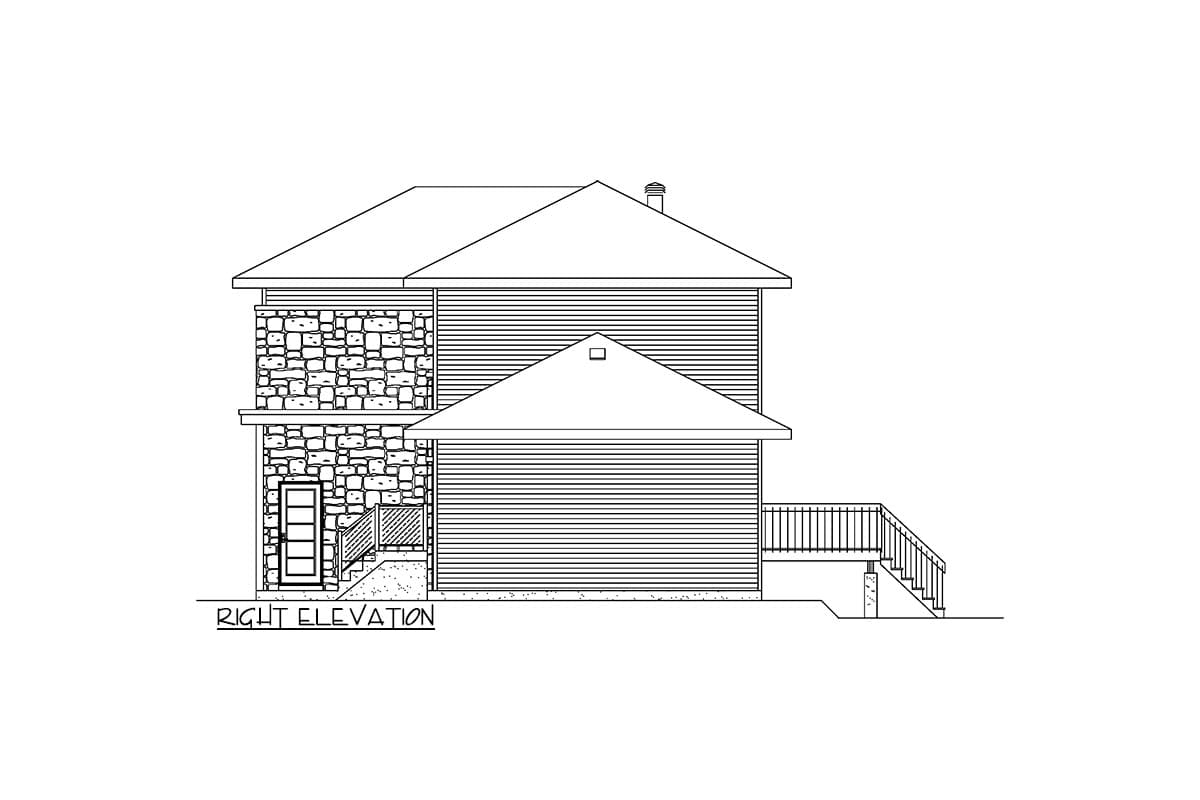

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Multi-Generational Modern Home Plan Under 2500 Square Feet

  • 2,481

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 3

    Floors

  • 1

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,481 sq. ft.
  • Lower Level: 827 sq. ft.
  • 1st Floor: 827 sq. ft.
  • 2nd Floor: 827 sq. ft.

Dimensions

  • Width: 38' 0"
  • Depth: 34' 0"
  • Max ridge height: 29' 5"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 270 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
All house plans are copyright ©2024 by the architects and designers represented on our web site

Multi-Generational Modern Home Plan Under 2500 Square Feet

  • 2,481

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 3

    Floors

  • 1

    Car garage

Multi-Generational Modern Home Plan Under 2500 Square Feet

  • 2,481

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 3

    Floors

  • 1

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 2,481 sq. ft.
  • Lower Level: 827 sq. ft.
  • 1st Floor: 827 sq. ft.
  • 2nd Floor: 827 sq. ft.

Dimensions

  • Width: 38' 0"
  • Depth: 34' 0"
  • Max ridge height: 29' 5"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 270 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
