Plan 340056STR Narrow European Courtyard Plan with Courtyard and 2-Story Grand Room

Narrow European Courtyard Plan with Courtyard and 2-Story Grand Room

Plan 340056STR

  • 3,142

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This narrow courtyard plan gives you a private sanctuary to enjoy the outdoors. An open arrangement of living space creates an airy atmosphere. This mid-sized European house plan lives large with a wealth of well-appointed indoor and outdoor living spaces. A triple arch entry, cupola and carved eave brackets set the atmosphere that is continued inside the home with multiple columns and rich, beamed ceilings.
  • An elegant foyer welcomes guests, while the grand room's windows and French doors provide views of the courtyard. The solana hosts a spacious outdoor kitchen and fireplace beneath a distinctive tray ceiling. A flexible loft is on the second floor, while a separate cabana on the first floor makes luxe guest quarters.
  • The master suite takes up the short wing of the plan and offers a private entrance to the courtyard. The airy kitchen boasts a roomy island and is open to the casual dining nook and leisure room. It also offers easy access to the formal living and dining rooms.
  • There are built-ins throughout the home, such as the family valet near the rear-loading garage and the entertainment center in the leisure room. The utility room and storage space add value to the home.
  • An expansive master retreat offers the owners a luxe master bath with two sinks as well as a central spa tub. The suite also boasts a walk-in closet built for two and access to the covered loggia and courtyard through French doors. Two secondary bedrooms upstairs share a divided bath, desk and dramatic balcony overlooking the living room.
  • In the courtyard, the rear, detached suite can function as both a private guest quarters or a secluded home office.

What is Included in Our Plans?

We work with hundreds of designer and architects who work in a variety of styles.  It is important to note their plan packages may contain different details so we strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations
  •           Materials list - MAY be available as a purchasable option under the "Options" tab

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

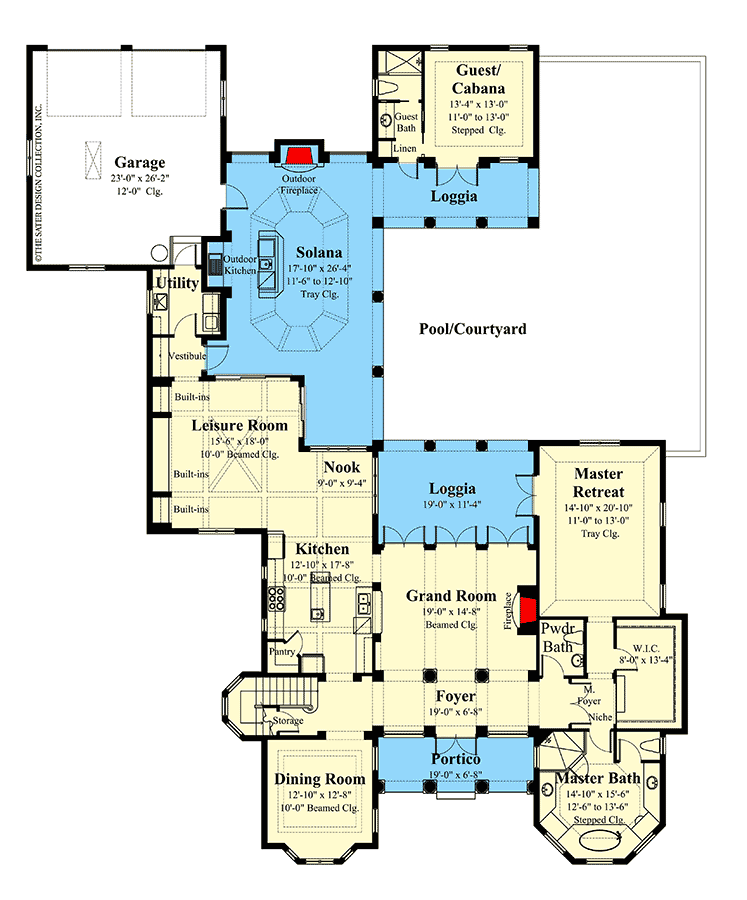

Narrow European Courtyard Plan with Courtyard and 2-Story Grand Room - 340056STR floor plan - Main Level
