Plan 90224PD

Narrow Lot Castle

Heated S.F.
2,579
Beds
4
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 90224PD

Main Level
Main Level
2nd Floor
2nd Floor

Plan 90224PD

M-F 9am-5pm EST |

1-203-761-8500

Main Level

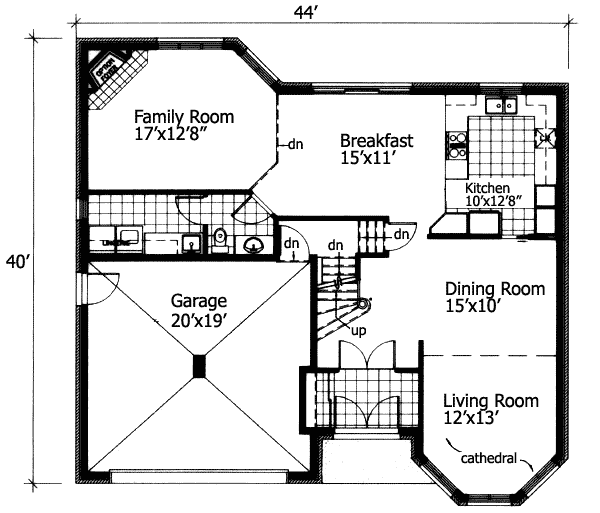

Plan 90224PD: Narrow Lot Castle - Floor Plan - Main Level - European, Traditional

2nd Floor

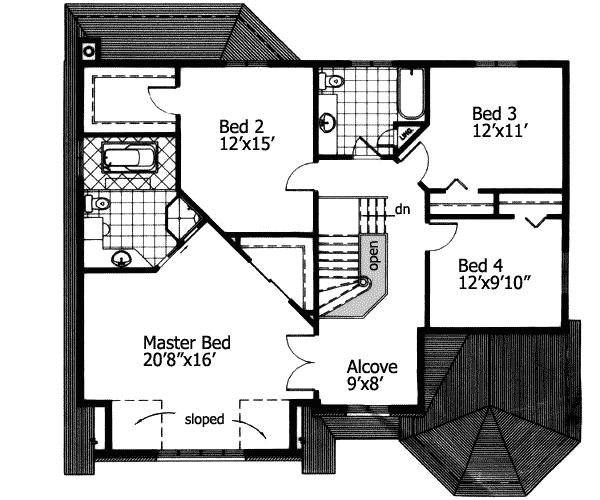

Plan 90224PD: Narrow Lot Castle - Floor Plan - 2nd Floor - European, Traditional

Plan Details

  • Designed for a narrow lot, this European home plan has a very imposing stone exterior complete with a turret.
  • An air-lock entry foyer keeps the cold air out of the main living space and ushers you into the home.
  • Three large windows and a cathedral ceiling enhance the living room that is open to the dining room.
  • A step-down family room with a corner fireplace will be your family's favorite gathering spot.
  • Double doors on the second floor usher you into the large master suite with its own private bath.

What's Included

Please note this plan is designed to the National Building Code of Canada.
  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
  • Suggested lighting plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Framing - layouts with beam sizes and locations
  • Energy calculations - handled locally when required
