Narrow Lot Craftsman House Plan

2,038 4 3 2 1
Pageloader

Narrow Lot Craftsman House Plan

Plan 22434DR

  • 2,038

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 1

    Cars

  • Horizontal railing on the front porch lets you look out onto the street and gives an unusual look to this Northwest house Plan.
  • An air-lock entry foyer keeps the cold air out of the main house in the winter, providing energy savings.
  • Once inside, the open floor plan gives you one huge space that forms an L-shape.
  • The compact kitchen keeps everything at your fingertips and the big laundry room has a folding counter.
  • All the bedrooms are upstairs, with two bathrooms to keep things moving in the morning.

Each plan includes the following:

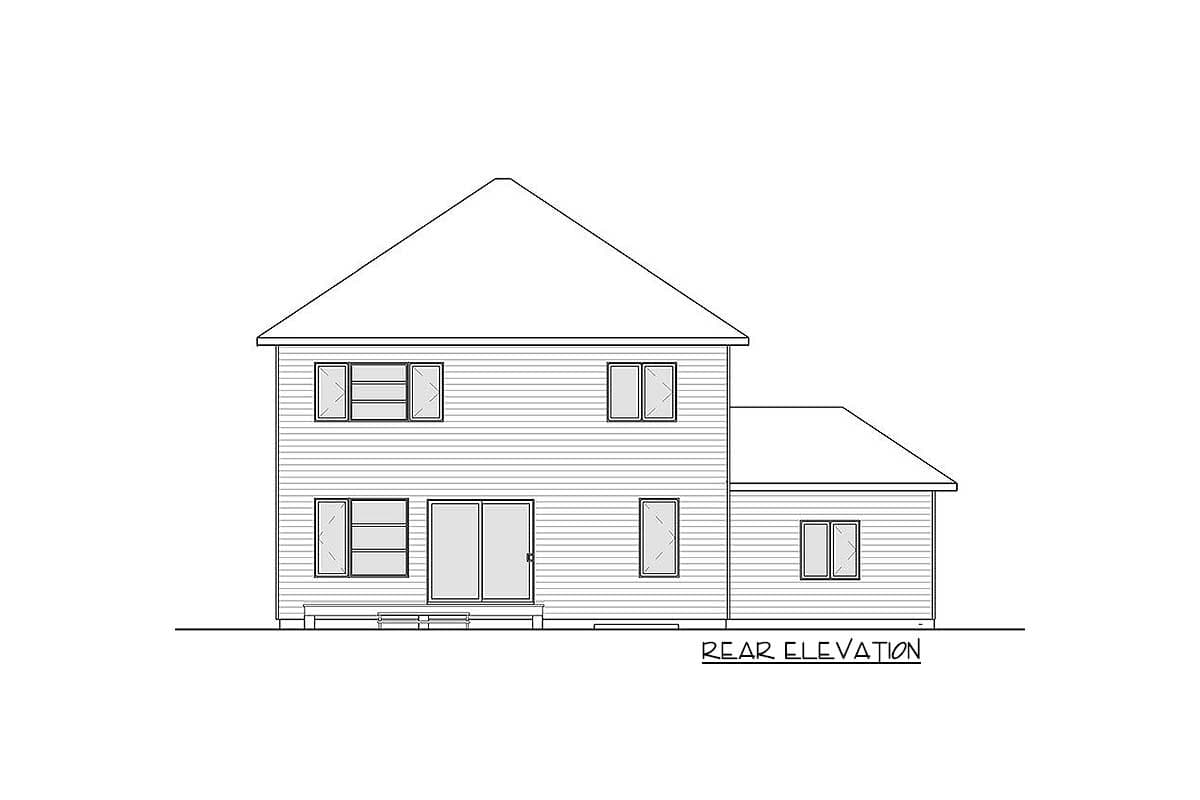

  • 4 Elevations
  •  Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Truss Diagrams & Building Section
  •  Construction Details
  • Typical Wall Section
Please note that electrical plans are not included.

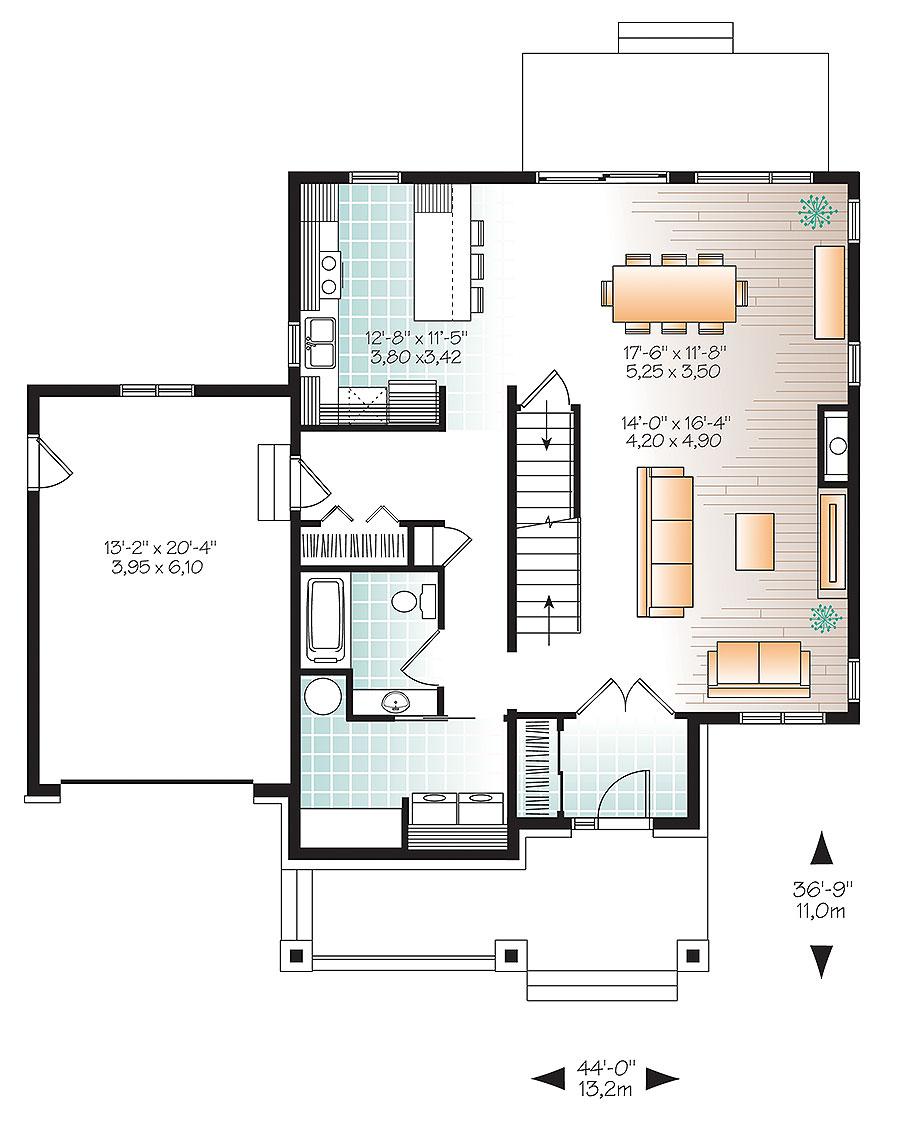

Floor Plan

Plan details

Architectural Style

Plan Collections



Narrow Lot Craftsman House Plan

  • 2,038

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 1

    Car garage

Buy This Plan
  • 5 Sets $990
  • 8 Sets $1,020
  • Reproducible Set $1,075
  • PDF - single-use $1,075
  • CAD $1,720
  • View all purchase option online

About This Plan

  • Horizontal railing on the front porch lets you look out onto the street and gives an unusual look to this Northwest house Plan.
  • An air-lock entry foyer keeps the cold air out of the main house in the winter, providing energy savings.
  • Once inside, the open floor plan gives you one huge space that forms an L-shape.
  • The compact kitchen keeps everything at your fingertips and the big laundry room has a folding counter.
  • All the bedrooms are upstairs, with two bathrooms to keep things moving in the morning.

Floor Plans

  • Main Level

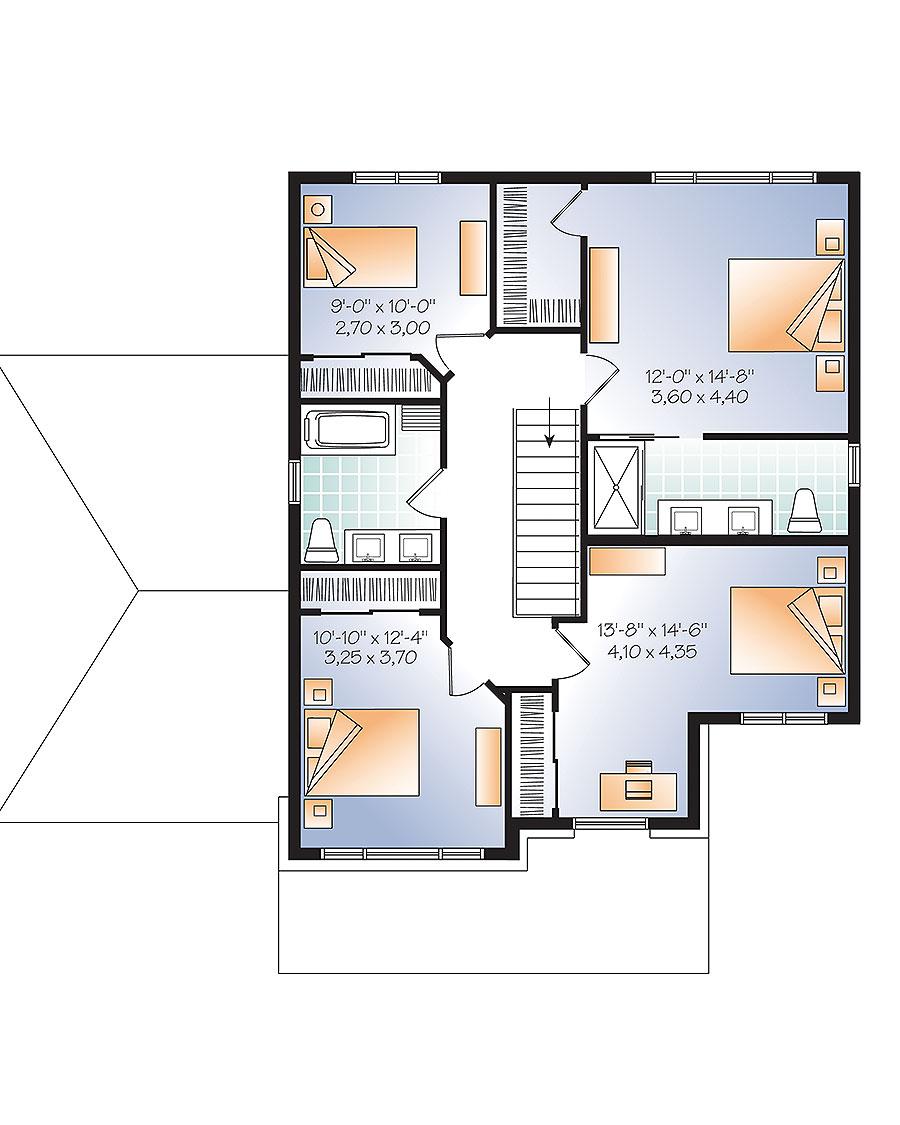

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,038 sq. ft.
  • 1st Floor: 1,025 sq. ft.
  • 2nd Floor: 1,013 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Daylight, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 44' 0"
  • Depth: 36' 9"
  • Max ridge height: 29' 7"

Garage

  • Type: Attached
  • Area: 308 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Truss

Architectural Style

  • Northwest

Special features

  • 2nd Floor Master Suite
  • CAD Available
  • PDF

Plan Collections

  • Canadian
  • Metric
