Plan 64400SC

Narrow Lot Craftsman House Plan

Heated S.F.
2,260
Beds
3 - 4
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 64400SC

Main Level
Main Level
2nd Floor
2nd Floor

Plan 64400SC

M-F 9am-5pm EST |

1-203-761-8500

Main Level

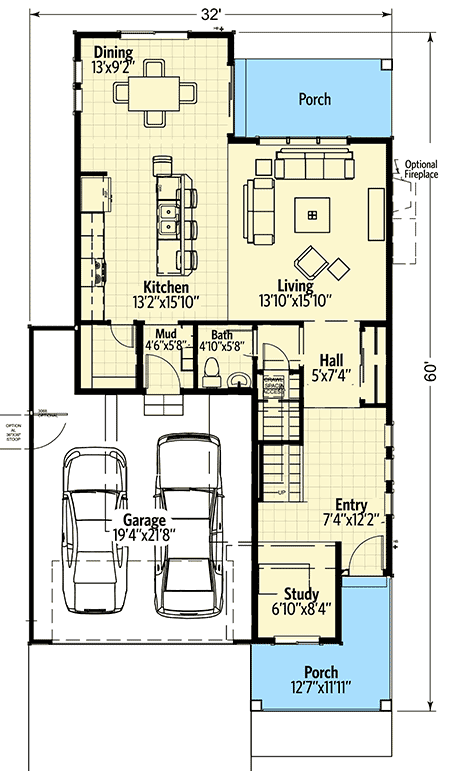

Plan 64400SC: Narrow Lot Craftsman House Plan - Floor Plan - Main Level - Craftsman, Northwest

2nd Floor

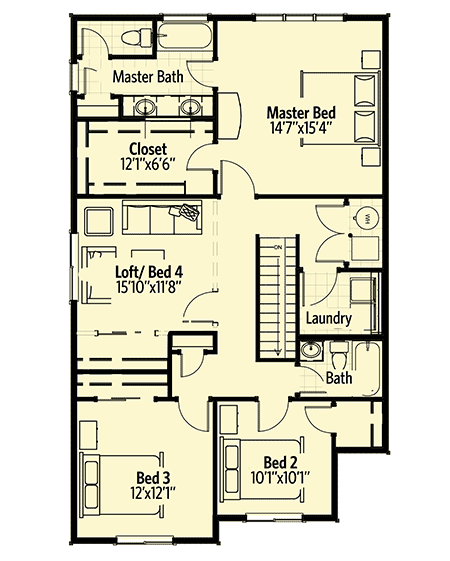

Plan 64400SC: Narrow Lot Craftsman House Plan - Floor Plan - 2nd Floor - Craftsman, Northwest

Plan Details

  • Vertical and horizontal siding creates a visual appeal for this Craftsman style house plan that is only 32' wide.
  • The large entry foyer gives you lots of room to move around and offers a study at one end.
  • In back, the main living area is L-shaped with an open layout so you can see from the kitchen to the dining room and living room all at once.
  • The dining room has two sliding glass doors, one to the side porch and one to the backyard.
  • Choose from three bedrooms and a loft on the second floor, or four bedrooms.
  • The second floor laundry room is a wonderful feature that saves going up and down stairs with the laundry.
  • NOTE: Plans cannot be built within a 50 mile radius of Fort Collins, CO.

What's Included

  • Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
  • Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
  • Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
  • Upper Level Plan (if needed) - same information as Main Level.
  • Roof Plan - layout with pitch markers, dimensions and notes.
  • Main Level Electrical Plan - electrical outlets, switches and light locations shown.
  • Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.
  • Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.
  • Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
  • Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
  • Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,260 sq. ft.

1st Floor

1,016 sq. ft.

2nd Floor

1,244 sq. ft.

Porch, Front

100 sq. ft.

Covered Patio

126 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 0"

Depth

60' 0"

Max Ridge Height

25' 6"

Garage

Type

Attached

Area

457 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Split

Breakfast Nook

Flex Room

Home Office

Laundry - Upstairs

Library/Study

Loft

Master Suite - Upstairs

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

2,260 sq. ft.

1st Floor

1,016 sq. ft.

2nd Floor

1,244 sq. ft.

Porch, Front

100 sq. ft.

Covered Patio

126 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 0"

Depth

60' 0"

Max Ridge Height

25' 6"

Garage

Type

Attached

Area

457 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Split

Breakfast Nook

Flex Room

Home Office

Laundry - Upstairs

Library/Study

Loft

Master Suite - Upstairs

Walk-in Pantry
