Plan 64416SC

Narrow Lot Craftsman House Plan

Heated S.F.
1,560
Beds
2 - 3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 64416SC

Main Level
Main Level
2nd Floor
2nd Floor

Plan 64416SC

M-F 9am-5pm EST |

1-203-761-8500

Main Level

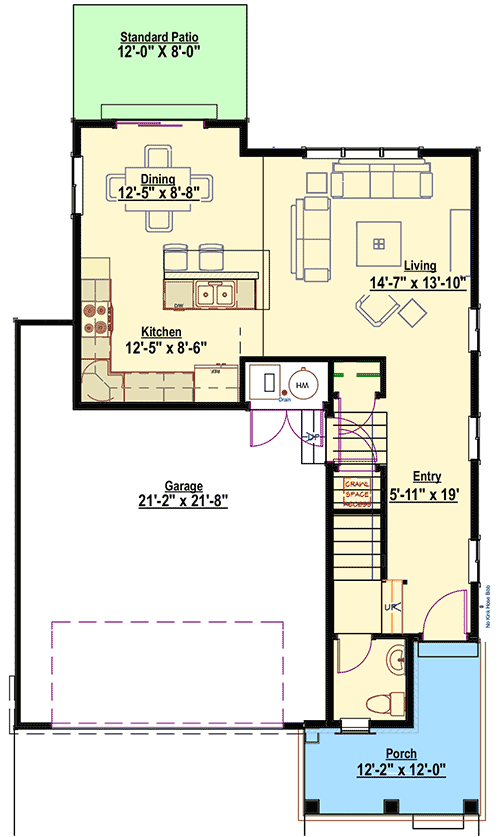

Plan 64416SC: Narrow Lot Craftsman House Plan - Floor Plan - Main Level - Craftsman, Northwest

2nd Floor

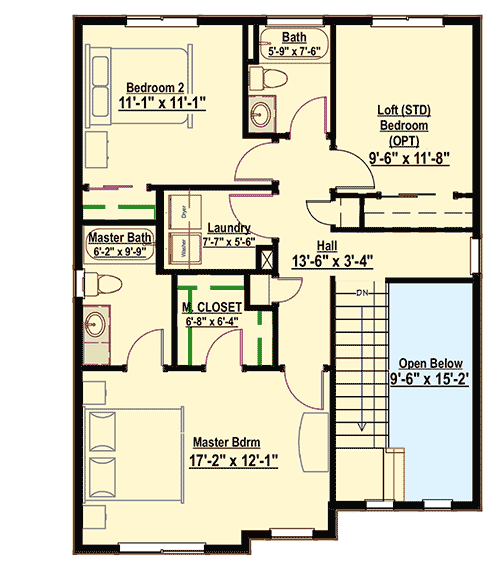

Plan 64416SC: Narrow Lot Craftsman House Plan - Floor Plan - 2nd Floor - Craftsman, Northwest

Plan Details

  • Cascading gables fall across the front of this Craftsman house plan, giving it a distinctive look.
  • A long and wide entry hall leads you back to the main living area of the house that appears bigger because of the open layout.
  • Sliding glass doors in the dining room make it easy to get out to the rear patio.
  • All the bedrooms are up on the second floor including the front facing master suite.
  • Use the loft as a third bedroom since it already has a closet.
  • Note the handy second floor laundry room.
  • NOTE: Plans cannot be built within a 50 mile radius of Fort Collins, CO.
