Plan 56322SM

Narrow Lot French Country Home Plan

Pageloader

Narrow Lot French Country Home Plan

Plan 56322SM

  • 2,137

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • Only 50' wide, this elegant French Country home plan works well on a narrow lot.
  • With just a column separating the dining room from the foyer and living room, the views stretch out.
  • The master suite was designed with privacy in mind and is off by itself in the rear by the covered porch.
  • Two family bedrooms are on the opposite side of the home and a guest suite enjoys its own privacy.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.
  • HVAC / MECHANICAL PLAN: Specifications, notes, air handler details and plans showing the locations and size of HVAC units, compressors, vents, grills, cfm flows, attic access and clearances.
  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.

Floor Plan

Plan details



Narrow Lot French Country Home Plan

  • 2,137

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $850
  • 6 Sets $950
  • 5 Sets PLUS $1,150
  • CAD - multi-use $1,545
  • CAD $1,850
  • View all purchase option online

About This Plan

  • Only 50' wide, this elegant French Country home plan works well on a narrow lot.
  • With just a column separating the dining room from the foyer and living room, the views stretch out.
  • The master suite was designed with privacy in mind and is off by itself in the rear by the covered porch.
  • Two family bedrooms are on the opposite side of the home and a guest suite enjoys its own privacy.

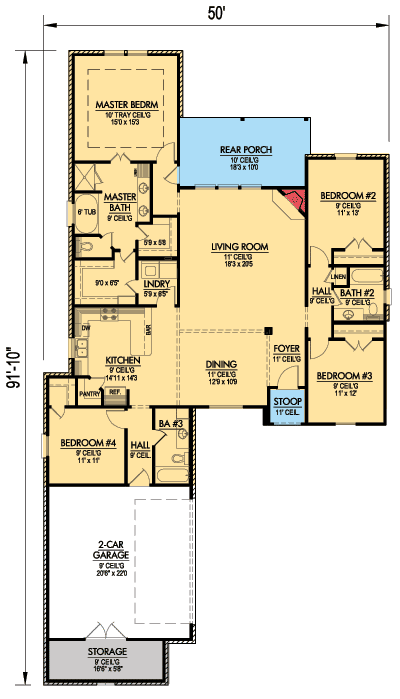

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,137 sq. ft.
  • 1st Floor: 2,137 sq. ft.
  • Storage: 94 sq. ft.
  • Porch, Rear: 183 sq. ft.
  • Porch, Front: 33 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 50' 0"
  • Depth: 91' 10"

Garage

  • Type: Attached
  • Area: 463 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
