Narrow Lot Home Plan With All The Basics

Heated S.F.
1,645
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 62518DJ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 62518DJ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

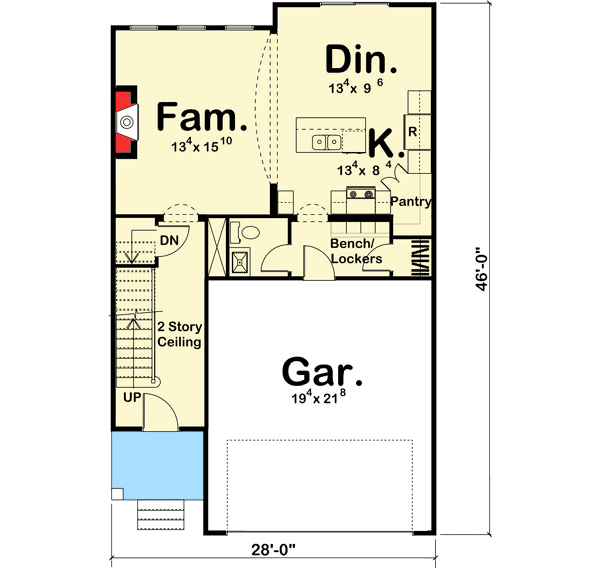

Plan 62518DJ: Narrow Lot Home Plan With All The Basics - Floor Plan - Main Level - Northwest

2nd Floor

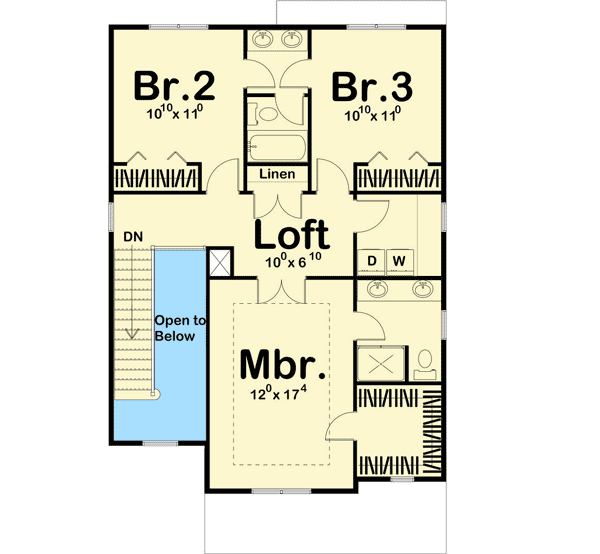

Plan 62518DJ: Narrow Lot Home Plan With All The Basics - Floor Plan - 2nd Floor - Northwest

Plan Details

  • Narrow in size, this Northwest home plan has all the basics and a few extras such as a two-story foyer and arched opening between the family room and dining/kitchen area.
  • Bench lockers and a coat closet near the garage entry smooth your way into the house.
  • Sliding glass doors in the dining room lead out to your backyard.
  • The second floor holds all the bedrooms including the large master suite with its tray ceiling.
  • A loft area opens to the second floor laundry room and a nice size linen closet.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,645 sq. ft.

1st Floor

733 sq. ft.

2nd Floor

912 sq. ft.

Porch, Front

49 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

28' 0"

Depth

46' 0"

Max Ridge Height

31' 0"

Garage

Type

Attached

Area

435 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Northwest

Special Features

Bedrooms - Clustered

Jack & Jill Bath

Laundry - Upstairs

Loft

Master Suite - Upstairs

Mudroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,645 sq. ft.

1st Floor

733 sq. ft.

2nd Floor

912 sq. ft.

Porch, Front

49 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

28' 0"

Depth

46' 0"

Max Ridge Height

31' 0"

Garage

Type

Attached

Area

435 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Northwest

Special Features

Bedrooms - Clustered

Jack & Jill Bath

Laundry - Upstairs

Loft

Master Suite - Upstairs

Mudroom

Walk-in Pantry
