Plan 81626AB
Narrow Lot Home with Lower Level
Heated S.F.
2,381
Beds
1-3
Baths
1.5 - 2.5
Stories
1
Cars
2
What's Included
Plan Details
  • This Ranch home plan is ideal for empty nesters who want to live all on one level.
  • When family and guests arrive, two more bedrooms on the finished lower level will comfortably accommodate.
  • The main living area forms an L-shape allowing those in the kitchen to see both the dining area and the great room fireplace.
  • A front-facing den gives you a quiet retreat.
  • When the whole family gathers, you have the lower level family room with its corner fireplace and wet bar.
  • Option available for 7:12 Roof pitch
What's Included
Plans include the following:
  • 4 elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.


These items are NOT included:
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Narrow Lot Home with Lower Level

  • 2,381

    Heated s.f.

  • 1-3

    Beds

  • 1.5 - 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

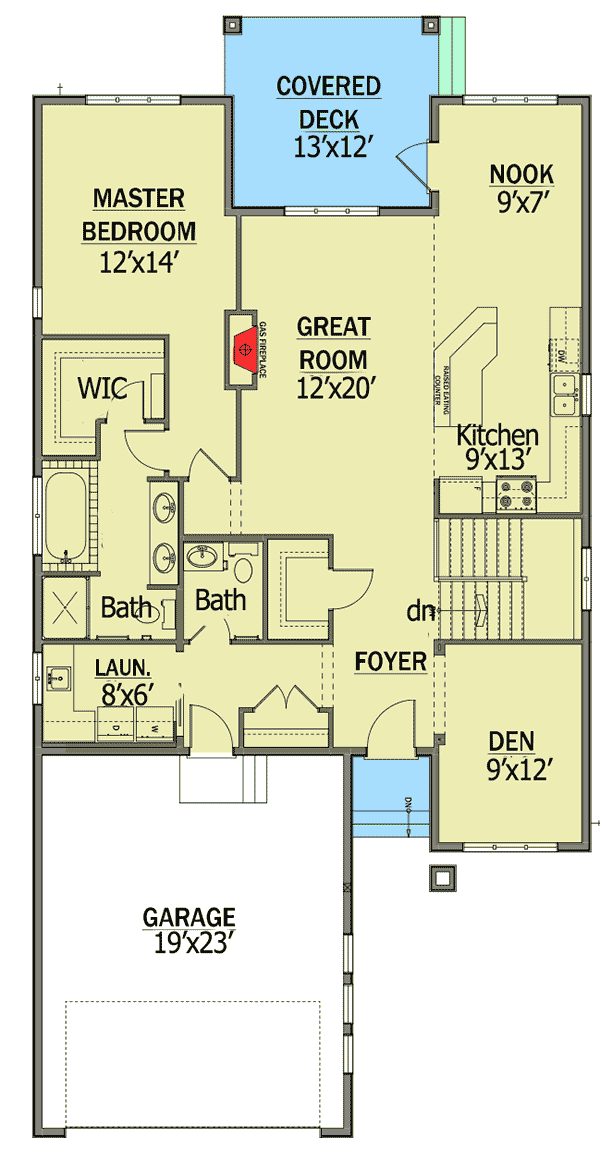

  • Main Level

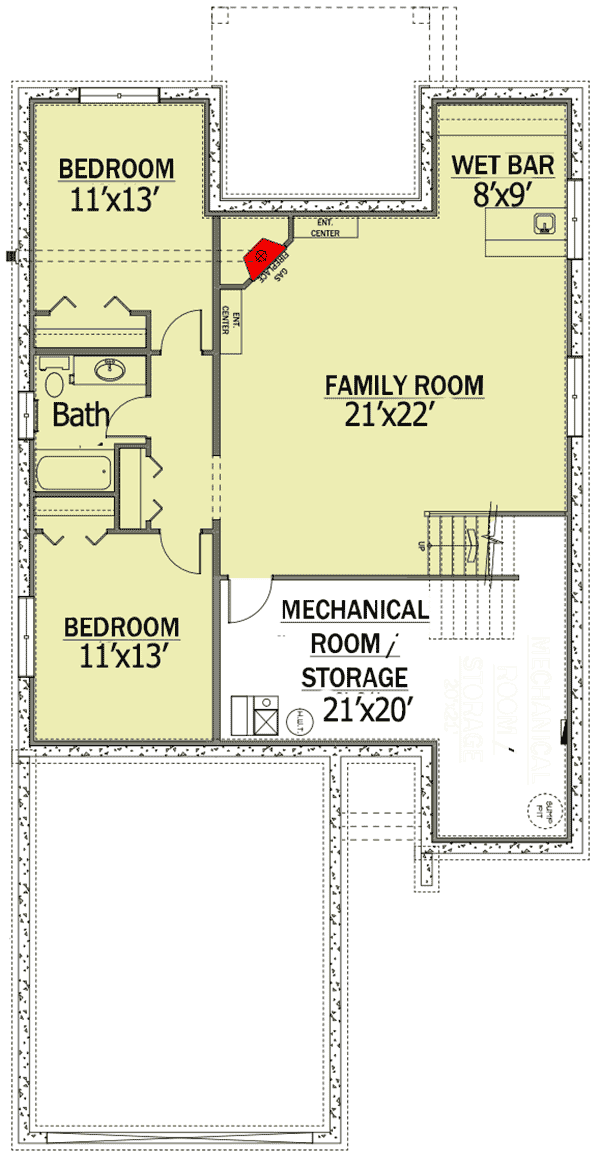

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,381 sq. ft.
  • Lower Level: 956 sq. ft.
  • 1st Floor: 1,425 sq. ft.

Dimensions

  • Width: 35' 0"
  • Depth: 71' 0"
  • Max ridge height: 23' 1"

Beds/Baths

  • Bedrooms: 1, 2, or 3
  • Full bathrooms: 1 or 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 437 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
