Plan 69529AM

Narrow Lot House Plan with a Pair of Porches

Pageloader

Narrow Lot House Plan with a Pair of Porches

Plan 69529AM

  • 3,048

    Heated s.f.

  • 4-5

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

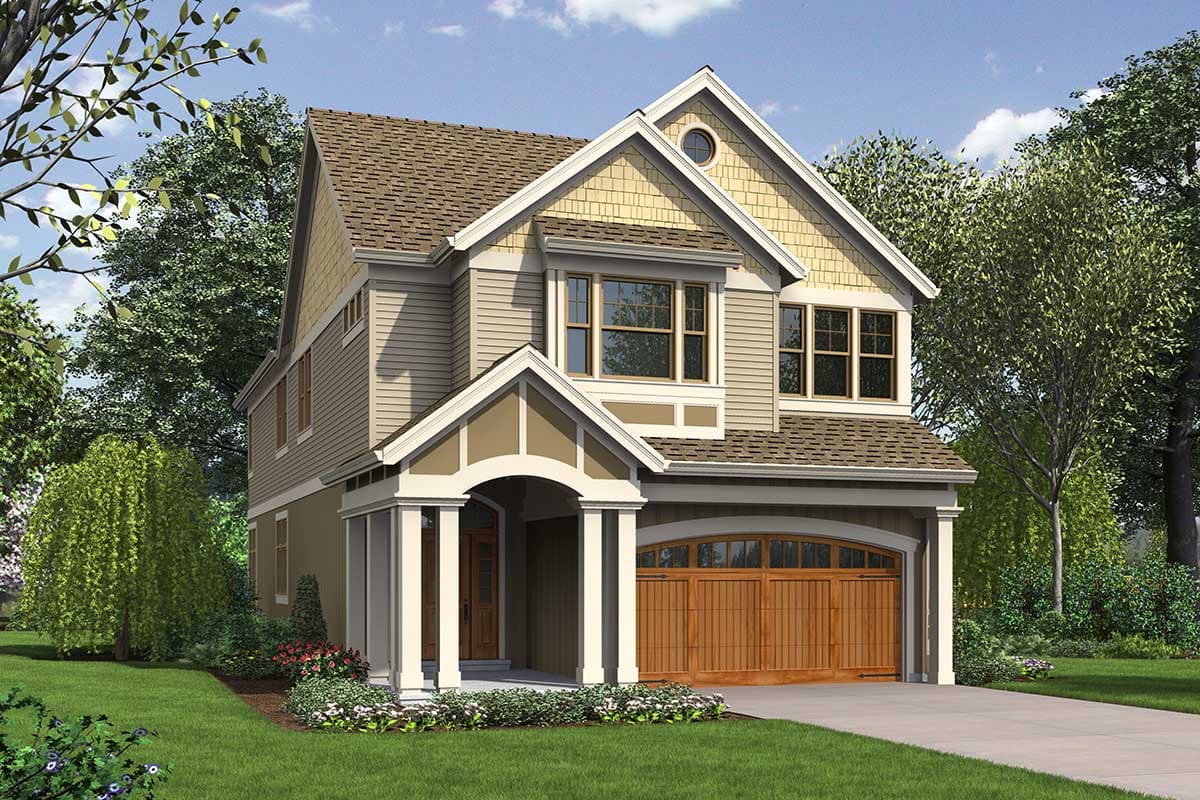

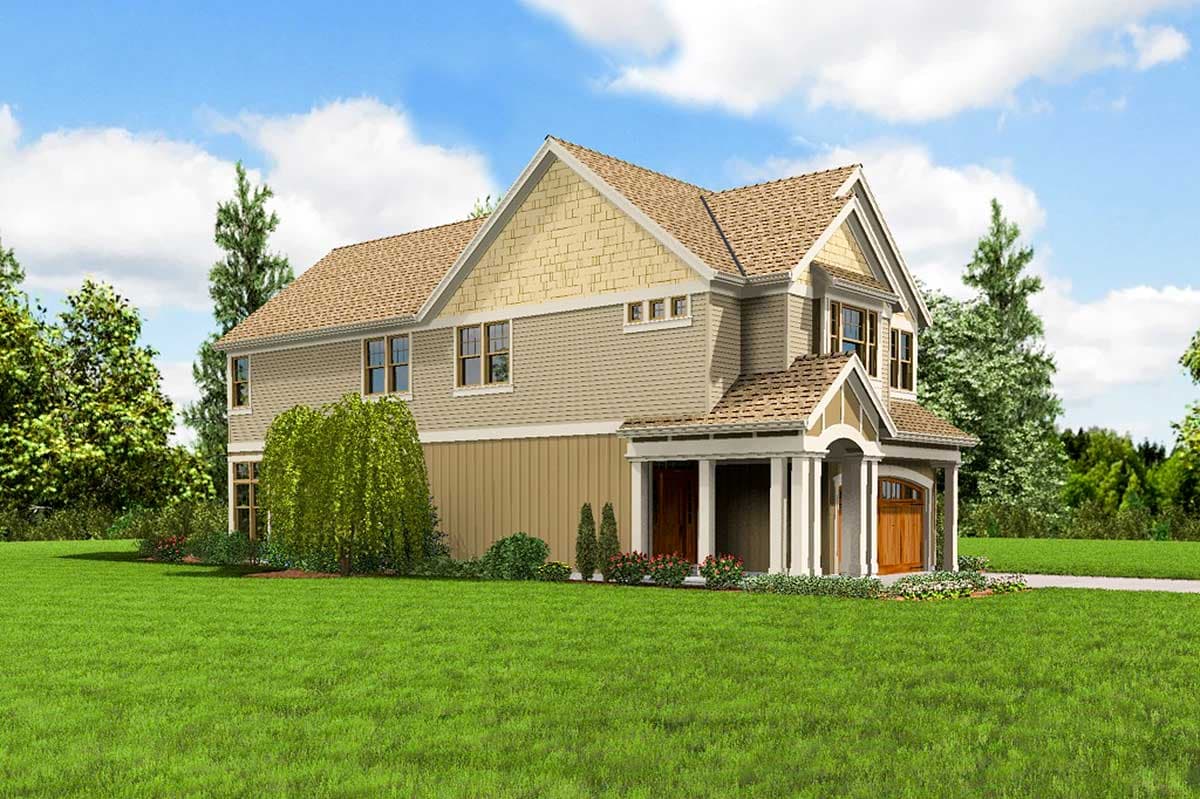

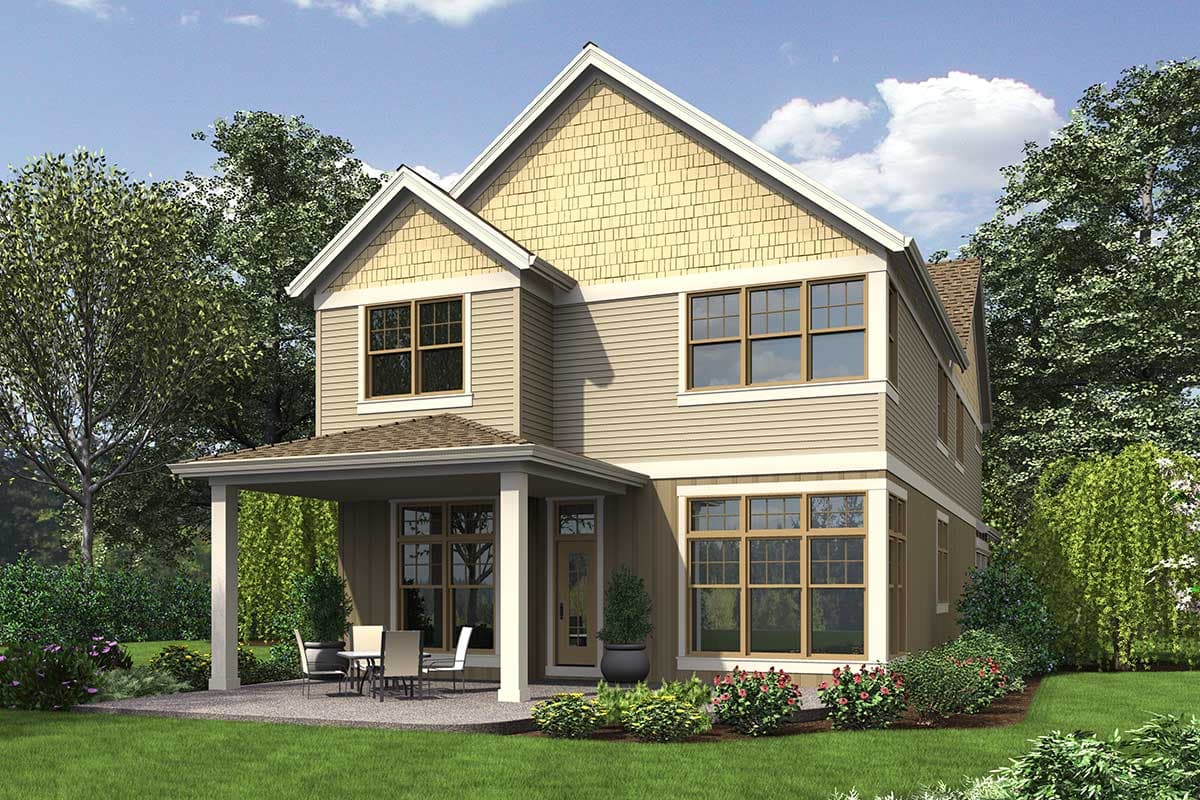

  • This narrow lot house plan has a great street presence. Porches on the front and back act like a well-matched pair of book-ends.
  • Inside, the house plan has great flow right from the roomy foyer with outdoor coat and shoe storage closet all the way to the back of the great room.
  • The large open floor plan layout includes a great room, kitchen with island and nook, and a formal dining room. A den, office, or guest bedroom, downstairs bathroom and large workshop complete the main floor.
  • Upstairs, the open staircase leads to a vaulted media loft, which houses space for a desk or media closet.
  • The master suite features a large vaulted bedroom with fireplace, bathroom with dual vanities, separated shower and spa tub, private water closet and large walk-in closet.
  • Three additional bedrooms with ample closet space (one with walk in closet and seating or desk space) offer room for larger or growing families.

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

Floor Plan

Plan details



Narrow Lot House Plan with a Pair of Porches

  • 3,048

    Heated s.f.

  • 4 - 5

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Digital Study Set $1,011
  • PDF - single-use $1,361
  • 5 Sets $1,511
  • 5 Sets PLUS $1,561
  • CAD - multi-use $2,722
  • View all purchase option online

About This Plan

  • This narrow lot house plan has a great street presence. Porches on the front and back act like a well-matched pair of book-ends.
  • Inside, the house plan has great flow right from the roomy foyer with outdoor coat and shoe storage closet all the way to the back of the great room.
  • The large open floor plan layout includes a great room, kitchen with island and nook, and a formal dining room. A den, office, or guest bedroom, downstairs bathroom and large workshop complete the main floor.
  • Upstairs, the open staircase leads to a vaulted media loft, which houses space for a desk or media closet.
  • The master suite features a large vaulted bedroom with fireplace, bathroom with dual vanities, separated shower and spa tub, private water closet and large walk-in closet.
  • Three additional bedrooms with ample closet space (one with walk in closet and seating or desk space) offer room for larger or growing families.

Floor Plans

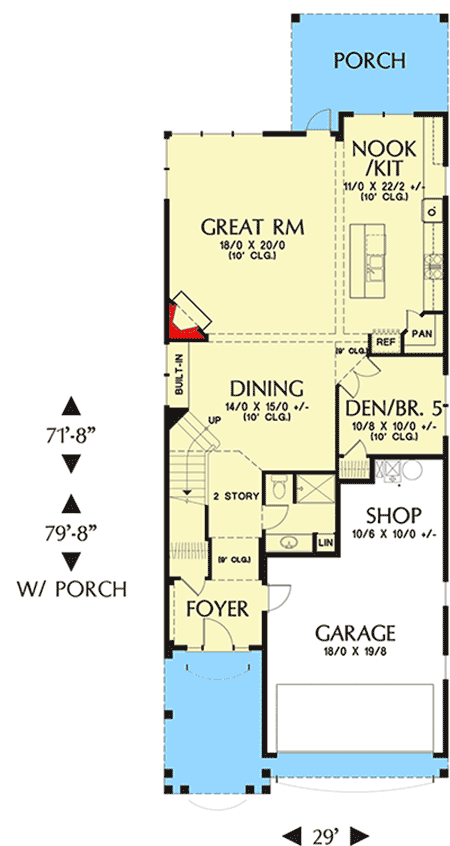

  • Main Level

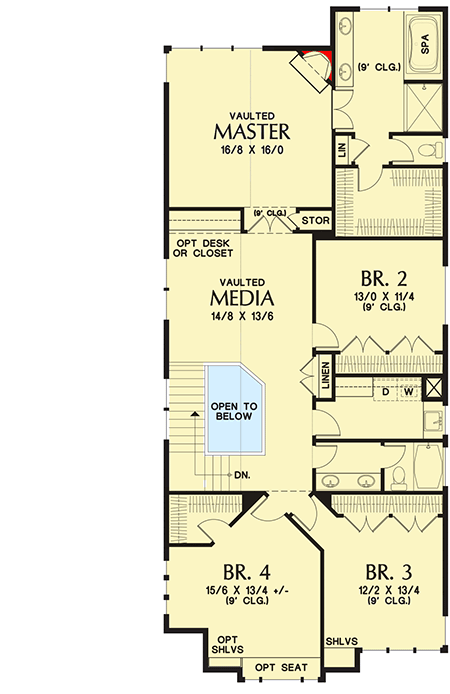

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,048 sq. ft.
  • 1st Floor: 1,766 sq. ft.
  • 2nd Floor: 1,282 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 29' 0"
  • Depth: 79' 8"
  • Max ridge height: 31' 11"

Garage

  • Type: Attached
  • Area: 486 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Framing Type: Truss
