Narrow Lot Modern Coastal House Plan

Plan 62860DJ

This plan plants 3 trees

2,731
Heated s.f.
4-5
Beds
3.5 - 4.5
Baths
2
Stories
2
Cars

This 32'-wide modern coastal house plans showcases single pitched rooflines and cedar accents and has a well-thought-out floor plan.
An entry with a 2 story ceiling greets you as soon as you step in the front door. Further, into the home, the dining room, great room, and kitchen all flow perfectly together.
The kitchen includes a large island with a snack bar and a large walk-in pantry. The great room is warmed by a fireplace that is flanked by built-in bookshelves and accesses the rear of the home through a triple sliding glass door.
Upstairs, you'll find all 4 bedrooms. The master suite includes his/her vanities, a walk-in closet, a soaking tub, and an enclosed toilet area. Bedroom 2 has access to its own bathroom while bedroom 3 and 4 share a convenient bathroom.
An optional finished basement adds 861 square feett to the plan and comes loaded with great features including an additional family room, an exercise room, and an additional bedroom and bathroom.

Each plan set includes:

Cover Sheet: Shows the front elevation and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Roof Plan
Typical wall section
Typical Stair section
Cabinets are shown on all plans.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

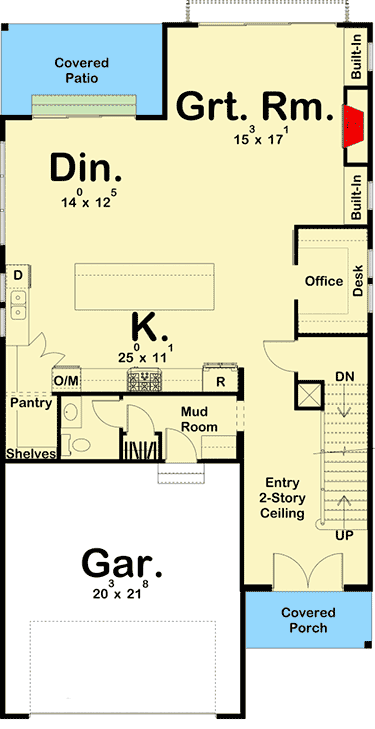

Narrow Lot Modern Coastal House Plan - 62860DJ floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Narrow Lot Modern Coastal House Plan - 62860DJ floor plan - 2nd Floor

Optional Lower Level +$250

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

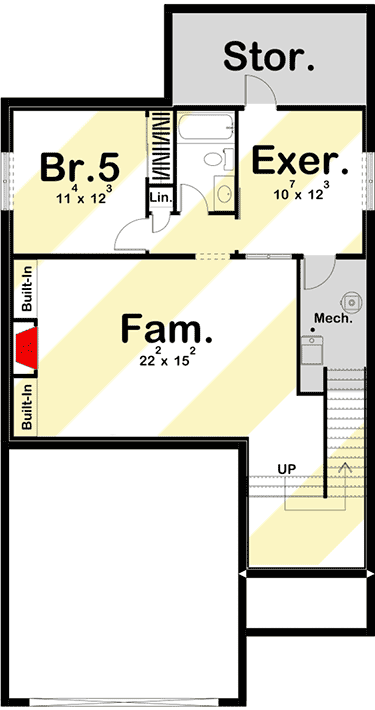

Narrow Lot Modern Coastal House Plan - 62860DJ floor plan - Optional Lower Level +$250

Plan details

Square Footage Breakdown

Total Heated Area: 2,731 sq. ft.
1st Floor: 1,229 sq. ft.
2nd Floor: 1,502 sq. ft.

Optional Lower Level: 861 sq. ft.

Beds/Baths

Bedrooms: 4 or 5

Full bathrooms: 3 or 4
Half bathrooms: 1

Foundation Type

Standard Foundations: Basement

Optional Foundations: Slab, Crawl, Walkout

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Optional Type(s): 2x6

Dimensions

Width: 32' 0"
Depth: 60' 0"

Garage

Type: Attached
Area: 457 sq. ft.
Count: 2 Cars
Entry Location: Front

Ceiling Heights

Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"
