Plan 22406DR
Narrow Lot Northwest House Plan
Heated S.F.
2,288
Beds
3
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details
  • A two-story foyer and open floor plan serve to make this narrow lot Northwest house plan feel larger.
  • Two interior columns in the main living area keep the sight-lines flowing between rooms.
  • Sliding glass doors in the dining area lead out to your back yard.
  • The upper floor is loaded with surprises such as the convenient laundry room and a pocket office in the master suite.
  • Each bedroom is a generous size and there's open railing in the hallway so you can see down into the foyer below.
What's Included

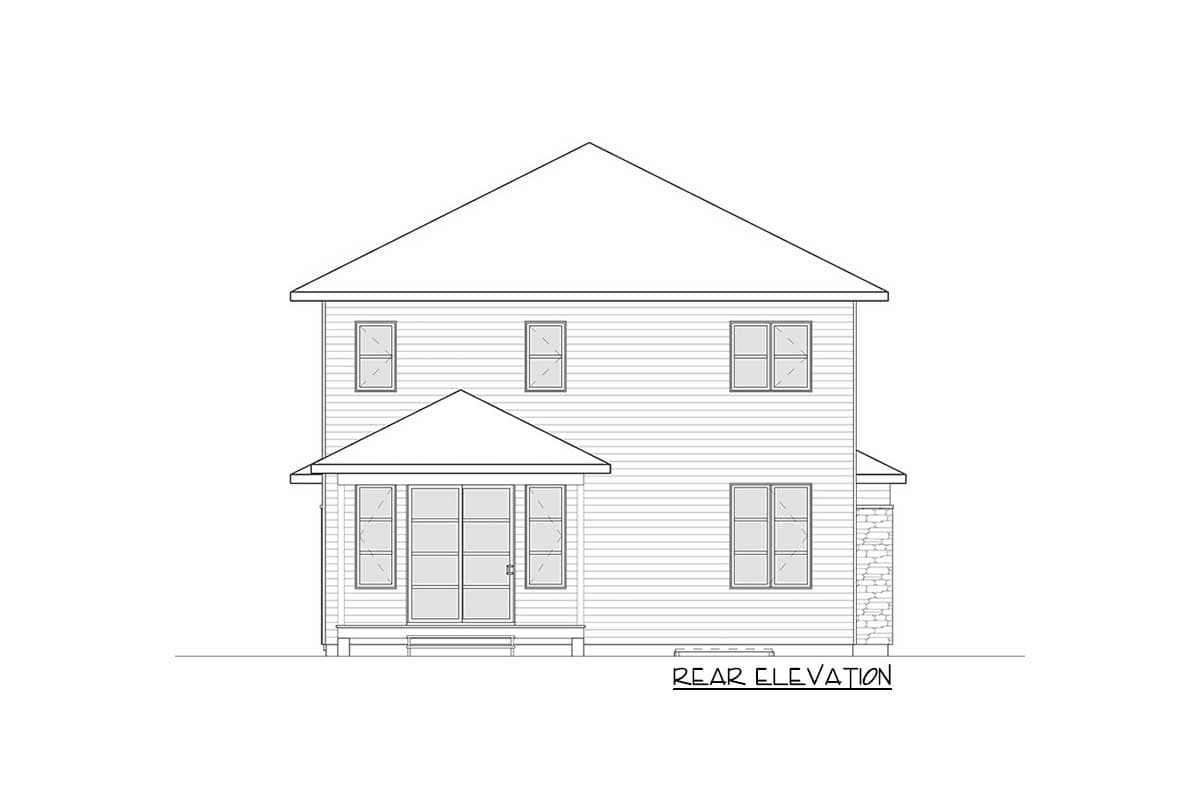

  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Narrow Lot Northwest House Plan

  • 2,288

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

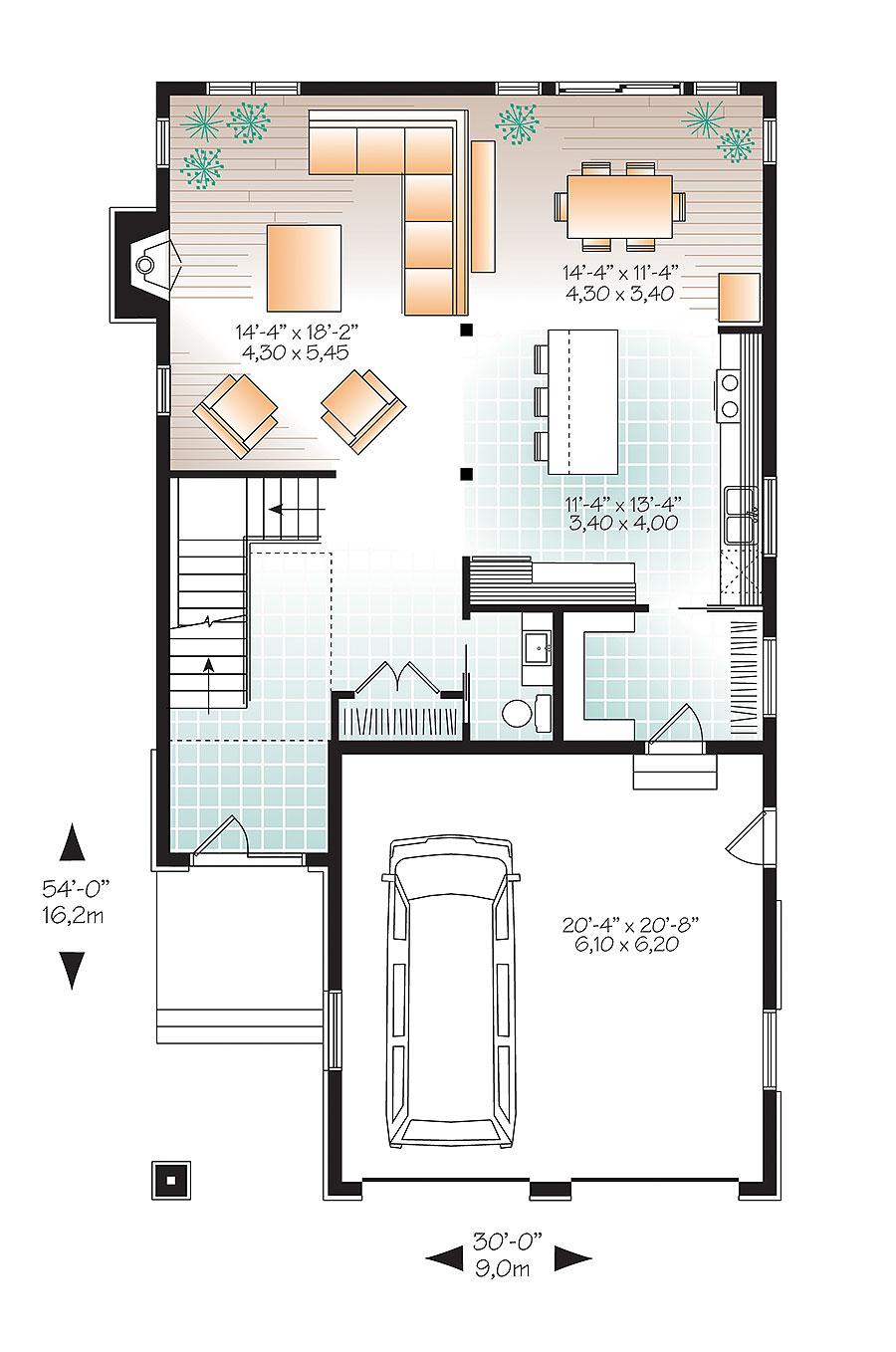

  • Main Level

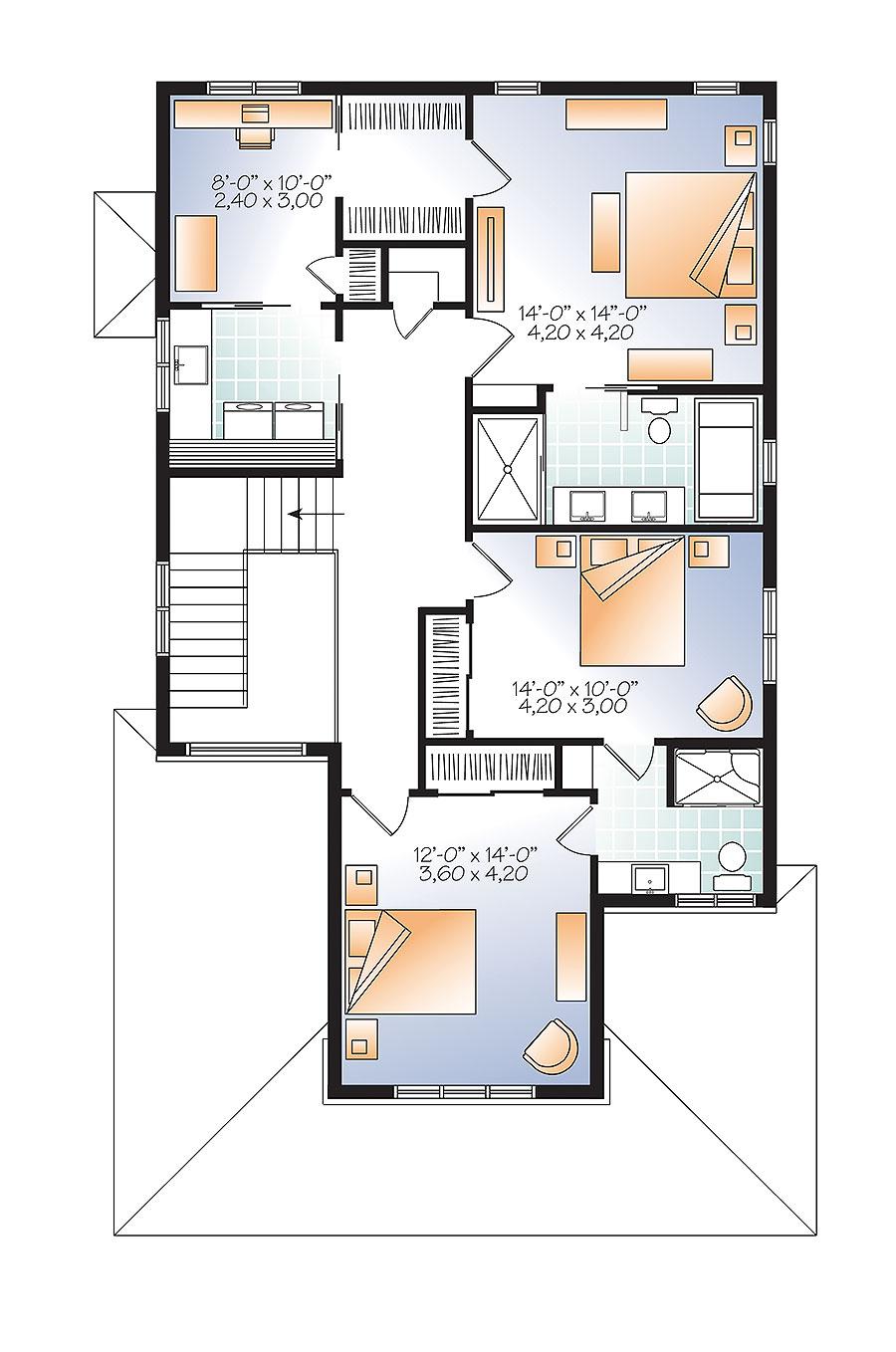

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,288 sq. ft.
  • 1st Floor: 1,025 sq. ft.
  • 2nd Floor: 1,263 sq. ft.

Dimensions

  • Width: 30' 0"
  • Depth: 54' 0"
  • Max ridge height: 28' 7"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 462 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Walkout, Daylight, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"
