Plan 62541DJ
Narrow Lot Traditional Home Plan
Heated S.F.
2,294
Beds
4
Baths
2.5 - 3.5
Stories
2
Cars
1
What's Included
Plan Details
  • Modest in size, this narrow lot Traditional home was designed with special touches such as arched entryways between rooms and built-ins that flank the great room fireplace.
  • Even the mud room benefits, with a bench and lockers to keep things organized.
  • The formal living room is off by itself but the rest of the main living area is all open concept.
  • Pocket doors closet the pantry off from the kitchen and the living room.
  • The laundry room is located on the second floor - a wonderful convenience.
  • Homewoners will enjoy the master suite with its tray ceiling, private bathroom and big walk-in closet.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Narrow Lot Traditional Home Plan

  • 2,294

    Heated s.f.

  • 4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

  • 1

    Car garage

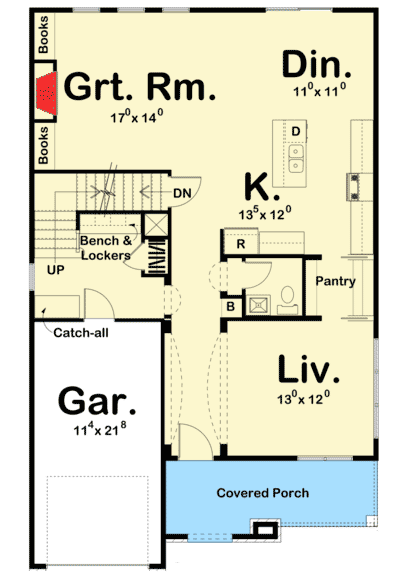

Floor Plan

  • Main Level

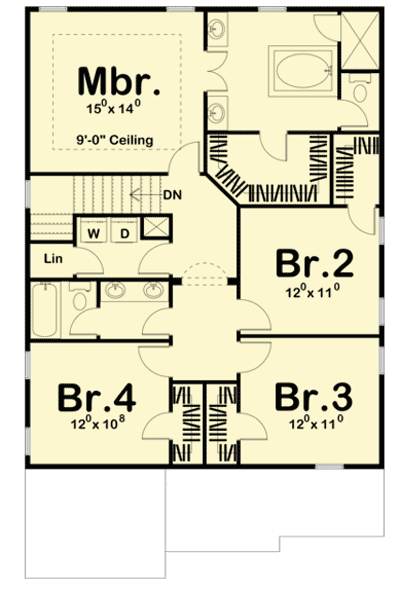

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,294 sq. ft.
  • 1st Floor: 1,099 sq. ft.
  • 2nd Floor: 1,195 sq. ft.

Dimensions

  • Width: 31' 0"
  • Depth: 50' 0"
  • Max ridge height: 35' 5"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 260 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
