Narrow New American House Plan with Main-Floor Guest Suite - 2417 Sq Ft

Heated S.F.
2,417
Beds
5
Baths
3.5
Stories
2
Cars
2

Floor Plan

Plan 135127GRA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 135127GRA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

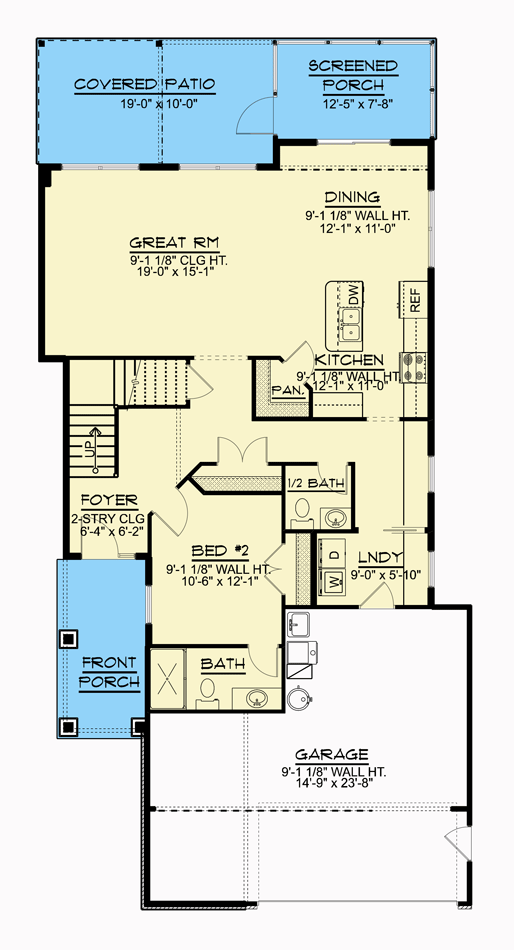

Plan 135127GRA: Narrow New American House Plan with Main-Floor Guest Suite - 2417 Sq Ft - Floor Plan - Main Level - Craftsman, New American, Traditional

2nd Floor

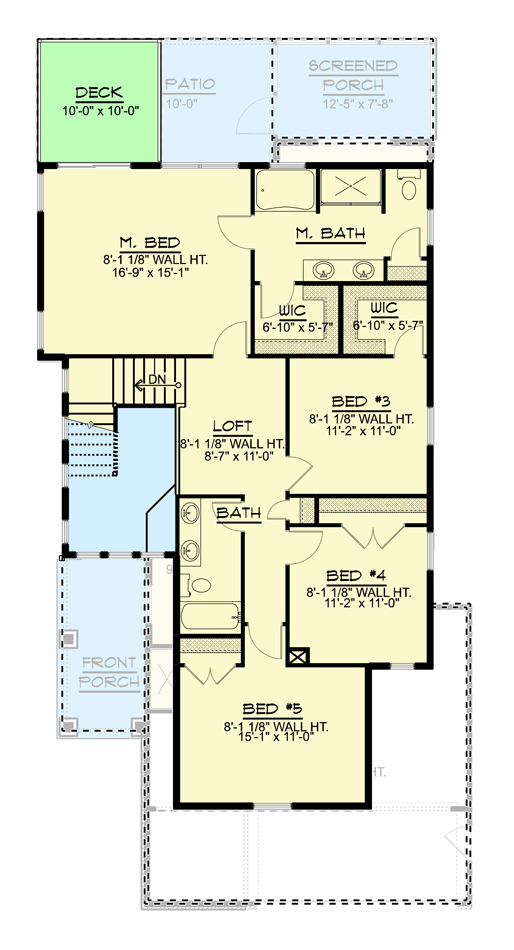

Plan 135127GRA: Narrow New American House Plan with Main-Floor Guest Suite - 2417 Sq Ft - Floor Plan - 2nd Floor - Craftsman, New American, Traditional

Plan Details

  • At a width of 35 feet, this New American house plan stays within narrow plot lines. Timber-framed gables and stone accents add to the stunning curb appeal.
  • The two-story foyer greets you upon entering, while the open living space occupies the back of the main level, taking advantage of any rearward views and extending onto a partially-screened porch.
  • Extra space in the double garage is perfect for storage, and a combined laundry / mudroom just inside can be shut off by a pocket door.
  • A bedroom suite on the main level is perfect for guests, while the remaining four bedrooms can be found. upstairs surrounding a loft.
  • The largest of the second level bedrooms is reserved for the homeowner and enjoys a private deck and ensuite with all of the amenities.

What's Included

  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,417 sq. ft.

1st Floor

1,204 sq. ft.

2nd Floor

1,213 sq. ft.

Porch, Front

208 sq. ft.

Deck

100 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

35' 0"

Depth

52' 4"

Max Ridge Height

28' 1"

Garage

Type

Attached

Area

537 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Craftsman

New American

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Loft

Master Suite - Upstairs

Mudroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

2,417 sq. ft.

1st Floor

1,204 sq. ft.

2nd Floor

1,213 sq. ft.

Porch, Front

208 sq. ft.

Deck

100 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

35' 0"

Depth

52' 4"

Max Ridge Height

28' 1"

Garage

Type

Attached

Area

537 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Craftsman

New American

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Loft

Master Suite - Upstairs

Mudroom

Walk-in Pantry
