Plan 42711DB

Narrow Northwest House Plan with Tandem Garage

Heated S.F.
2,007
Beds
4
Baths
3.5
Stories
2
Cars
2

Floor Plan

Plan 42711DB

Main Level
Main Level
2nd Floor
2nd Floor

Plan 42711DB

M-F 9am-5pm EST |

1-203-761-8500

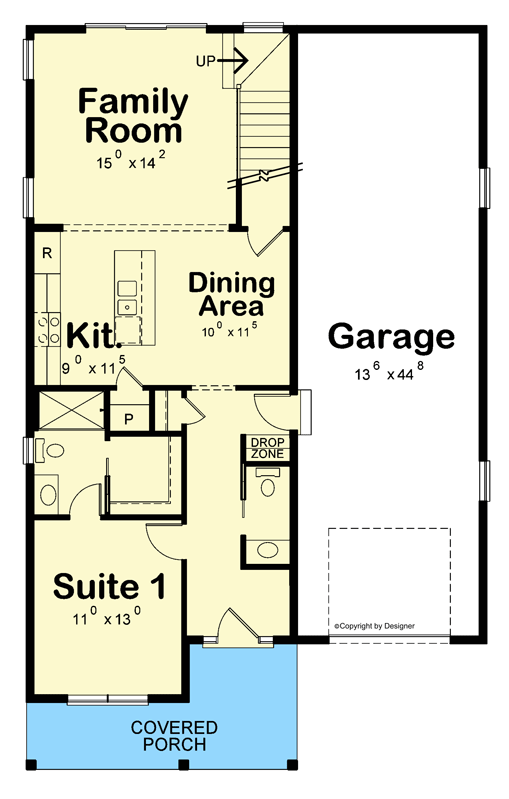

Main Level

Plan 42711DB: Narrow Northwest House Plan with Tandem Garage - Floor Plan - Main Level - Contemporary, Modern, Northwest

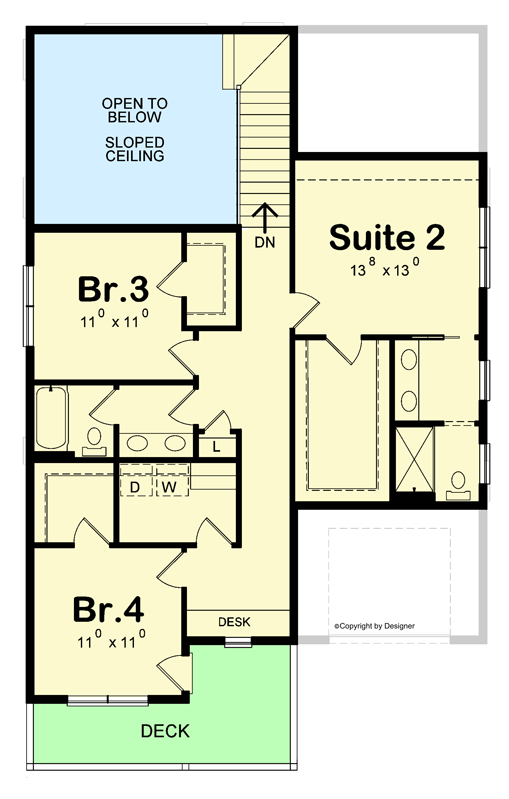

2nd Floor

Plan 42711DB: Narrow Northwest House Plan with Tandem Garage - Floor Plan - 2nd Floor - Contemporary, Modern, Northwest

Plan Details

  • The gabled roof pairs with a shed style roof to give a modern aesthetic to the exterior of this Northwest house plan, suitable for narrow lots with a width of 34 ft.
  • A bedroom suite on both the main and second levels allows the homeowner to choose their preference, while offering a comfortable second suite for family or guests.
  • The open living space resides towards the rear of the first floor and includes an island kitchen with a pantry.
  • The tandem garage provides space for two and a drop zone just inside is perfect for keys and mail.
  • Laundry is conveniently located upstairs, next to three bedrooms; one includes a 4-fixture bath and large closet, and two share a compartmentalized bath with a dual-sink vanity.

What's Included

  • General Notes

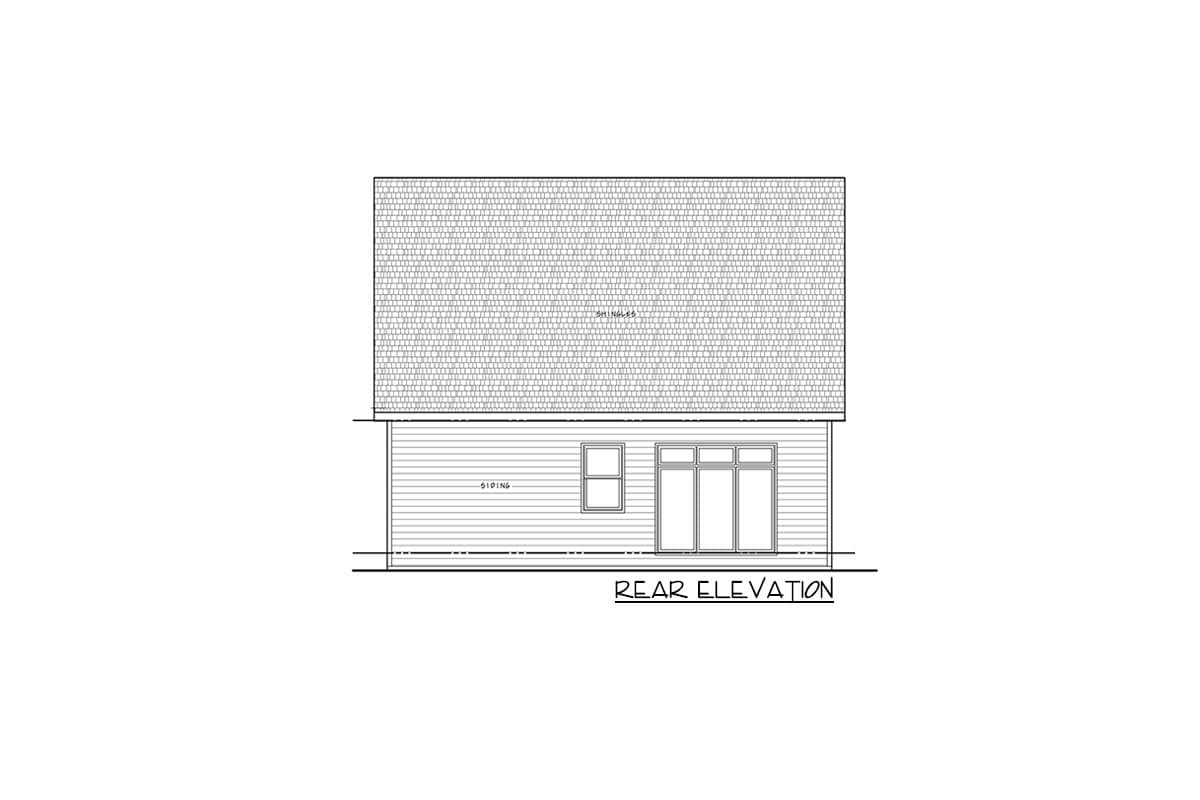

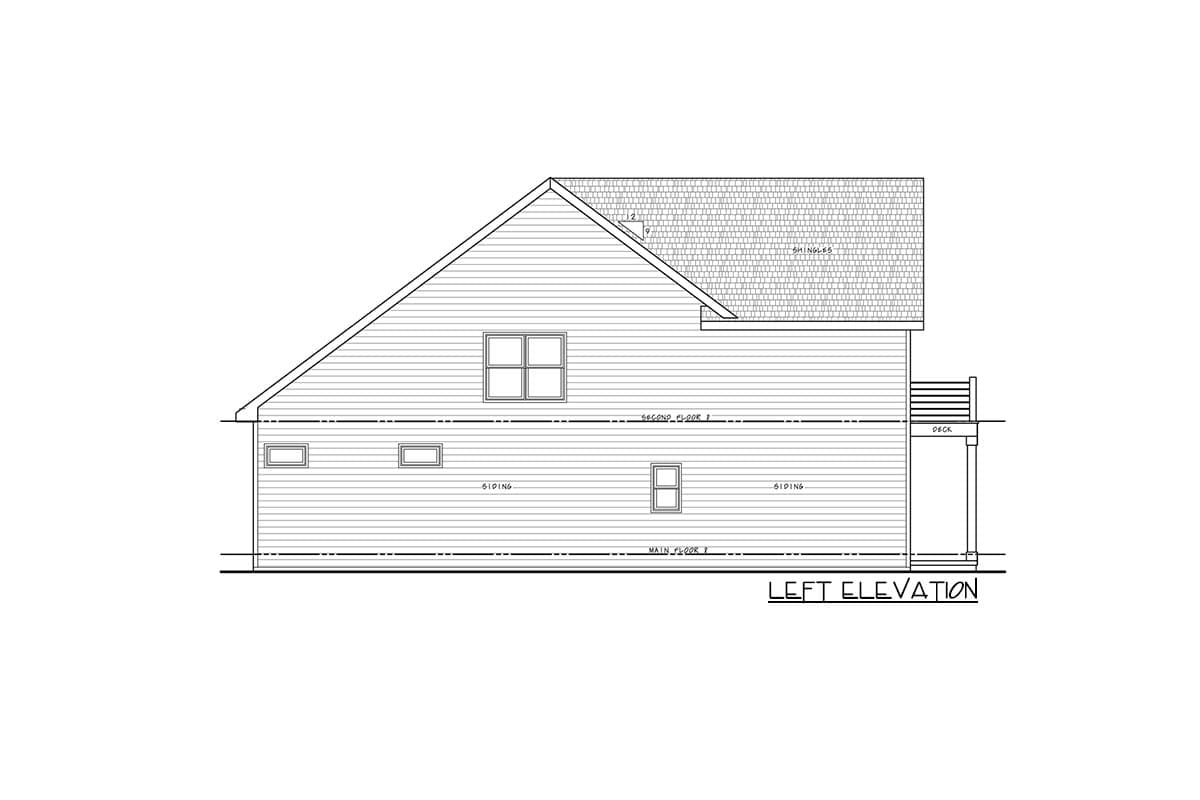

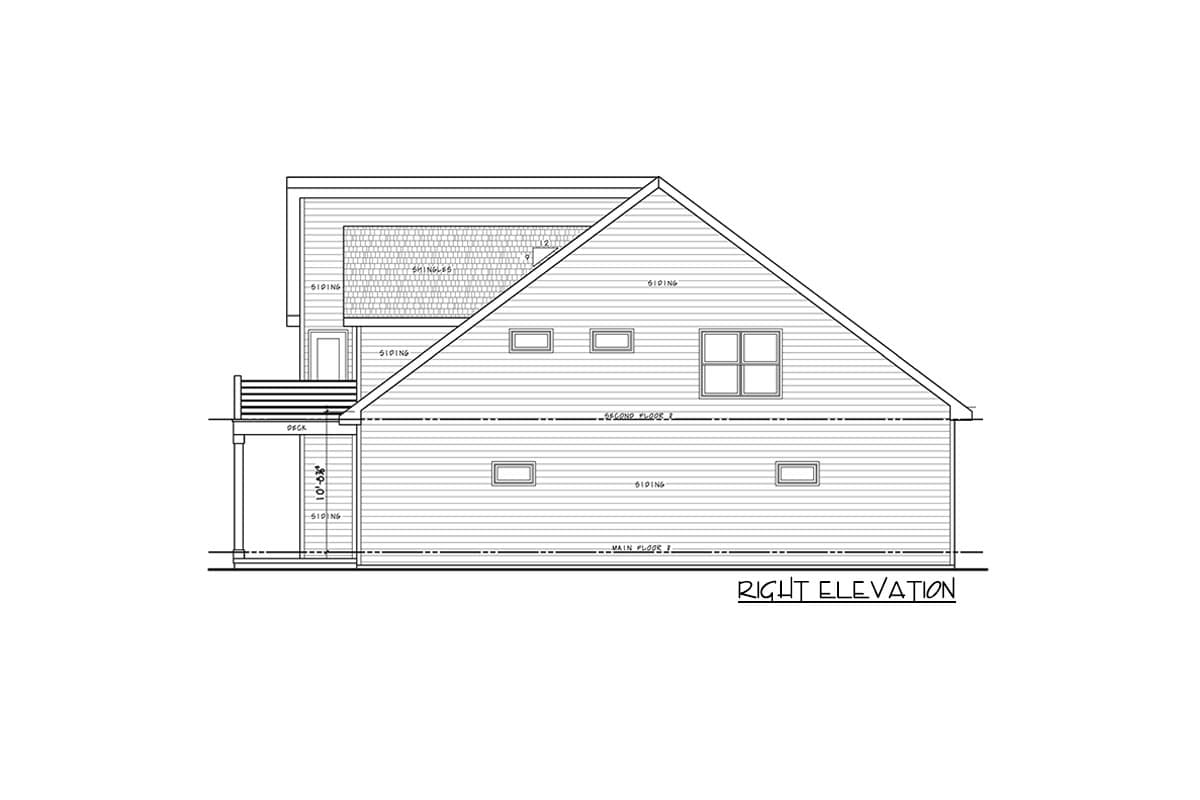

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,007 sq. ft.

1st Floor

965 sq. ft.

2nd Floor

1,042 sq. ft.

Porch, Front

135 sq. ft.

Porch, Rear

135 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

34' 0"

Depth

50' 0"

Max Ridge Height

30' 11"

Garage

Type

Attached

Area

639 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

9 on 12

Architectural Style

Contemporary

Modern

Northwest

Special Features

Laundry - Upstairs

Master Suite - 1st Floor

Master Suite - Upstairs
