Plan 21478DR
Nature-Embracing Chalet
Heated S.F.
1,381
Beds
3
Baths
1.5
Stories
2
What's Included
Plan Details

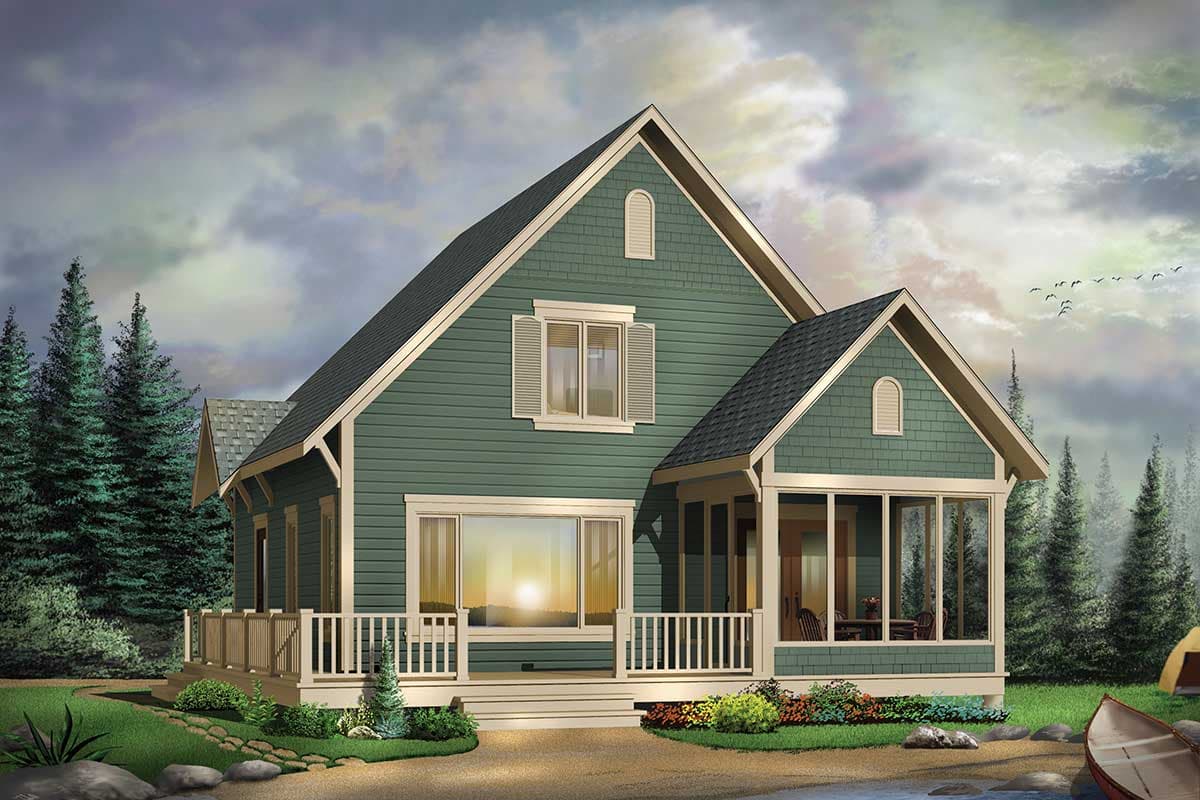

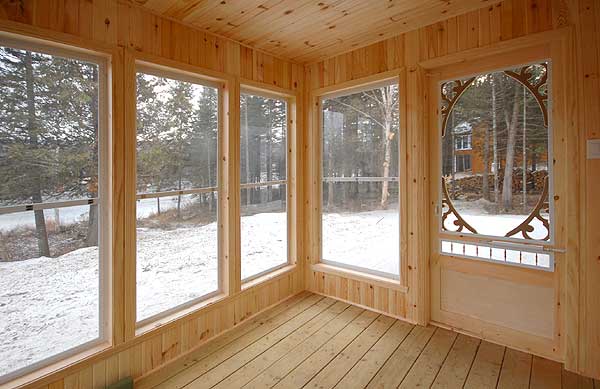

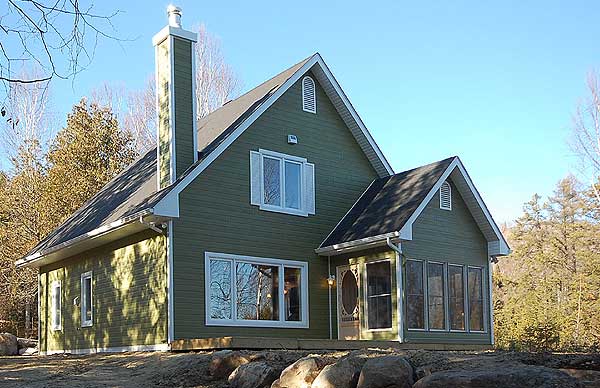

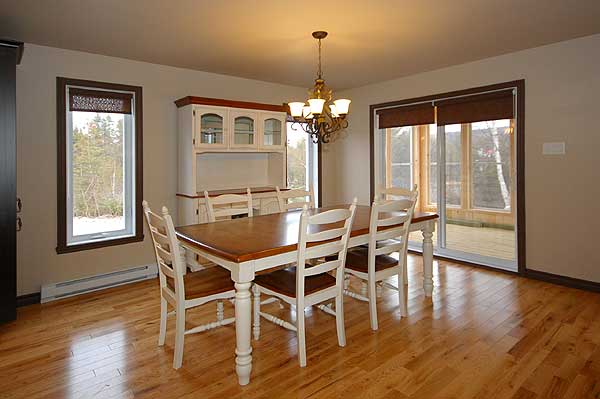

  • An inviting porch on two sides invites you to relax while a screened porch makes it tempting to share a meal with family or friends free of bugs.

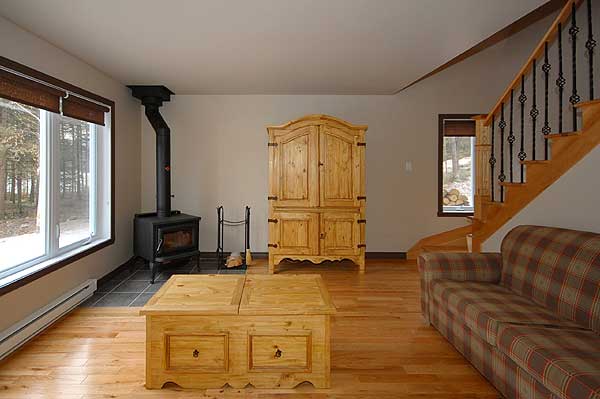

  • The large foyer includes a walk-in coat closet. Beyond, the activity area is entirely open and has abundant windows.

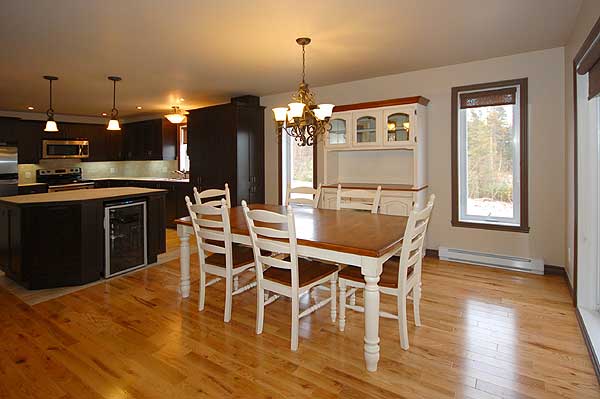

  • A central lunch island in the kitchen is a great feature and allows the the cook to view the surroundings.

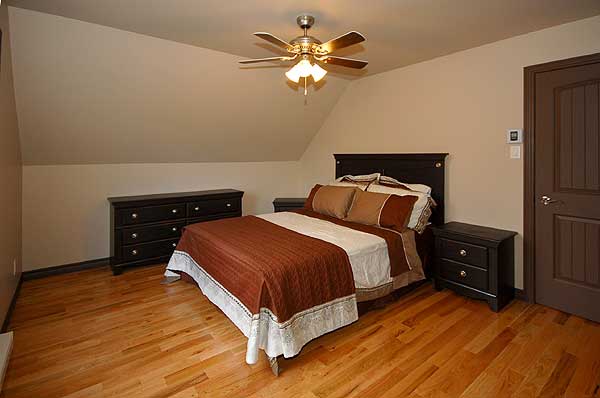

  • On the upper level, you'll appreciate the large master suite with a view on the panoramic side of the house. There are also two secondary bedrooms and a chalet type bathroom enhanced with a roof window to ensure natural lighting.
  • Related Plan: Get a walkout basement with house plan 22311DR.
What's Included

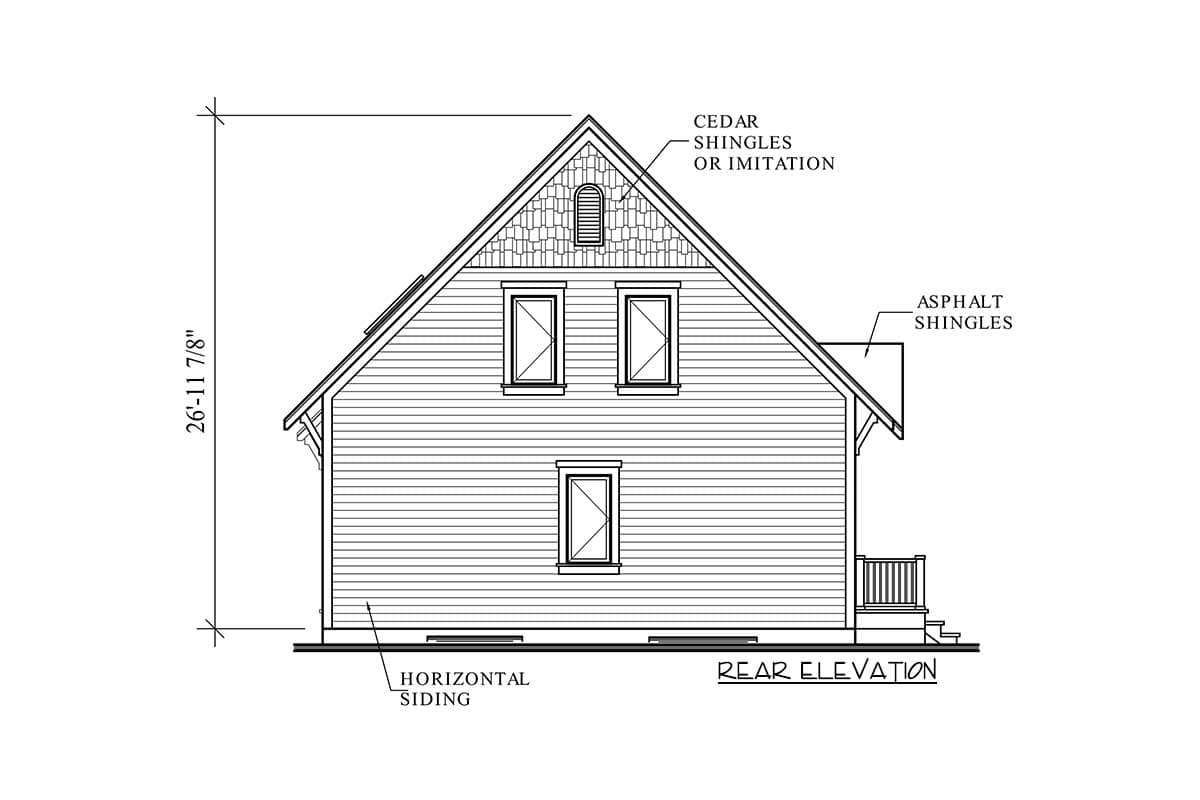

  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Nature-Embracing Chalet

  • 1,381

    Heated s.f.

  • 3

    Beds

  • 1.5

    Baths

  • 2

    Floors

Floor Plan

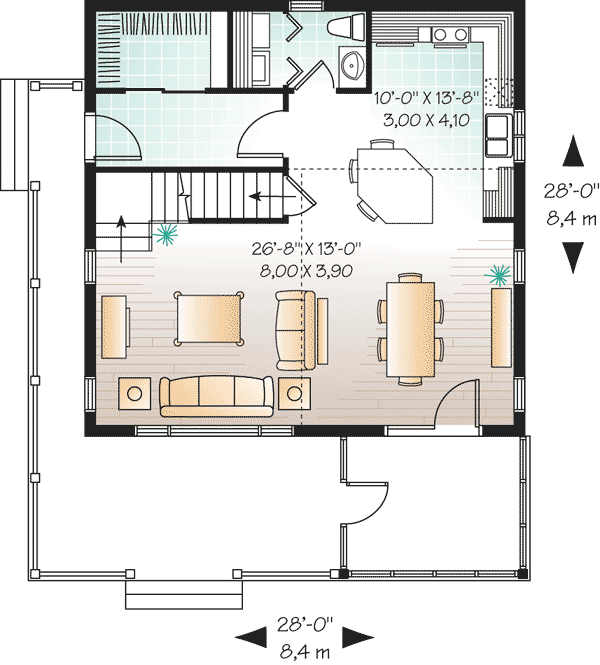

  • Main Level

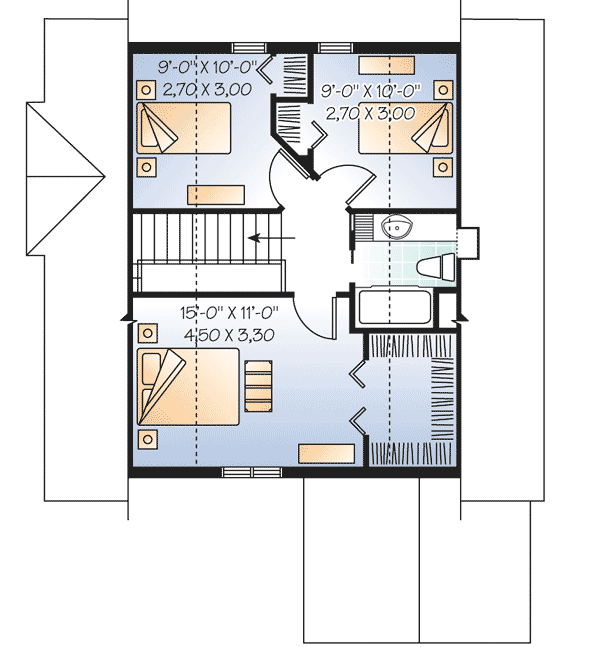

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,381 sq. ft.
  • 1st Floor: 784 sq. ft.
  • 2nd Floor: 597 sq. ft.

Dimensions

  • Width: 28' 0"
  • Depth: 28' 0"
  • Max ridge height: 27' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Daylight, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6
