Plan 890143AH

New American 3-Bed House Plan with Split Layout and 3-Car Garage

Heated S.F.
1,495
Beds
3
Baths
2
Stories
1
Cars
3

Floor Plan

Plan 890143AH

Main Level
Main Level
Optional Lower Level Layout ($ Paid Option
Optional Lower Level Layout ($ Paid Option

Plan 890143AH

M-F 9am-5pm EST |

1-203-761-8500

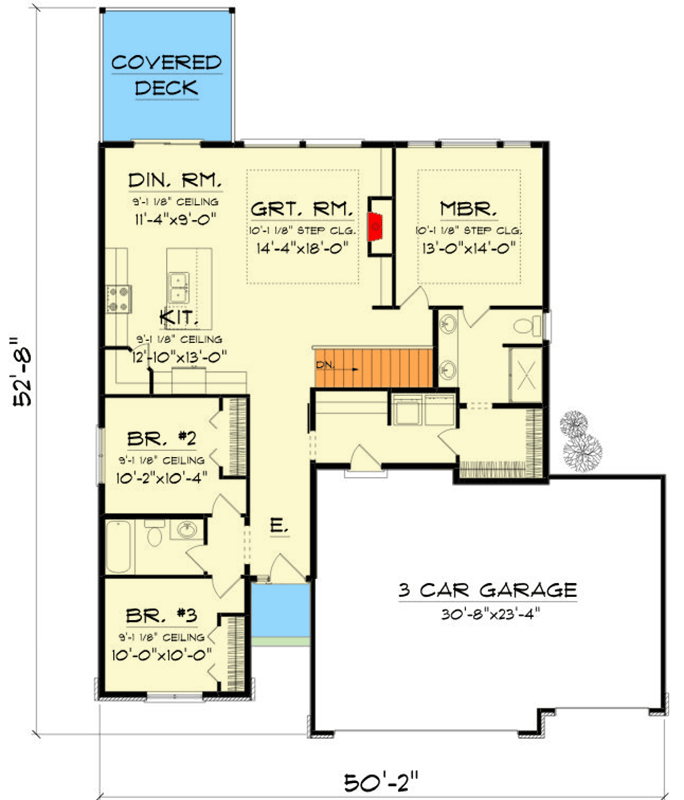

Main Level

Plan 890143AH: New American 3-Bed House Plan with Split Layout and 3-Car Garage - Floor Plan - Main Level - New American, Ranch

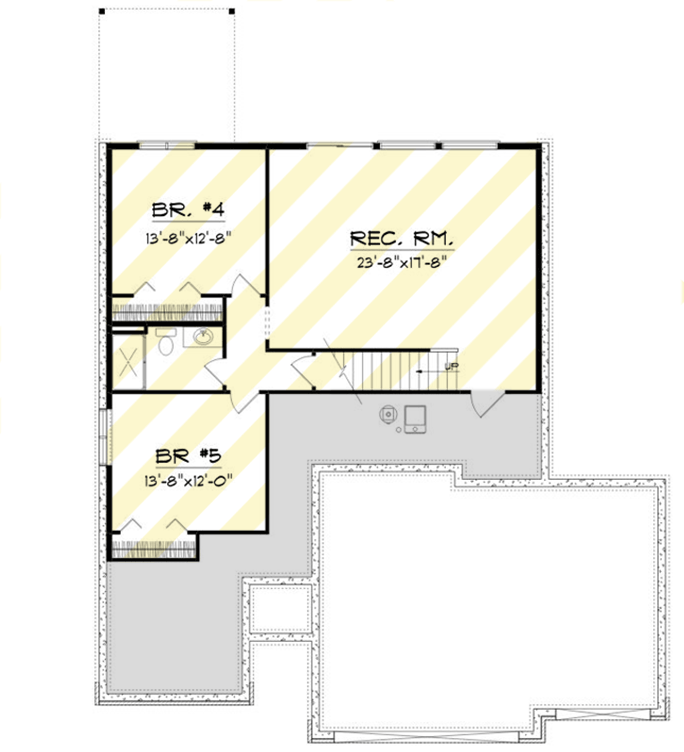

Optional Lower Level Layout ($ Paid Option

Plan 890143AH: New American 3-Bed House Plan with Split Layout and 3-Car Garage - Floor Plan - Optional Lower Level Layout ($ Paid Option - New American, Ranch

Plan Details

  • This captivating 1,495 sq. ft. New American style house plan features 3 bedrooms, 2 full bathrooms, and an expansive 698 sq. ft. attached 3-car garage, offering both comfort and functional elegance.
  • Step inside to discover a welcoming foyer that opens directly into the home's open-concept core, while a convenient mudroom and laundry area, complete with direct access from the 3-car garage, ensures everyday functionality.
  • The heart of the home is an inviting open-concept space, where the gourmet kitchen, featuring a generous island and a practical butler walk-in pantry, flows effortlessly into the dining room and the spacious great room, which is distinguished by a stylish step ceiling.
  • The intelligent split-bedroom layout places the luxurious master suite on one side, boasting a step ceiling and direct access to the main-level laundry room, offering a private retreat, while two additional bedrooms and a full bathroom are thoughtfully situated on the opposite side of the home for family or guests.
  • An optional lower level expands the living possibilities, featuring a generously sized recreation room perfect for entertaining or relaxation, alongside two additional bedrooms and a full bathroom, ideal for a growing family or accommodating visitors.
  • A serene covered deck extends from the dining area, providing an ideal spot for morning coffee or evening gatherings, seamlessly blending indoor comfort with outdoor enjoyment.

What's Included

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,495 sq. ft.

1st Floor

1,495 sq. ft.

Optional Lower Level

1,003 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 2"

Depth

52' 8"

Max Ridge Height

20' 7"

Garage

Type

Attached

Area

698 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Room

Ceiling Type

Height

Garage

Flat

0' 0''

Great Room

Step

0' 0''

Kitchen

Flat

0' 0''

Dining Room

Flat

0' 0''

Master Bedroom

Step

0' 0''

Bedroom 2

Flat

0' 0''

Bedroom 3

Flat

0' 0''

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

5 on 12

Framing Type

Truss

Architectural Style

New American

Ranch

Special Features

Bedrooms - Split

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry
