New American Carriage House Plan with 3-Car Garage

Plan 623174DJ

  • 912

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Stories

  • 3

    Cars

  • Designed to pair well with any home / neighborhood, this New American plan offers a fresh twist on the classic carriage house.
  • Three garage bays on the main level lead into an entryway with built-in lockers and a coat closet.
  • Stairs near the entry guide you to the second level to find a 912 square foot apartment where a Cathedral ceiling crowns the open kitchen, dining, and living spaces.
  • Cabinetry and appliances line the wall and a prep island creates an easy flow in the communal areas.
  • The bedroom delivers a tray ceiling and is bordered by a walk-in closet with a stackable washer / dryer unit, along with a compartmentalized bathroom.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

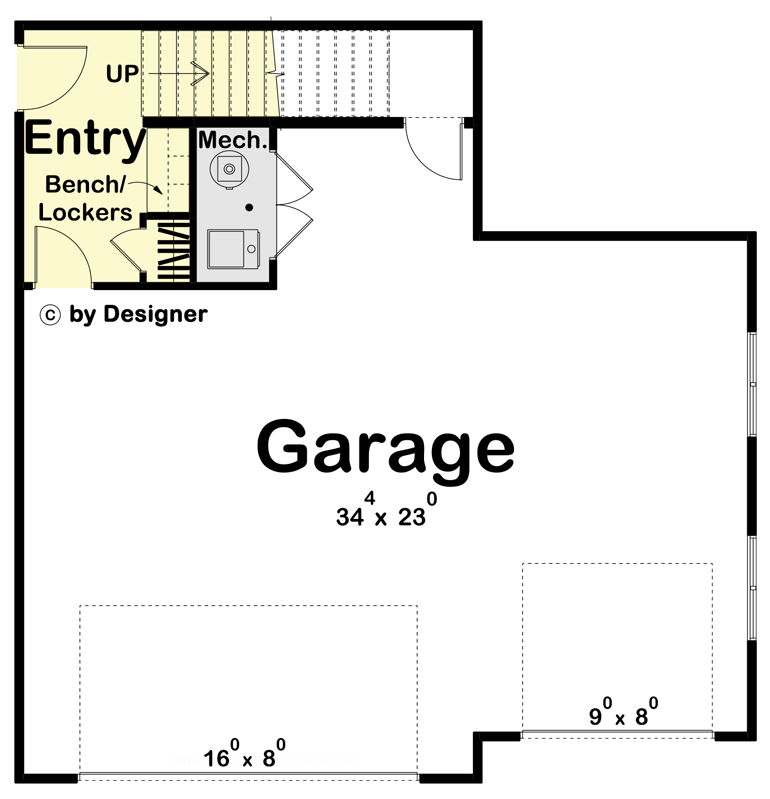

New American Carriage House Plan with 3-Car Garage - 623174DJ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

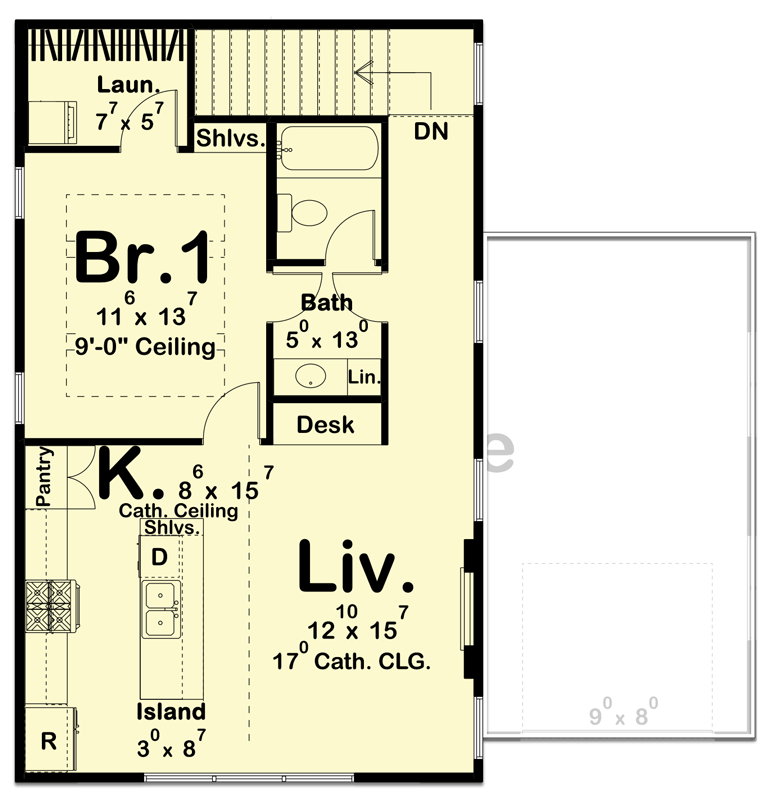

New American Carriage House Plan with 3-Car Garage - 623174DJ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 912 sq. ft.
  • 1st Floor: 175 sq. ft.
  • 2nd Floor: 737 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 35' 0"
  • Depth: 36' 0"
  • Max ridge height: 30' 3"

Garage

  • Type: Attached
  • Area: 899 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 4 On 12; 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

New American Carriage House Plan with 3-Car Garage

  • 912

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,000
  • 5 Sets + PDF $1,250
  • CAD + PDF - Single-Build $1,500
  • PDF - Unlimited Build $1,500
  • CAD - Unlimited Build $2,000
  • View all purchase option online

About This Plan

  • Designed to pair well with any home / neighborhood, this New American plan offers a fresh twist on the classic carriage house.
  • Three garage bays on the main level lead into an entryway with built-in lockers and a coat closet.
  • Stairs near the entry guide you to the second level to find a 912 square foot apartment where a Cathedral ceiling crowns the open kitchen, dining, and living spaces.
  • Cabinetry and appliances line the wall and a prep island creates an easy flow in the communal areas.
  • The bedroom delivers a tray ceiling and is bordered by a walk-in closet with a stackable washer / dryer unit, along with a compartmentalized bathroom.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 912 sq. ft.
  • 1st Floor: 175 sq. ft.
  • 2nd Floor: 737 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 35' 0"
  • Depth: 36' 0"
  • Max ridge height: 30' 3"

Garage

  • Type: Attached
  • Area: 899 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 4 On 12; 6 on 12
  • Framing Type: Truss
Plan 623174DJ
View this and more for this plan by visiting www.architechtecturaldesigns.com/623174DJ
|
Need Help? 800-854-7852
|
