Plan 623160DJ
New American Carriage House Plan with RV Garage and Shop - 1870 Sq Ft
Heated S.F.
1,870
Beds
2
Baths
3
Stories
2
Cars
3
Tour
What's Included
Plan Details

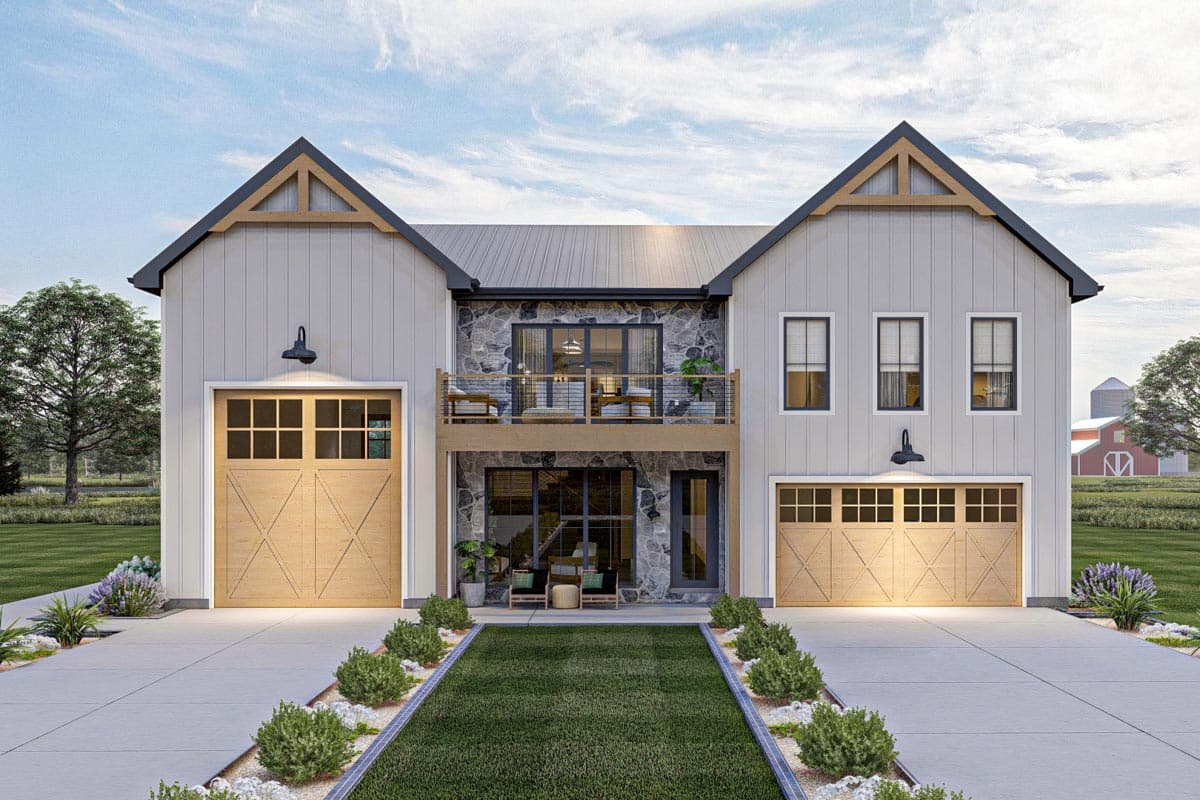

  • Two gabled rooflines stand proudly above overhead garage doors on the front façade of this New American Carriage house plan. To the left, oversized front and rear doors provide drive-thru capabilities for an RV.
  • The RV garage includes a 13' by 13' shop with a built-in workbench.
  • A recreation room is centrally located and accessible from each garage and the front patio. A full bathroom and 4-seasons room complete the main level.

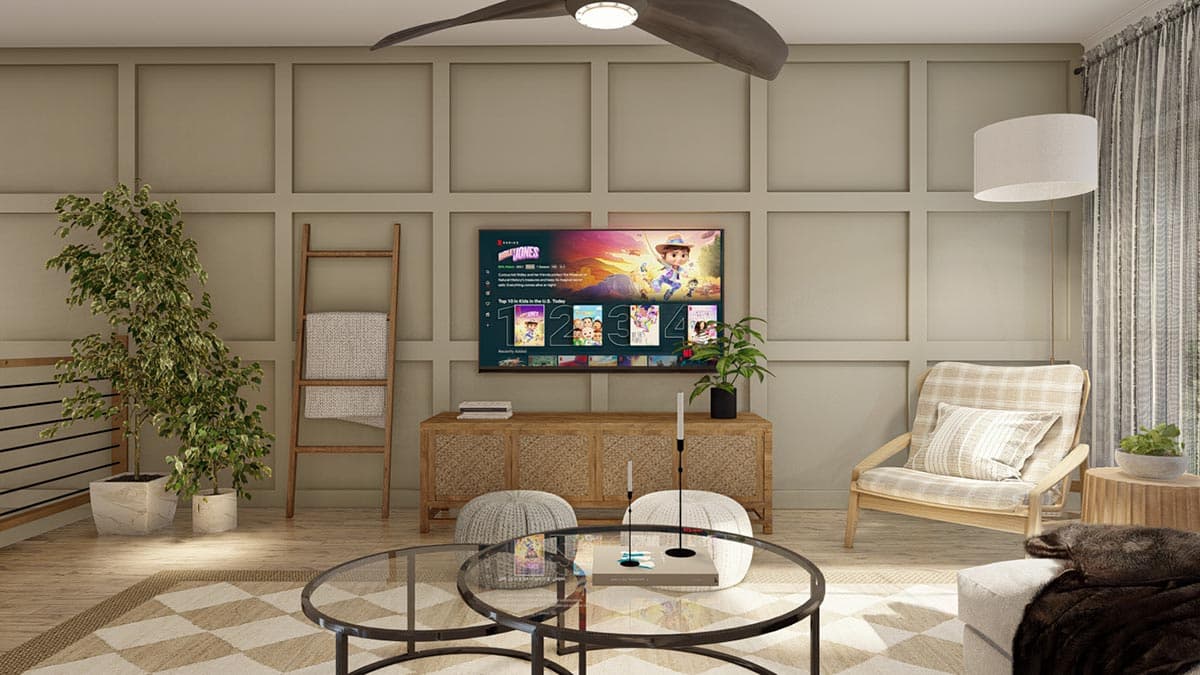

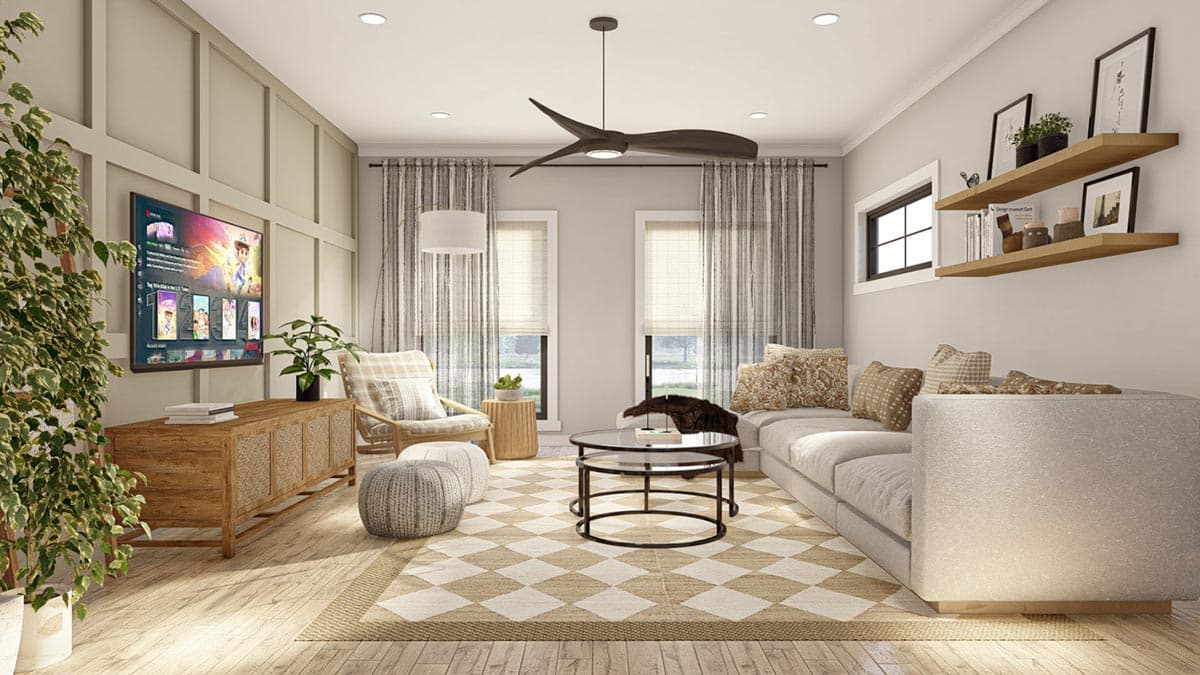

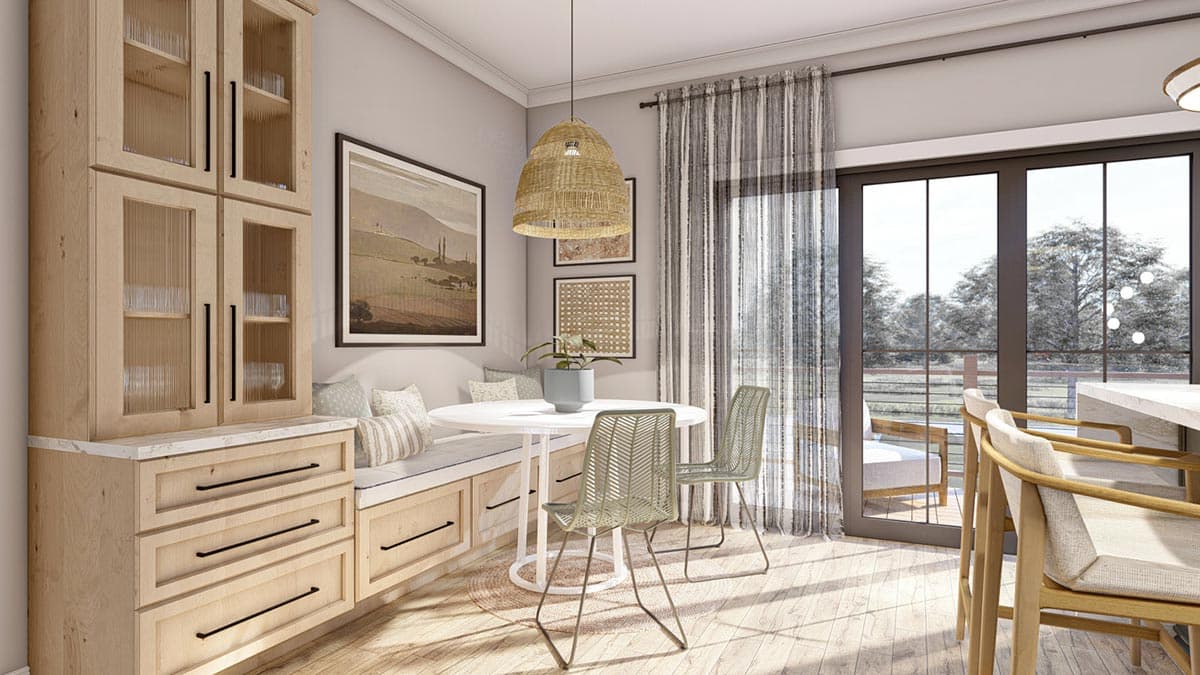

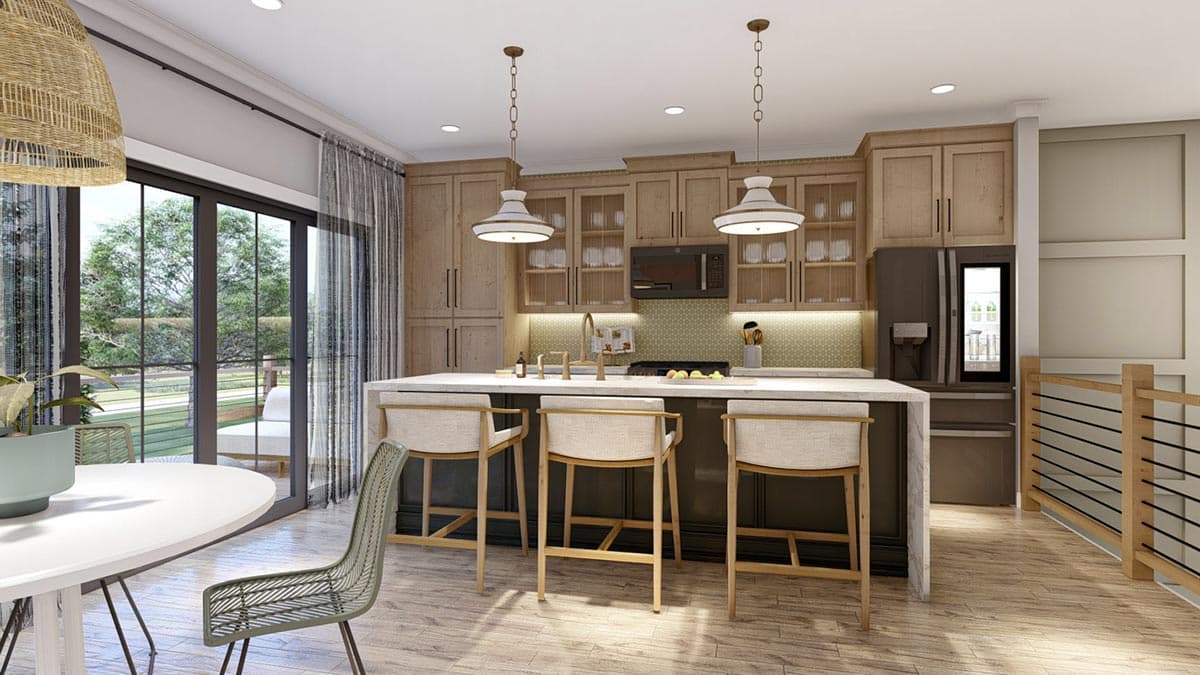

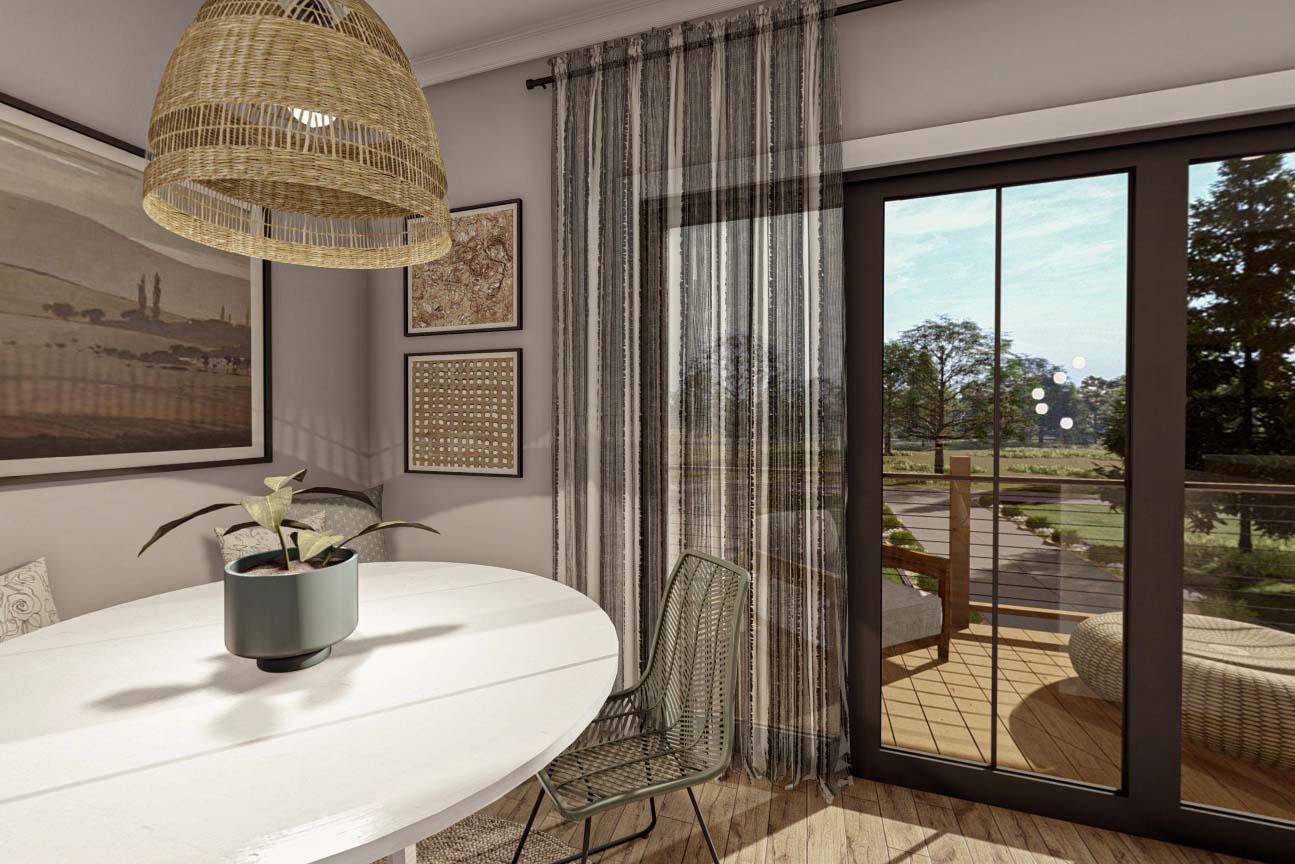

  • Upstairs, the kitchen and dining area open onto a forward-facing deck, while a great room provides a secondary gathering space.

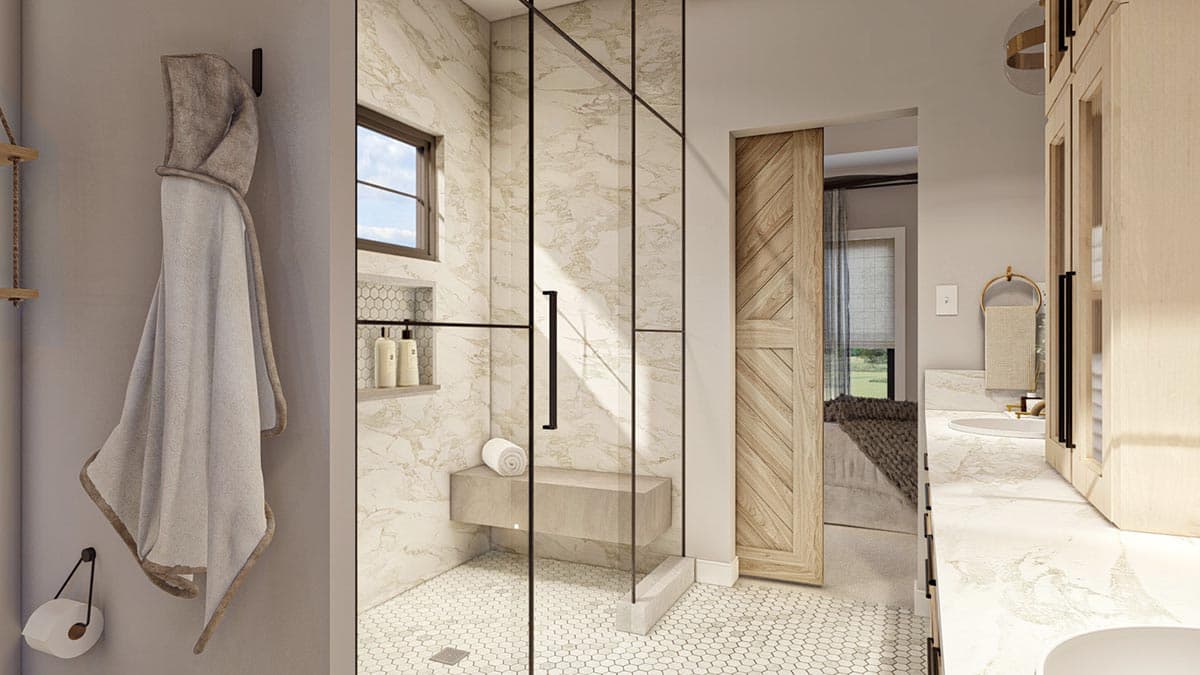

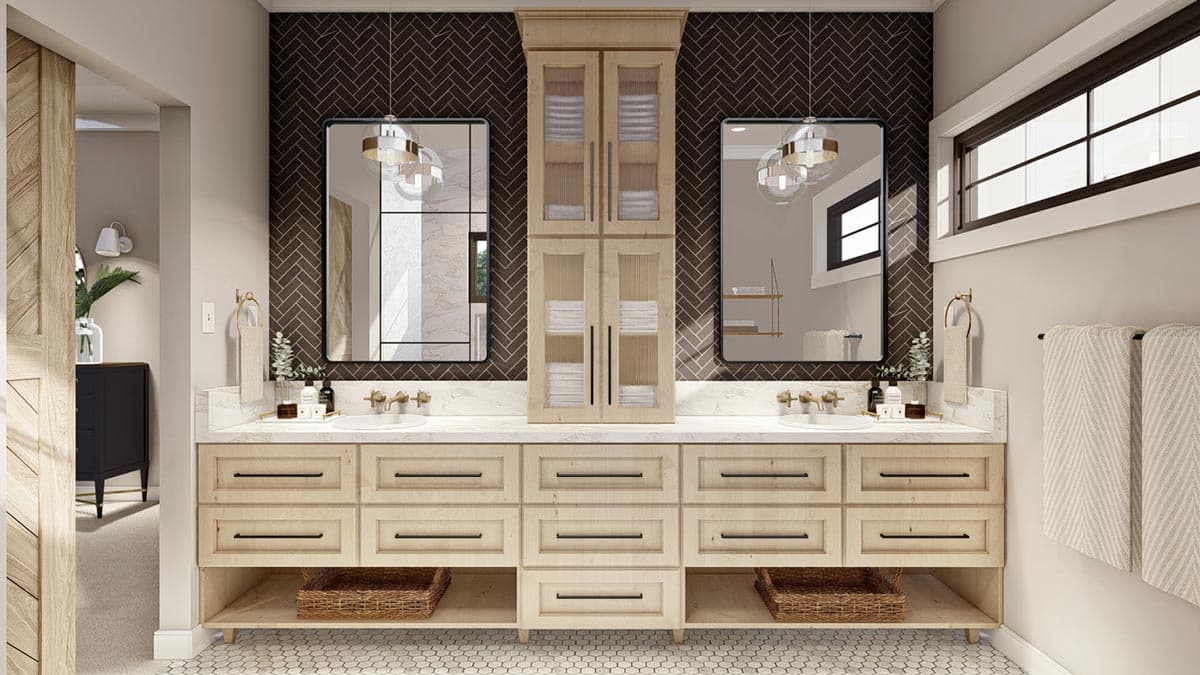

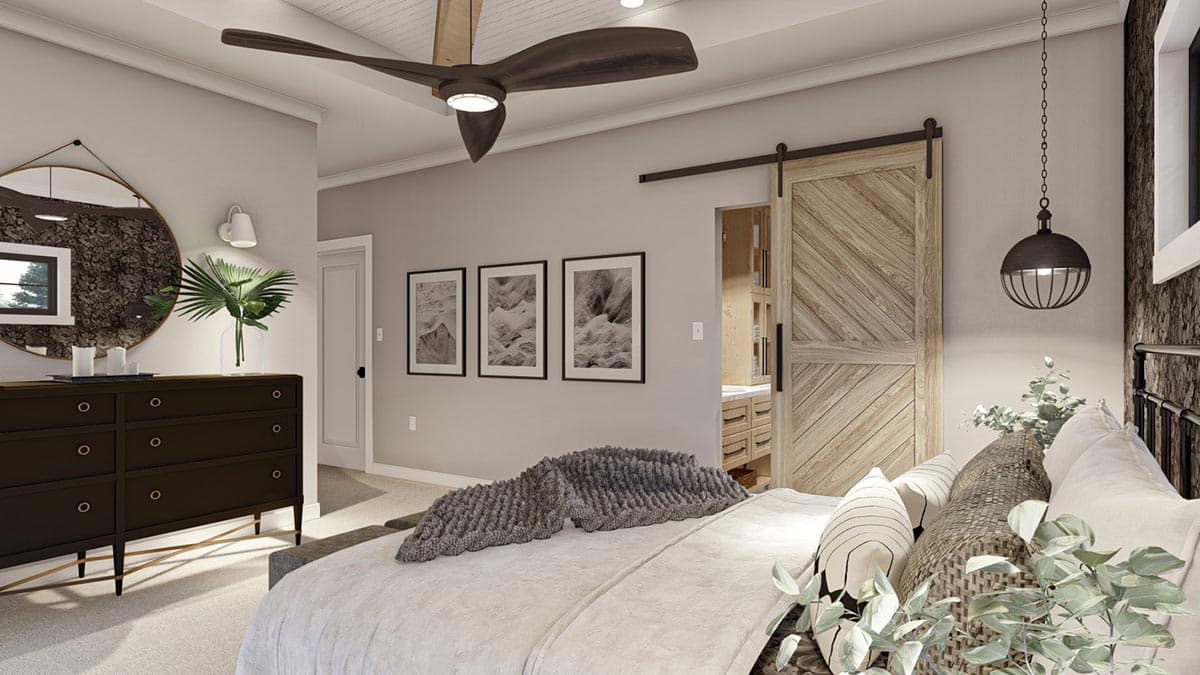

  • Two bedrooms and a laundry room round out the second level. The master bedroom features a decorative 10' ceiling, walk-in closet, and 4-fixture bathroom.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

New American Carriage House Plan with RV Garage and Shop - 1870 Sq Ft

  • 1,870

    Heated s.f.

  • 2

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

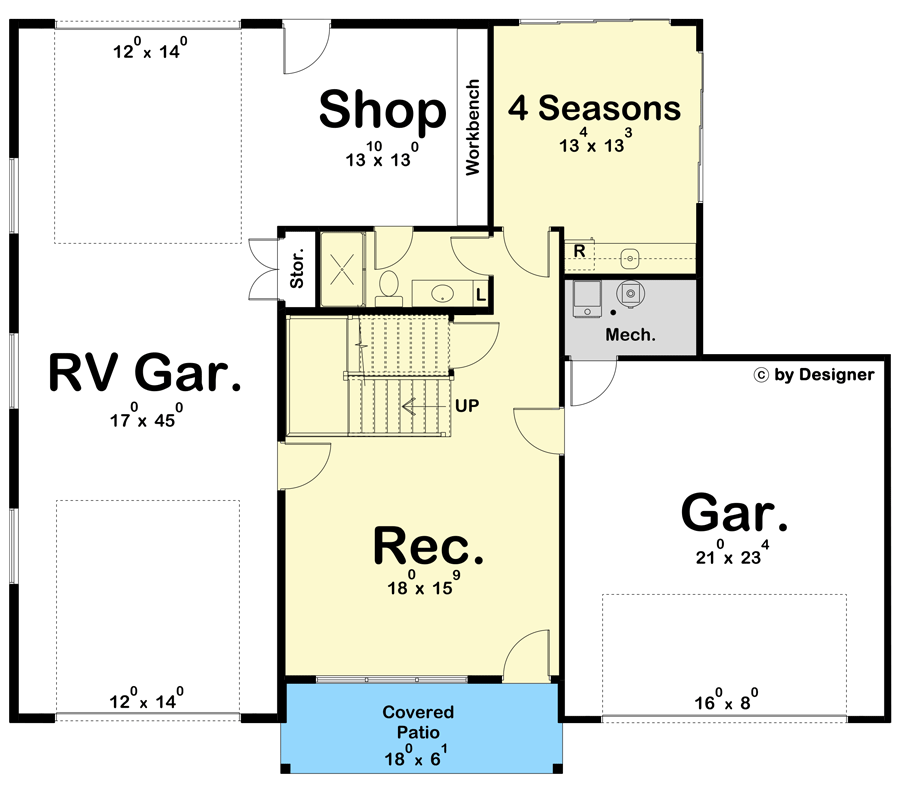

  • Main Level

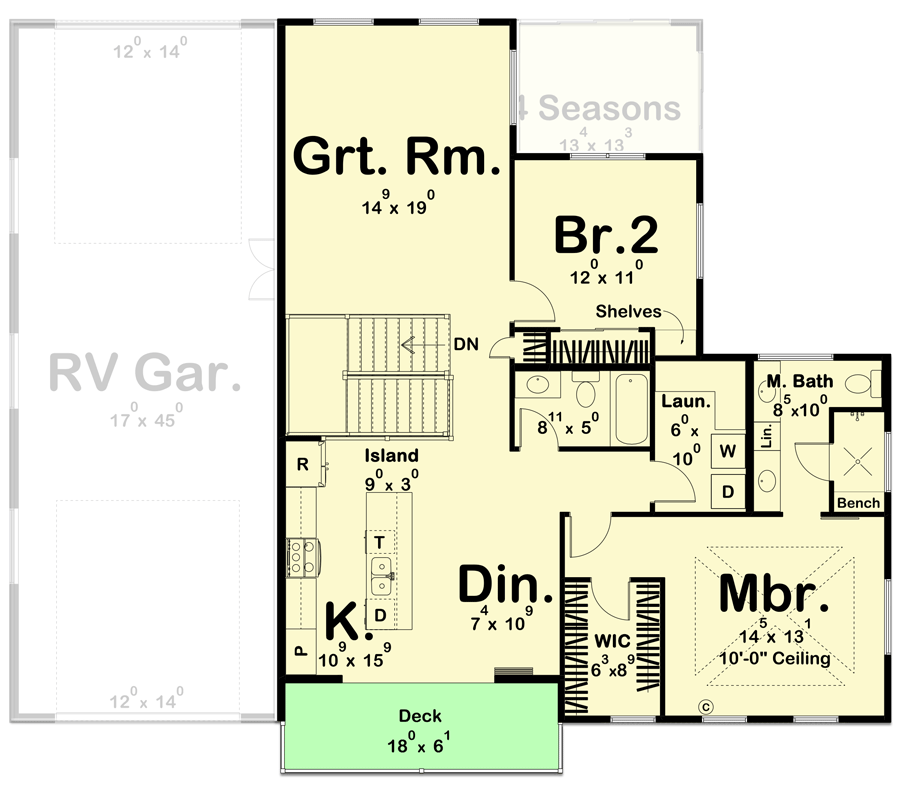

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,870 sq. ft.
  • 1st Floor: 537 sq. ft.
  • 2nd Floor: 1,333 sq. ft.

Dimensions

  • Width: 57' 8"
  • Depth: 49' 5"
  • Max ridge height: 30' 7"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 3

Garage

  • Type: RV Garage, Attached
  • Area: 1584 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 5 on 12
  • Secondary Pitch: 3 On 12; 10 on 12
  • Framing Type: Truss
