Plan 135001GRA
New American Craftsman House Plan with Elegant Ceilings
Heated S.F.
2,673
Beds
5
Baths
3.5
Stories
1
Cars
3
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

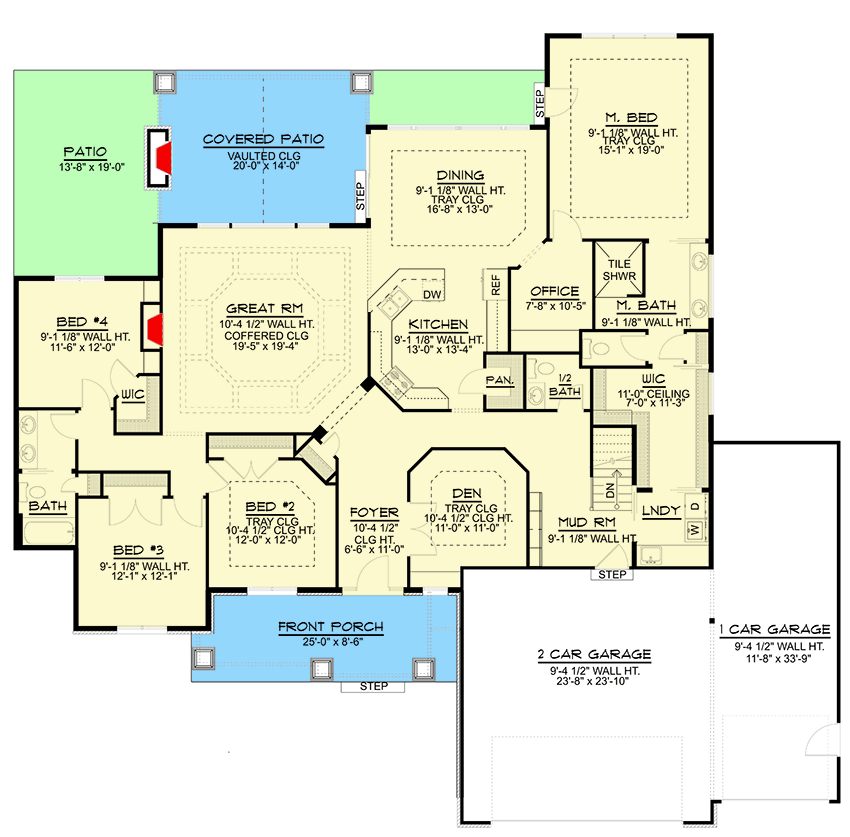

New American Craftsman House Plan with Elegant Ceilings - 135001GRA floor plan - Main Level
Optional Lower Level
Reverse Floor Plan

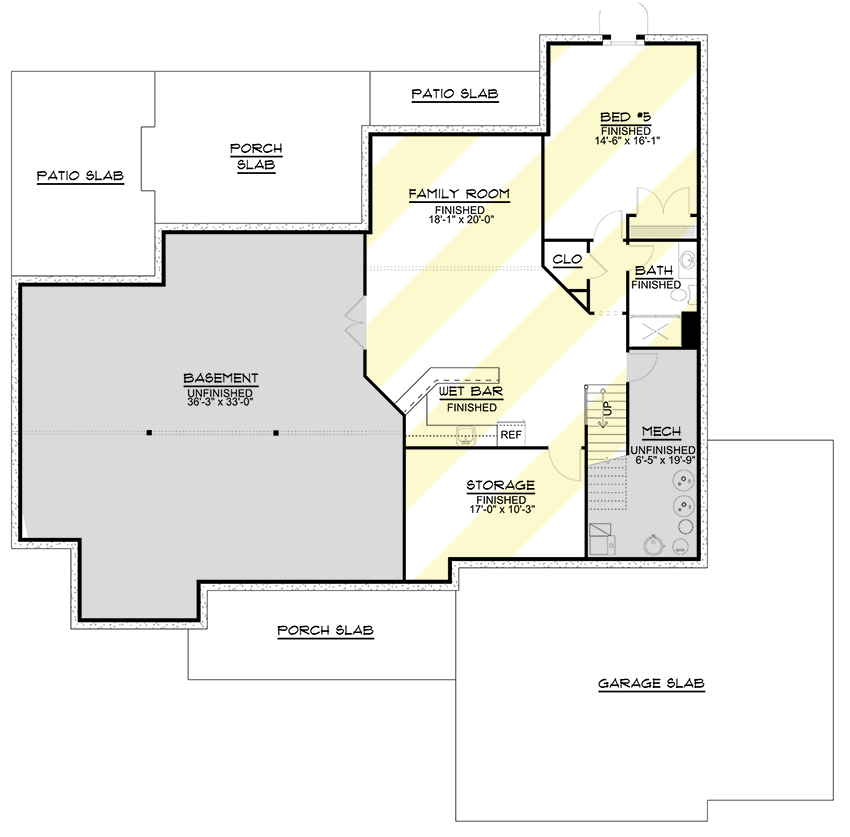

New American Craftsman House Plan with Elegant Ceilings - 135001GRA floor plan - Optional Lower Level
Plan Details
  • Three gables greet you on the exterior of this New American Craftsman house plan, rich in texture from stone accents.
  • From the foyer, French doors permit access to a quiet den, while the heart of the home is a few steps further. An elegant coffered ceiling rests above the great room, and a set of three windows provide views onto the back patio that is partially covered with a fireplace.
  • The octagon-shaped kitchen is artfully arranged and flows into the light and airy dining room.
  • Pass through a cozy office to find the master bedroom, which features a door to the back patio, rearward views, and a tray ceiling. Access the laundry room from the master closet as an added bonus.
  • Three family bedrooms reside on the left side of the home and share a compartmentalized bath.
  • An additional 2,673 square feet of living space awaits downstairs, and includes a family room with a wet bar, storage, and fifth bedroom with a full bath next door.
What's Included
  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
