New American Craftsman Plan with Loft over Angled Garage

Plan 365039PED

  • 2,785

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1

    Stories

  • 3

    Cars

  • Front and rear porches surround the vaulted entry and great room of this New American Craftsman home plan that totals 2, 785 square feet of living space.
  • French doors lead to a main-level study perfect for a library, office, homeschool room, or even formal dining space.
  • The gourmet kitchen is supported by a prep island and walk-in pantry in the adjacent mud hall.
  • The generous primary bedroom features a coffered ceiling, spa bathroom, and access to the rear patio, while bedrooms 2 and 3 share a Jack-and-Jill bath.
  • Discover the mudroom, transitioning from garage to kitchen, that includes a long built in bench, tons of natural light, access to laundry. Overhead, a versatile loft with a wet bar completes the design.

Each plan set includes the following:

  • Cover sheet with general information
  • Detailed floor plans for each floor
  • Elevations for each side of the home
  • Roof plan
  • Building section and details
  • Electrical schematic plans for each floor
  • Foundation plan
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

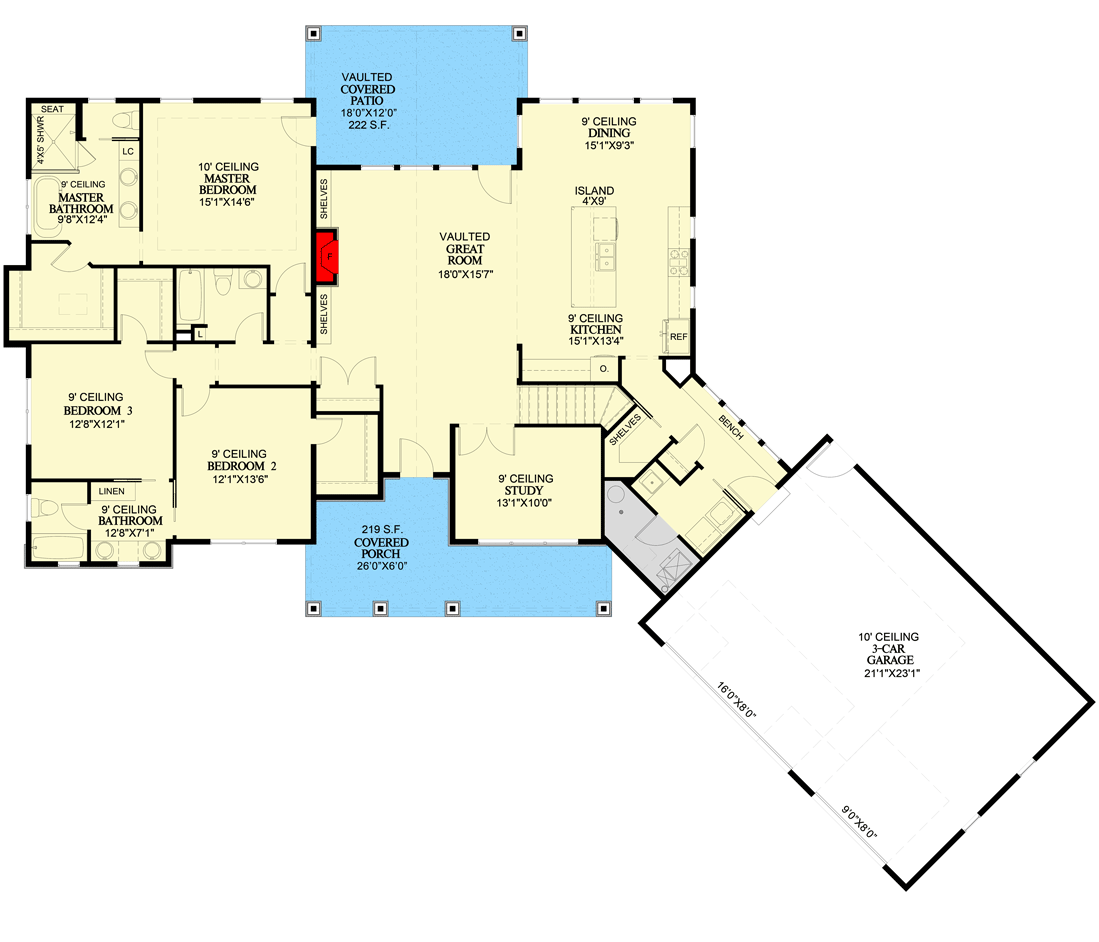

New American Craftsman Plan with Loft over Angled Garage - 365039PED floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

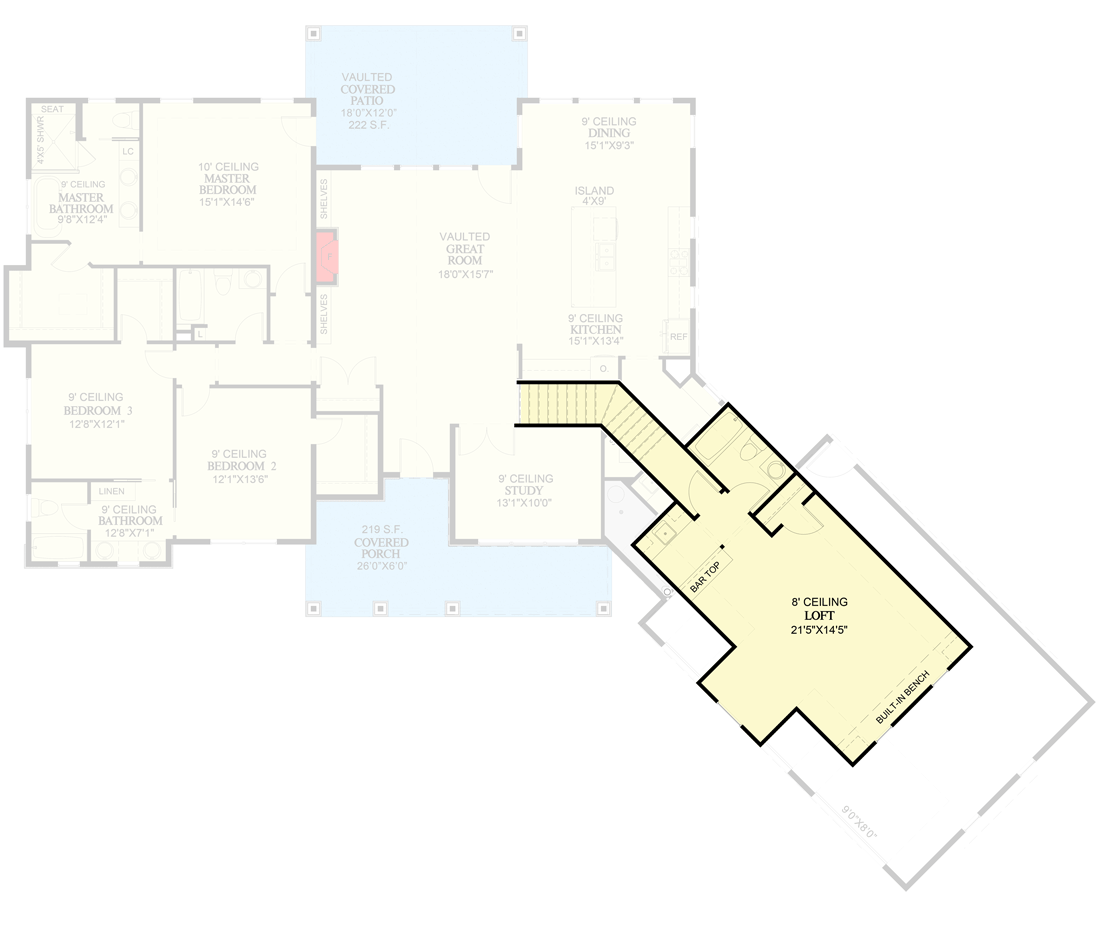

New American Craftsman Plan with Loft over Angled Garage - 365039PED floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,785 sq. ft.
  • 1st Floor: 2,328 sq. ft.
  • 2nd Floor: 457 sq. ft.
  • Covered Patio: 222 sq. ft.
  • Porch, Front: 219 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 97' 10"
  • Depth: 77' 2"
  • Max ridge height: 24' 5"

Garage

  • Type: Attached
  • Area: 809 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard, Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

New American Craftsman Plan with Loft over Angled Garage

  • 2,785

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,797
  • CAD + PDF - Single Build $2,597
  • View all purchase option online

About This Plan

  • Front and rear porches surround the vaulted entry and great room of this New American Craftsman home plan that totals 2, 785 square feet of living space.
  • French doors lead to a main-level study perfect for a library, office, homeschool room, or even formal dining space.
  • The gourmet kitchen is supported by a prep island and walk-in pantry in the adjacent mud hall.
  • The generous primary bedroom features a coffered ceiling, spa bathroom, and access to the rear patio, while bedrooms 2 and 3 share a Jack-and-Jill bath.
  • Discover the mudroom, transitioning from garage to kitchen, that includes a long built in bench, tons of natural light, access to laundry. Overhead, a versatile loft with a wet bar completes the design.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,785 sq. ft.
  • 1st Floor: 2,328 sq. ft.
  • 2nd Floor: 457 sq. ft.
  • Covered Patio: 222 sq. ft.
  • Porch, Front: 219 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 97' 10"
  • Depth: 77' 2"
  • Max ridge height: 24' 5"

Garage

  • Type: Attached
  • Area: 809 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard, Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
