Plan 81726AB New American Craftsman Plan with Office and Lower-level Garage

3,029 3-4 2.5 - 3.5 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

New American Craftsman Plan with Office and Lower-level Garage

Plan 81726AB

  • 3,029

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Stone and metal roof accents decorate the exterior of this elegant New American Craftsman home plan. The double garage is located on the lower level, along with a rec area, bedroom, and full bath.
  • A sun deck expands the width of the home and guides you through double doors and into the foyer.
  • A formal dining room is crowned by a tray ceiling and includes a built-in buffet. A butler's pantry provides a shortcut into the combined kitchen and living room.
  • The living room features a fireplace surrounded by built-in shelves and an oversized glass door that connects to an open deck.
  • Upstairs, discover three bedrooms and the laundry room. The master suite includes a home office, 5-fixture bath, and walk-in closet. Bedrooms 2 and 3 share a Jack-and-Jill bath.

Plans include the following:

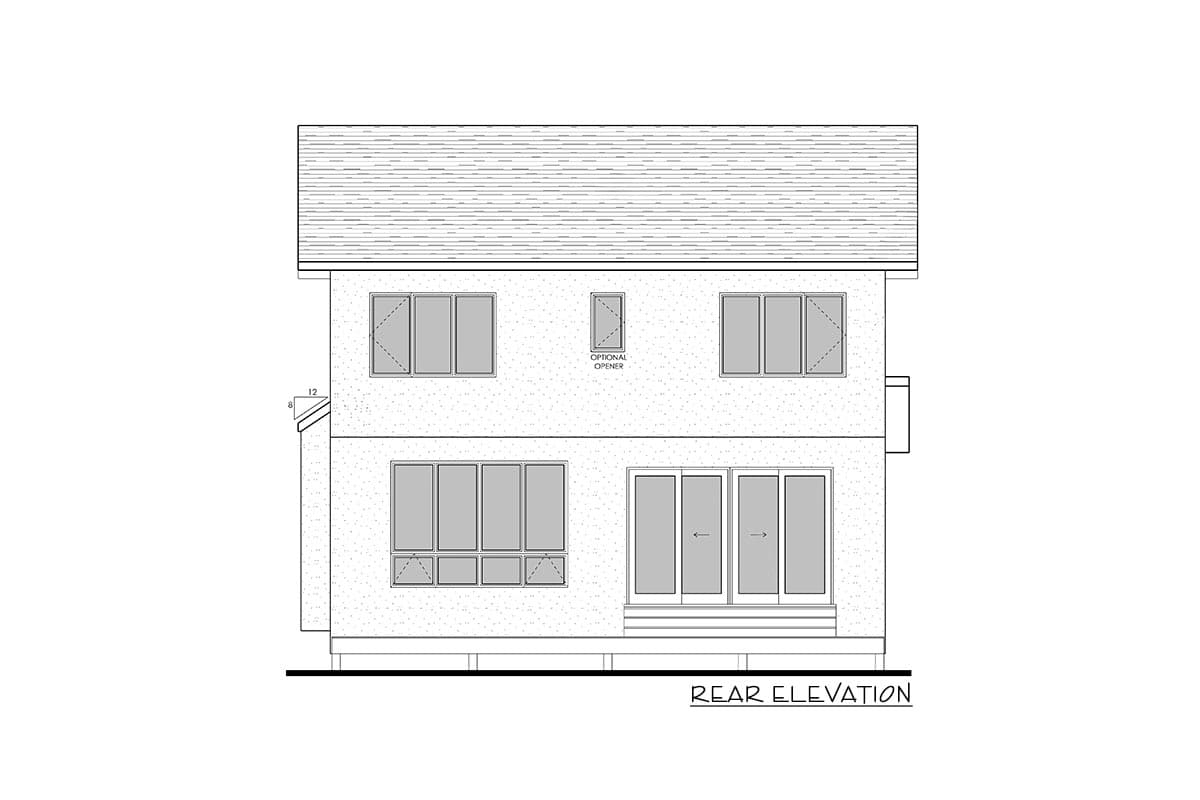

  • 4 elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.


These items are NOT included:
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

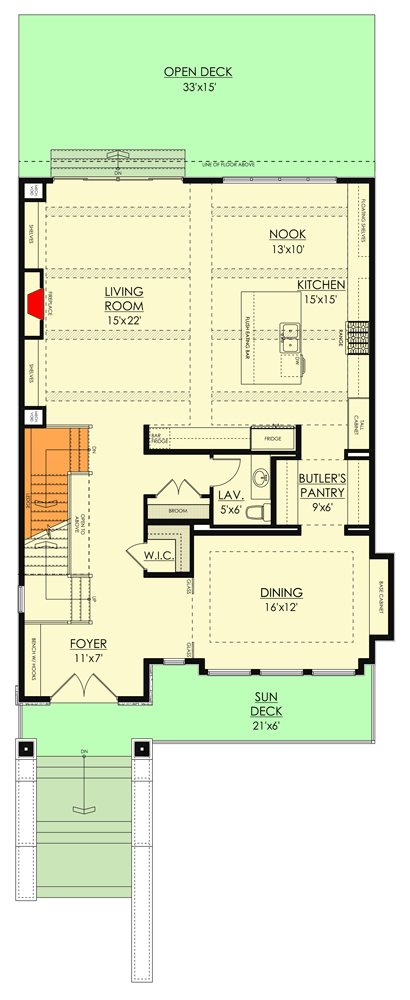

New American Craftsman Plan with Office and Lower-level Garage - 81726AB floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

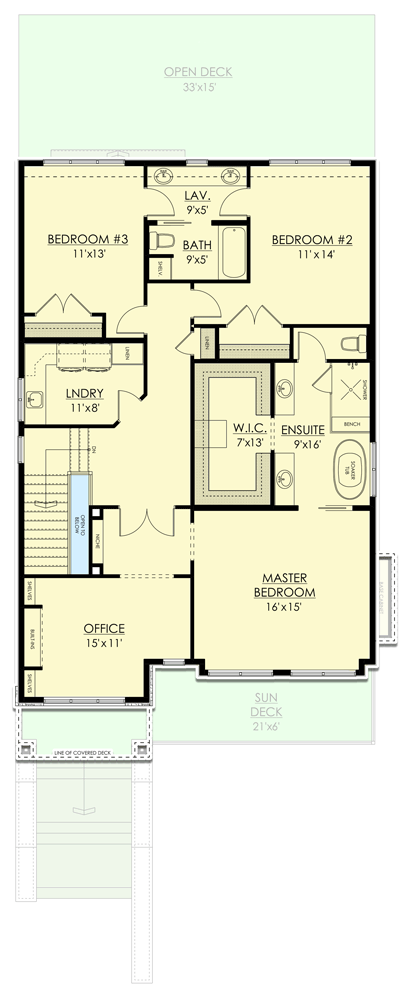

New American Craftsman Plan with Office and Lower-level Garage - 81726AB floor plan - 2nd Floor

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

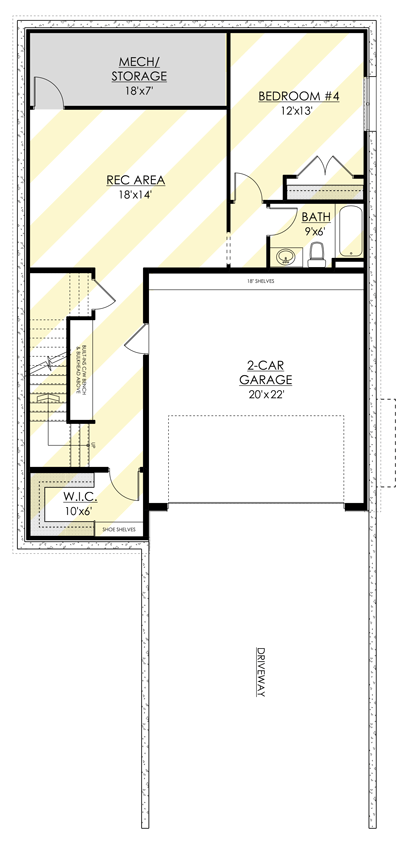

New American Craftsman Plan with Office and Lower-level Garage - 81726AB floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,029 sq. ft.
  • Lower Level: 877 sq. ft.
  • 1st Floor: 1,537 sq. ft.
  • 2nd Floor: 1,492 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Walkout, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 33' 0"
  • Depth: 50' 0"
  • Max ridge height: 28' 4"

Garage

  • Type: Drive Under, Attached
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 1" Second Floor / 8' 1"

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

New American Craftsman Plan with Office and Lower-level Garage

  • 3,029

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,900
  • CAD + PDF - Single Build $2,600
  • CAD Unlimited + PDF $3,100
  • View all purchase option online

About This Plan

  • Stone and metal roof accents decorate the exterior of this elegant New American Craftsman home plan. The double garage is located on the lower level, along with a rec area, bedroom, and full bath.
  • A sun deck expands the width of the home and guides you through double doors and into the foyer.
  • A formal dining room is crowned by a tray ceiling and includes a built-in buffet. A butler's pantry provides a shortcut into the combined kitchen and living room.
  • The living room features a fireplace surrounded by built-in shelves and an oversized glass door that connects to an open deck.
  • Upstairs, discover three bedrooms and the laundry room. The master suite includes a home office, 5-fixture bath, and walk-in closet. Bedrooms 2 and 3 share a Jack-and-Jill bath.

Floor Plans

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,029 sq. ft.
  • Lower Level: 877 sq. ft.
  • 1st Floor: 1,537 sq. ft.
  • 2nd Floor: 1,492 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 33' 0"
  • Depth: 50' 0"
  • Max ridge height: 28' 4"

Garage

  • Type: Drive Under, Attached
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 1" Second Floor / 8' 1"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Truss
Plan 81726AB
View this and more for this plan by visiting www.architechtecturaldesigns.com/81726AB
|
Need Help? 800-854-7852
|
Plan 81726AB
