Plan 365037PED
EXCLUSIVE
New American Craftsman Plan with Vaulted Master Bedroom
Heated S.F.
3,154
Beds
4
Baths
4
Stories
1
Cars
2
What's Included
Plan Details
  • This New American Craftsman plan delivers an efficient layout with an open-concept living space crowned by a vaulted ceiling above the great room.
  • An eating bar lines the kitchen island and a nearby walk-in pantry boosts storage space.
  • Two bedrooms can be found on the main level, including the vaulted master bedroom that is paired with a 5-fixture bathroom and walk-in closet.
  • A bonus room over the 3-car (tandem) garage includes a full bathroom and could serve a variety of purposes.
  • The partially-finished basement gives you a third basement and secondary gathering space with room to expand.

What's Included
  • Cover sheet with general information
  • Detailed floor plans for each floor
  • Elevations for each side of the home
  • Roof plan
  • Building section and details
  • Electrical schematic plans for each floor
  • Foundation plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

New American Craftsman Plan with Vaulted Master Bedroom

  • 3,154

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

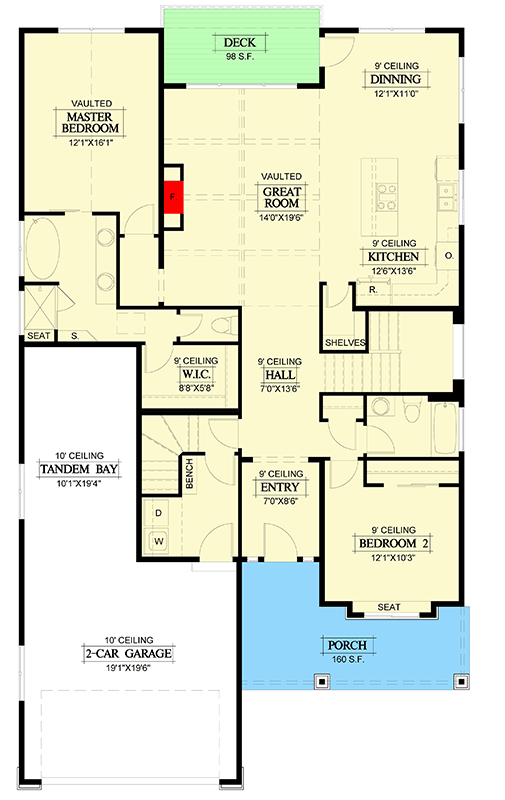

  • Main Level

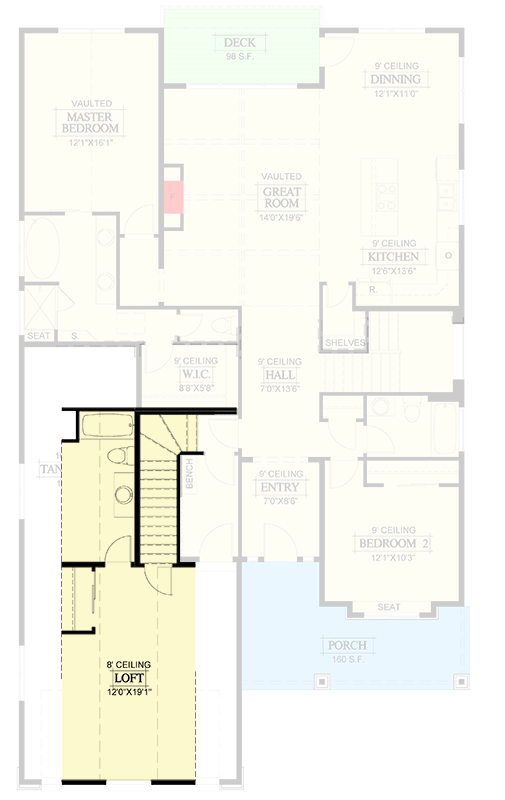

  • 2nd Floor

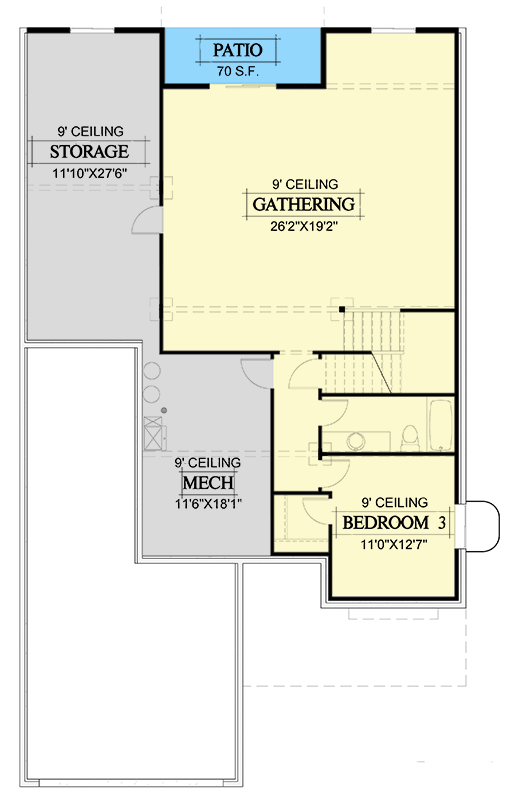

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 3,154 sq. ft.
  • Lower Level: 1,111 sq. ft.
  • 1st Floor: 1,706 sq. ft.
  • 2nd Floor: 337 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 68' 0"
  • Max ridge height: 24' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 604 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
