Plan 135332GRA

New American Duplex House Plan with Matching 3-Bed 2.5 Bath Units - 1556 Sq Ft Per Unit

Heated S.F.
3,112
Units
2
Width
Depth

Floor Plan

Plan 135332GRA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 135332GRA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

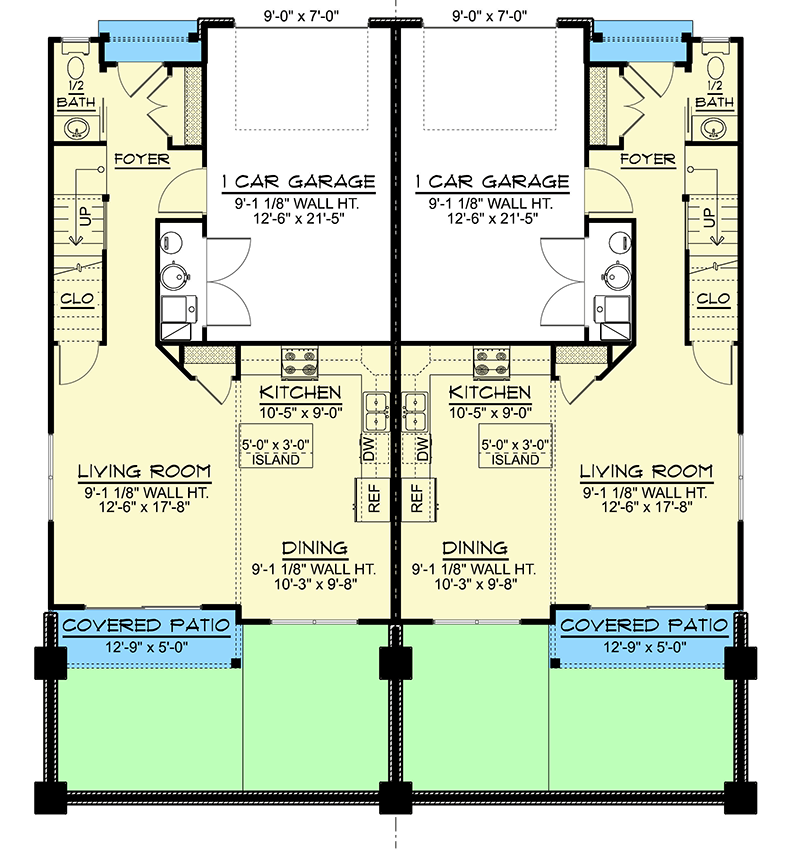

Plan 135332GRA: New American Duplex House Plan with Matching 3-Bed 2.5 Bath Units - 1556 Sq Ft Per Unit - Floor Plan - Main Level - New American

2nd Floor

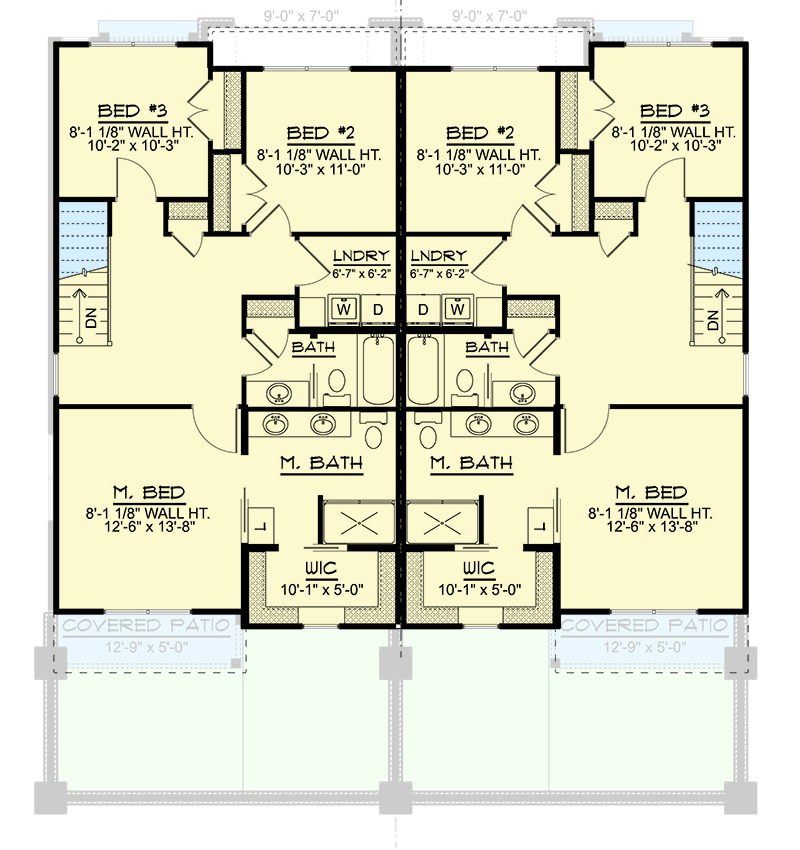

Plan 135332GRA: New American Duplex House Plan with Matching 3-Bed 2.5 Bath Units - 1556 Sq Ft Per Unit - Floor Plan - 2nd Floor - New American

Plan Details

  • This duplex house plan gives you 2 units each with 1,556 square feet of heated living space (645 sq. ft. on the first floor, 911 sq. ft. on the second floor), 3 beds, 2.5 baths and a 289 sq. ft. 1-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A/B
Heated Area
1,556Sq. Ft.
645 Sq. Ft. 1st
1822 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
289 Sq. Ft.
Dimensions
23'width
44'depth
Unfinished Areas
289 Sq. Ft. Garage

What's Included

  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,112 sq. ft.

1st Floor

1,290 sq. ft.

2nd Floor

1,822 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

47' 4"

Depth

44' 0"

Max Ridge Height

26' 11"

Garage

Type

Attached

Area

289 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

5 on 12

Architectural Style

New American

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Loft

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

3,112 sq. ft.

1st Floor

1,290 sq. ft.

2nd Floor

1,822 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

47' 4"

Depth

44' 0"

Max Ridge Height

26' 11"

Garage

Type

Attached

Area

289 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

5 on 12

Architectural Style

New American

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Loft

Master Suite - Upstairs

* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping!Let's go back to the top.
