Plan 81718AB New American Farmhouse Plan Under 2700 Square Feet with Walkout Basement

2,674 3-4 2.5 - 3.5 2 2
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

New American Farmhouse Plan Under 2700 Square Feet with Walkout Basement

Plan 81718AB

  • 2,674

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Vertical and horizontal siding blend with stone accents on the exterior of this gorgeous New American home plan totaling 2,674 square feet of living space.
  • The heart of the home is filled with natural light and flows into the kitchen with 4' by 7' eat-at island, dining area and great room where a fireplace is framed by built-ins. A multi-panel glass door retracts to grant access to a sizable covered deck with grill.
  • The master bedroom is comfortably situated on the main level and paired with a spa-like ensuite and walk-in closet. Upstairs, two family bedrooms share a full bath.
  • The double garage with a 16' by 8' overhead door protrudes from the front of the home at an angle for an added dimension and leads into a mud / laundry room.
  • Finish the walkout basement as designed and gain 795 square feet of living space that includes a living room with a wet bar and patio access, along with a fourth bedroom and full bath.

Plans include the following:

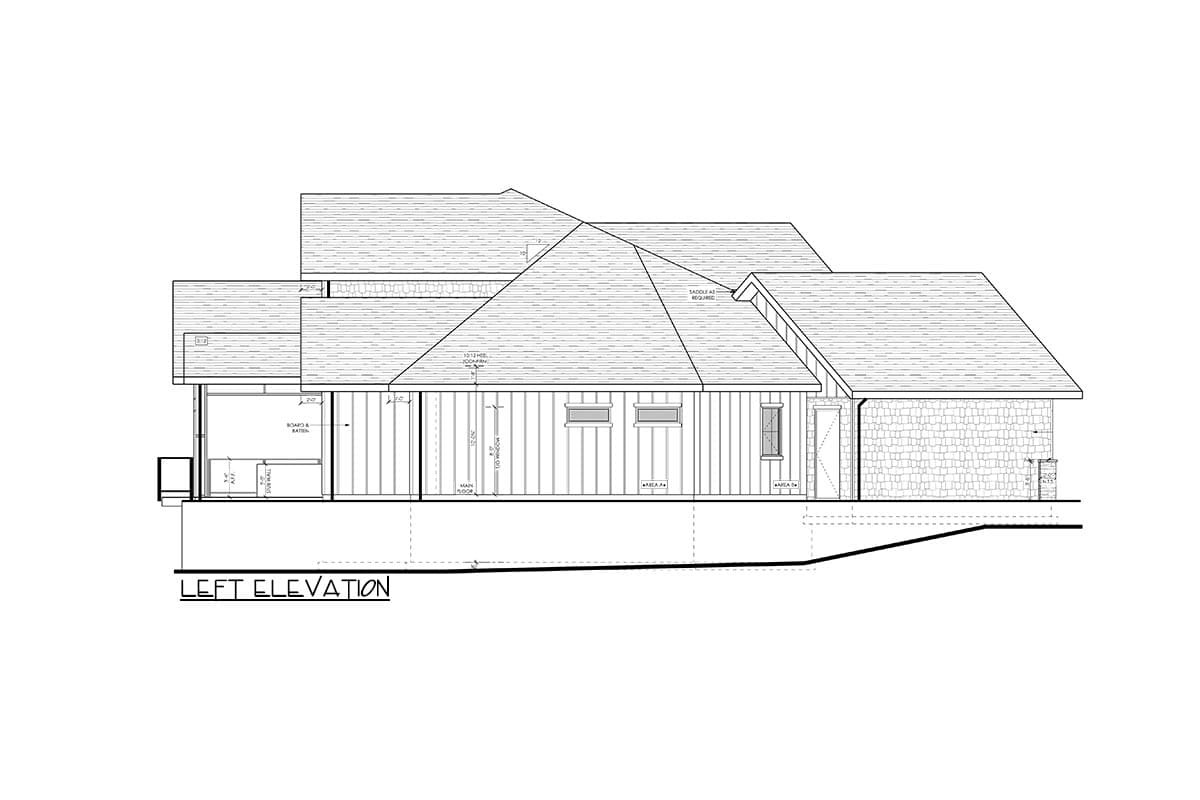

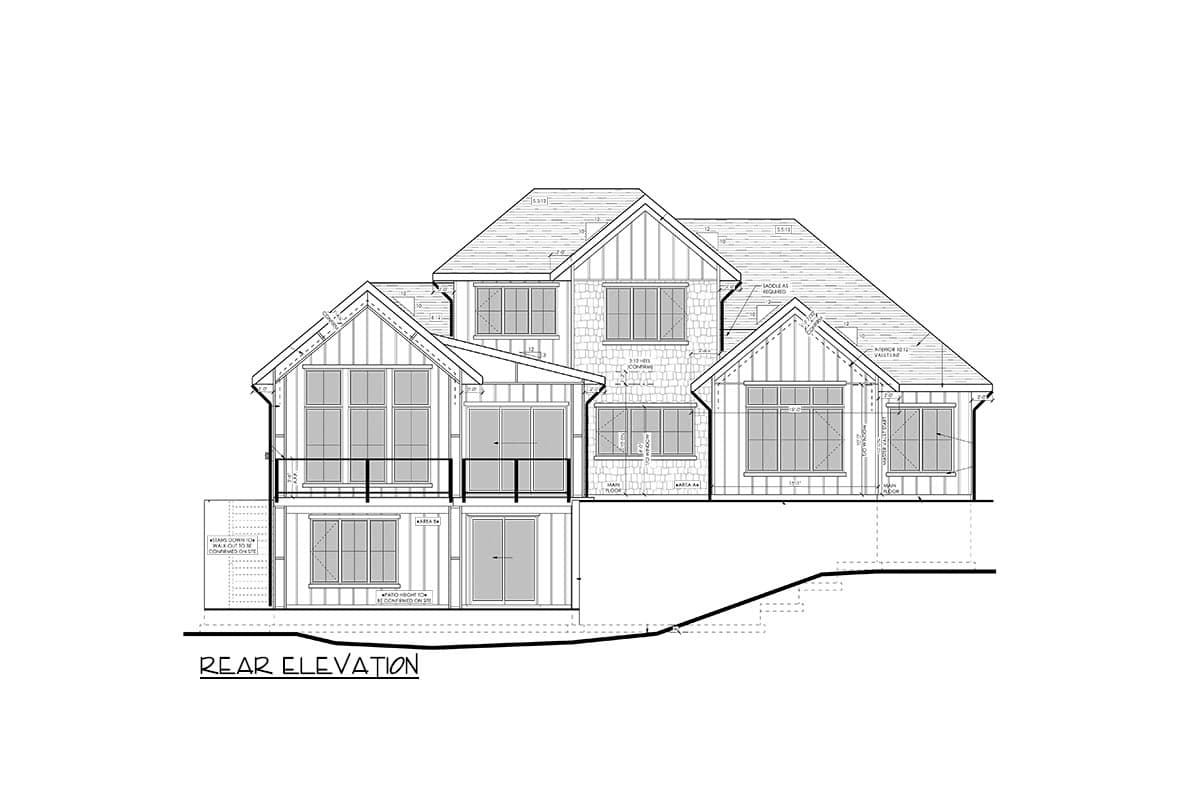

  • 4 elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.


These items are NOT included:
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

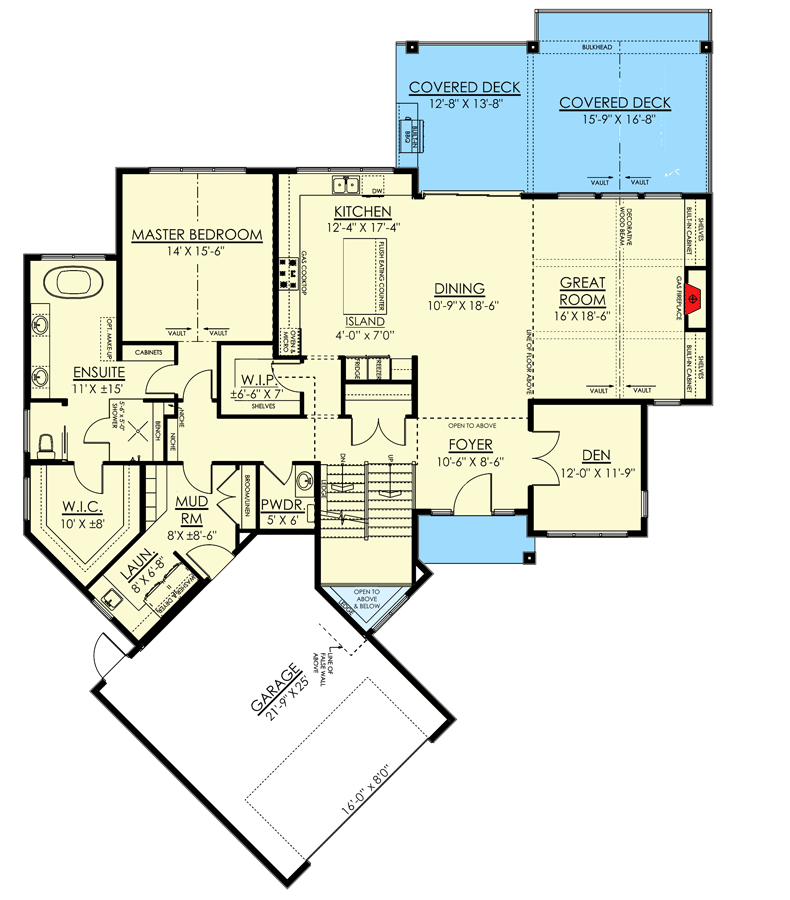

New American Farmhouse Plan Under 2700 Square Feet with Walkout Basement - 81718AB floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

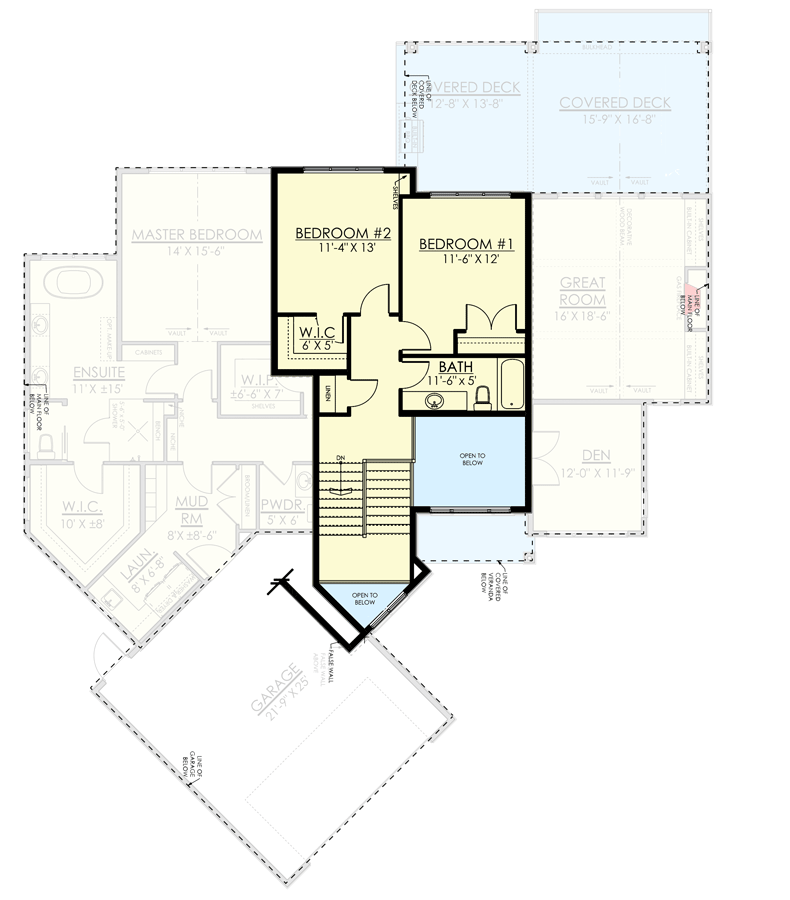

New American Farmhouse Plan Under 2700 Square Feet with Walkout Basement - 81718AB floor plan - 2nd Floor

Optionally Finished Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

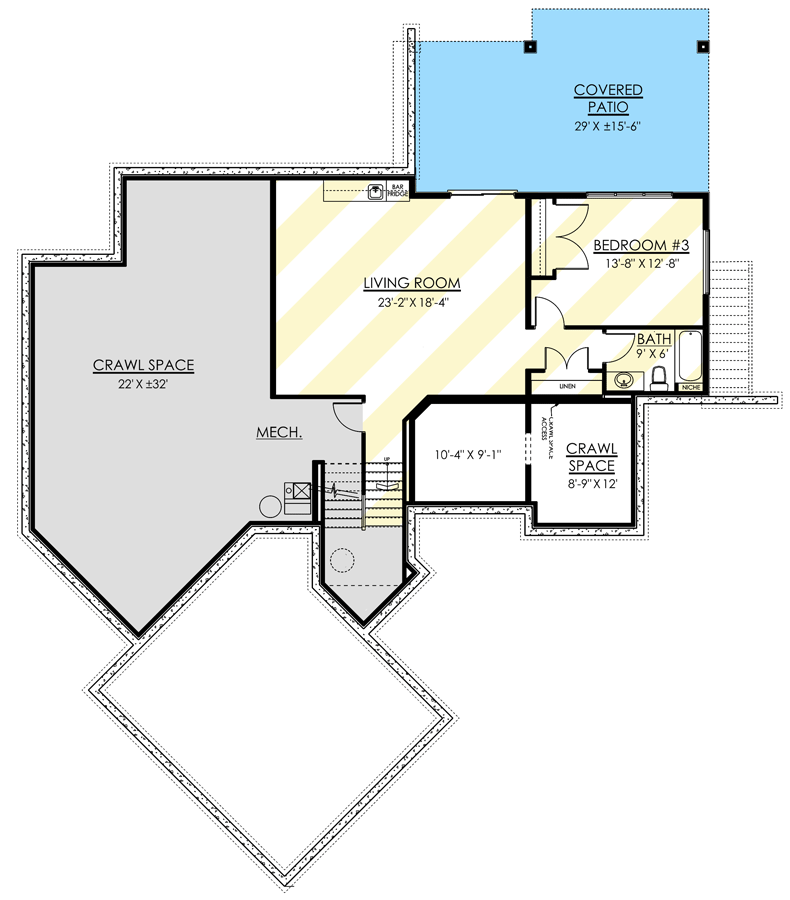

New American Farmhouse Plan Under 2700 Square Feet with Walkout Basement - 81718AB floor plan - Optionally Finished Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,674 sq. ft.
  • 1st Floor: 2,116 sq. ft.
  • 2nd Floor: 558 sq. ft.
  • Optional Lower Level: 795 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 64' 0"
  • Depth: 78' 2"
  • Max ridge height: 33' 4"

Garage

  • Type: Attached
  • Count: 2 Cars
  • Entry Location: Courtyard, Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

New American Farmhouse Plan Under 2700 Square Feet with Walkout Basement

  • 2,674

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,700
  • CAD + PDF - Single Build $2,400
  • CAD Unlimited + PDF $2,900
  • View all purchase option online

About This Plan

  • Vertical and horizontal siding blend with stone accents on the exterior of this gorgeous New American home plan totaling 2,674 square feet of living space.
  • The heart of the home is filled with natural light and flows into the kitchen with 4' by 7' eat-at island, dining area and great room where a fireplace is framed by built-ins. A multi-panel glass door retracts to grant access to a sizable covered deck with grill.
  • The master bedroom is comfortably situated on the main level and paired with a spa-like ensuite and walk-in closet. Upstairs, two family bedrooms share a full bath.
  • The double garage with a 16' by 8' overhead door protrudes from the front of the home at an angle for an added dimension and leads into a mud / laundry room.
  • Finish the walkout basement as designed and gain 795 square feet of living space that includes a living room with a wet bar and patio access, along with a fourth bedroom and full bath.

Floor Plans

  • Main Level

  • 2nd Floor

  • Optionally Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,674 sq. ft.
  • 1st Floor: 2,116 sq. ft.
  • 2nd Floor: 558 sq. ft.
  • Optional Lower Level: 795 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 64' 0"
  • Depth: 78' 2"
  • Max ridge height: 33' 4"

Garage

  • Type: Attached
  • Count: 2 Cars
  • Entry Location: Courtyard, Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
Plan 81718AB
View this and more for this plan by visiting www.architechtecturaldesigns.com/81718AB
|
Need Help? 800-854-7852
|
Plan 81718AB
