Plan 46471LA New American Farmhouse Plan with Split-bed Layout and Bonus Level

New American Farmhouse Plan with Split-bed Layout and Bonus Level

Plan 46471LA

  • 2,934

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • This 3-bedroom New American Farmhouse plan delivers a central living space that expands onto a large porch and serves as the barrier between the the owner's suite and the secondary bedrooms.
  • The gourmet kitchen indulges your culinary creativity with its oversized island and nearby walk-in pantry. A formal dining room provides a space to host family and friends, and a quiet study rests behind french doors across the foyer.
  • Retreat to the owner's suite to find a serene setting, along with two walk-in closets and a pass-thru bathroom that connects to the laundry room.
  • The double garage extends from the front of the home and offers a built-in bench to catch all of the day's items. A powder bath is conveniently located next to the mudroom.
  • Above the garage you will find an optional loft, dedicated storage space, and a flexible unfinished room for future expansion.
  • Note: Please allow 20 to 25 business days for delivery.

This plan set has the following details:


  • Floor plans with window and door schedules
  • Roof plan
  • Elevations
  • Front and rear perspectives on some (but not all) plans
  • Building section, eave detail and typical stair detail
  • Interior perspectives and elevations
  • Electrical plans
  • Foundation plan
  • Floor framing plans
  • Ceiling framing plans
  • Roof framing plan
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

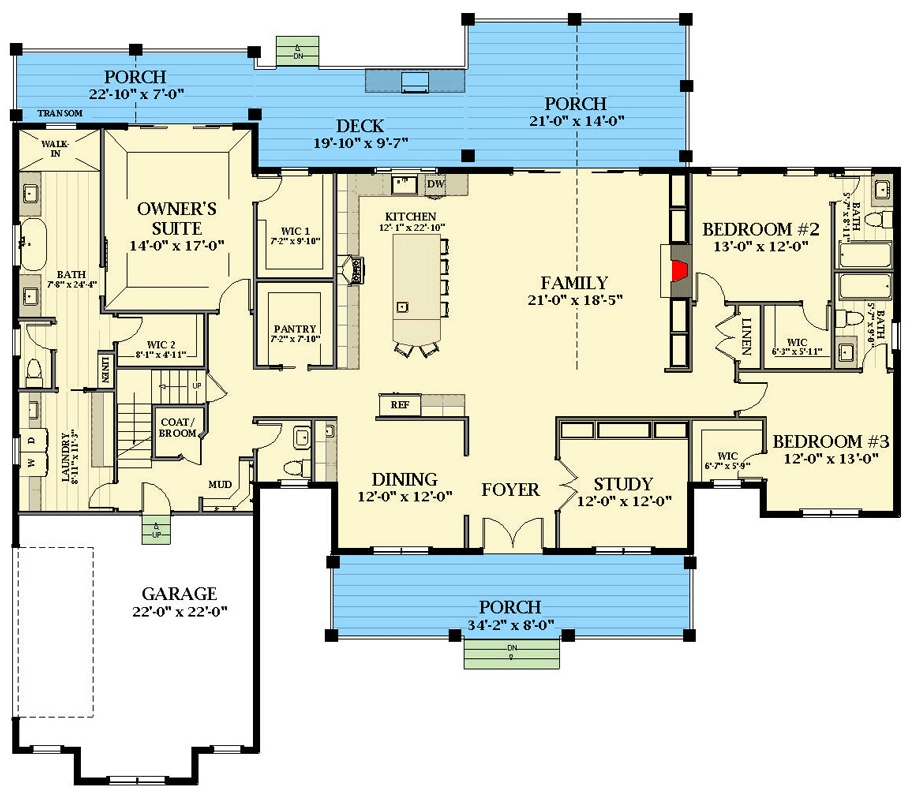

New American Farmhouse Plan with Split-bed Layout and Bonus Level - 46471LA floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

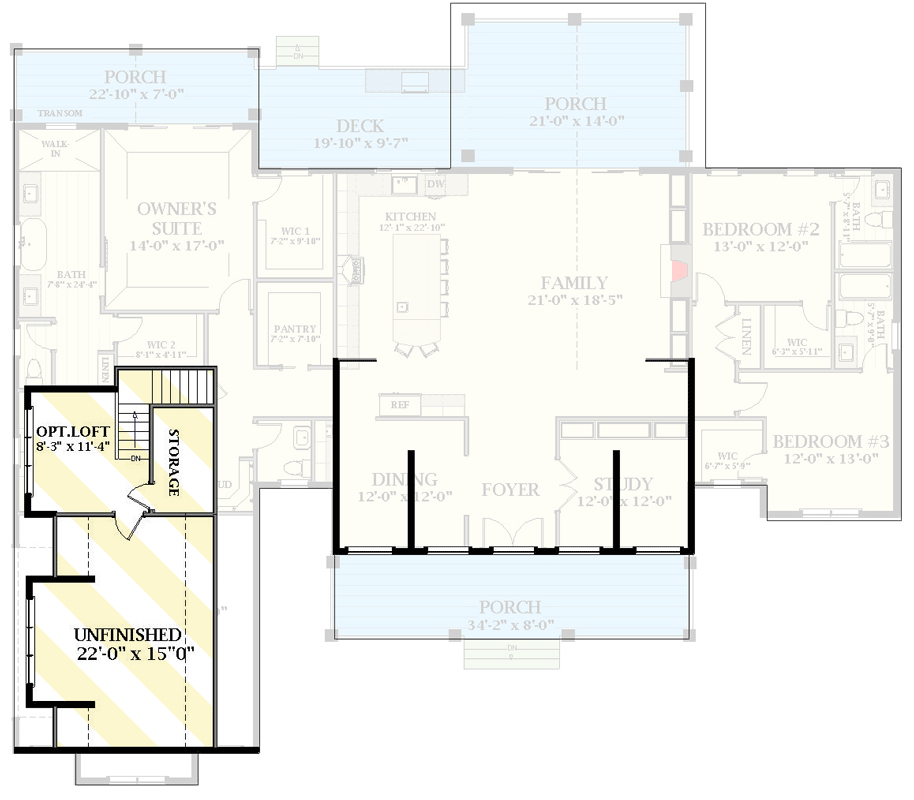

New American Farmhouse Plan with Split-bed Layout and Bonus Level - 46471LA floor plan - 2nd Floor

Plan details

New American Farmhouse Plan with Split-bed Layout and Bonus Level

  • 2,934

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,495
  • 5 Sets + PDF $1,845
  • CAD - Unlimited Build $2,995
  • View all purchase option online

About This Plan

  • This 3-bedroom New American Farmhouse plan delivers a central living space that expands onto a large porch and serves as the barrier between the the owner's suite and the secondary bedrooms.
  • The gourmet kitchen indulges your culinary creativity with its oversized island and nearby walk-in pantry. A formal dining room provides a space to host family and friends, and a quiet study rests behind french doors across the foyer.
  • Retreat to the owner's suite to find a serene setting, along with two walk-in closets and a pass-thru bathroom that connects to the laundry room.
  • The double garage extends from the front of the home and offers a built-in bench to catch all of the day's items. A powder bath is conveniently located next to the mudroom.
  • Above the garage you will find an optional loft, dedicated storage space, and a flexible unfinished room for future expansion.
  • Note: Please allow 20 to 25 business days for delivery.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,934 sq. ft.
  • 1st Floor: 2,934 sq. ft.
  • Deck: 191 sq. ft.
  • Porch, Rear: 459 sq. ft.
  • Porch, Front: 277 sq. ft.
  • Bonus: 374 sq. ft.
  • Opt. Loft: 120 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Daylight, Slab, Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 83' 4"
  • Depth: 72' 0"
  • Max ridge height: 29' 0"

Garage

  • Type: Attached
  • Area: 517 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Stick
