Plan 260004RVC New American Home Plan with Home Office and Main-level Master

New American Home Plan with Home Office and Main-level Master

Plan 260004RVC

  • 3,164

    Heated s.f.

  • 4-5

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Farmhouse vibes add to the comforting curb appeal on this New American home plan. Inside, you will find a home office and master bedroom on the main level, screened porch, and open living space.
  • A gas fireplace anchors the left wall of the family room, which opens to the kitchen and dining area. The large island maximizes workspace in the kitchen, and the adjacent dining area is surrounded by windows to allow natural light to pour into the shared spaces.
  • The master bedroom offers access to the rear screened porch, and includes a freestanding tub in the ensuite and access to the laundry room.
  • Three additional family bedrooms are located upstairs; two share a Jack-and-Jill bath, and one includes a full bath. An optionally finished 5th bedroom and loft complete the second level.
  • Enter from the double garage to find a half bath in the mudroom, along with a coat closet and walk-in pantry.
  • NOTE: Contact us if building within a 50 mile radius of Richmond, Virginia as restrictions may apply.

This house plan includes the follow details:


Title sheet with general notes
Elevations
Foundation plan
Detailed floor plans
Roof framing plan
Cross sections & details
Interior trim details

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

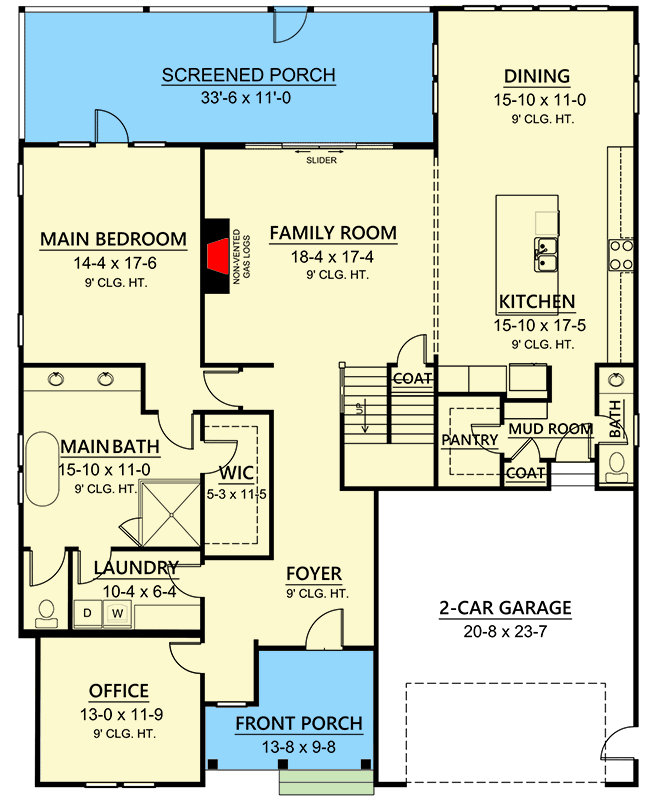

New American Home Plan with Home Office and Main-level Master - 260004RVC floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

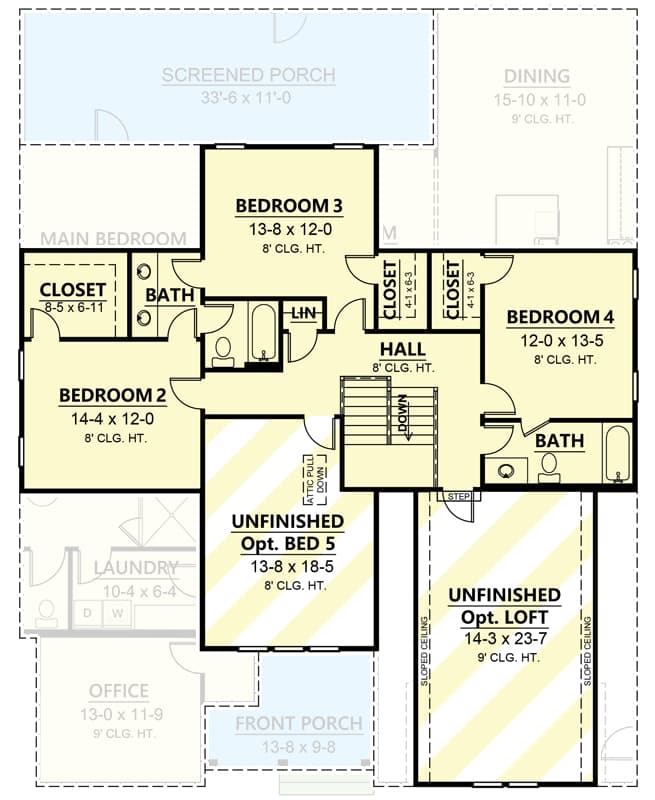

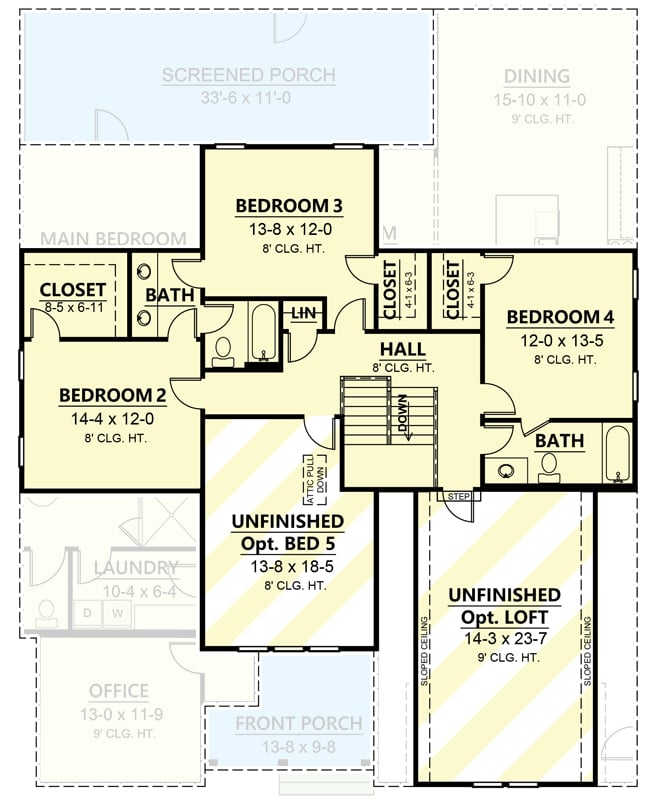

New American Home Plan with Home Office and Main-level Master - 260004RVC floor plan - 2nd Floor

Plan details

New American Home Plan with Home Office and Main-level Master

  • 3,164

    Heated s.f.

  • 4-5

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,395
  • CAD + PDF - Single Build $2,395
  • PDF - Unlimited Build $2,395
  • CAD + PDF - Unlimited Build $2,750
  • View all purchase option online

About This Plan

  • Farmhouse vibes add to the comforting curb appeal on this New American home plan. Inside, you will find a home office and master bedroom on the main level, screened porch, and open living space.
  • A gas fireplace anchors the left wall of the family room, which opens to the kitchen and dining area. The large island maximizes workspace in the kitchen, and the adjacent dining area is surrounded by windows to allow natural light to pour into the shared spaces.
  • The master bedroom offers access to the rear screened porch, and includes a freestanding tub in the ensuite and access to the laundry room.
  • Three additional family bedrooms are located upstairs; two share a Jack-and-Jill bath, and one includes a full bath. An optionally finished 5th bedroom and loft complete the second level.
  • Enter from the double garage to find a half bath in the mudroom, along with a coat closet and walk-in pantry.
  • NOTE: Contact us if building within a 50 mile radius of Richmond, Virginia as restrictions may apply.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,164 sq. ft.
  • 1st Floor: 2,122 sq. ft.
  • 2nd Floor: 1,042 sq. ft.
  • Screened Porch: 369 sq. ft.
  • Porch, Combined: 113 sq. ft.
  • Bonus: 251 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 50' 0"
  • Depth: 63' 0"
  • Max ridge height: 30' 10"

Garage

  • Type: Attached
  • Area: 514 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 14 on 12
