New American House Plan Under 2300 Square Feet with Flex Room and Bonus Expansion

Name: Plan 710420BTZ: New American House Plan Under 2300 Square Feet with Flex Room and Bonus Expansion
Brand: Architectural Designs
SKU: 710420BTZ
Price: 2305.0 USD
Availability: InStock

Heated S.F.

2,287

Beds

2 - 4

Baths

2.5 - 3.5

Stories

Cars

Floor Plan

Main Level

2nd Floor

Plan Details

Under 2300 square feet of heated living area, this New American house plan offers you the convenience of one-story living.
The plan is anchored by a large living area with a warming fireplace and beamed ceiling. The kitchen and dining areas are adjacent and provide the perfect environment for gatherings with family and friends. The flexible space may be used for many purposes such as a home work space, a media space or formal dining room.
Sleeping quarters are separated by the common areas for privacy and quiet. The owner’s suite has a beamed ceiling and large windows to fill the space with natural light. The primary bath has a large shower, great closet with convenient access to the laundry room. The secondary bedrooms share a compartmentalized bathroom.

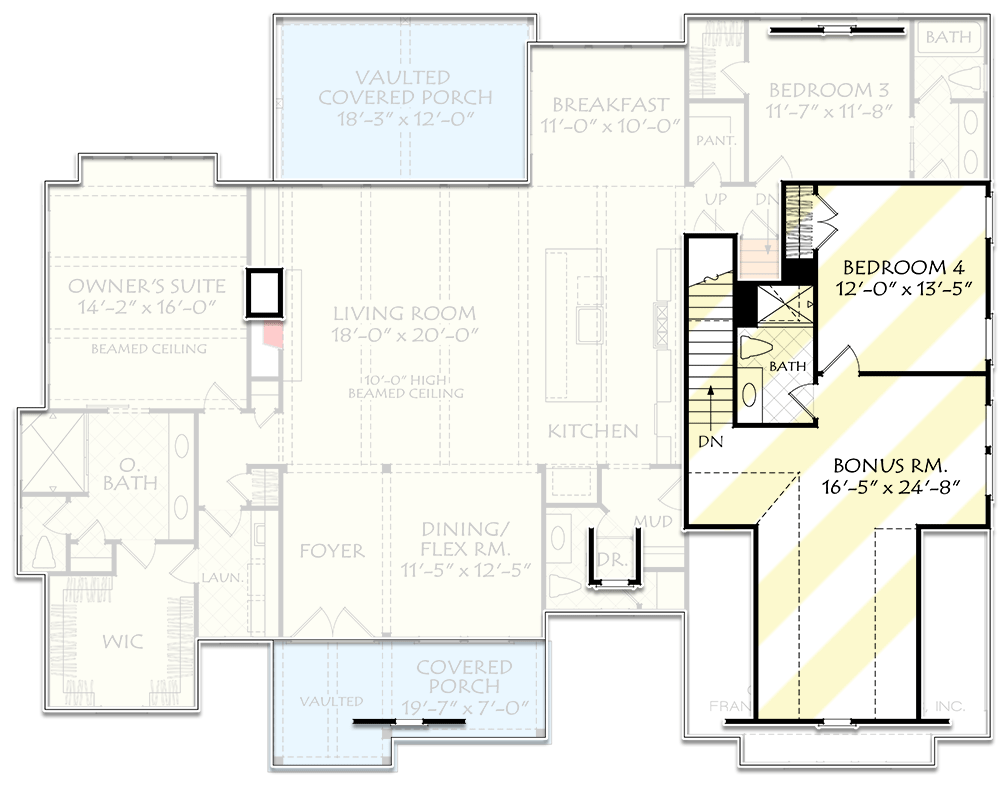

The optional space on the upper level allows the addition of a fourth bedroom, bathroom and a multi-purpose bonus room.

What's Included

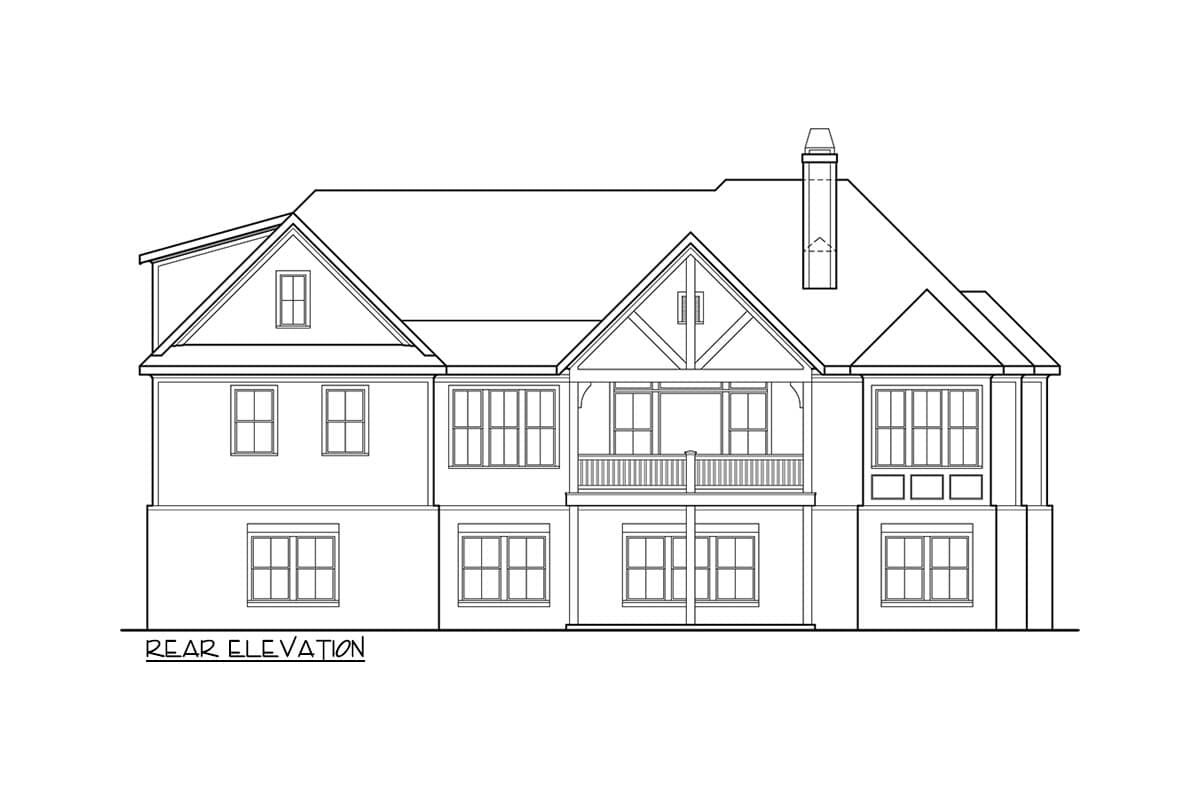

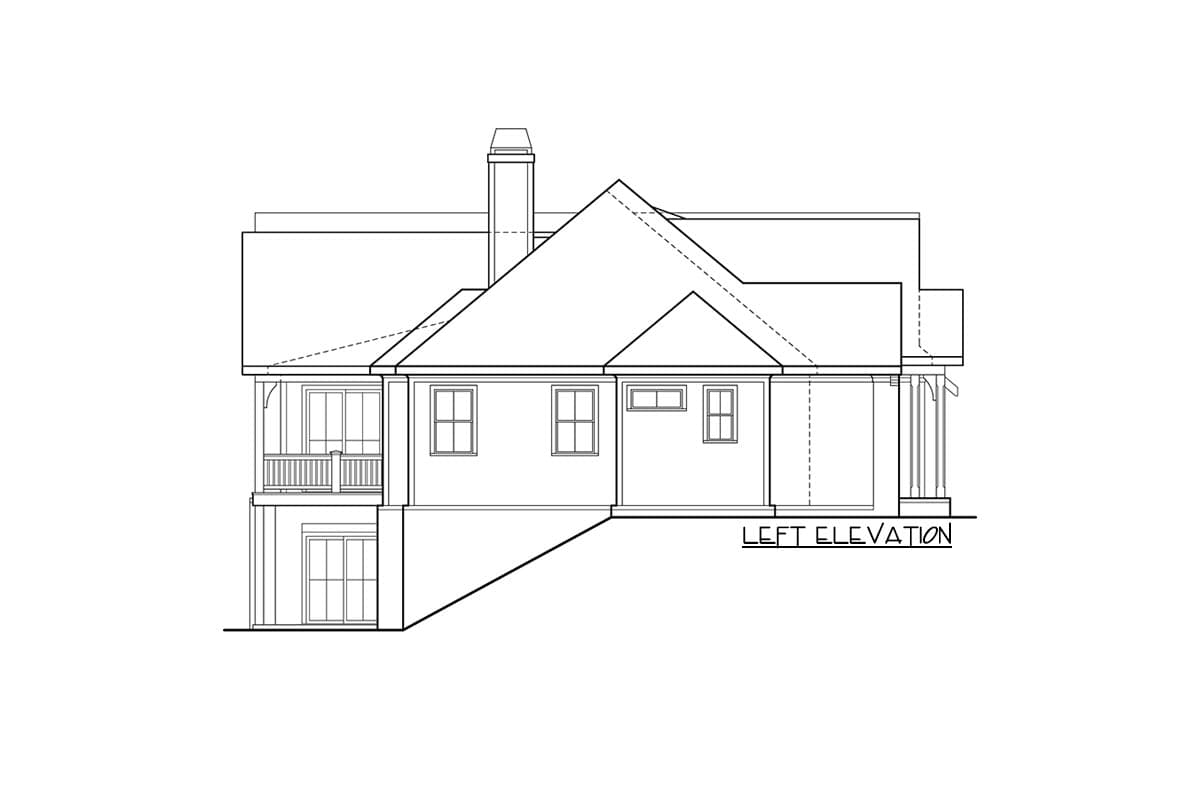

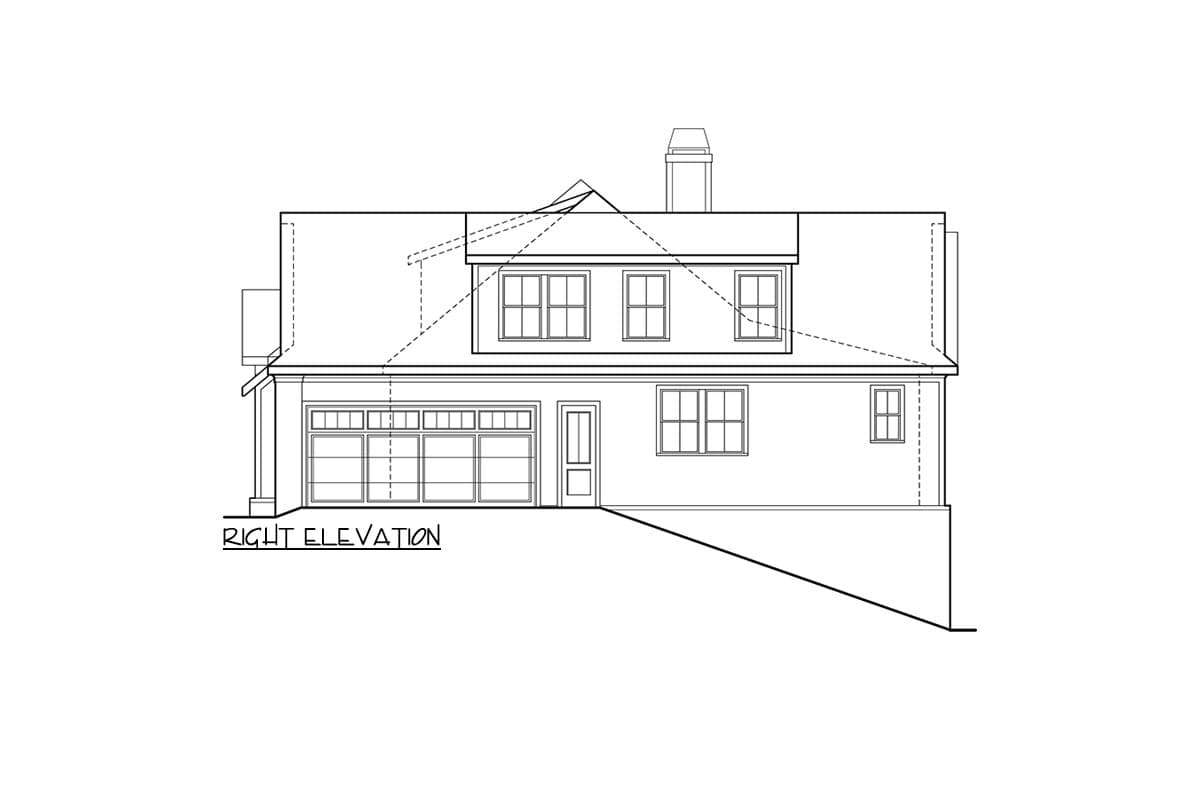

Elevations - at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house. Unless shown otherwise, all foundation options will show walkout basement elevations.
Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, door/window sizes. Crawlspace and/or slab on grade foundations are available for some plans.

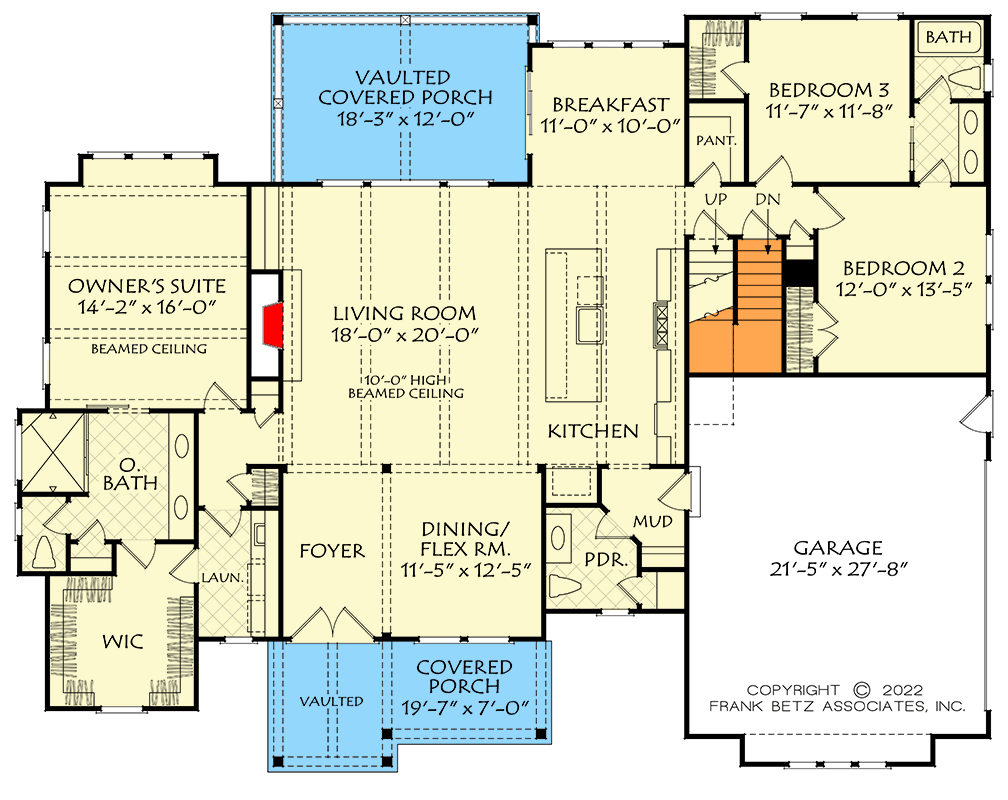

Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
Floor framing - if included it shows each floor joist indicating the size, spacing and length. All beams are sized and labeled. Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length. All beams are sized and labeled. All of the joists are counted and coordinated with the material list. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length. All beams are sized and labeled. All of the joists are counted and coordinated with the material list. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
Details sheets - shows foundation details, typical wall section and other framing details. Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What's Not Included

Architectural or Engineering Stamp
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work)
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
Energy calculations
Windows and Doors Schedules
