New American House Plan with 3 Beds Plus Flex Room and an RV Garage - 3621 Sq Ft

Heated S.F.
3,621
Beds
3
Baths
4
Stories
2
Cars
2

Floor Plan

Plan 580065DFT

Main Level
Main Level
2nd Floor
2nd Floor

Plan 580065DFT

M-F 9am-5pm EST |

1-203-761-8500

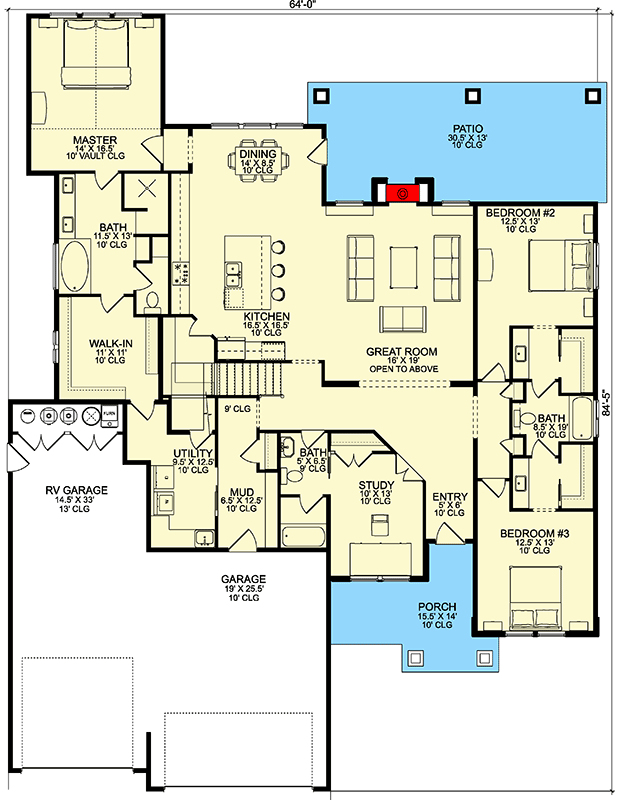

Main Level

Plan 580065DFT: New American House Plan with 3 Beds Plus Flex Room and an RV Garage - 3621 Sq Ft - Floor Plan - Main Level - Craftsman, New American

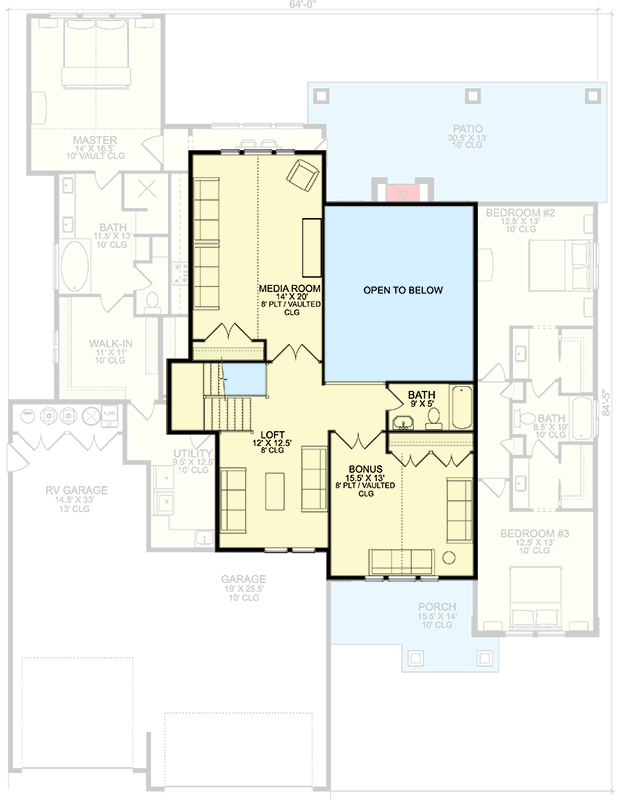

2nd Floor

Plan 580065DFT: New American House Plan with 3 Beds Plus Flex Room and an RV Garage - 3621 Sq Ft - Floor Plan - 2nd Floor - Craftsman, New American

Plan Details

  • This New American house plan gives you 3 beds (plus an upstairs bonus room with bath that is factored into the living area) 4 baths and 3621 square feet of heated living space.
  • The garage has an RV bay and an adjacent second bay and delivers a combined 1104 square feet of parking.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Cover Sheet: General Notes and code criteria
  • Foundation Plan: Concrete layouts including footings, slabs and stem walls, dimensions, floor joist layout, plumbing fixture locations and construction notes and details
  • Floor Plan(s): Dimensions, wall framing, room sizes, door and window location and sizes, plumbing fixtures, kitchen layout with cabinetry location and construction notes and details
  • Roof Plan: Bird's eye view and general layout, roof pitches, eave sizes, special ceiling heights, trey ceilings located and construction notes and details
  • Section View(s): A cut or cuts through the home showing wall plate heights, stair sections, special construction sections including footings and crawl space or slab details
  • Exterior Elevations: Shows 2-D exterior views of all 4 sides of home locating and showing roof lines, roof pitches, material callouts, window locations, vents, trim style and plate heights
  • Electrical Plans: General layout of smoke detectors, carbon monoxide detectors, exhaust fans, lights, switches, outlets and GFI outlets

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,621 sq. ft.

1st Floor

2,712 sq. ft.

2nd Floor

909 sq. ft.

Porch, Front

139 sq. ft.

Covered Patio

342 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

64' 0"

Depth

84' 4"

Garage

Type

Attached, RV Garage

Area

1104 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

10'

Upper Level

8' 0''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Architectural Style

Craftsman

New American

Special Features

Bedrooms - Split

Breakfast Nook

Flex Room

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Media Room

Mudroom

Optionally Finished Bonus Room

Outdoor Fireplace

Two Story Great Room

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

3,621 sq. ft.

1st Floor

2,712 sq. ft.

2nd Floor

909 sq. ft.

Porch, Front

139 sq. ft.

Covered Patio

342 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

64' 0"

Depth

84' 4"

Garage

Type

Attached, RV Garage

Area

1104 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

10'

Upper Level

8' 0''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Architectural Style

Craftsman

New American

Special Features

Bedrooms - Split

Breakfast Nook

Flex Room

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Media Room

Mudroom

Optionally Finished Bonus Room

Outdoor Fireplace

Two Story Great Room

Plan Collections

Exclusive
