Plan 710348BTZ
New American House Plan with Bonus Room Flexibility
Heated S.F.
2,711
Beds
3-4
Baths
3.5
Stories
2
Cars
2
Flyer
Photos
What's Included
Plan Details
  • Simplistic lines, timber lintels and columns, and shed dormers add interest and provide natural light to the interior of this New American house with board-and-batten siding along with painted brick.
  • The main level is fresh and modern with features galore such as the master suite, open concept living and dining space and a fully appointed kitchen. The guest suite and/or home office is perfectly located for quiet and privacy for the telecommuter or visiting family member. Storage is well thought out with the use of walk-in closets, large pantry, mud room, and laundry space. The rear covered porch adds extra living and dining area which let the owners get outdoors when the seasons cooperate.
  • The upper level completes the home with two additional sleeping rooms, a compartmentalized bath and loft - perfect for reading, homework or just relaxing. The optional bonus room can be finished toe add square footage that has many uses - recreation, exercise, media or great storage.
  • Related Plan: Get an alternate version with house plan 710340BTZ.
What's Included

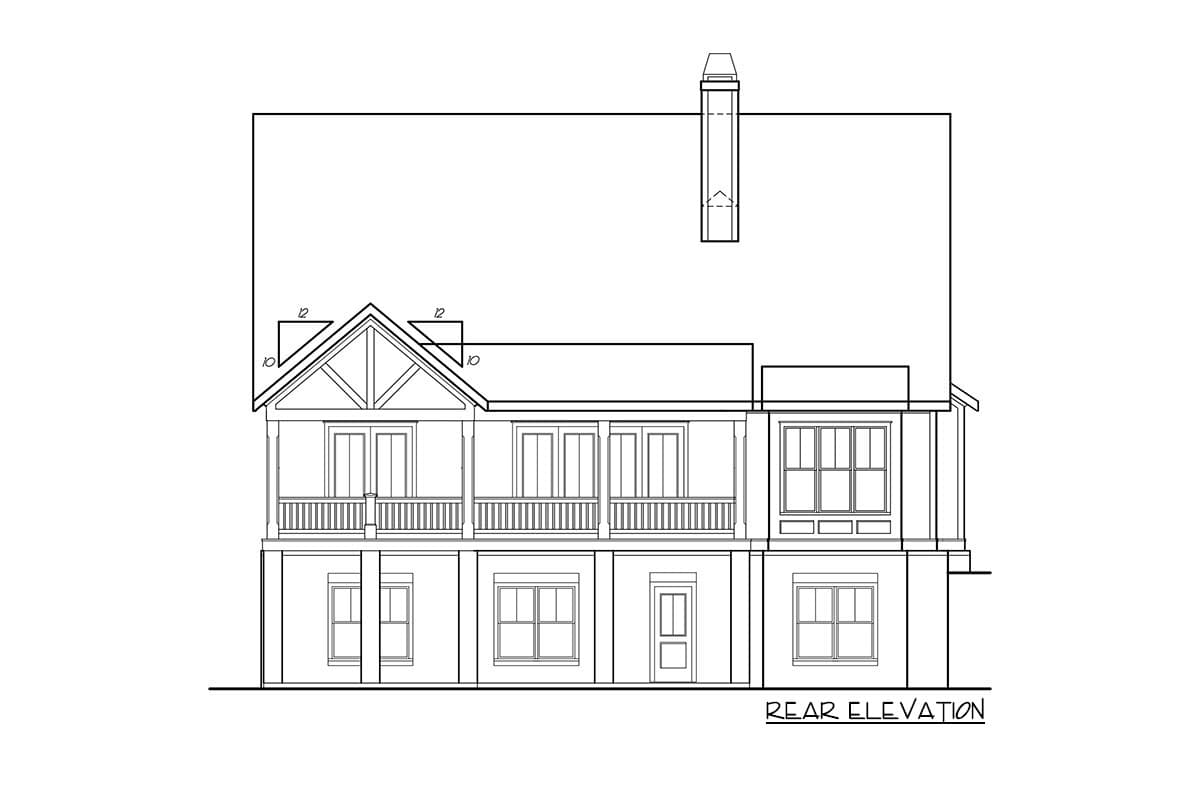

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Print
Hide
Compare
Favorite
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

New American House Plan with Bonus Room Flexibility

  • 2,711

    Heated s.f.

  • 3-4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

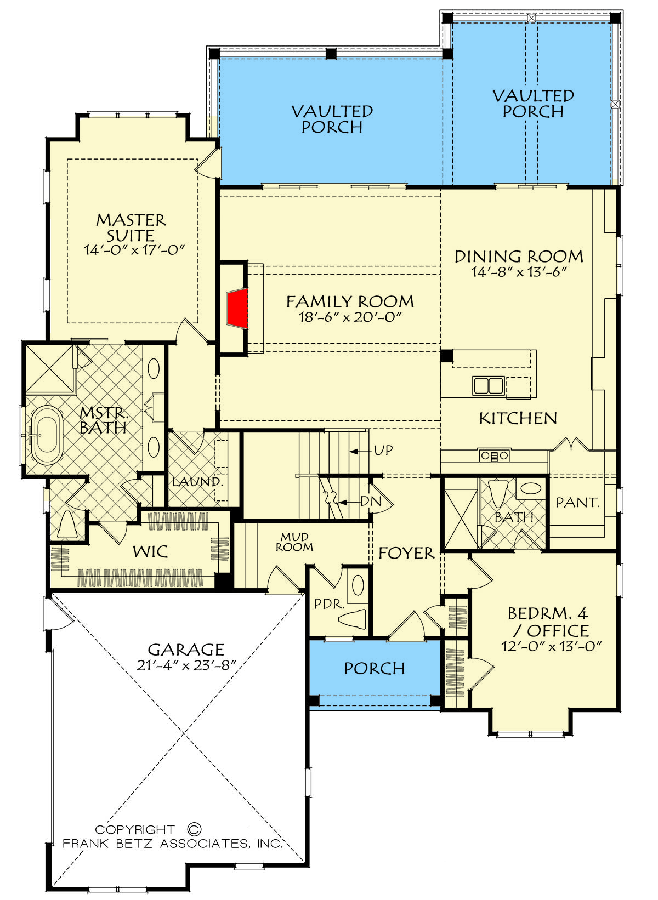

  • Main Level

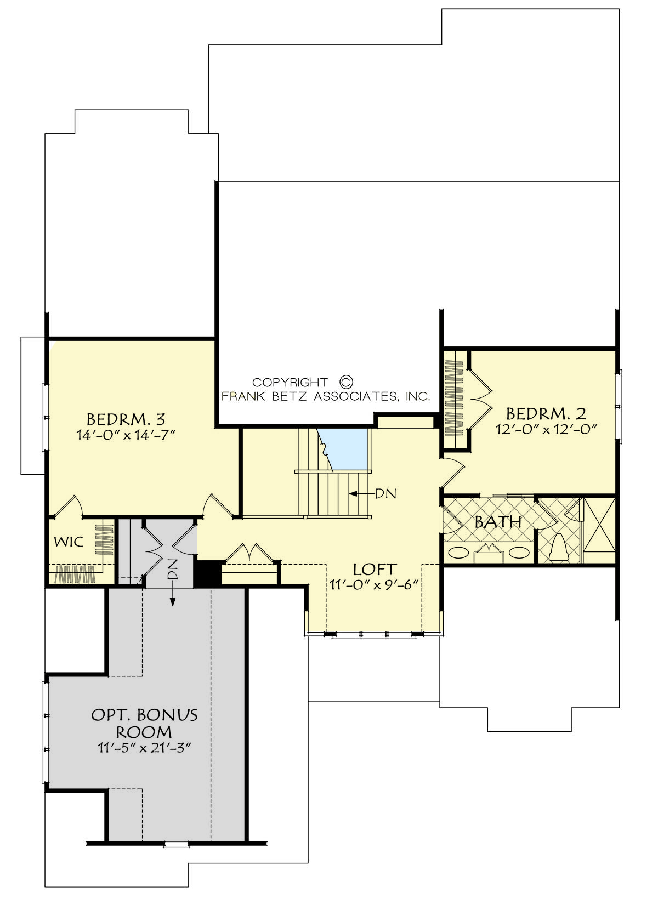

  • 2nd Floor
