Plan 42106DB
New American House Plan with Pocket Office and Split-bed Layout - 2176 Sq Ft
Heated S.F.
2,176
Beds
3-4
Baths
2
Stories
1
Cars
3
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

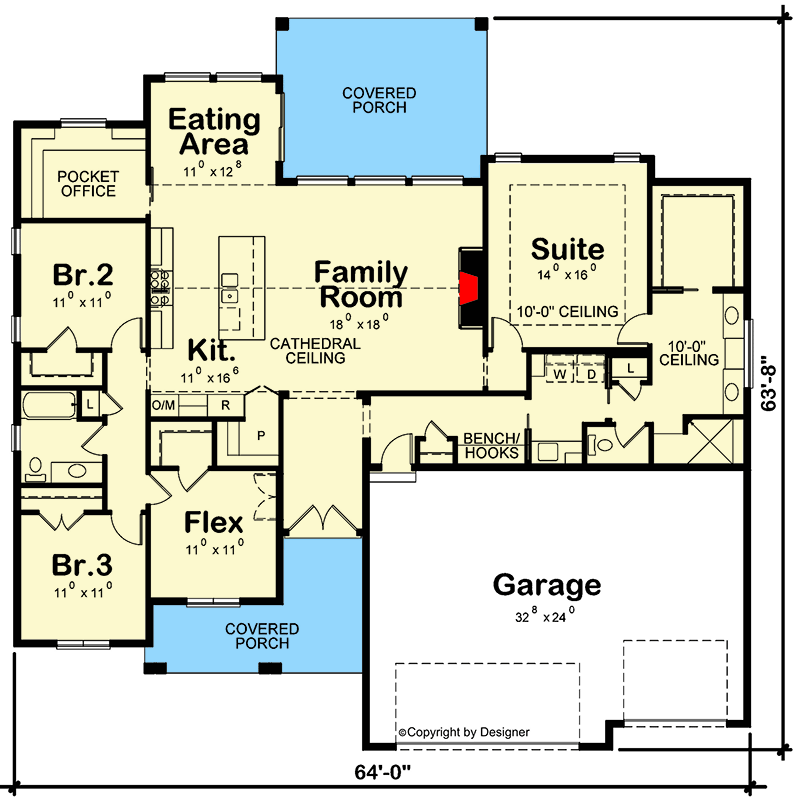

New American House Plan with Pocket Office and Split-bed Layout - 2176 Sq Ft - 42106DB floor plan - Main Level
Main Level - Basement Stairs Location
Reverse Floor Plan

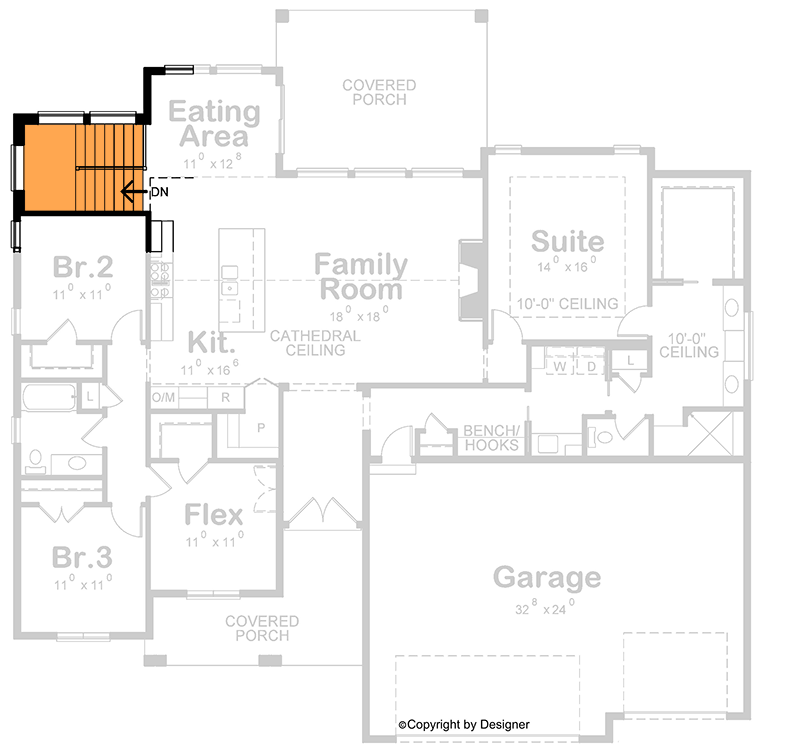

New American House Plan with Pocket Office and Split-bed Layout - 2176 Sq Ft - 42106DB floor plan - Main Level - Basement Stairs Location
Plan Details

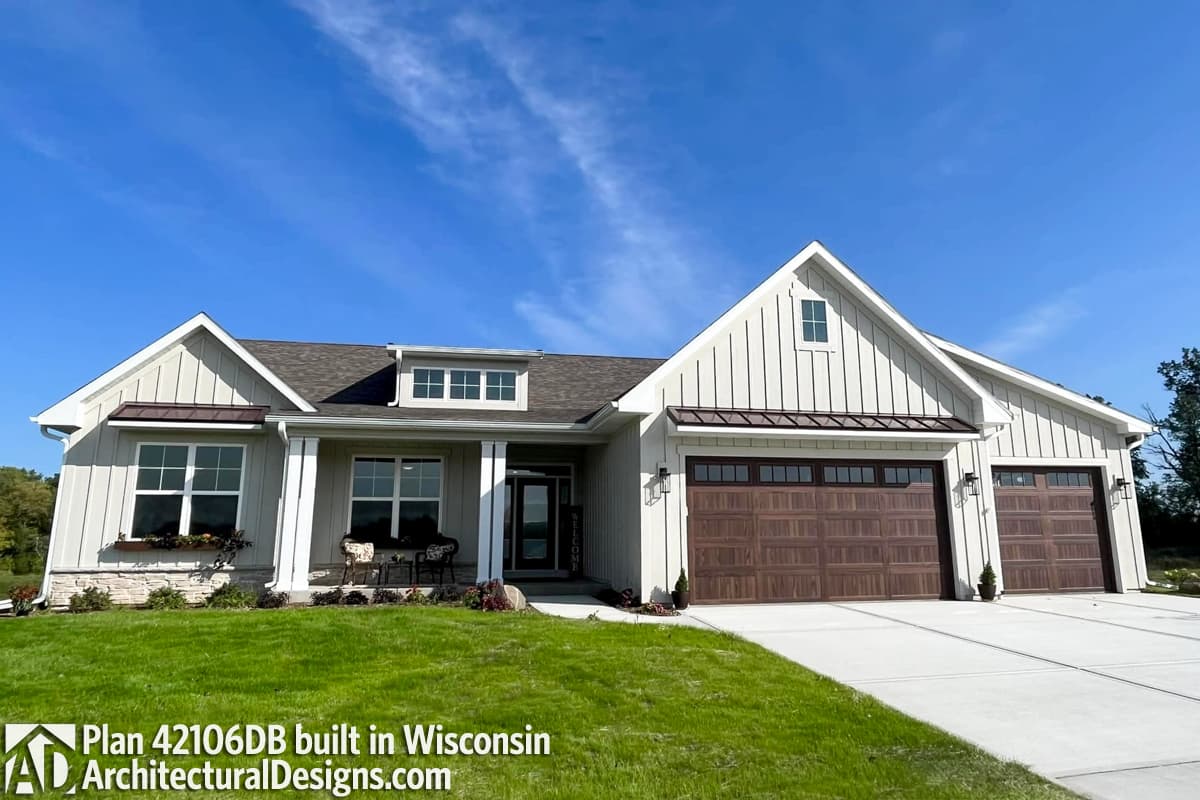

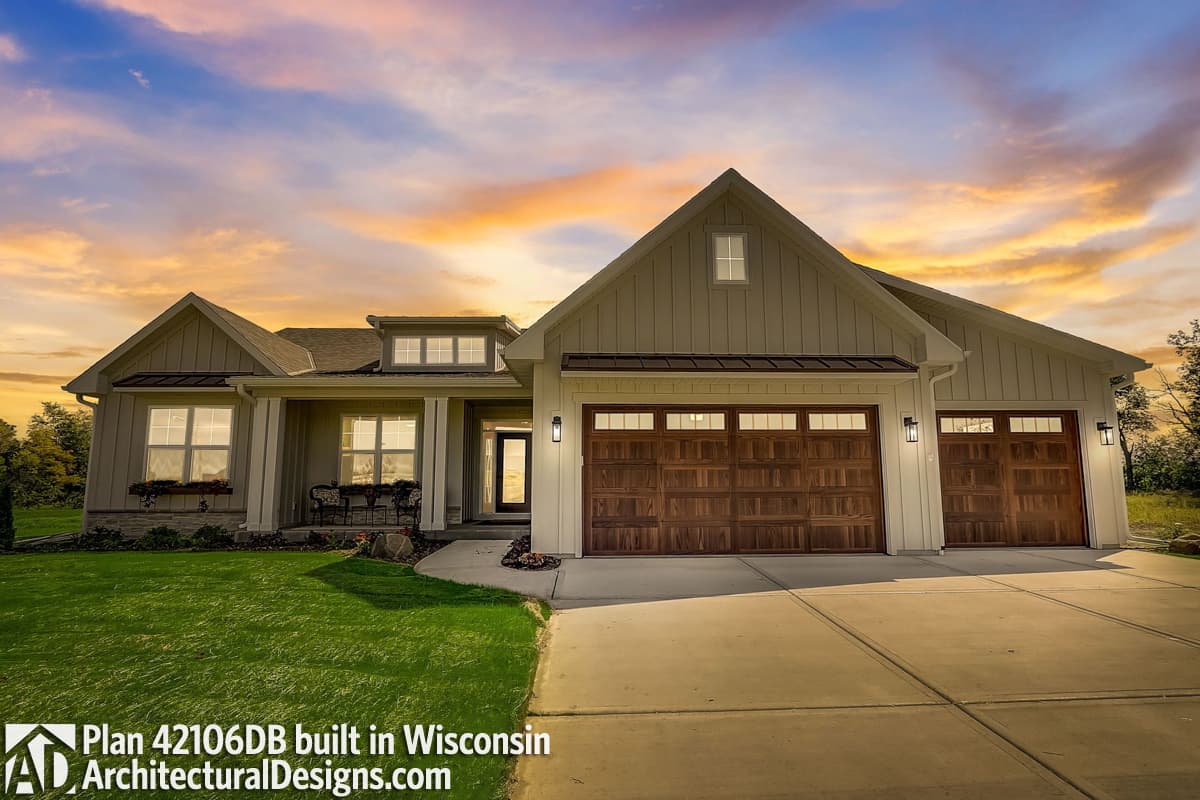

  • Metal roof accents and flat rain awnings add a modern touch to the exterior of this New American house plan.
  • The family room opens to the kitchen in the center of this home with a cathedral ceiling lending a cohesive element. The eating area protrudes from the rear elevation and offers access to a 251 sq ft porch.
  • The primary suite is set apart from the secondary bedrooms for privacy purposes and features a walk-in closet and 4-fixture ensuite with a shortcut to the laundry room.
  • Two family bedrooms line the left side of the home, separated by a full bath. A flex room sits across the hall and a pocket office just off the kitchen provides natural light.
  • The forward-facing garage is considerate of smaller lots and opens into a mudroom with a coat closet and built-in bench.
  • Related Plan: Get an alternate exterior with house plan 42105DB.
What's Included
  • General Notes

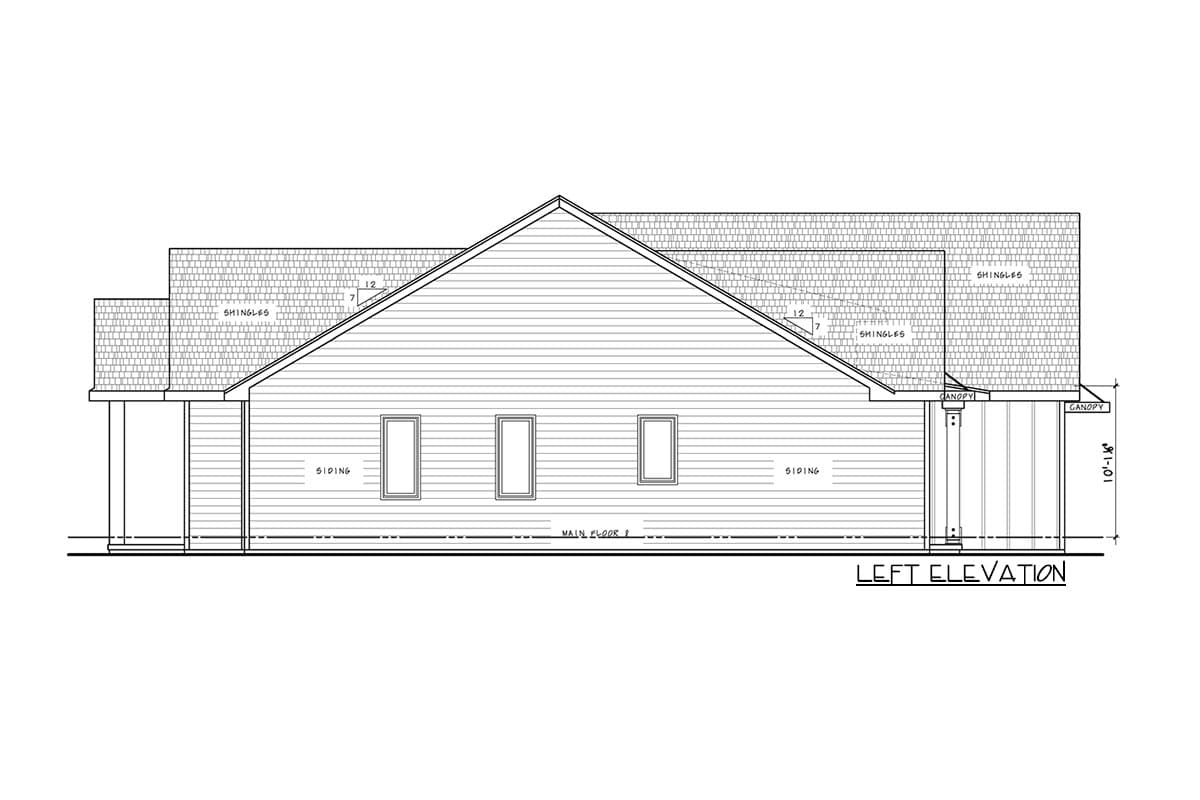

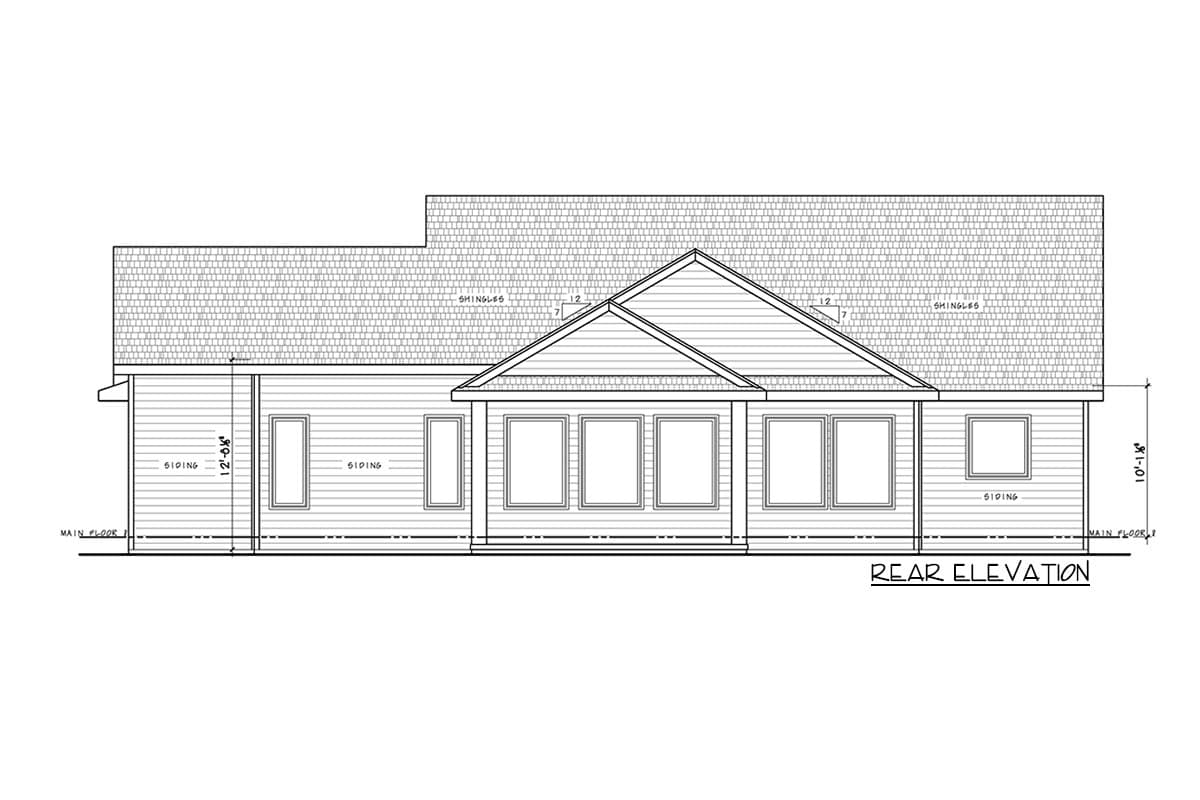

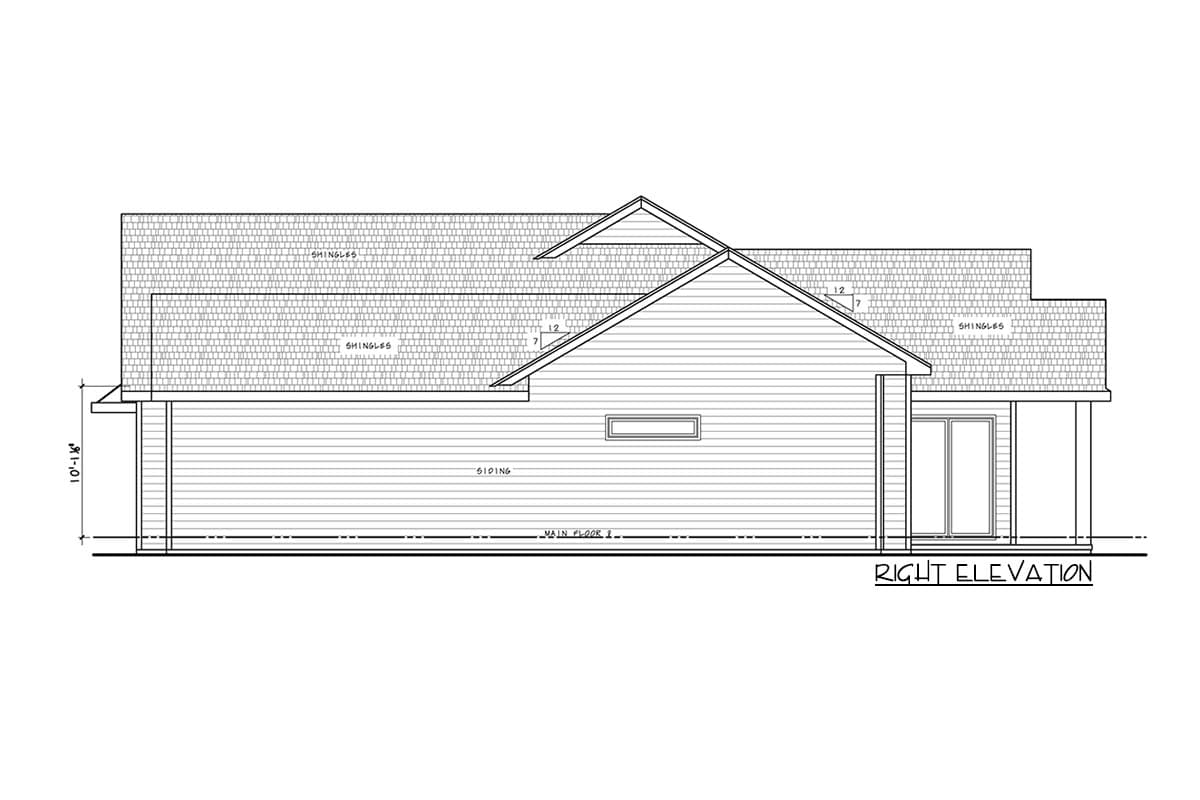

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

New American House Plan with Pocket Office and Split-bed Layout - 2176 Sq Ft

  • 2,176

    Heated s.f.

  • 3-4

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Main Level - Basement Stairs Location

Plan Details

Square Footage Breakdown

  • Total: 2,176 sq. ft.
  • 1st Floor: 2,176 sq. ft.

Dimensions

  • Width: 64' 4"
  • Depth: 63' 8"
  • Max ridge height: 24' 0"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 792 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 16 on 12
