Plan 710126BTZ

New American House Plan with Separate Bonus Room Access

Pageloader

New American House Plan with Separate Bonus Room Access

Plan 710126BTZ

  • 4,095

    Heated s.f.

  • 4-5

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

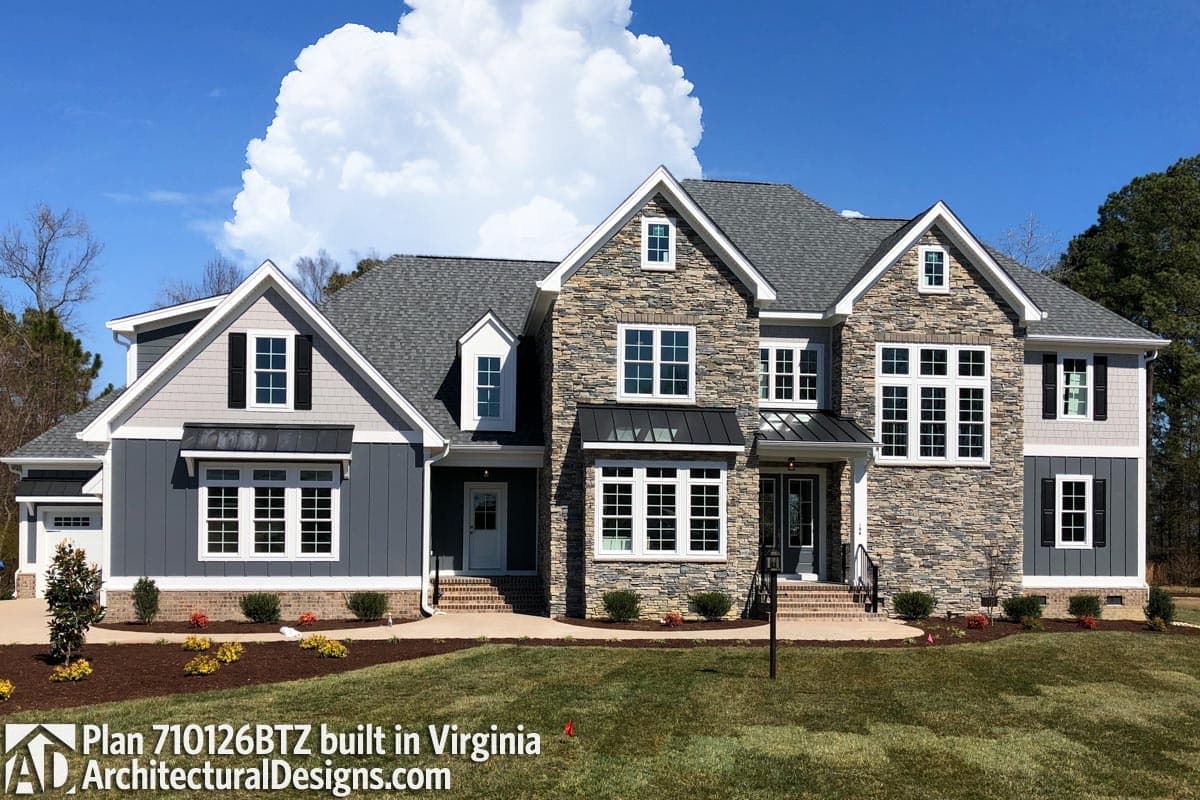

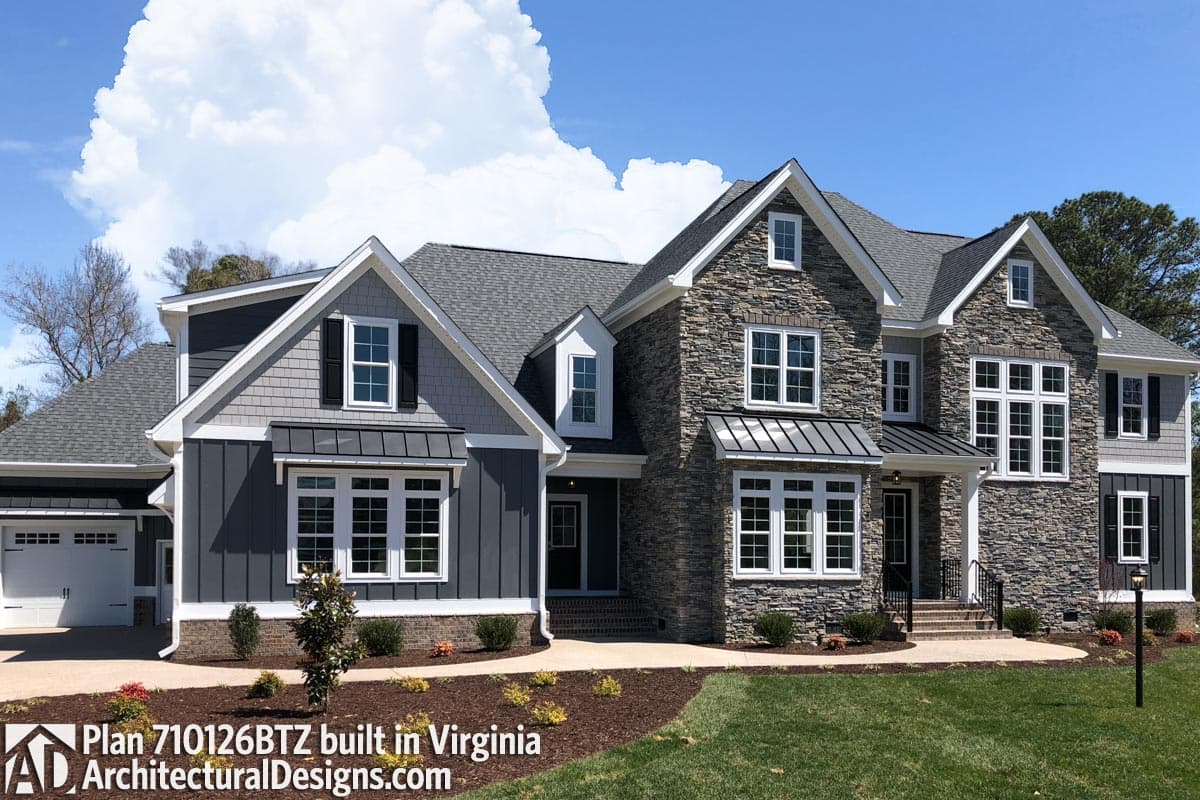

  • Steeply pitched gables and a mixed use of exterior materials unite to create great curb appeal. Classic fieldstone adorns the main elements of the elevation while clapboard and board-and-batten sidings complete the cladding. Large window groupings, a boxed bay window and a pair of covered stoops provide the finishing touches on the exterior.
  • The main floor is loaded with features and amenities to satisfy even the most discerning tastes. The island kitchen anchors the living spaces and is open to the grand room and breakfast areas.
  • The master suite is secluded and is perfectly located to take full advantage of rear facing views. The master bath has a free standing tub and a large shower as well as large walk-in closets for him and her.
  • The guest suite has a private bath and can also double as a home work space.
  • The outdoor decks and covered porches provide additional space to enjoy and entertain when the weather permits.
  • The upper level contains three additional bedrooms for a growing family. The game room is the perfect space for game tables, media and large lounging furnishings and also opens onto an upper level covered porch. The bonus room has its own access via a rear stairway and could be adapted into an au pair suite or other purposes.

The plans include the following:

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Kitchen & Bath elevations - show the arrangement and size of each cabinet and other fixtures in the room.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.


Floor Plan

Plan details



New American House Plan with Separate Bonus Room Access

  • 4,095

    Heated s.f.

  • 4 - 5

    Beds

  • 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,625
  • 8 Sets $1,775
  • PDF - multi-use $1,925
  • Reproducible Set $2,020
  • CAD - multi-use $3,670
  • View all purchase option online

About This Plan

  • Steeply pitched gables and a mixed use of exterior materials unite to create great curb appeal. Classic fieldstone adorns the main elements of the elevation while clapboard and board-and-batten sidings complete the cladding. Large window groupings, a boxed bay window and a pair of covered stoops provide the finishing touches on the exterior.
  • The main floor is loaded with features and amenities to satisfy even the most discerning tastes. The island kitchen anchors the living spaces and is open to the grand room and breakfast areas.
  • The master suite is secluded and is perfectly located to take full advantage of rear facing views. The master bath has a free standing tub and a large shower as well as large walk-in closets for him and her.
  • The guest suite has a private bath and can also double as a home work space.
  • The outdoor decks and covered porches provide additional space to enjoy and entertain when the weather permits.
  • The upper level contains three additional bedrooms for a growing family. The game room is the perfect space for game tables, media and large lounging furnishings and also opens onto an upper level covered porch. The bonus room has its own access via a rear stairway and could be adapted into an au pair suite or other purposes.

Floor Plans

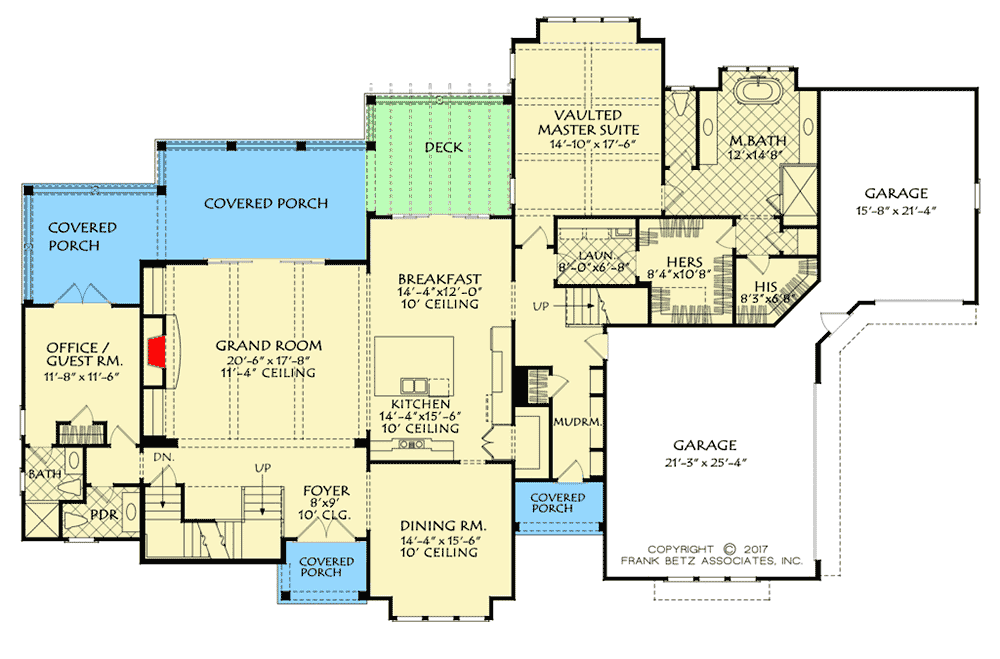

  • Main Level

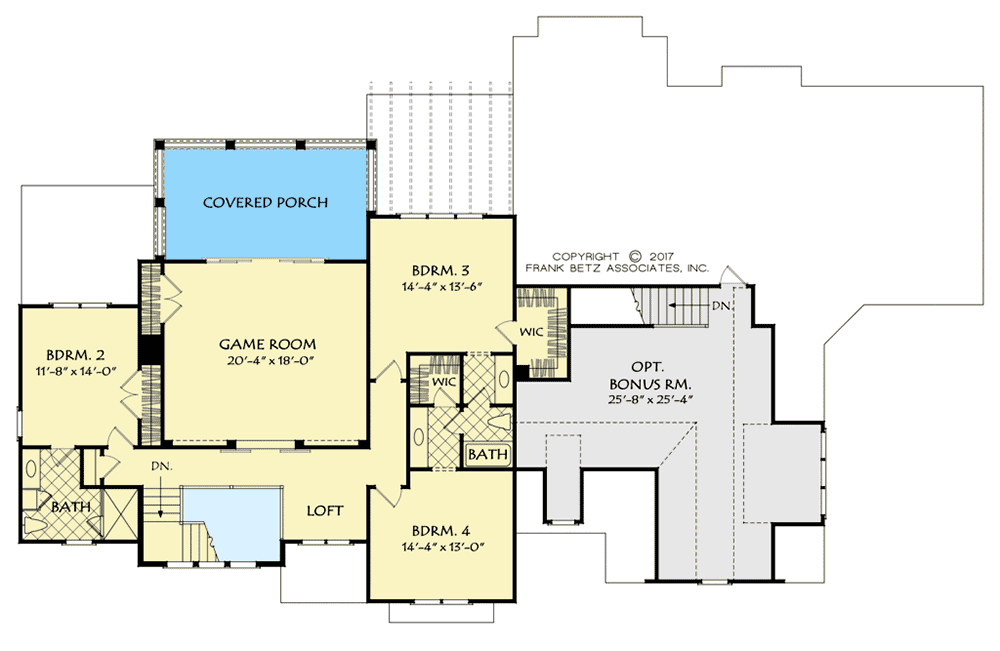

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,095 sq. ft.
  • 1st Floor: 2,590 sq. ft.
  • 2nd Floor: 1,505 sq. ft.
  • Bonus: 579 sq. ft.
  • Basement Unfinished: 2,590 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 61' 0"
  • Depth: 97' 0"
  • Max ridge height: 34' 9"

Garage

  • Type: Attached
  • Area: 932 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
