Plan 710119BTZ
New American House Plan with Third Car Garage and Two Bonus Room Options
Heated S.F.
2,594
Beds
4
Baths
3.5
Stories
2
Cars
2-3
What's Included
Plan Details

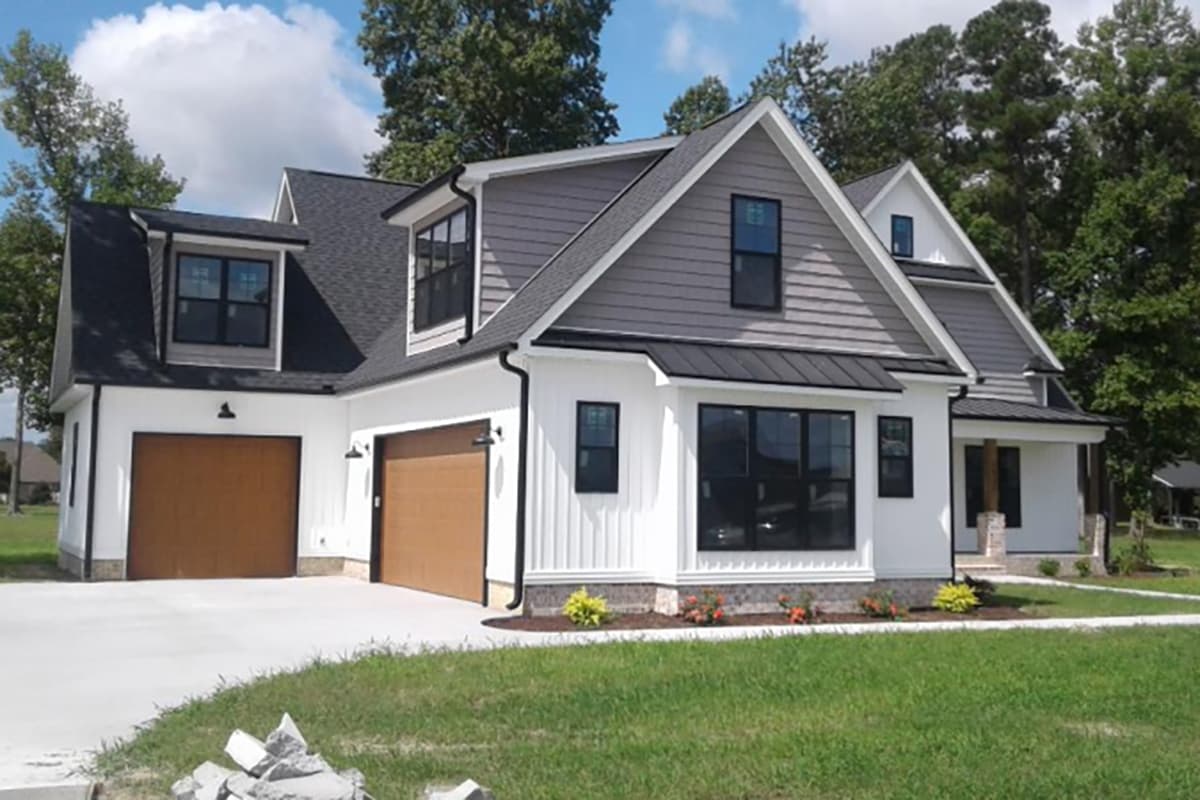

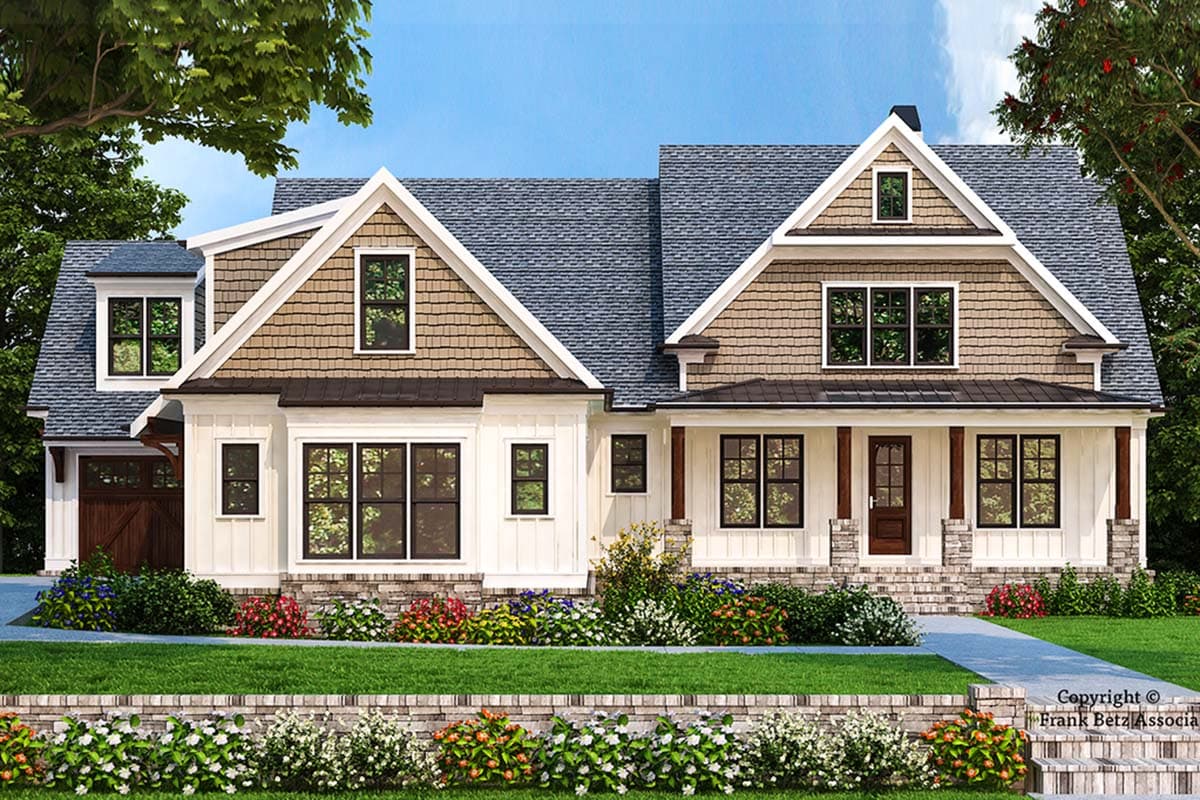

  • Multiple sidings, steeply pitched roofing and board and batten siding give this New American house plan great curb appeal. A wide, inviting front porch greets you as you approach the home.
  • The main level is open, bright and airy, and is filled with modern appointments such as a large kitchen island, beamed ceilings and a convenient mudroom.
  • The sleeping quarters are separated for privacy and when there is a need for peace and quiet. There is additional living space created by a covered rear porch to enjoy the outdoors when the weather cooperates.
  • The optional third car garage gives you storage expansion possibilities.
  • The upper level provides for an additional bedroom, bathroom and loft/study (those spaces combine for 499 square feet). There are two additional bonus spaces that have a multitude of uses (they add 506 square feet when built).
What's Included
  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

New American House Plan with Third Car Garage and Two Bonus Room Options

  • 2,594

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2 - 3

    Car garage

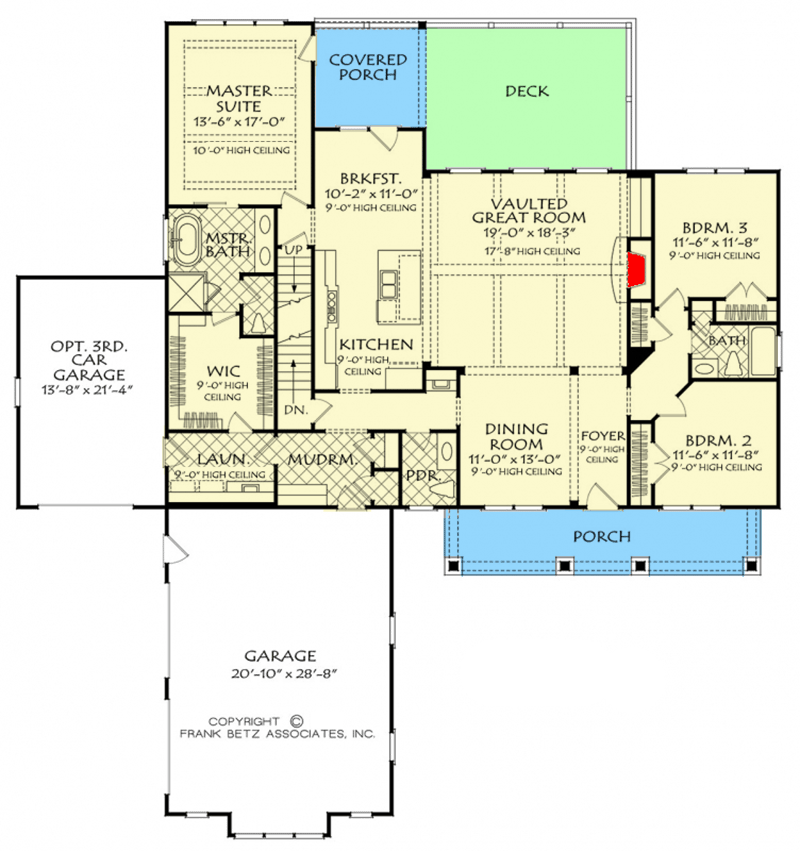

Floor Plan

  • Main Level

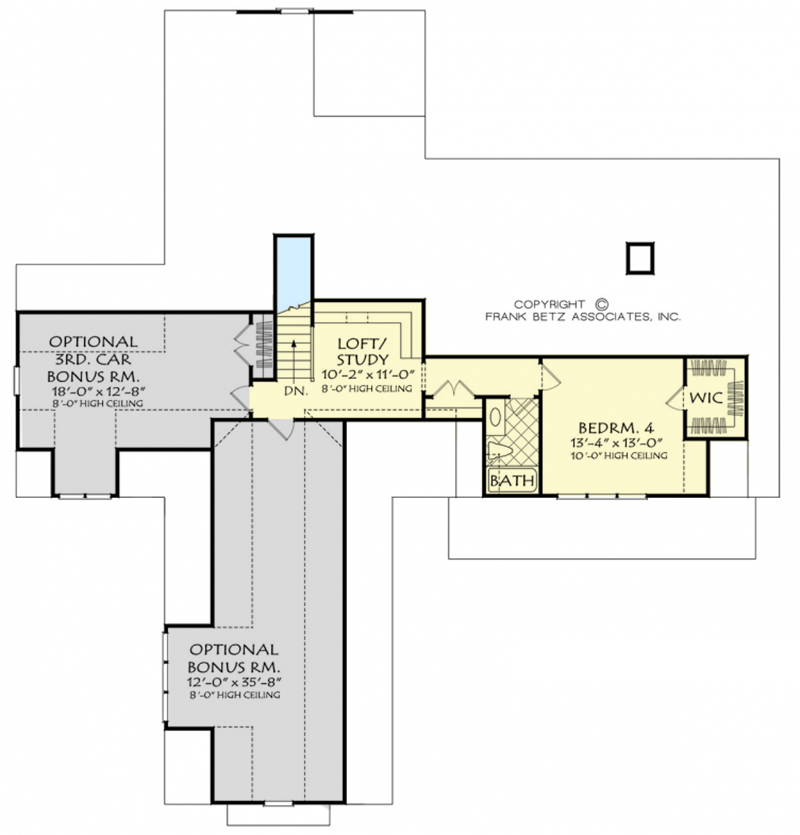

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,594 sq. ft.
  • 1st Floor: 2,095 sq. ft.
  • 2nd Floor: 499 sq. ft.

Dimensions

  • Width: 72' 0"
  • Depth: 77' 0"
  • Max ridge height: 29' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 900 sq. ft.
  • Count: 2 or 3 Cars
  • Entry Location: Side, Front

Foundation Type

    • Standard Foundations: Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
