New American House Plan with Two Owner Suites
Heated S.F.
1,936
Beds
3
Baths
3
Stories
1
Cars
3
Photos
What's Included
Floor Plan
PRINT PLANS

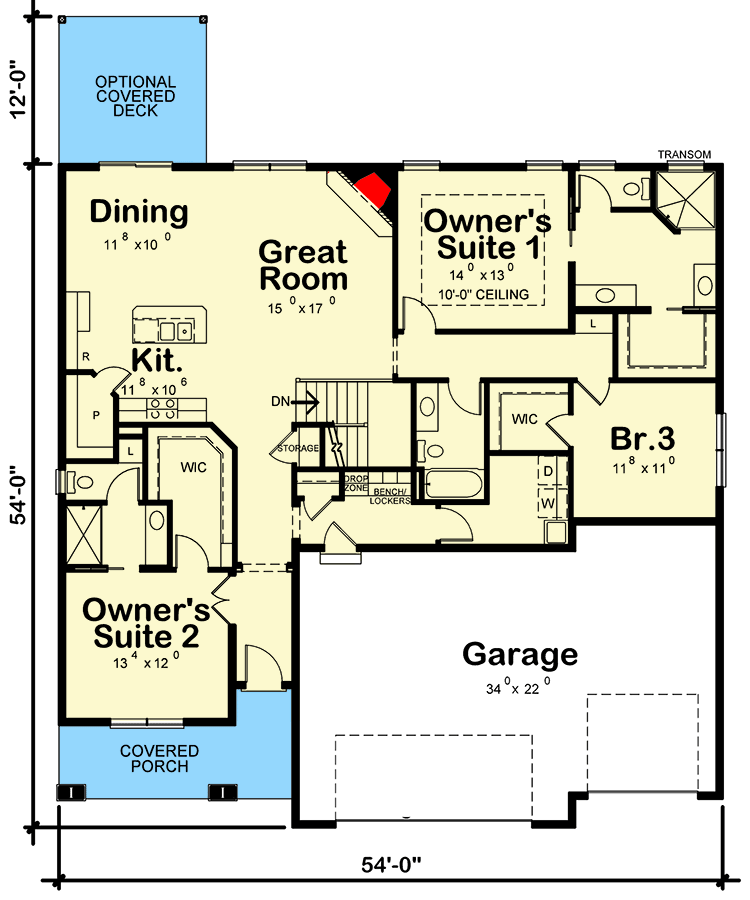

Main Level
Reverse Floor Plan
New American House Plan with Two Owner Suites - 42640DB floor plan - Main Level

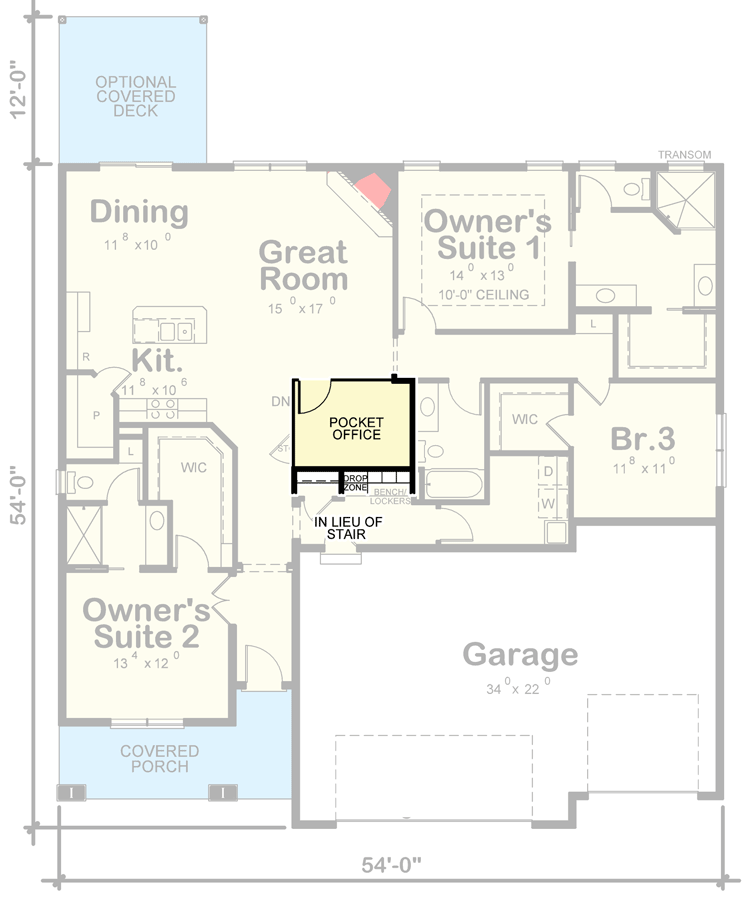

Optional Slab Foundation with Pocket Office
Reverse Floor Plan
New American House Plan with Two Owner Suites - 42640DB floor plan - Optional Slab Foundation with Pocket Office
Plan Details
  • This one-story house plan has an attractive New American exterior and gives you three bedrooms inside.
  • A lovely open floor plan in the main living area combines the great room and kitchen into an entertaining space and a corner fireplace and sliding glass doors to an optional covered deck are nice touches.
  • Two owners suites are arranged in a split bedroom layout and each have walk-in closets. A third bedroom could be used as a study or den (and there is a pocket office option if you don't need the stairs.
  • Related Plans: Get alternate versions with house plans 42518DB, 42370DB, 42519DB and 42615DB.
What's Included
  • General Notes
  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

New American House Plan with Two Owner Suites

  • 1,936

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Optional Slab Foundation with Pocket Office

Plan Details

Square Footage Breakdown

  • Total: 1,936 sq. ft.
  • 1st Floor: 1,936 sq. ft.

Dimensions

  • Width: 54' 0"
  • Depth: 54' 0"
  • Max ridge height: 24' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 780 sq. ft.
  • Count: 3 Cars

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 8 on 12
