Plan 95070RW

New American Modern Farmhouse Plan with Optional Finished Lower Level

Pageloader

New American Modern Farmhouse Plan with Optional Finished Lower Level

Plan 95070RW

  • 2,875

    Heated s.f.

  • 3-5

    Beds

  • 3.5 - 4.5

    Baths

  • 1

    Stories

  • 3

    Cars

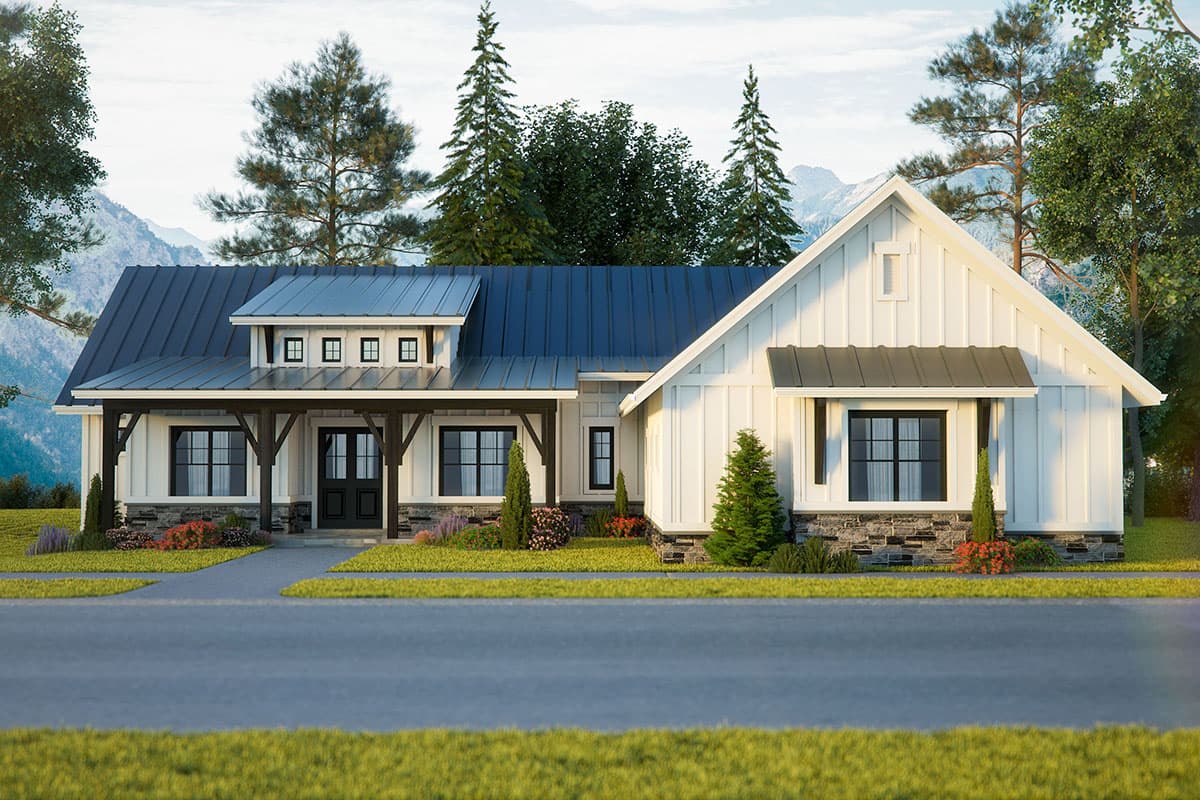

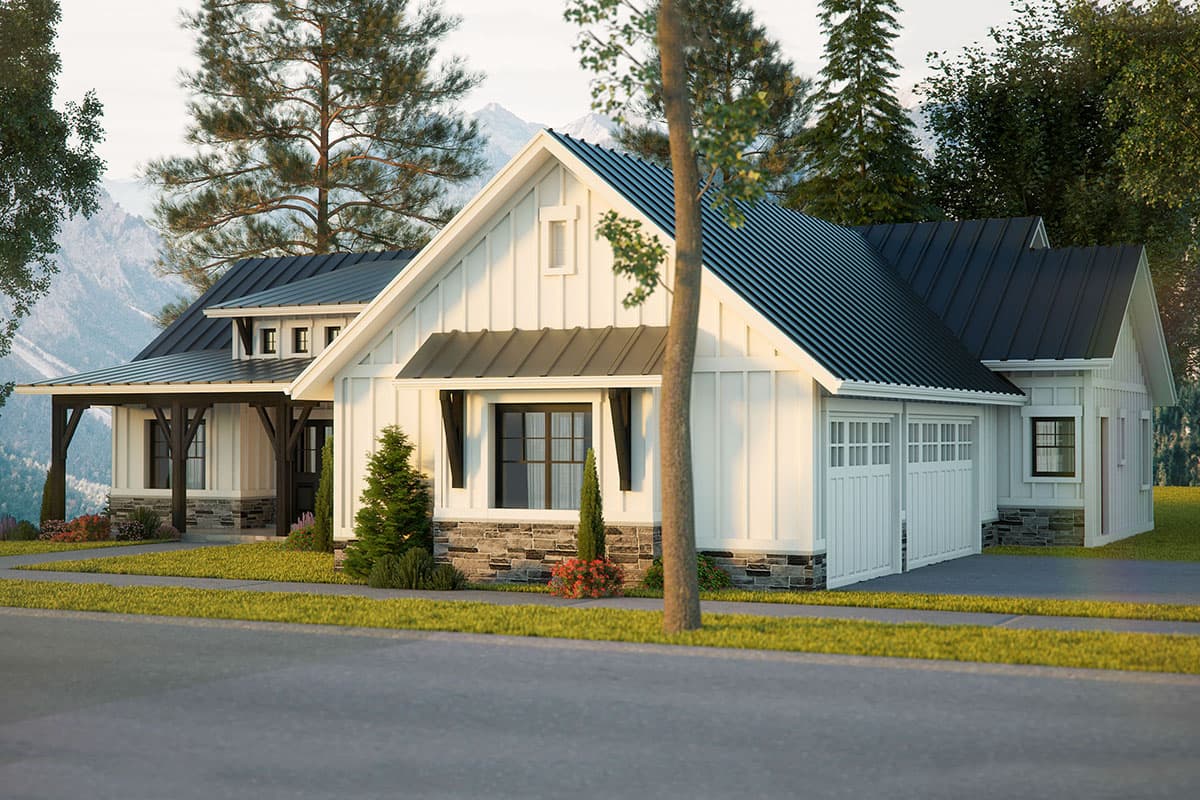

  • An attractive shed dormer sits atop the front porch on this New American modern ranch farmhouse plan. A 3-car garage with side-entry has a bayed window with a metal shed roof giving the home great curb appeal from the front.
  • The great room and dining rooms are both vaulted and have access to the covered patio in back through french doors.
  • A roomy pantry is a nice addition to the kitchen which has lots of counter space plus a large island.
  • The master suite has a trayed ceiling and direct access to the laundry room through the walk-in closet. Two more bedrooms across the home each have tehir own bathrooms.
  • The downstairs give you expansion with two more bedrooms and a large rec room should you decide to finish it as shown.

Cover Page

At least 4 exterior elevations

Floor plans

Foundation Plan (with no specifications of structural elements)

Roof Plan (with no specifications of structural elements)

Electrical plans for each floor plan

Typical Wall sections

Most will include:

·         Floor framing plans

·         Cross Sections

·         ‘Some’ interior details/ elevation

Floor Plan

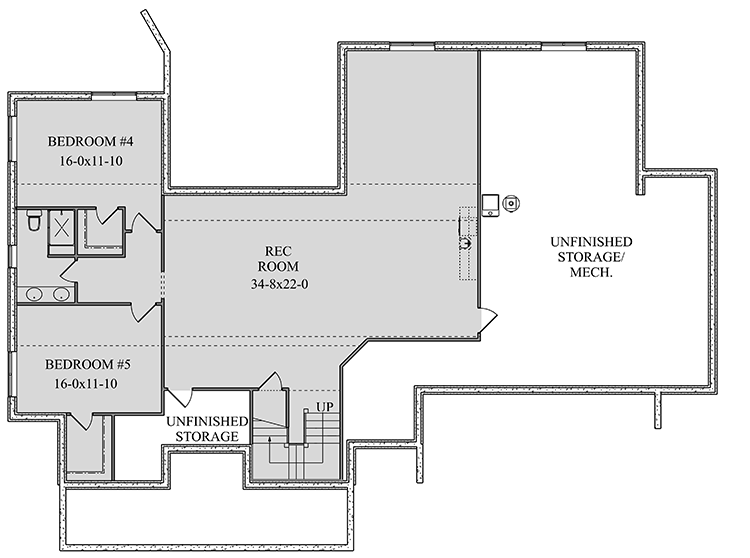

Optional Lower Level

Pinit white
New American Modern Farmhouse Plan with Optional Finished Lower Level - 95070RW floor plan - Optional Lower Level

Plan details



New American Modern Farmhouse Plan with Optional Finished Lower Level

  • 2,875

    Heated s.f.

  • 3 - 5

    Beds

  • 4 +

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,600
  • CAD $2,900
  • View all purchase option online

About This Plan

  • An attractive shed dormer sits atop the front porch on this New American modern ranch farmhouse plan. A 3-car garage with side-entry has a bayed window with a metal shed roof giving the home great curb appeal from the front.
  • The great room and dining rooms are both vaulted and have access to the covered patio in back through french doors.
  • A roomy pantry is a nice addition to the kitchen which has lots of counter space plus a large island.
  • The master suite has a trayed ceiling and direct access to the laundry room through the walk-in closet. Two more bedrooms across the home each have tehir own bathrooms.
  • The downstairs give you expansion with two more bedrooms and a large rec room should you decide to finish it as shown.

Floor Plans

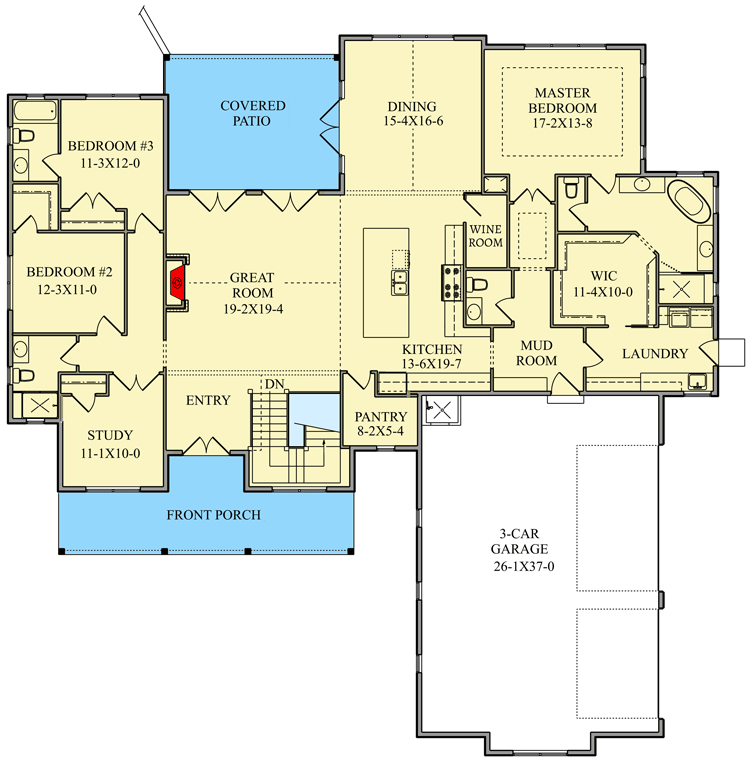

  • Main Level

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,875 sq. ft.
  • 1st Floor: 2,875 sq. ft.
  • Porch, Combined: 554 sq. ft.
  • Optional Lower Level: 1,611 sq. ft.
  • Basement Unfinished: 1,246 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, & 5
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 78' 0"
  • Depth: 79' 0"
  • Max ridge height: 23' 1"

Garage

  • Type: Attached
  • Area: 1034 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 3 on 12
