Plan 25777GE New American Ranch with Wraparound Porch and Rear Garage

2,121 3 2 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

New American Ranch with Wraparound Porch and Rear Garage

Plan 25777GE

  • 2,121

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

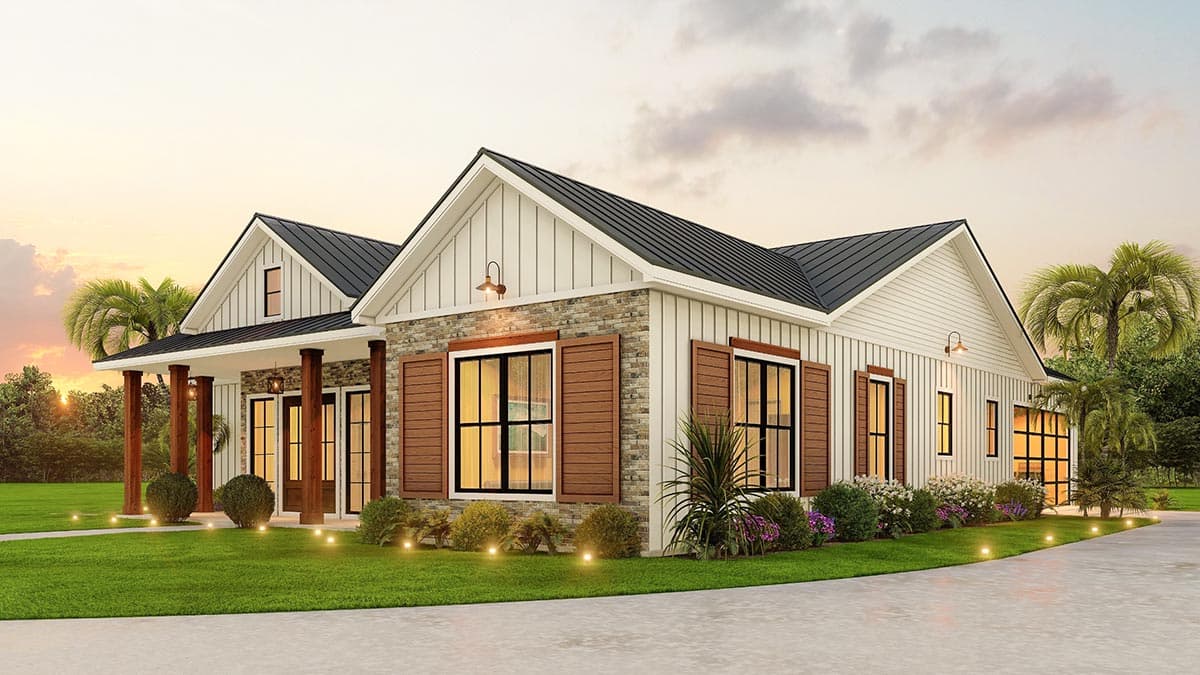

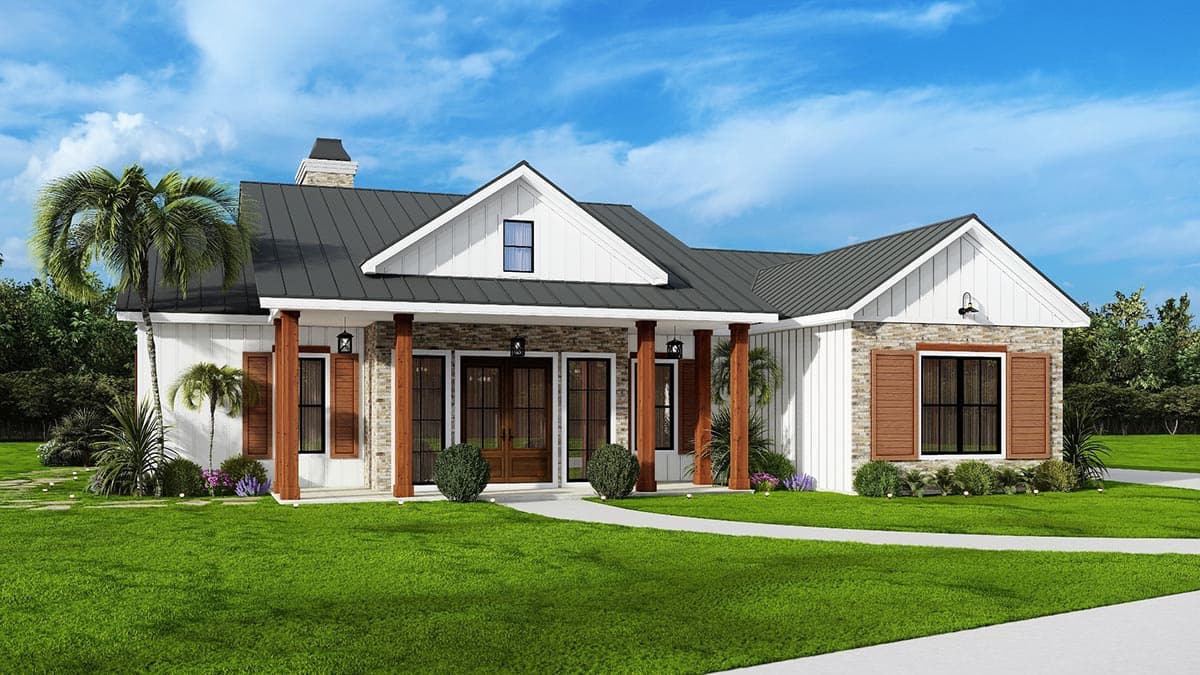

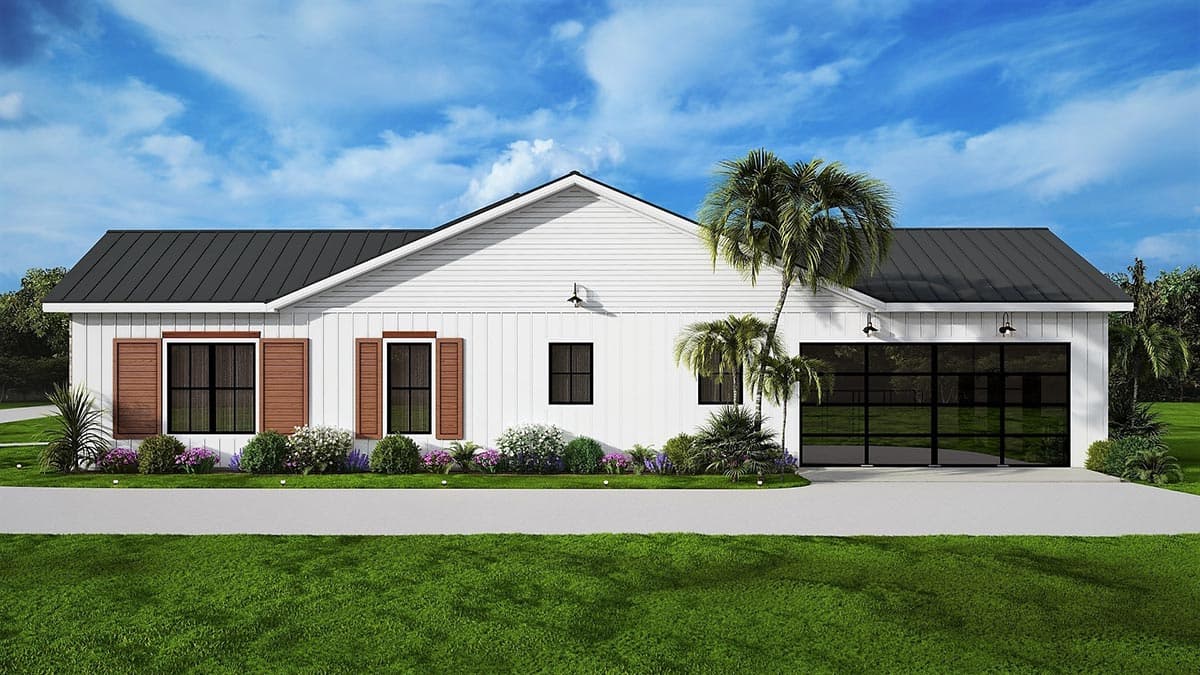

  • Six pillars support the wraparound porch on the front elevation of this New American Ranch home plan. The double garage is attached to the rear and offers entry from the side.
  • The sizable foyer leads directly into the combined kitchen, great room, and dining area. The kitchen island offers seating for five and a nearby walk-in pantry allows the homeowner to grocery shop in bulk.
  • The rear covered porch lends a protected outdoor space to enjoy BBQs or relax in the fresh air.
  • The master bedroom consumes the right side of the design and features a pass-thru ensuite that connects with the laundry room.
  • Bedrooms 2 and 3 are similar in size and share the hall bath with a dual-sink vanity.

The plan set includes the following:

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.

 These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

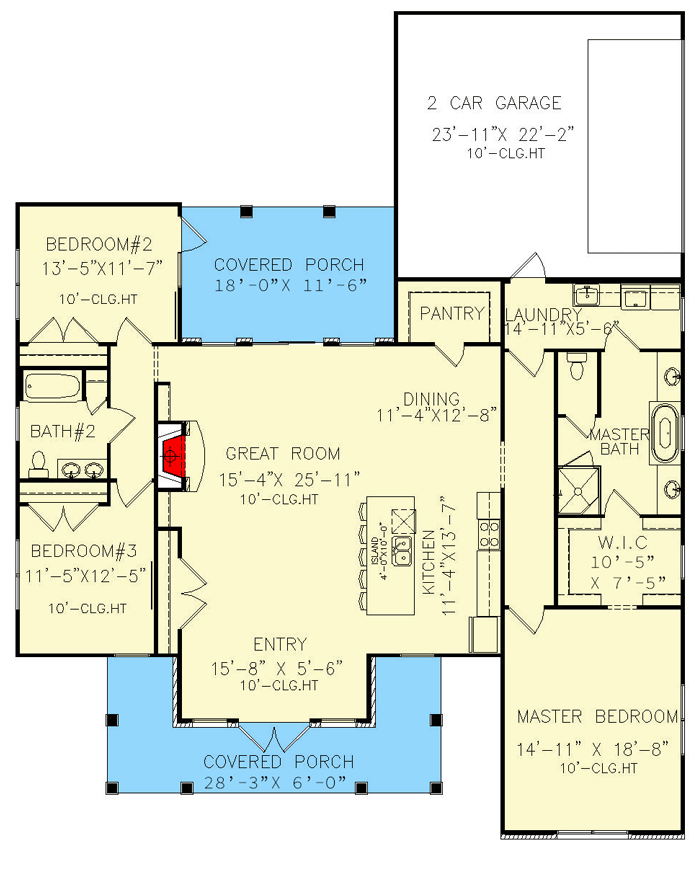

New American Ranch with Wraparound Porch and Rear Garage - 25777GE floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,121 sq. ft.
  • 1st Floor: 2,121 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 56' 6"
  • Depth: 69' 6"
  • Max ridge height: 21' 7"

Garage

  • Type: Attached
  • Area: 551 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 10' 1"

Architectural Style

Special features

New American Ranch with Wraparound Porch and Rear Garage

  • 2,121

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,345
  • CAD - Single-Build $2,195
  • View all purchase option online

About This Plan

  • Six pillars support the wraparound porch on the front elevation of this New American Ranch home plan. The double garage is attached to the rear and offers entry from the side.
  • The sizable foyer leads directly into the combined kitchen, great room, and dining area. The kitchen island offers seating for five and a nearby walk-in pantry allows the homeowner to grocery shop in bulk.
  • The rear covered porch lends a protected outdoor space to enjoy BBQs or relax in the fresh air.
  • The master bedroom consumes the right side of the design and features a pass-thru ensuite that connects with the laundry room.
  • Bedrooms 2 and 3 are similar in size and share the hall bath with a dual-sink vanity.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,121 sq. ft.
  • 1st Floor: 2,121 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 56' 6"
  • Depth: 69' 6"
  • Max ridge height: 21' 7"

Garage

  • Type: Attached
  • Area: 551 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 10' 1"
Plan 25777GE
View this and more for this plan by visiting www.architechtecturaldesigns.com/25777GE
|
