Plan 85435MS
EXCLUSIVE
New American Triplex Home Plan with Subtly Different 3-Bed Units
Heated S.F.
4,114
Units
3
Width
70' 1"
Depth
54' 4"
Cars
4
What's Included
Plan Details
  • This New American triplex townhome gives you townhomes. Shown with a stylish two-tone exterior, this 3-family home plan three spacious 3-bed units with subtly varying floor plans.

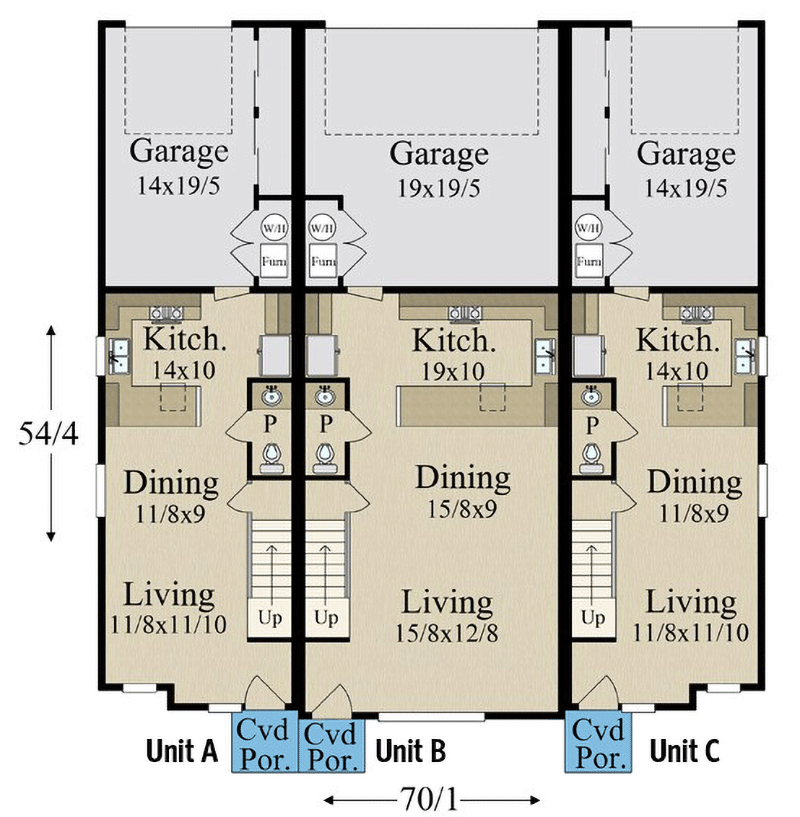

  • The middle unit - the largest of the three - gives you 1,673 square feet of heated living (650 square feet on the main floor and 1,023 square feet on the second floor). The main floor is designed around the open concept kitchen, dining room and living room, where a large view window out the front fills the home with light. Storage under the staircase offers flexibility, and a small powder room off the dining room keeps the upstairs restrooms private. The U-shaped kitchen is designed to maximize counter and cabinet space and to maximize efficiency. Also key to notice is the garage placement at the rear of the home, with entry through the kitchen.

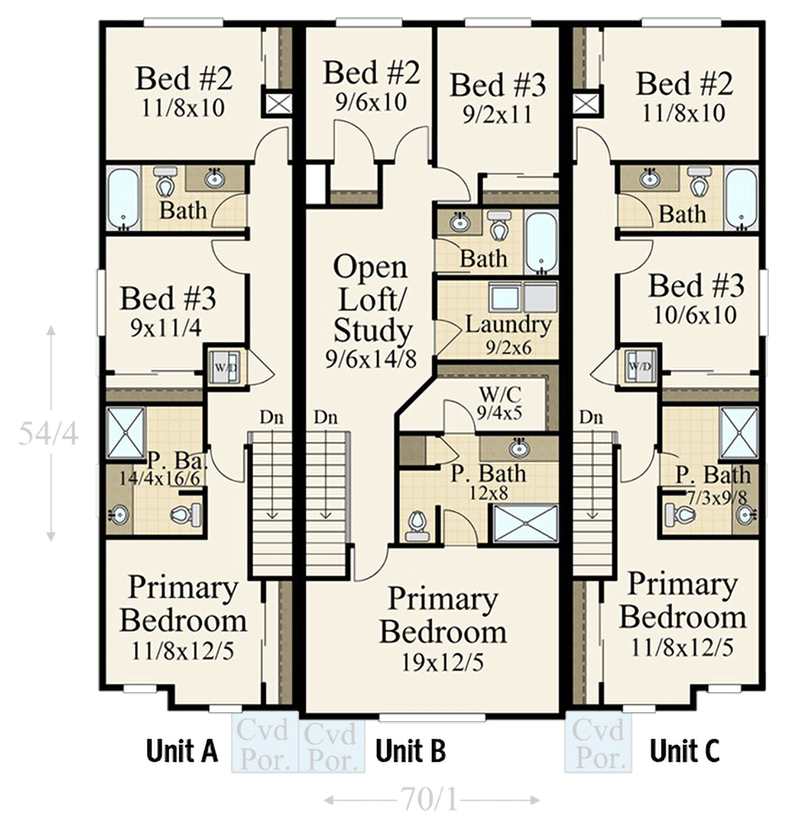

  • Upstairs, you land at the open loft/study with enough space to set up a desk, sitting area, or even a small creative space. Walking to the back of the upper floor gets you to the two guest bedrooms, as well as the first full bathroom. The laundry room is centrally located to provide easy access to all residents. Back at the front half of the home, you’ll find an excellent primary bedroom suite, with a deluxe bathroom and sizable walk-in closet, especially when considering the overall footprint of the triplex.
  • The two end units give you 1,228 square feet of heated living space (477 square feet on the main floor and 751 square feet on the second floor) in the left unit and 1,213 square feet (470 square feet on the main floor and 743 square feet on the second floor) on the right unit. The plans offer very similar layouts, with slightly reduced square footage in both the main and upper floors. Changes of note include the placement of the two guest bedrooms, the absence of the loft/study, and a standard closet in the primary bedroom.
Unit A
1,228 Sq. Ft.
477 Sq. Ft. 1st Floor
751 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
1 Vehicle
Attached
54' d
Unit B
1,673 Sq. Ft.
650 Sq. Ft. 1st Floor
1023 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
2 Vehicle
Attached
54' d
Unit C
1,213 Sq. Ft.
470 Sq. Ft. 1st Floor
743 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
1 Vehicle
Attached
54' d
What's Included

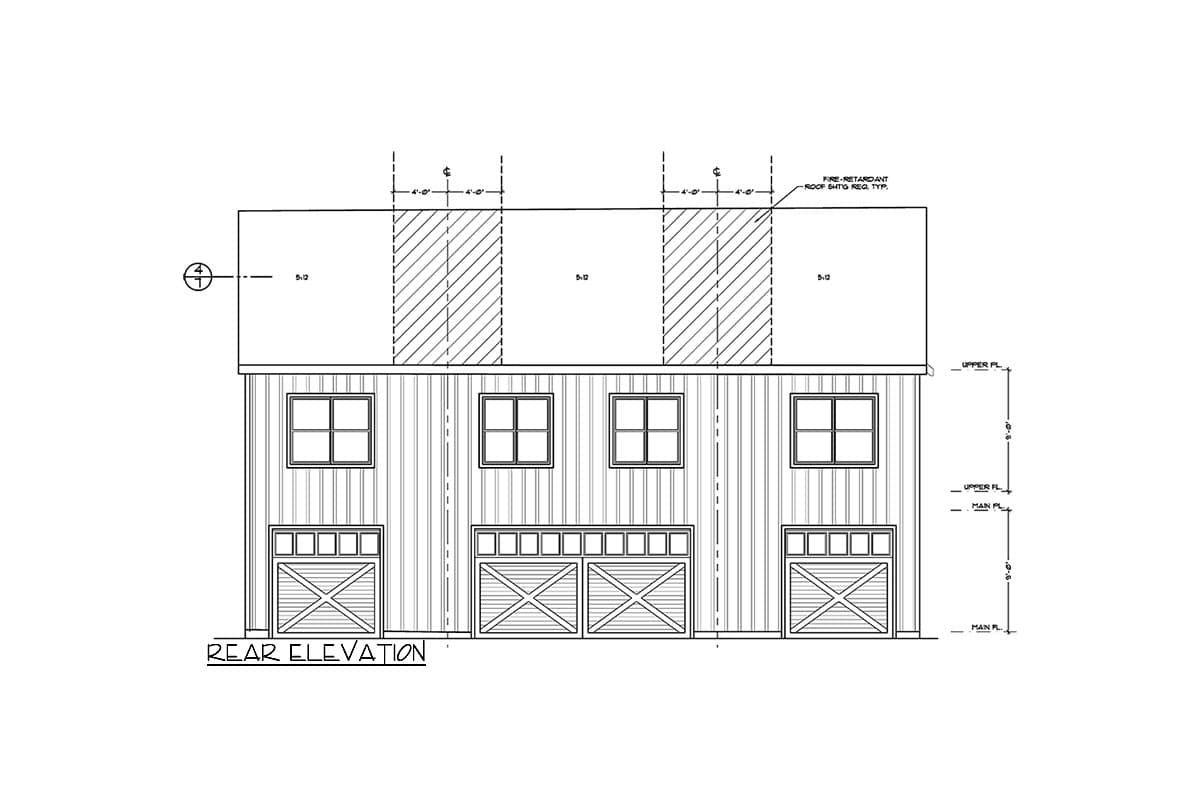

  • Elevations: Front, Right, Rear, Left
  • Fully Dimensioned Floor Plans (window and door sizes called out at openings)
  • Foundation Plan with notes
  • Roof Framing Plan with notes
  • Section Views
  • Electrical Layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

New American Triplex Home Plan with Subtly Different 3-Bed Units

  • 4,114

    Heated s.f.

  • 3

    Units

  • 70' 1"

    Width

  • 54' 4"

    Depth

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,114 sq. ft.
  • 1st Floor: 1,597 sq. ft.
  • 2nd Floor: 2,517 sq. ft.

Dimensions

  • Width: 70' 1"
  • Depth: 54' 4"

Beds/Baths

  • Bedrooms: 8
  • Full bathrooms: 6
  • Half bathrooms: 3

Garage

  • Type: Attached
  • Count: 4 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6
All house plans are copyright ©2024 by the architects and designers represented on our web site

New American Triplex Home Plan with Subtly Different 3-Bed Units

  • 4,114

    Heated s.f.

  • 3

    Units

  • 70' 1"

    Width

  • 54' 4"

    Depth

New American Triplex Home Plan with Subtly Different 3-Bed Units

  • 4,114

    Heated s.f.

  • 3

    Units

  • 70' 1"

    Width

  • 54' 4"

    Depth

Plan Details

Square Footage Breakdown

  • Total: 4,114 sq. ft.
  • 1st Floor: 1,597 sq. ft.
  • 2nd Floor: 2,517 sq. ft.

Dimensions

  • Width: 70' 1"
  • Depth: 54' 4"

Beds/Baths

  • Bedrooms: 8
  • Full bathrooms: 6
  • Half bathrooms: 3

Garage

  • Type: Attached
  • Count: 4 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6
