Plan 81651AB
Northwest Home with Sunken Den
Heated S.F.
3,464
Beds
4
Baths
3.5
Stories
2
Cars
2
What's Included
Plan Details

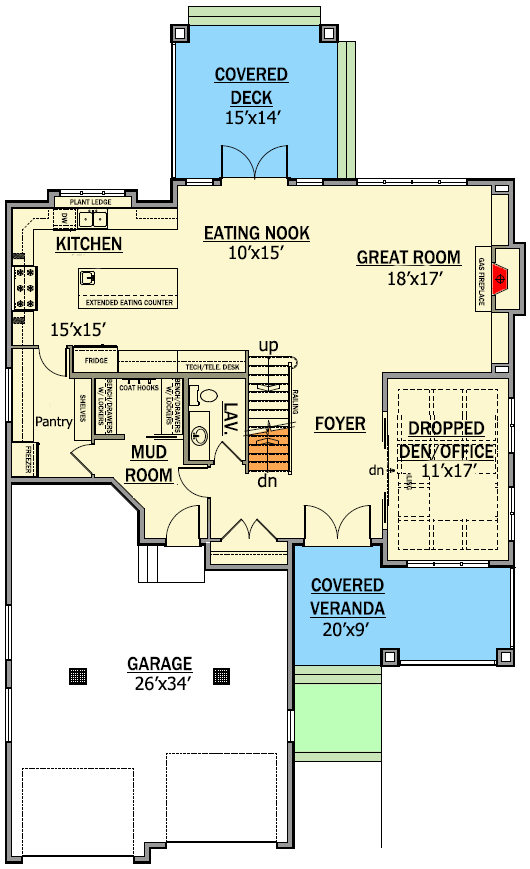

  • Pocket doors right off the foyer slide open to reveal a spacious sunken den with coffered ceiling.
  • The wide foyer hall leads straight back to the main living area that is all open concept.
  • Built-ins lie on either side of the great room fireplace, giving you wonderful storage space.
  • Double doors in the dining nook open to the rear deck that is covered to shelter you from the sun and rain.
  • A walk-through pantry with freezer can be accessed from either the kitchen or the mud room.

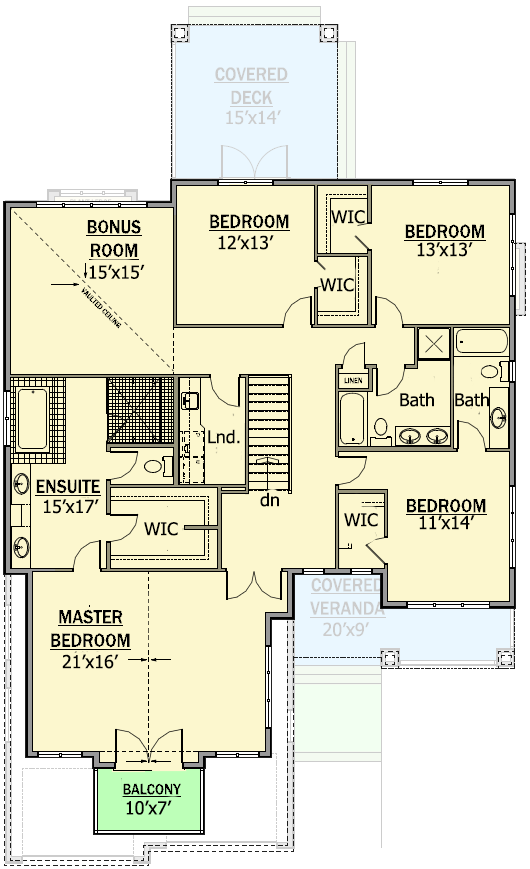

  • All four bedrooms are up on the second floor with the vaulted master suite having a private balcony.
  • The laundry room and bonus space are also on this level.
What's Included
  • Elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

What's Not Included
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Northwest Home with Sunken Den

  • 3,464

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,464 sq. ft.
  • 1st Floor: 1,476 sq. ft.
  • 2nd Floor: 1,988 sq. ft.

Dimensions

  • Width: 46' 0"
  • Depth: 62' 0"
  • Max ridge height: 35' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 804 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 5 on 12
  • Secondary Pitch: 7 on 12
  • Framing Type: Truss
