Plan 40896DB Northwest House Plan Designed For Convenience

Northwest House Plan Designed For Convenience

Plan 40896DB

  • 2,309

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Work from home in your convenient home office located right off the foyer of this Northwest house plan.
  • A big fireplace warms the living room where you get views of the dining area and large kitchen.
  • Homeowners will appreciate the walk-in pantry and the handy peninsula eating bar.
  • A utility room lies close by so you can keep the laundry moving while cooking meals.
  • The spacious second floor includes four bedrooms plus loft space.
  • Related Plans: Get alternate exteriors with house plans 42300DB and 40897DB.

Most plans include the following:


Cover Page:
Each home plan features the front elevation and informative reference sections including, general notes and design criteria*, abbreviations, and symbols for your plan.

Elevations:

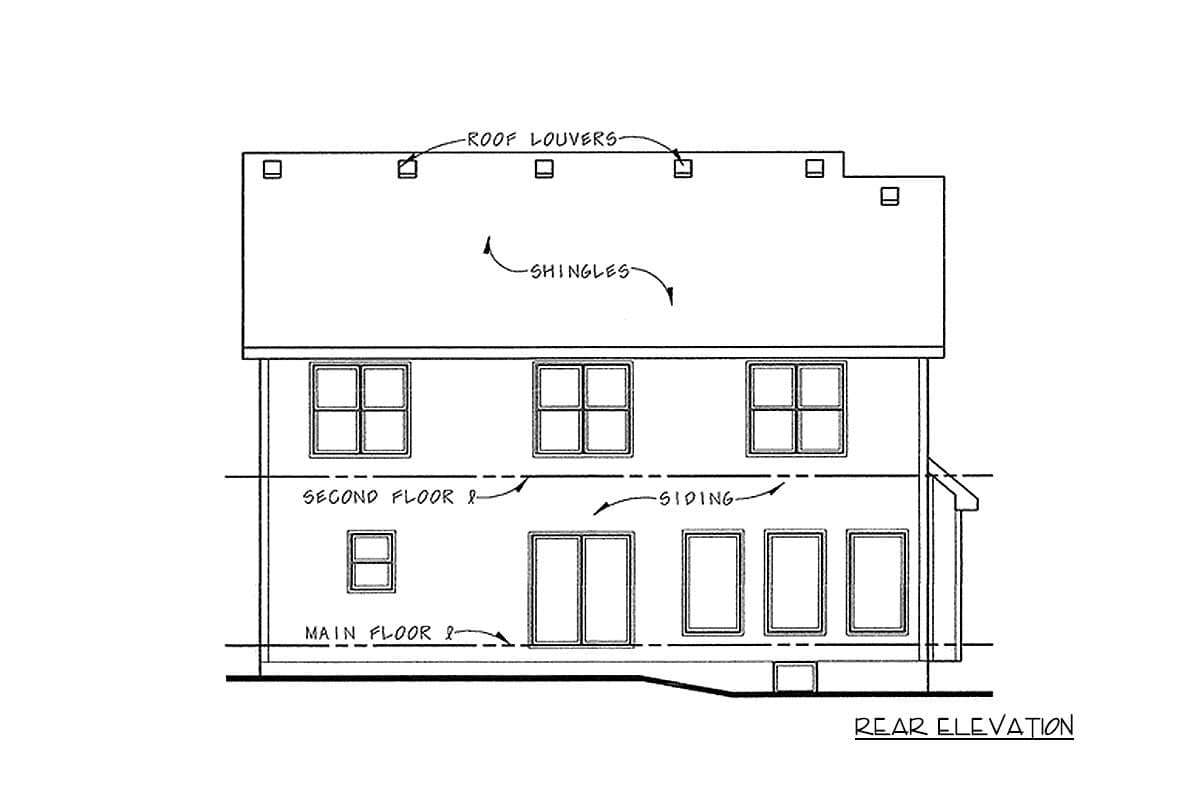

Scaled elevations for the front, rear, and sides are provided. All elevations are detailed, and an aerial view of the roof is provided.

Foundations:
Foundations are fully engineered for each design, whether slab or basement.

Main Level Floor Plan:
The detailed drawings are fully dimensioned for ease of framing. Exterior wall thicknesses vary by plan. If necessary, contact us to clarify the standard exterior wall thickness for the plan(s) you are interested in.

Second Level Floor Plan (if any):
Dimensioned and drafted to the same degree of detail as the main level floor plan*.

Electrical and Sections:
Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.

Full technical support is provided to purchasers of each plan to answer your plan-related questions.

*Plans are drafted to meet the Uniform Building Code or IRC (International Residential Code) at the time they are designed (contact us for more information). Because codes and requirements can change and may vary from jurisdiction to jurisdiction, the designers cannot warrant compliance with any specific code or regulation. All plans can be adapted to your local building codes and requirements. It is the responsibility of the purchaser and/or builder of each plan to see that the structure is built in strict compliance with all governing municipal codes (city, county, state, and federal).

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

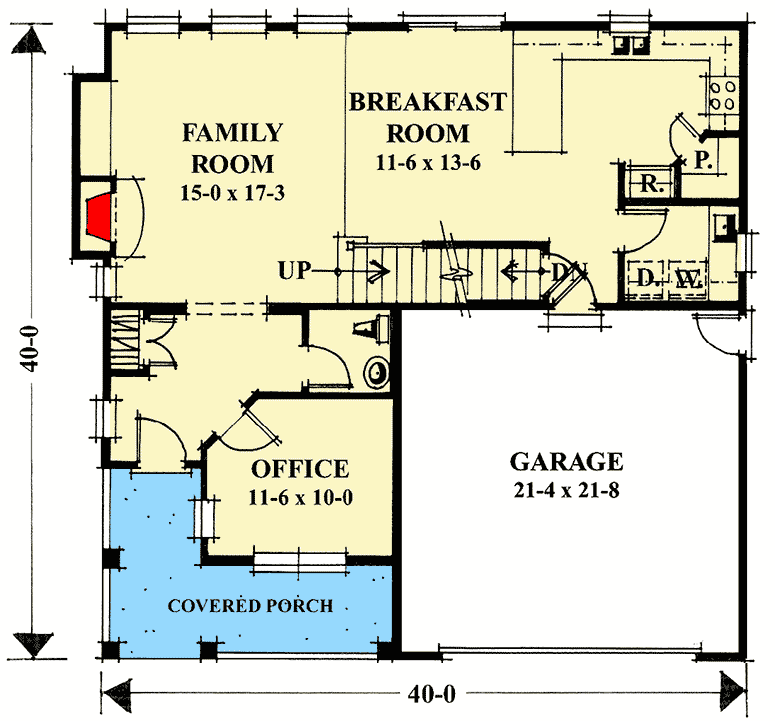

Northwest House Plan Designed For Convenience - 40896DB floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

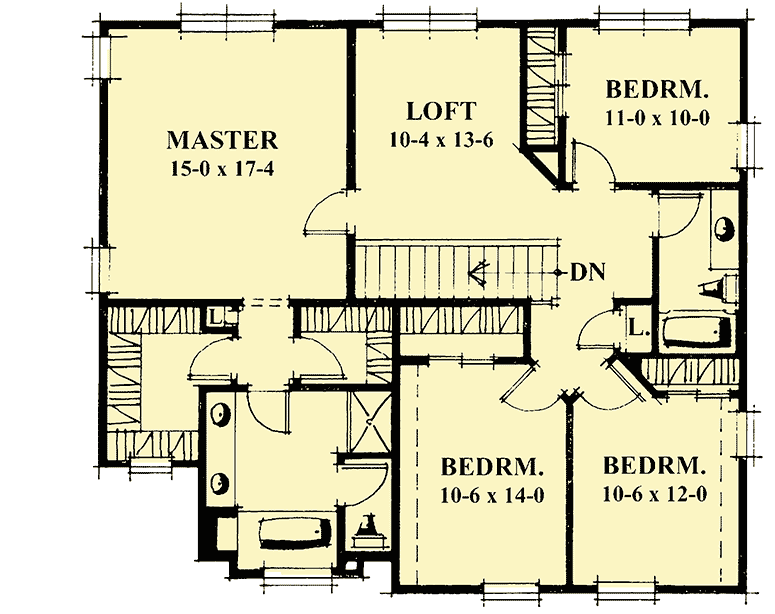

Northwest House Plan Designed For Convenience - 40896DB floor plan - 2nd Floor

Plan details

Northwest House Plan Designed For Convenience

  • 2,309

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set – Digital $685
  • PDF - Single-Build $1,055
  • PDF - Unlimited Build $1,555
  • CAD - Single-Build $1,830
  • CAD - Unlimited Build $2,330
  • View all purchase option online

About This Plan

  • Work from home in your convenient home office located right off the foyer of this Northwest house plan.
  • A big fireplace warms the living room where you get views of the dining area and large kitchen.
  • Homeowners will appreciate the walk-in pantry and the handy peninsula eating bar.
  • A utility room lies close by so you can keep the laundry moving while cooking meals.
  • The spacious second floor includes four bedrooms plus loft space.
  • Related Plans: Get alternate exteriors with house plans 42300DB and 40897DB.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,309 sq. ft.
  • 1st Floor: 977 sq. ft.
  • 2nd Floor: 1,332 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 40' 0"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 462 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"
