Northwest House Plan with Balcony Overlook

Plan 80844PM

  • 2,167

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Staggered garage bays and multiple gables serve to bump up the curb appeal of this Northwest house plan.
  • The combination of horizontal and vertical siding also catches your attention.
  • Double doors off the foyer open to reveal a quiet study.
  • Further back, the main living area is all open concept so you can see the family room fireplace from the kitchen.
  • The two-story ceiling in the family room soars upward making the room feel larger.
  • The dining room juts back in a V shape with sliding glass doors to take you out to the back porch.
  • Upstairs, the master suite mirrors that V shape, allowing enough room for a sitting area.
  • Open railing in the hall lets you look down into the family room below.

Plan sets include the following:

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

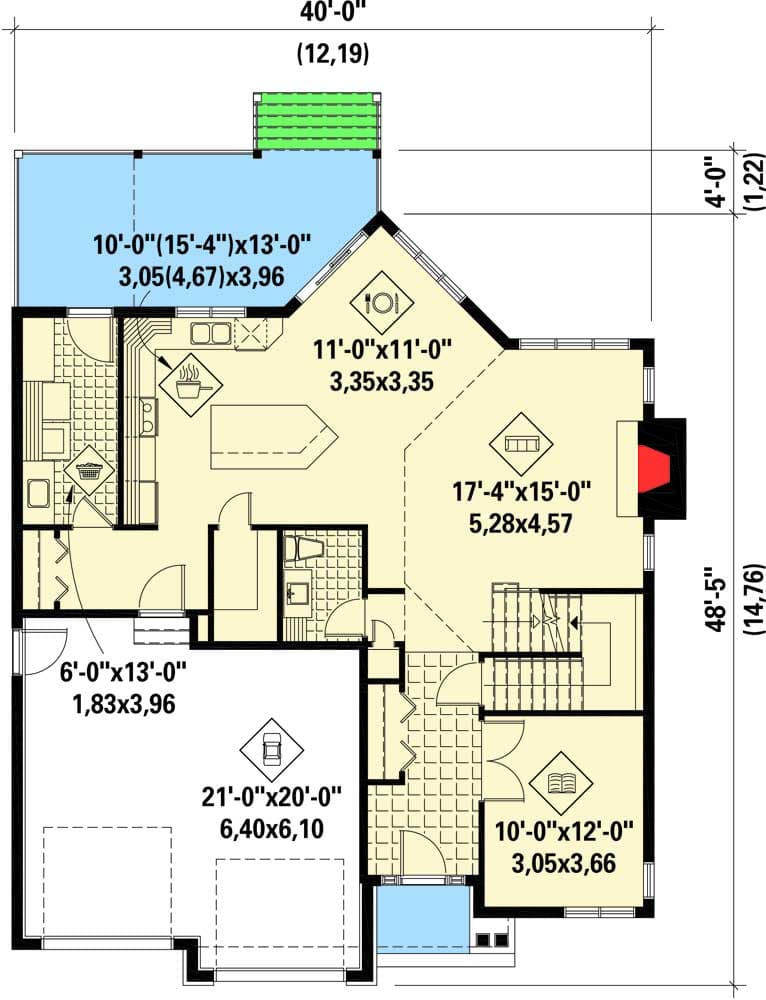

Northwest House Plan with Balcony Overlook - 80844PM floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

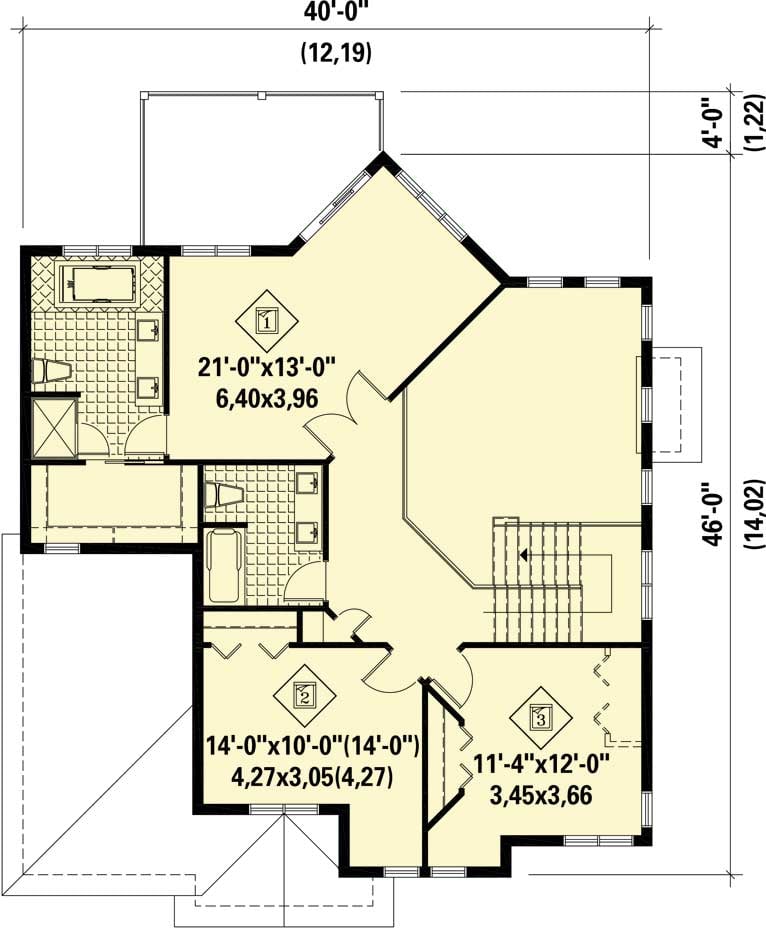

Northwest House Plan with Balcony Overlook - 80844PM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,167 sq. ft.
  • 1st Floor: 1,139 sq. ft.
  • 2nd Floor: 1,028 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 48' 5"
  • Max ridge height: 31' 1"

Garage

  • Type: Attached
  • Area: 460 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style
