Plan 8134LB
Northwest House Plan with Craftsman Touches
Heated S.F.
2,135
Beds
4
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 8134LB

Main Level
slide image 0
2nd Floor
slide image 1

Plan 8134LB

1-800-854-7852

1-262-521-4596

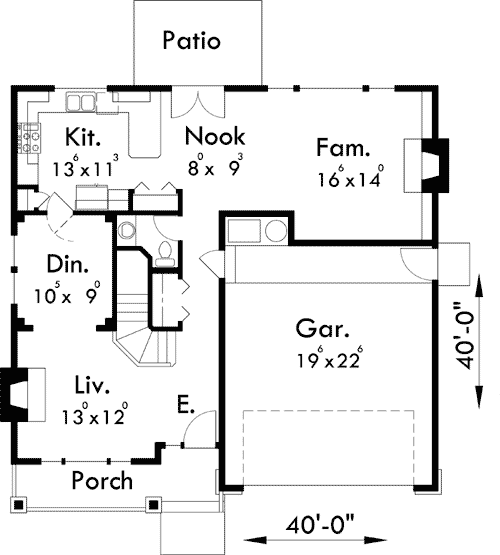

Main Level
floor plan image Main Level

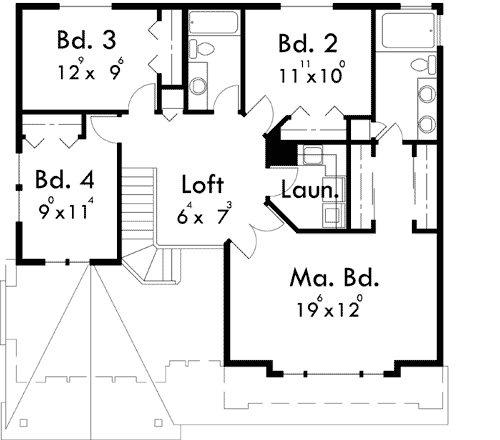

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Rustic wood shakes and stone work give this Northwest house plan a Craftsman feel.
  • The main living area has an L-shape that takes you from the living room and dining room into the kitchen, nook and family room.
  • Double doors in the nook open to the rear patio, ideal for grilling.
  • Built-ins can be found on either side of the family room fireplace, adding extra storage as well as good looks.
  • All the bedrooms are up on the second floor with the spacious master suite facing the front of your lot.
  • A handy laundry room and a loft complete this level.
What's Included
  • Elevations (All 4 Sides: Front, Left, Rear, Right)
  • Dimensioned Foundation Plan
  • Dimensioned Floor Plan(s)
  • Upper Level Framing Plan & Notes (if applicable)
  • Building Sections
  • Roof Framing Plan/Truss Layout
  • Typical Notes & Details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,135 sq. ft.

1st Floor

985 sq. ft.

2nd Floor

1,150 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

40' 0"

Garage

Type

Attached

Area

439 sq. ft.

Count

2 Cars

Entry Location

Front

Architectural Style

Craftsman

Northwest

Special Features

Breakfast Nook

Laundry - Main Level

Loft

Master Suite - 2nd Floor

Square Footage Breakdown

Total Heated Area

2,135 sq. ft.

1st Floor

985 sq. ft.

2nd Floor

1,150 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

40' 0"

Garage

Type

Attached

Area

439 sq. ft.

Count

2 Cars

Entry Location

Front

Architectural Style

Craftsman

Northwest

Special Features

Breakfast Nook

Laundry - Main Level

Loft

Master Suite - 2nd Floor
