Northwest House Plan with Flex Space

Plan 81675AB

  • 2,182

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Staggered garage bays and decorative wood trim give this Northwest house plan visual appeal.
  • Only 38' wide, the home fits well on a narrow lot.
  • Flex space off the foyer can be a formal dining room, a study or whatever you have in mind.
  • There's a walk-through mud room that goes through the large pantry to bring you into the large kitchen.
  • Here, the open layout connects the great room, kitchen and eating nook with its built-in banquette.
  • The second floor is huge and has a spacious master suite with sitting area.
  • Even the second floor laundry room is large and has a utility sink and lots of counter space.

Plans include the following:

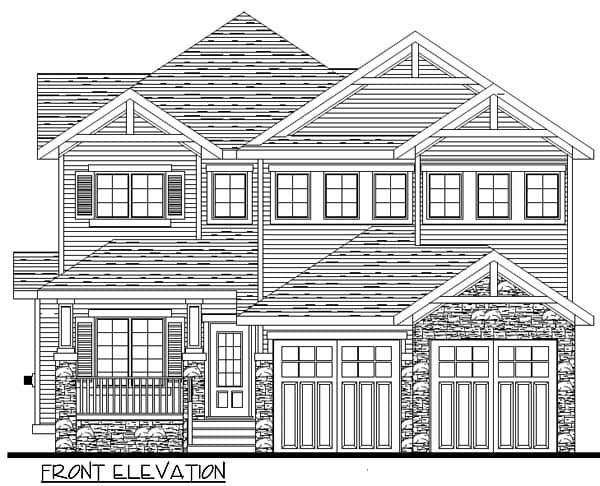

  • 4 elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.


These items are NOT included:
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

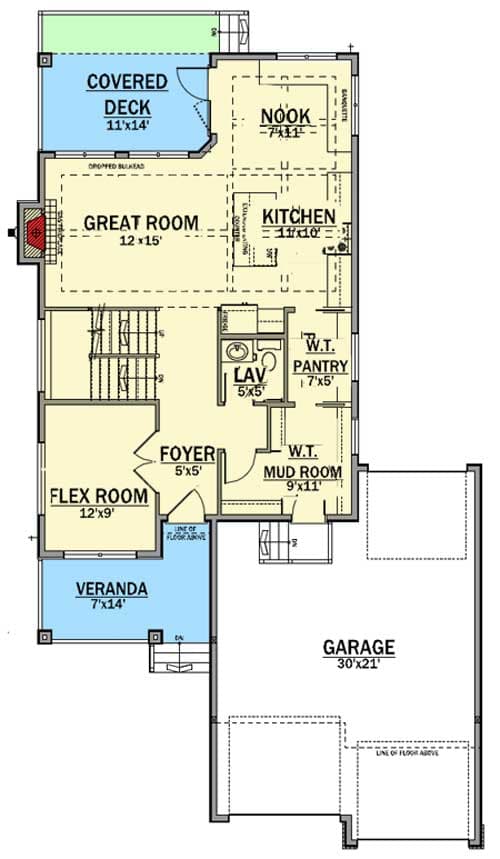

Northwest House Plan with Flex Space - 81675AB floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

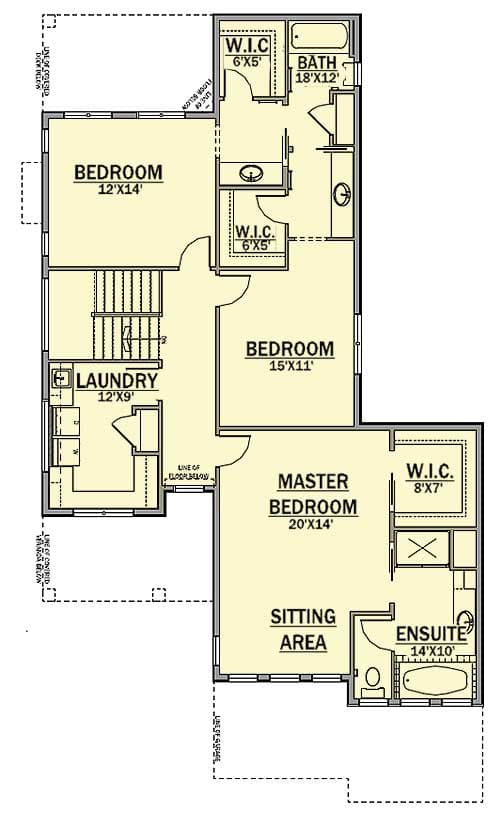

Northwest House Plan with Flex Space - 81675AB floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,182 sq. ft.
  • 1st Floor: 907 sq. ft.
  • 2nd Floor: 1,275 sq. ft.
  • Deck: 169 sq. ft.
  • Basement Unfinished: 700 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Walkout, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 38' 0"
  • Depth: 68' 0"
  • Max ridge height: 30' 11"

Garage

  • Type: Attached
  • Area: 613 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Northwest House Plan with Flex Space

  • 2,182

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,500
  • CAD + PDF - Single Build $2,200
  • CAD Unlimited + PDF $2,700
  • View all purchase option online

About This Plan

  • Staggered garage bays and decorative wood trim give this Northwest house plan visual appeal.
  • Only 38' wide, the home fits well on a narrow lot.
  • Flex space off the foyer can be a formal dining room, a study or whatever you have in mind.
  • There's a walk-through mud room that goes through the large pantry to bring you into the large kitchen.
  • Here, the open layout connects the great room, kitchen and eating nook with its built-in banquette.
  • The second floor is huge and has a spacious master suite with sitting area.
  • Even the second floor laundry room is large and has a utility sink and lots of counter space.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,182 sq. ft.
  • 1st Floor: 907 sq. ft.
  • 2nd Floor: 1,275 sq. ft.
  • Deck: 169 sq. ft.
  • Basement Unfinished: 700 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 38' 0"
  • Depth: 68' 0"
  • Max ridge height: 30' 11"

Garage

  • Type: Attached
  • Area: 613 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
Plan 81675AB
View this and more for this plan by visiting www.architechtecturaldesigns.com/81675AB
|
