Plan 35534GH

Northwest House Plan with RV Garage

Pageloader

Northwest House Plan with RV Garage

Plan 35534GH

  • 1,968

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Stories

  • 2

    Cars

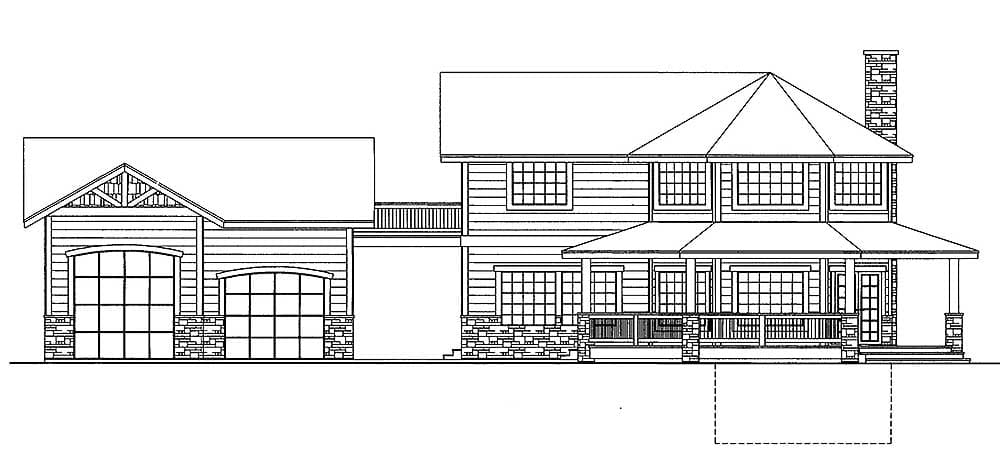

  • A big stylish RV garage attaches to this striking Northwest house plan so you can store your tall vehicles easily.
  • The good-looking house plan comes with a large covered porch that wraps around the huge vaulted and beamed living room.
  • Beams continue in to the dining area and country kitchen where corner windows give you a view from the sink.
  • There's one bedroom on the main floor and a gorgeous master suite upstairs with double doors to take you out to the private master deck.
  • The vaulted and beamed ceiling in the master is mirrored by the vaulted and beamed loft area that has open railing so you can see into the living room below.
  • Store all your extras in the huge storage area across from the master suite.

Each plan set includes the following:

  • Coversheet: This is an artist's rendering of the finished home. This is used as a visual aid, but it is not needed for construction.

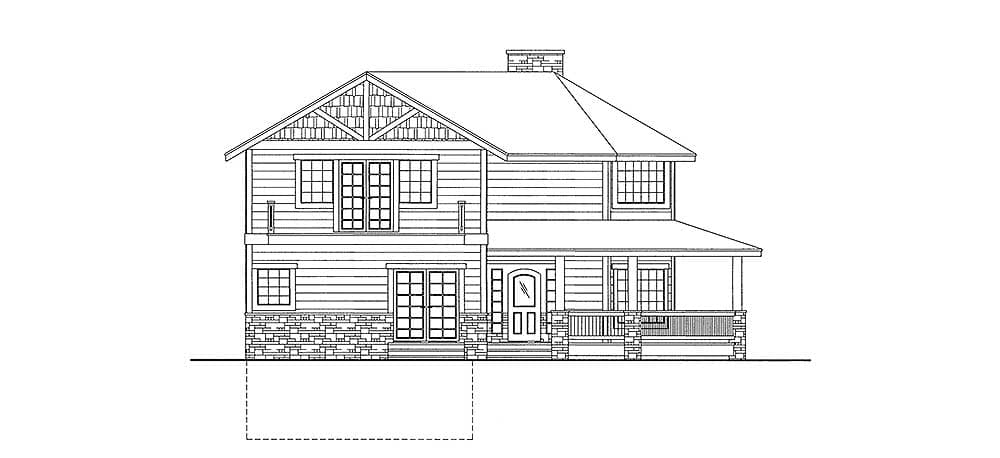

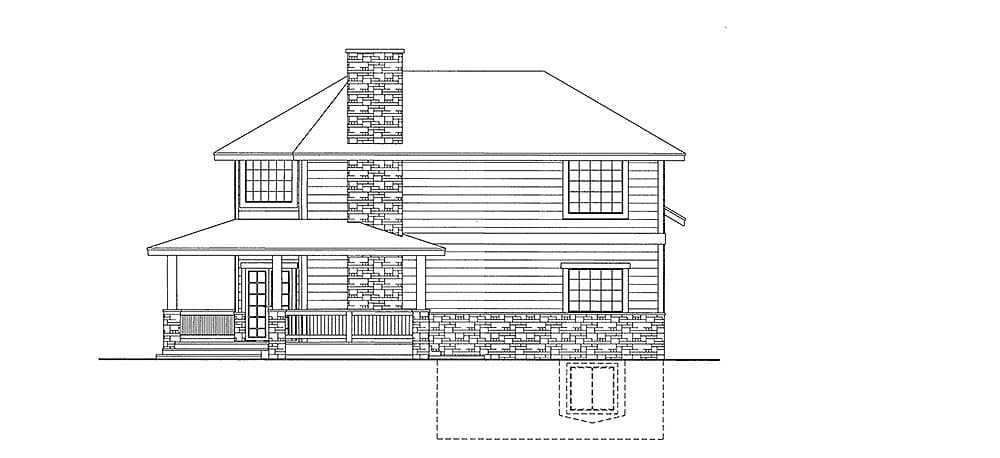

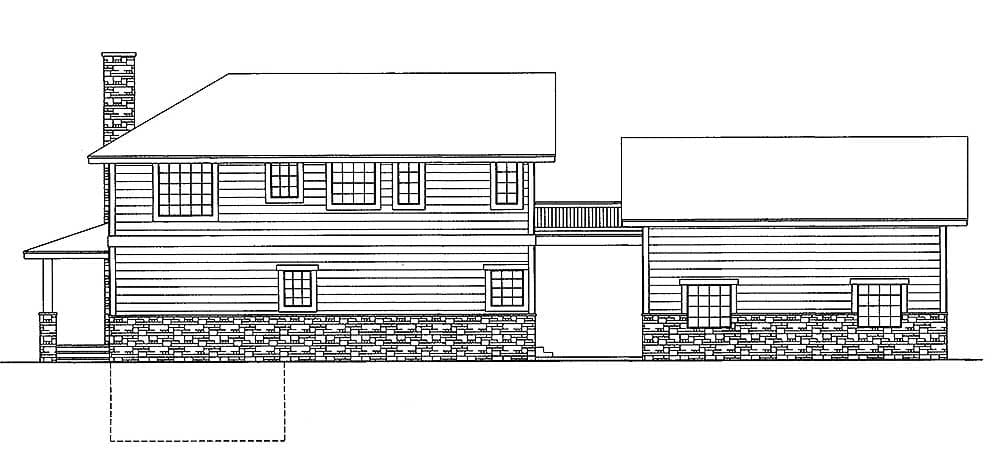

  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan:This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Interior Elevations: The interior elevations show built-in features of a house plan, such as kitchen cabinets, fireplaces, built-in bookshelves and desks, vanities, moldings, and hand rails.
  • Basic Electric:This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.

Plan details



Northwest House Plan with RV Garage

  • 1,968

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Reproducible Set $900
  • CAD $1,100
  • PDF - single-use $1,100
  • 8 Sets $1,150
  • CAD - multi-use $1,600
  • View all purchase option online

About This Plan

  • A big stylish RV garage attaches to this striking Northwest house plan so you can store your tall vehicles easily.
  • The good-looking house plan comes with a large covered porch that wraps around the huge vaulted and beamed living room.
  • Beams continue in to the dining area and country kitchen where corner windows give you a view from the sink.
  • There's one bedroom on the main floor and a gorgeous master suite upstairs with double doors to take you out to the private master deck.
  • The vaulted and beamed ceiling in the master is mirrored by the vaulted and beamed loft area that has open railing so you can see into the living room below.
  • Store all your extras in the huge storage area across from the master suite.

Floor Plans

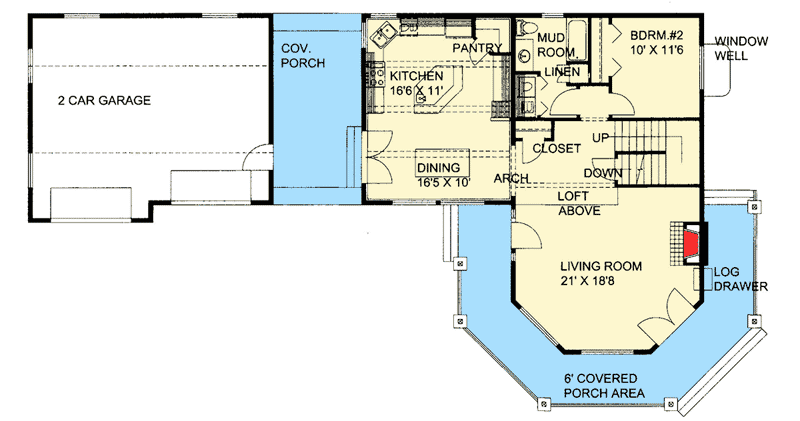

  • Main Level

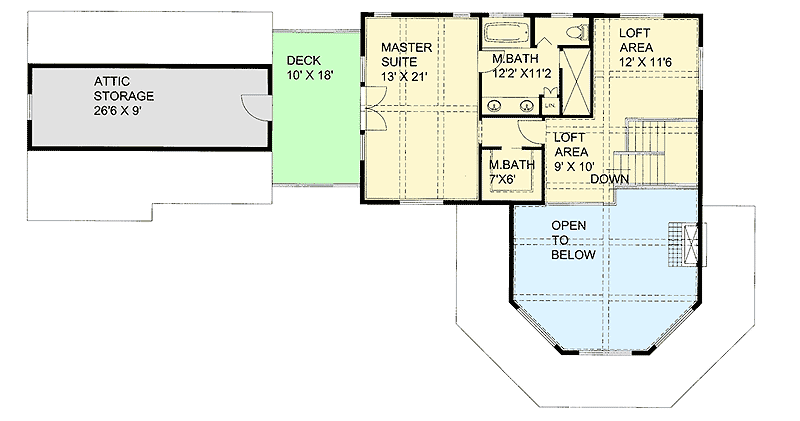

  • 2nd Floor

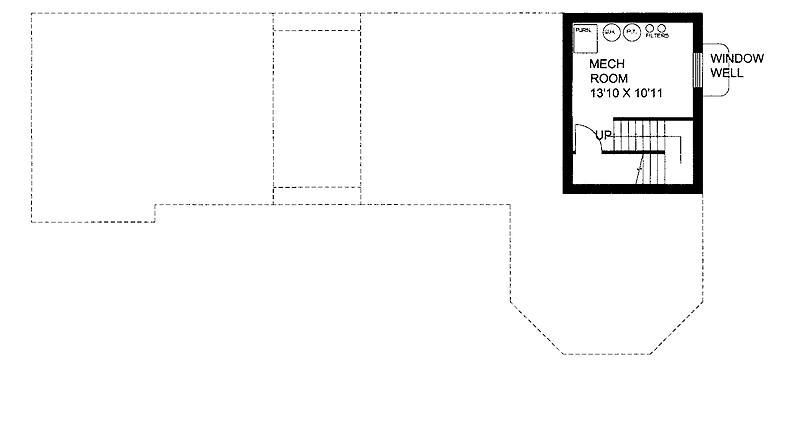

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,968 sq. ft.
  • 1st Floor: 1,200 sq. ft.
  • 2nd Floor: 768 sq. ft.
  • Basement Unfinished: 337 sq. ft.
  • Porch, Combined: 555 sq. ft.
  • Deck: 180 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Combo Basement-Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 76' 6"
  • Depth: 39' 2"
  • Max ridge height: 28' 9"

Garage

  • Type: Detached, Attached
  • Area: 1989 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0" 0' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 12 on 4
  • Framing Type: Stick And Truss
