Plan 81671AB
Northwest House Plan with RV Garage
Heated S.F.
5,518
Beds
1-4
Baths
3.5
Stories
1
Cars
3-4
What's Included
Plan Details
  • What appears to be a staggered three car garage actually has a tandem bay that gives you lots of extra room for a 4th car.
  • There's even an RV garage on the lower level.
  • A circular tray ceiling adorns the entry foyer where you have immediate views over the curved staircase going down to the optional lower level.
  • There's a recessed area in the formal dining room for your buffet or hutch.
  • Wide, open spaces in back keep everyone in the family in one huge area.
  • A wall of windows across the back of the home showcases the covered deck.
  • The only bedroom on this floor is the huge master suite with its giant walk-in closet and sizeable master bathroom.

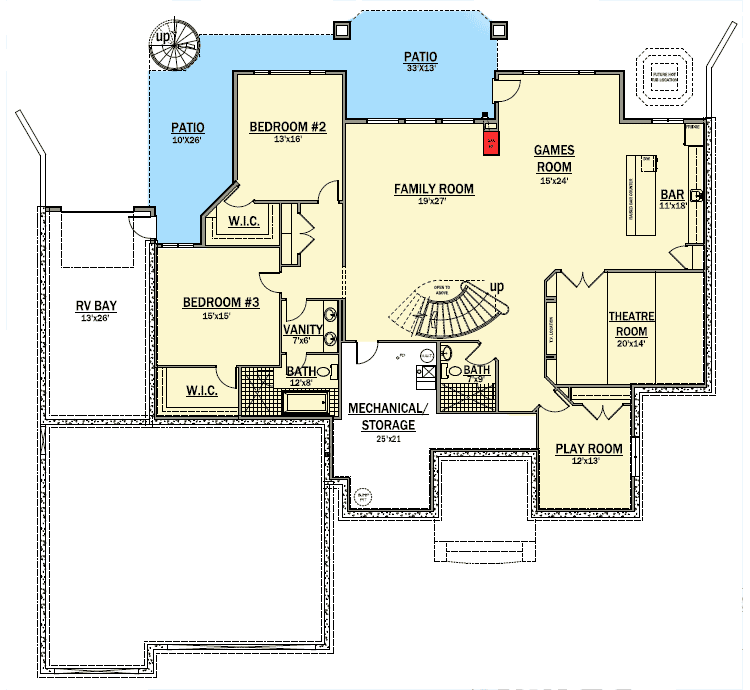

  • Finish the lower level and gain an extra 2,500 square feet of living space that includes two additional bedrooms, an enormous family room, mini-kitchen, theater room and play room.
  • The RV garage has a 7' high overhead door and an 8'-2" ceiling height.
What's Included
Plans include the following:

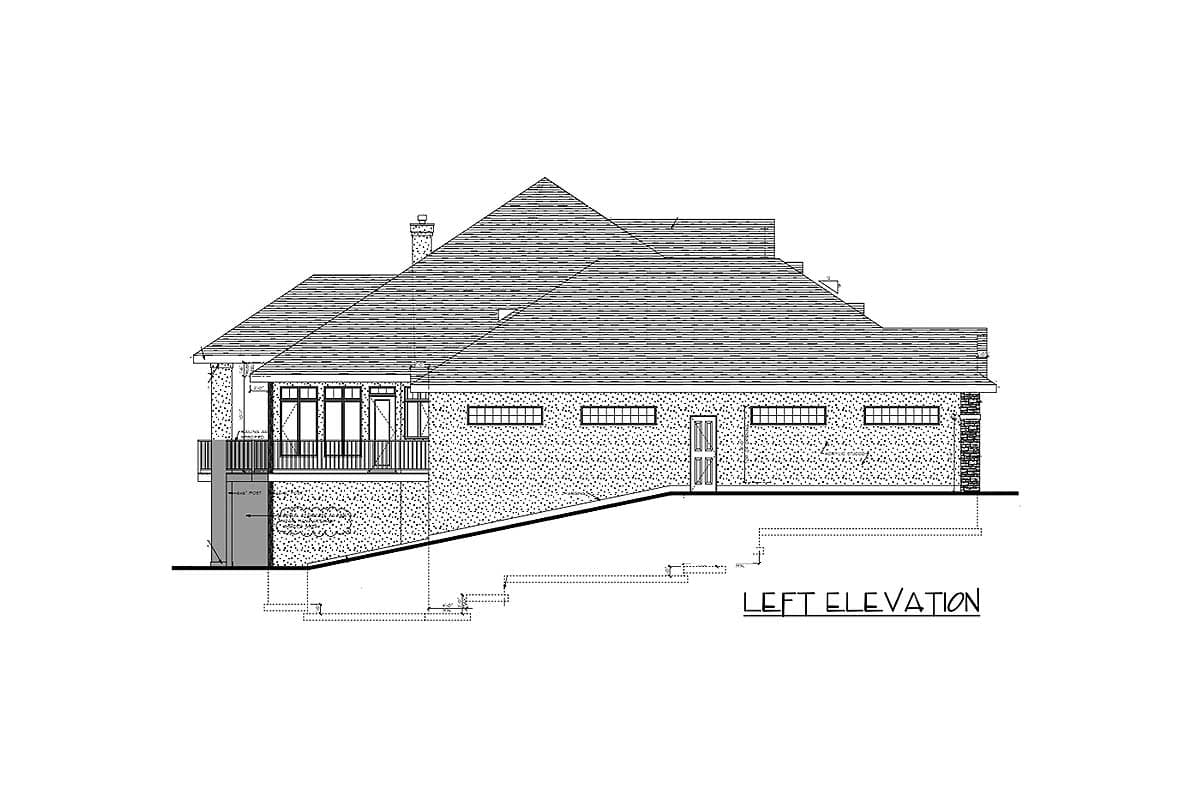

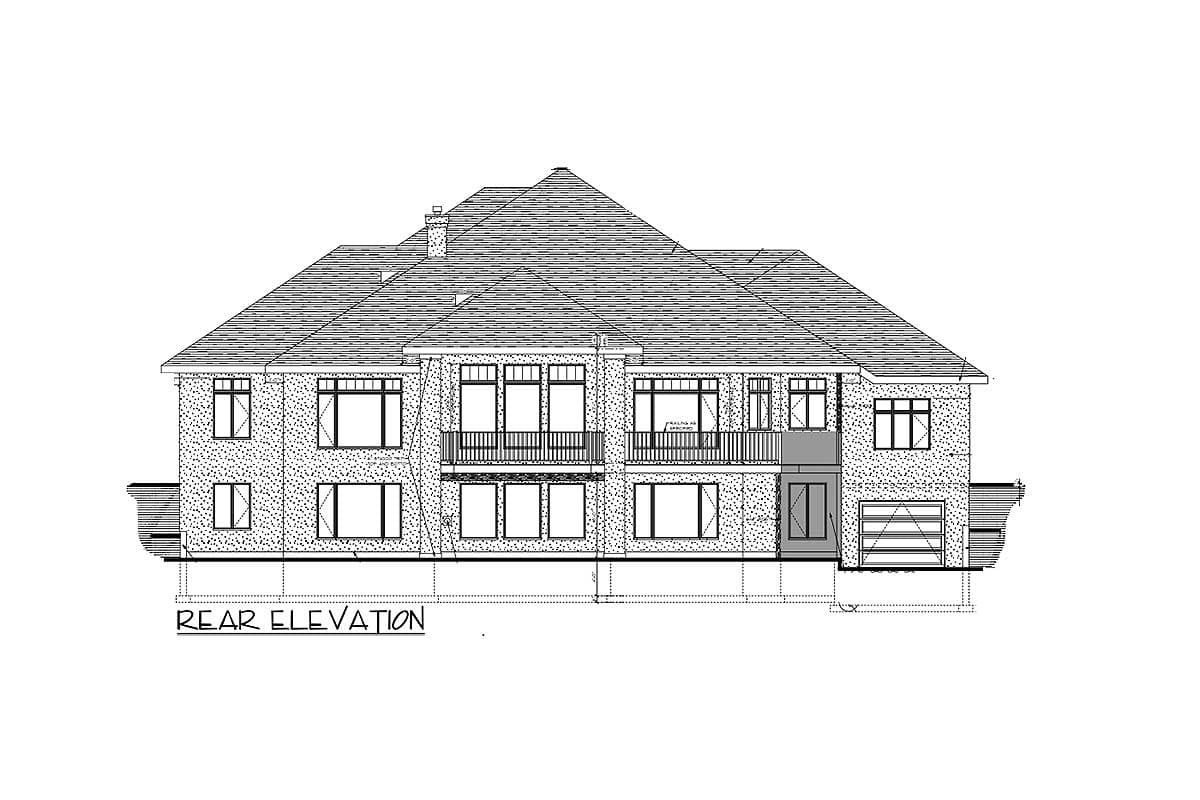

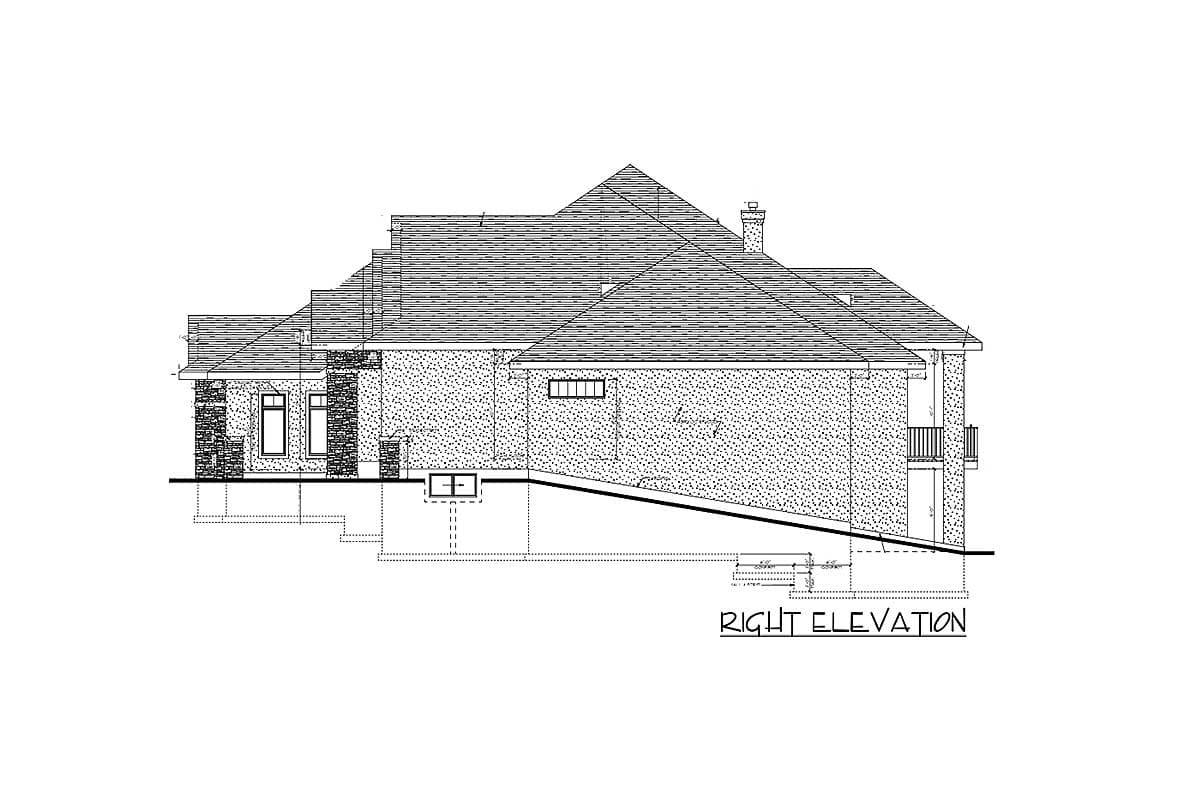

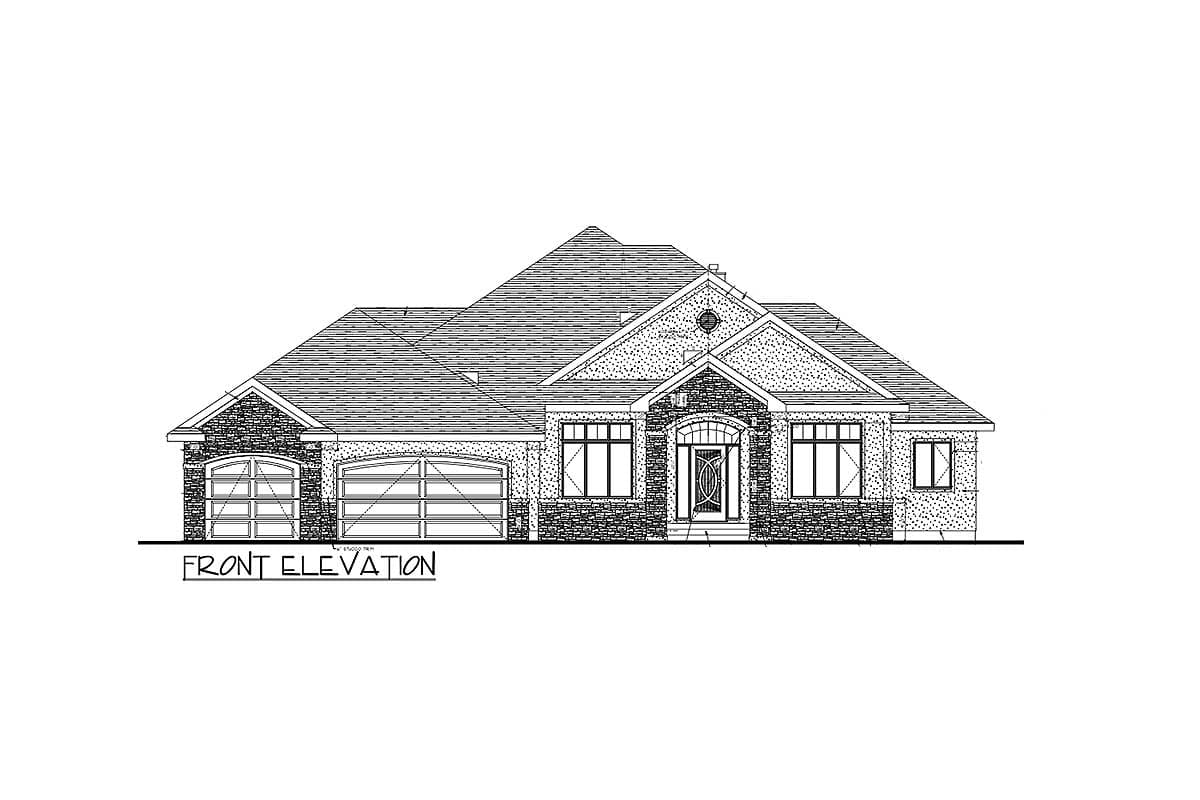

  • 4 elevations (Front, Rear, Left and Right)

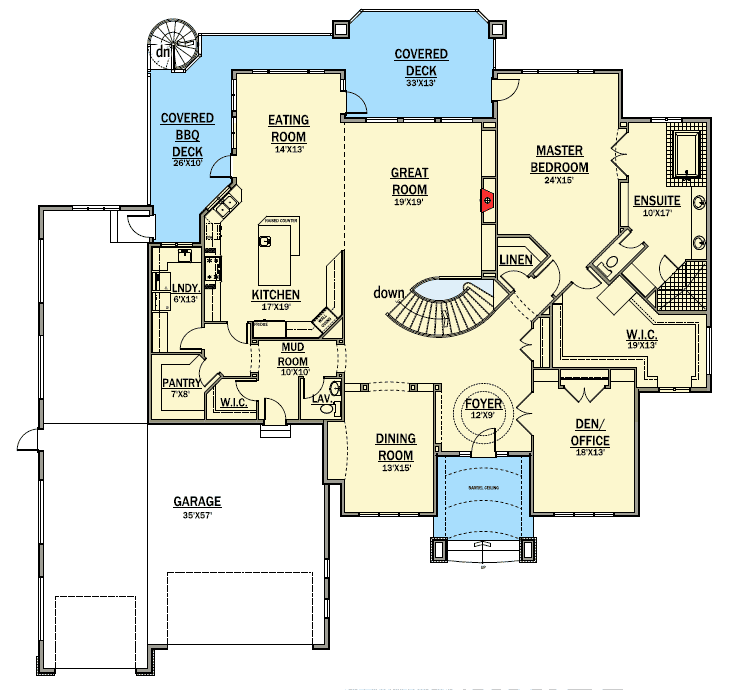

  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.


These items are NOT included:
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
