Plan 50141PH
Northwest House Plan with Stacked Porches and Flex Space
Heated S.F.
2,288
Beds
3-4
Baths
3
Stories
2
Cars
2
Plan Details
  • Long and lean, this two-story house plan has delightful stacked porches measuring 8'-deep porches in the front.
  • It packs a lot of rooms within its narrow footprint and has a drive-under garage on the left side.
  • In addition to the front porch, the main level offers a patio out back.
  • Both the formal rooms in the front of the home and the informal areas in back boast a wonderful open layout.
  • A row of built-ins flank the family room fireplace.
  • All three bedrooms are upstairs but the master suite takes the front room, complete with a private balcony.
  • Two walk-in closet in the master lie near the washer/dryer closet in the hall.
  • Related Plans: Get different exteriors with house plan 50136PH and 50143PH.
What's Included
  • Foundation Plan: Includes detailed information about the foundation layout including concrete walls, footings, pads, posts, beams, bearing walls, and foundation notes. If the home features a basement, the first-floor framing details may also be included on this plan. If your plan features slab construction rather than a basement, the plan shows footings and details for a monolithic slab. This page, or another in the set, may include a sample plot plan for locating your house on a building site. Additional sheets focus on foundation cross-sections and other details. In some instances a designer may only provide what is commonly referred to as a foundation schematic or plumbing plan. These types of drawings only show the footprint of the foundation and do not include foundation construction details.
  • Floor Plans: Show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and include locations of doors and windows. Plans will also include and markers indicating cross-section details provided elsewhere in the plans if applicable.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and / or the relationship of one level to another. These sections show how the various parts of the house fit together and are valuable during construction.
  • Electrical Plans: The electrical plan offers suggested locations with notes for all lighting, outlets, switches, and some other electrical appliances. A layout is provided for each level, as well as basements, garages, or other structures. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. These details should be designed by your electrician.
  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Construction Details: Most drawings sets include typical construction details. These details may include the foundation, interior walls, exterior walls, floors, stairways, and / or roof details. NOTE: A majority of our plans include construction details but some do not.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Framing Plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Northwest House Plan with Stacked Porches and Flex Space

  • 2,288

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

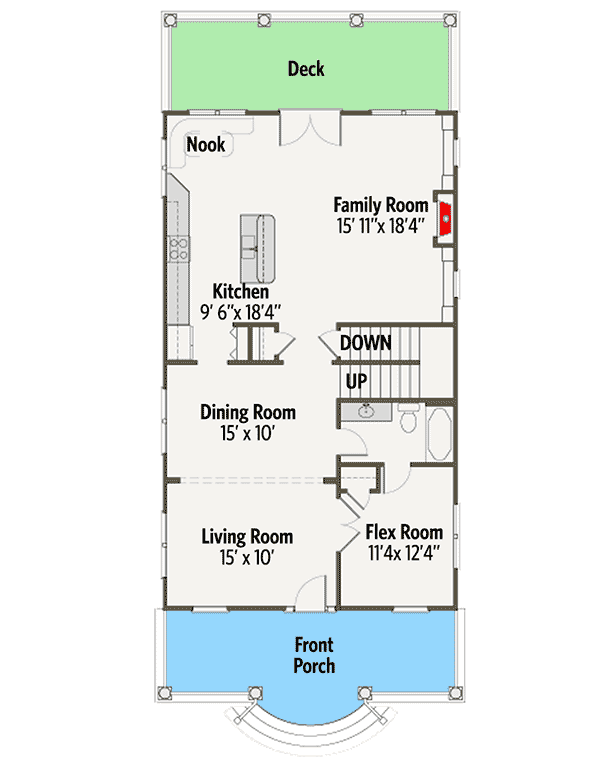

  • Main Level

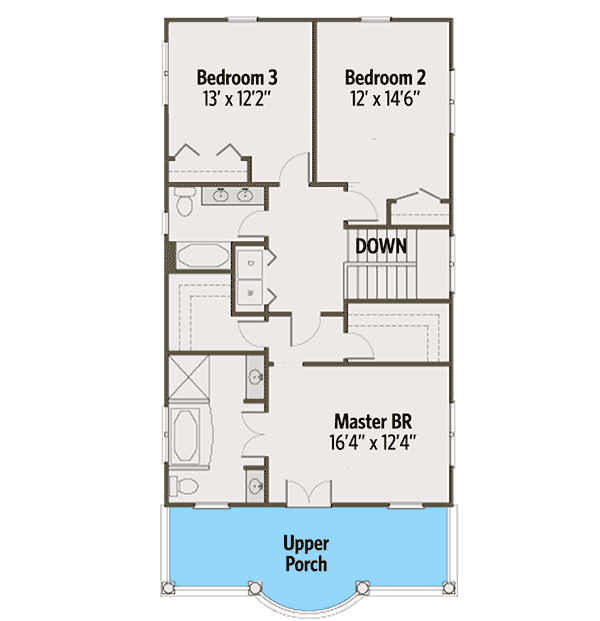

  • 2nd Floor

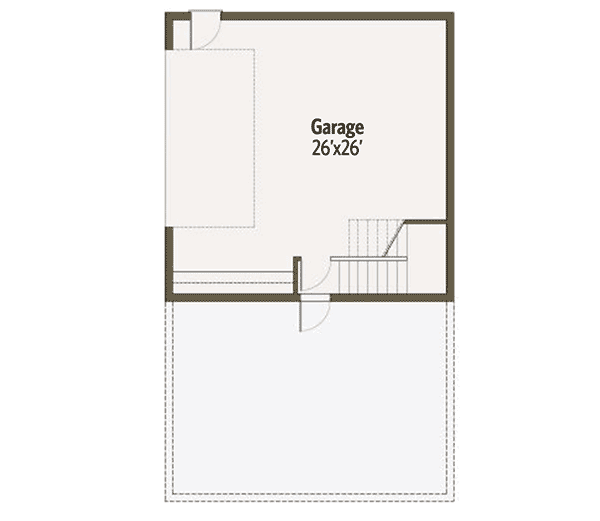

  • Drive Under Garage

Plan Details

Square Footage Breakdown

  • Total: 2,288 sq. ft.
  • 1st Floor: 1,144 sq. ft.
  • 2nd Floor: 1,144 sq. ft.

Dimensions

  • Width: 30' 0"
  • Depth: 54' 0"
  • Max ridge height: 34' 0"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Garage

  • Type: Drive Under
  • Area: 676 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
