Plan 23440JD

Northwest Styling with Lower Level

Heated S.F.
3,676
Beds
3
Baths
2.5
Stories
2
Cars
3

Floor Plan

Plan 23440JD

Basement
Basement
2nd Floor
2nd Floor
3rd Floor
3rd Floor

Plan 23440JD

M-F 9am-5pm EST |

1-203-761-8500

Basement

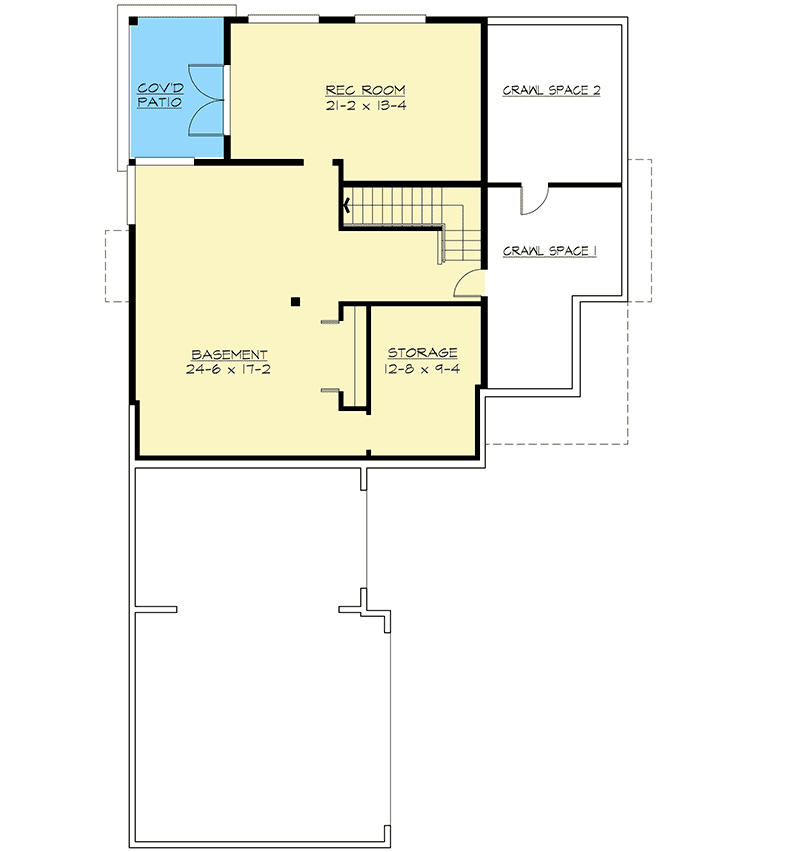

Plan 23440JD: Northwest Styling with Lower Level - Floor Plan - Basement - Craftsman, New American, Northwest

2nd Floor

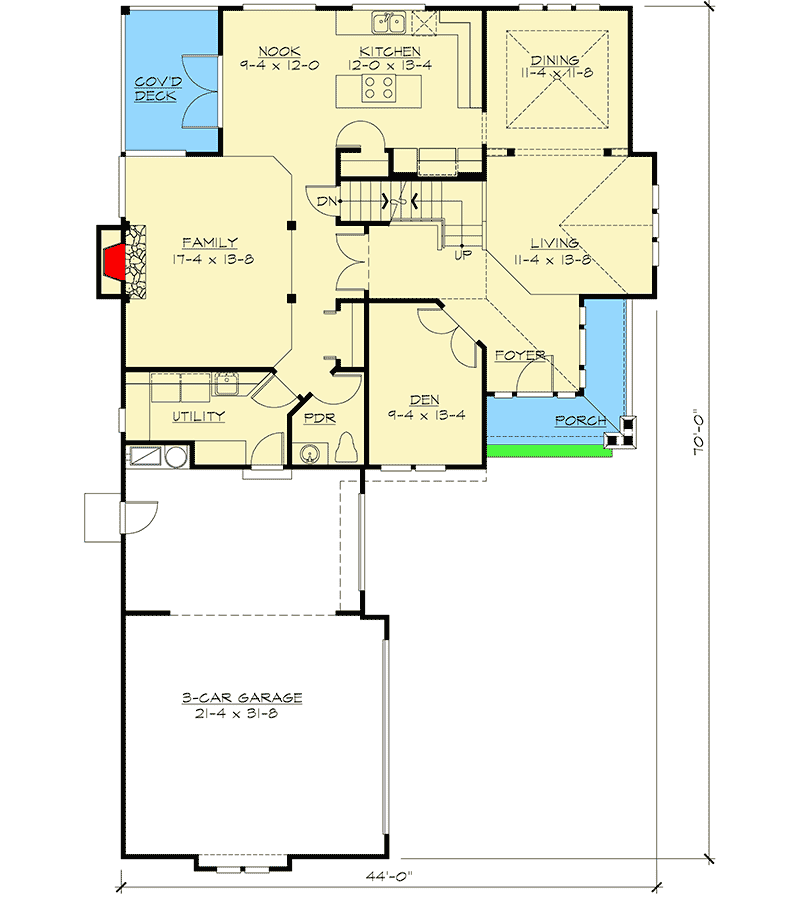

Plan 23440JD: Northwest Styling with Lower Level - Floor Plan - 2nd Floor - Craftsman, New American, Northwest

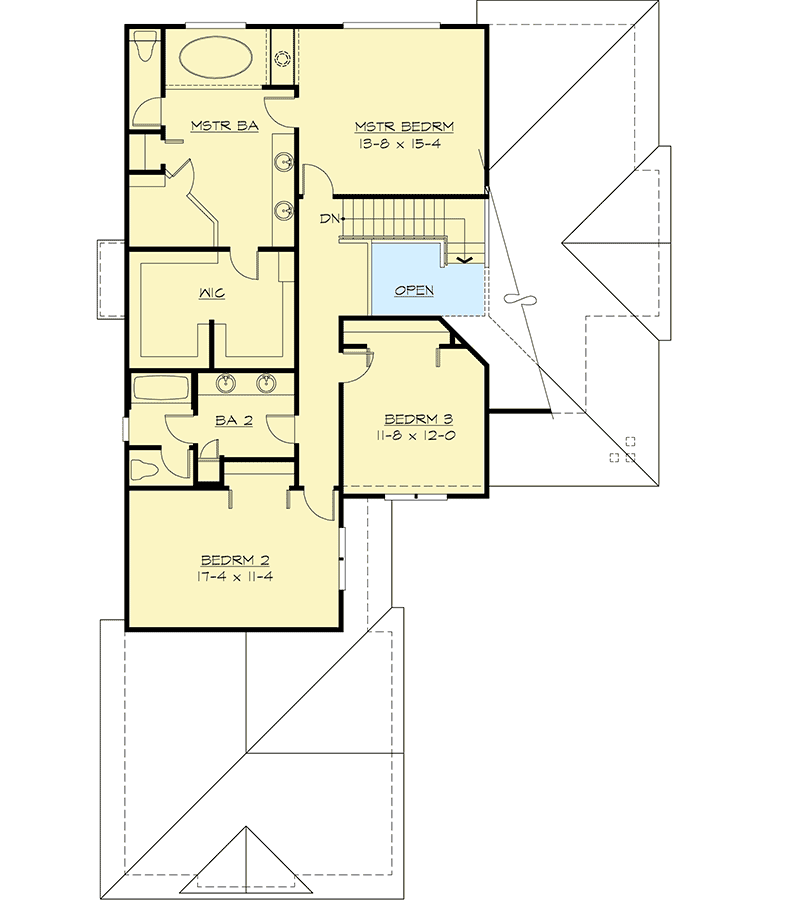

3rd Floor

Plan 23440JD: Northwest Styling with Lower Level - Floor Plan - 3rd Floor - Craftsman, New American, Northwest

Plan Details

  • This house plan takes its cues from Northwest and Craftsman design traditions and is on a finished lower level giving you great options below including a walkout. A crawlspace version is also available (see house plan 23046JD).

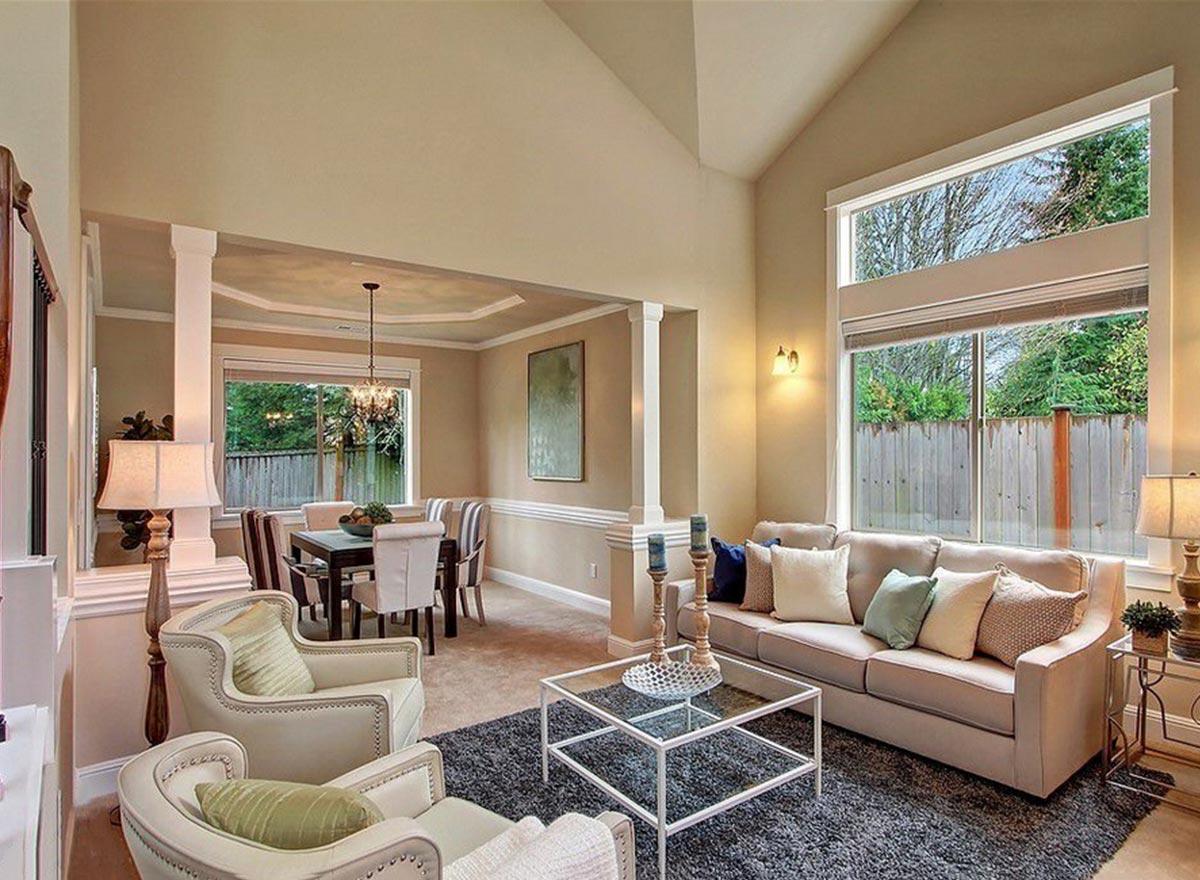

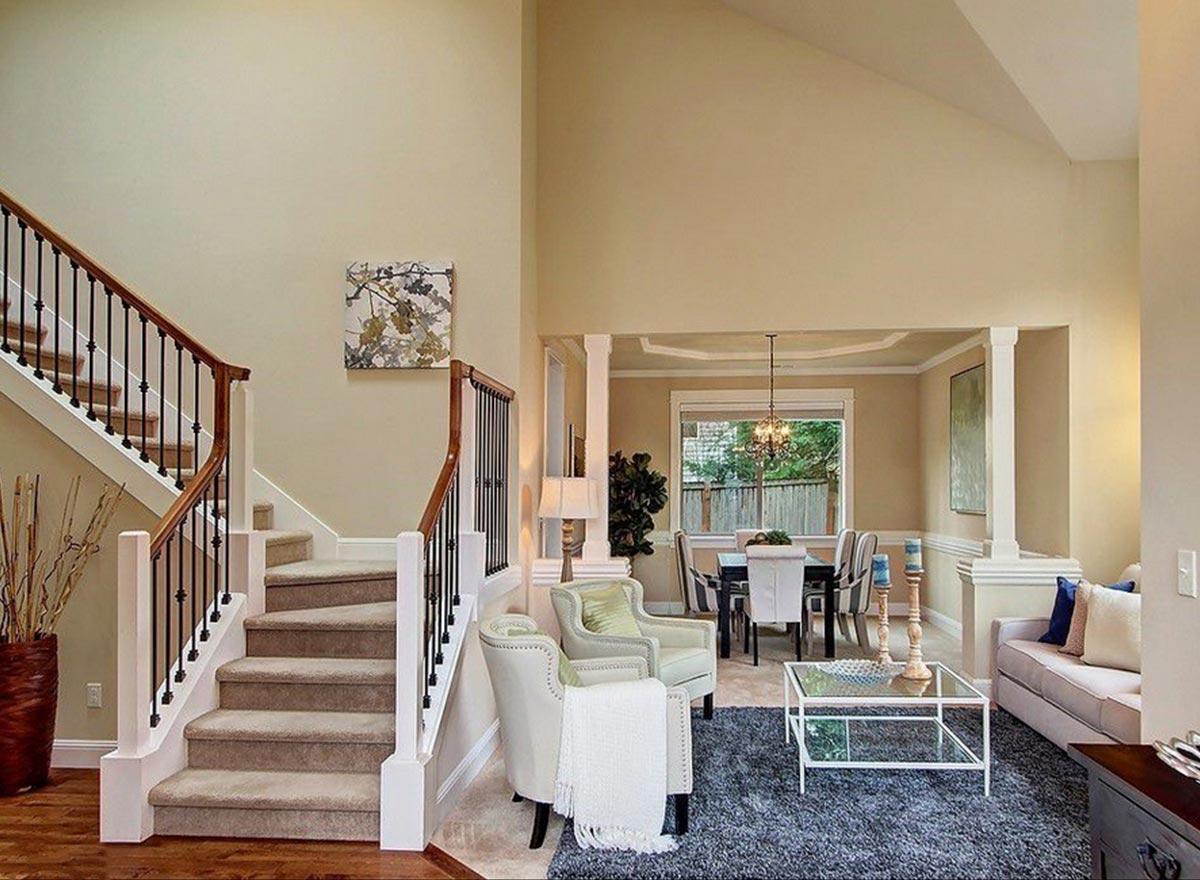

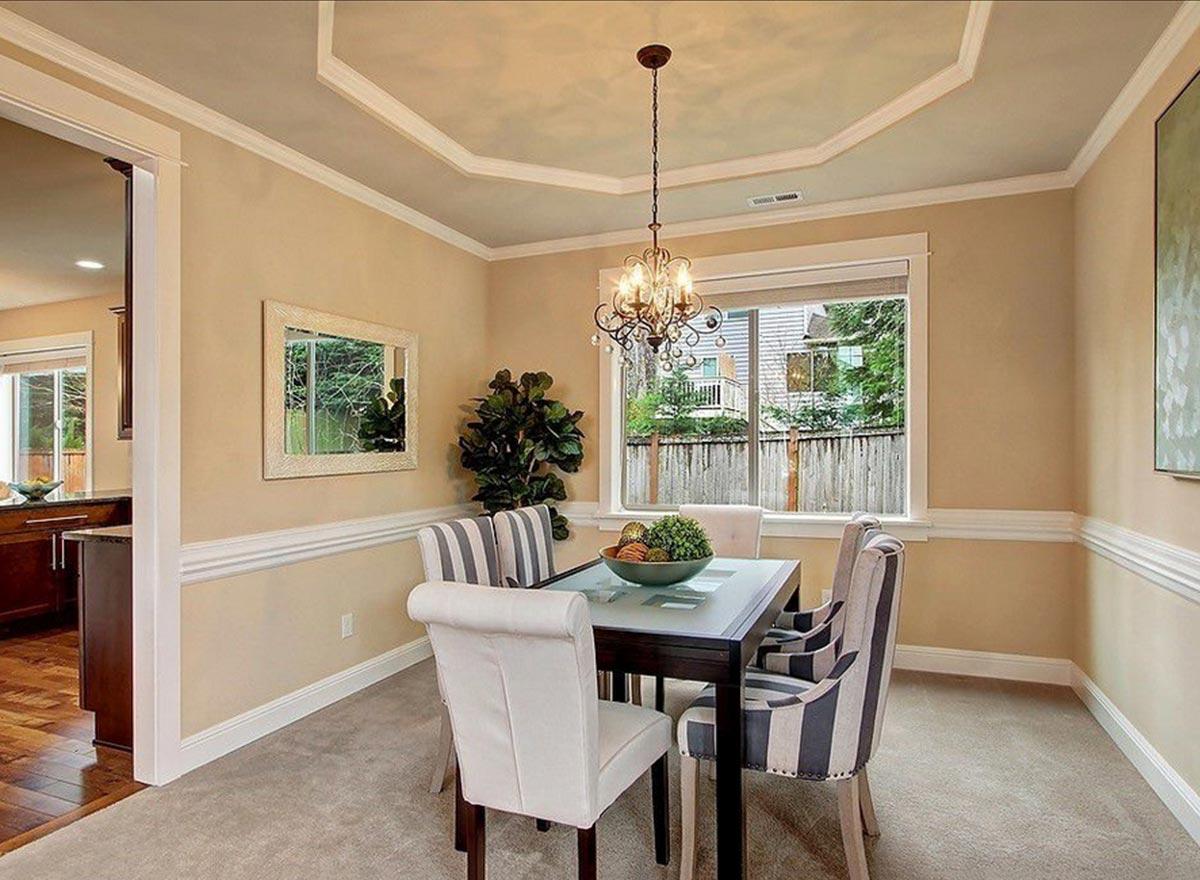

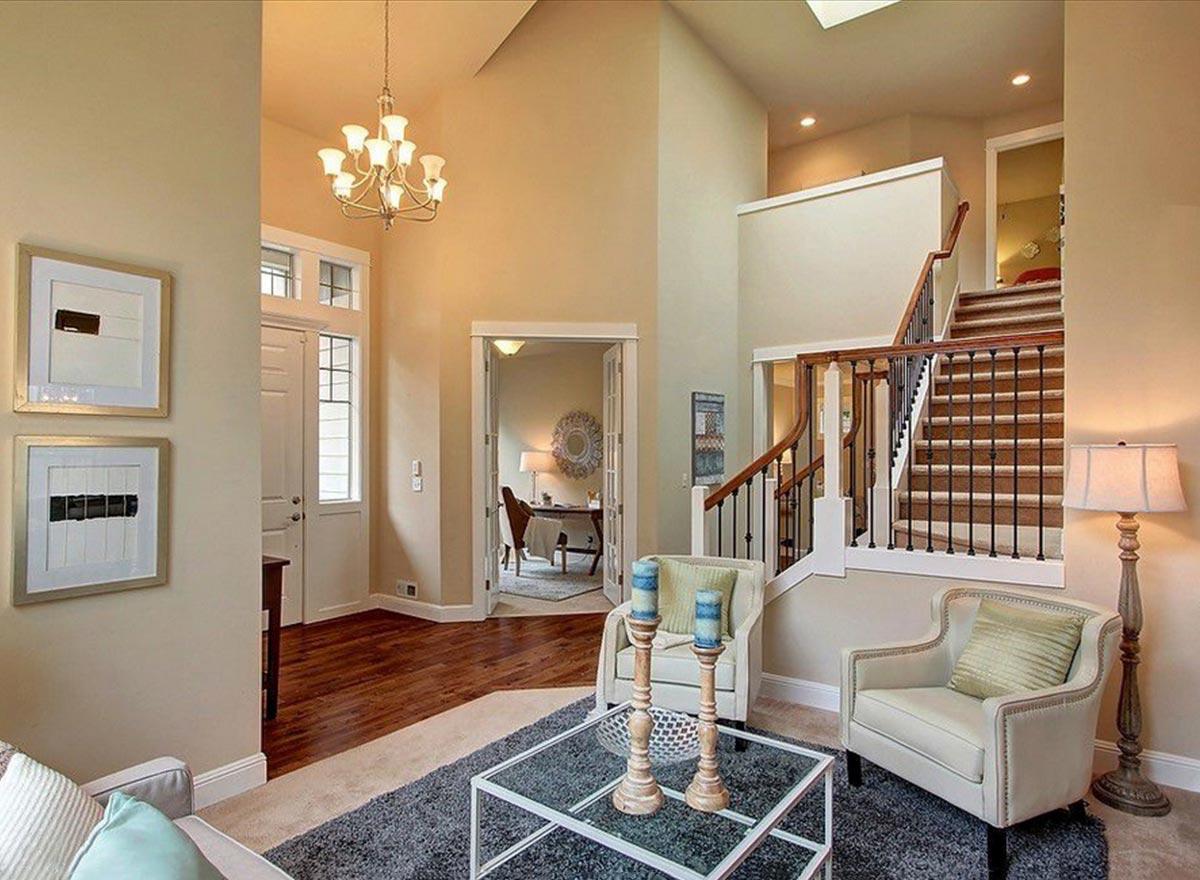

  • A corner porch wraps around the window-loaded foyer which is open to the living room. An arched opening extends from there to the vaulted dining room.

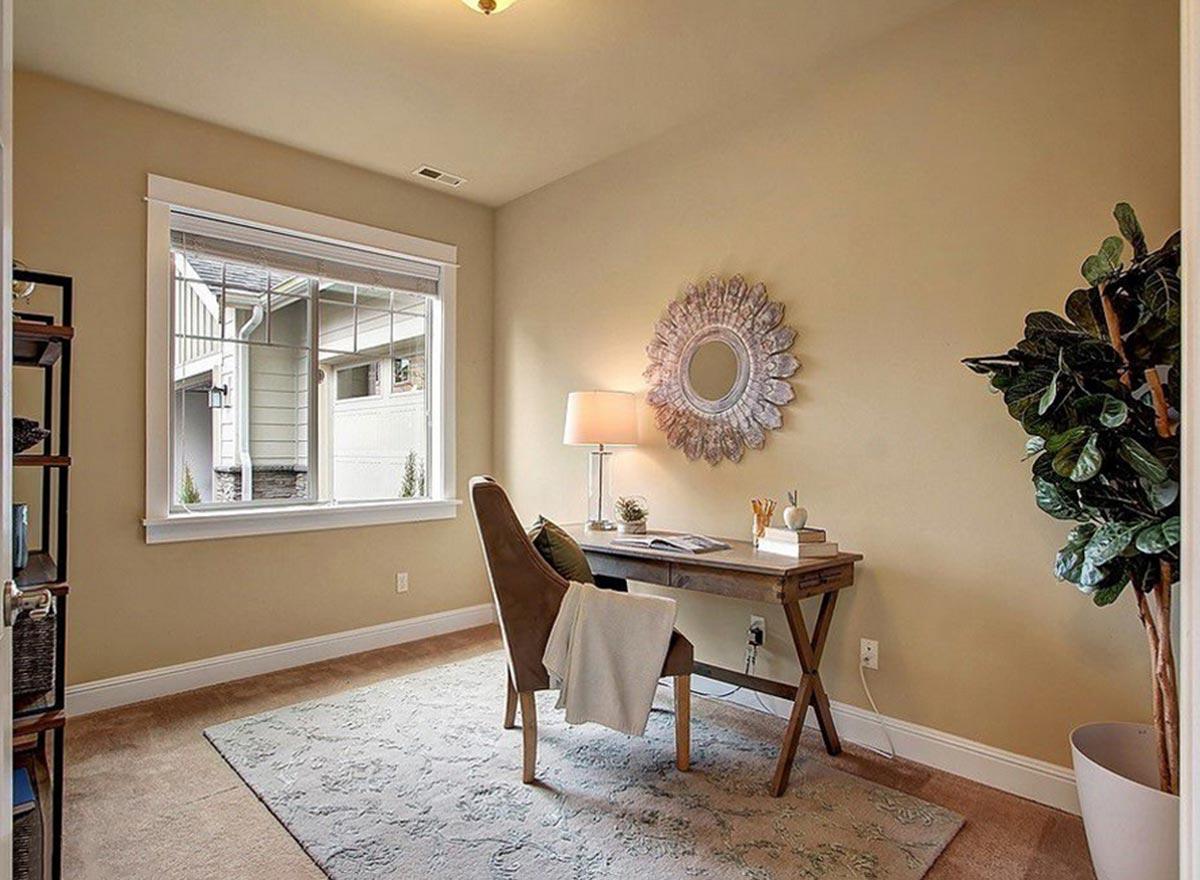

  • French doors open to a quiet sanctuary in your den.

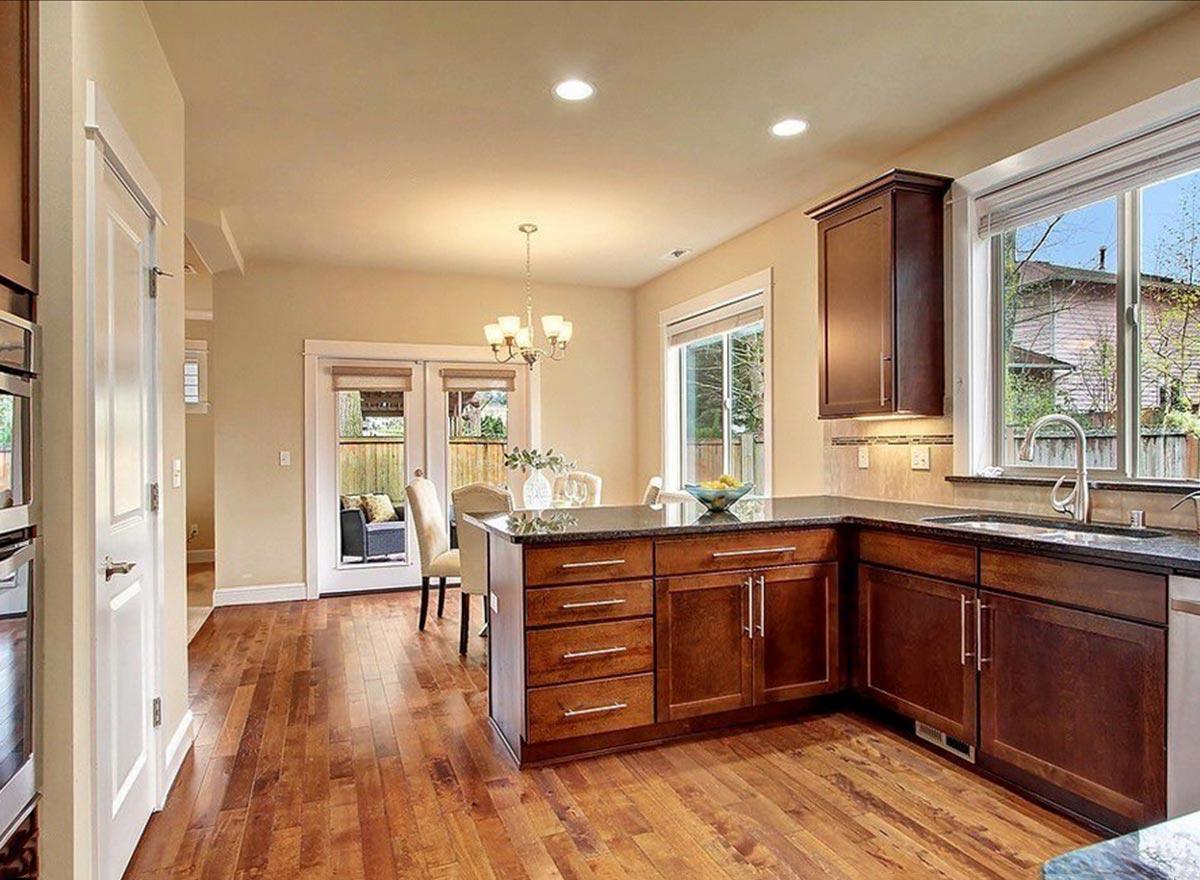

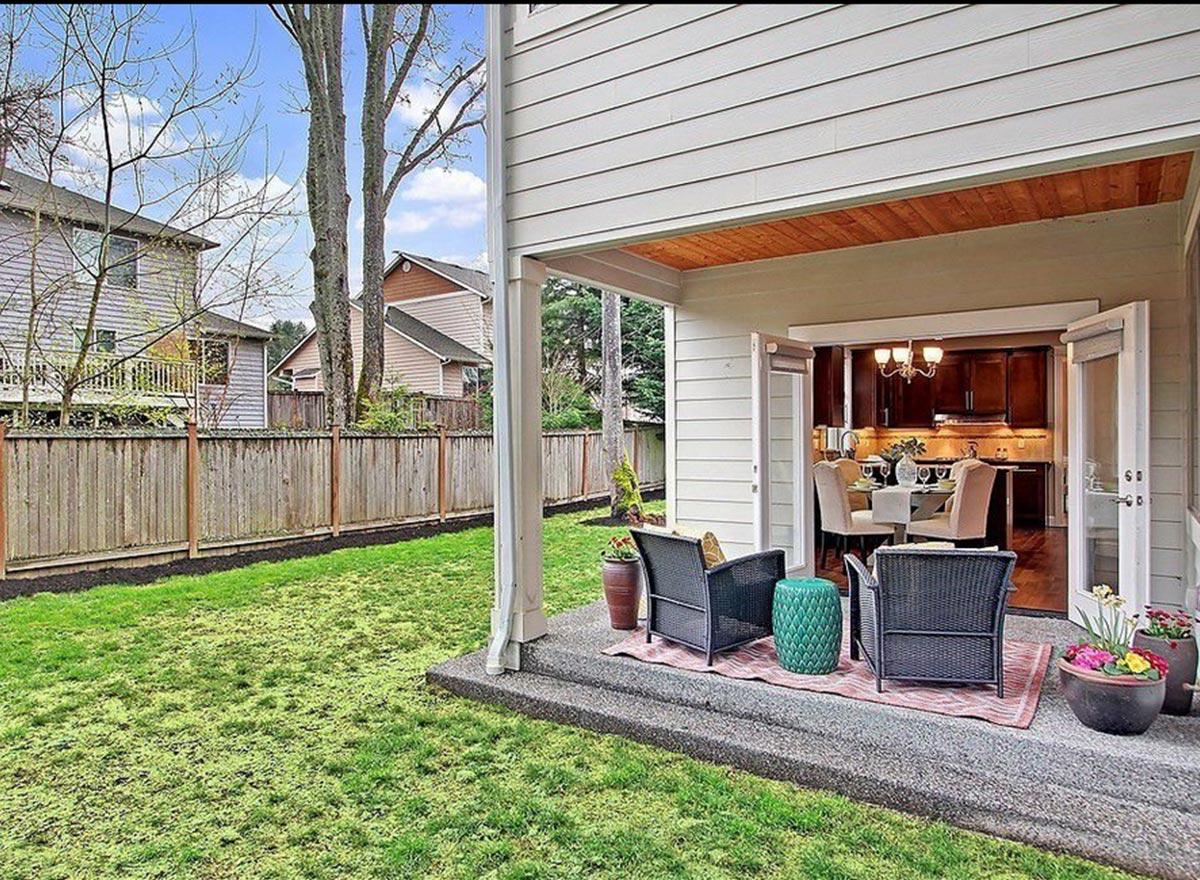

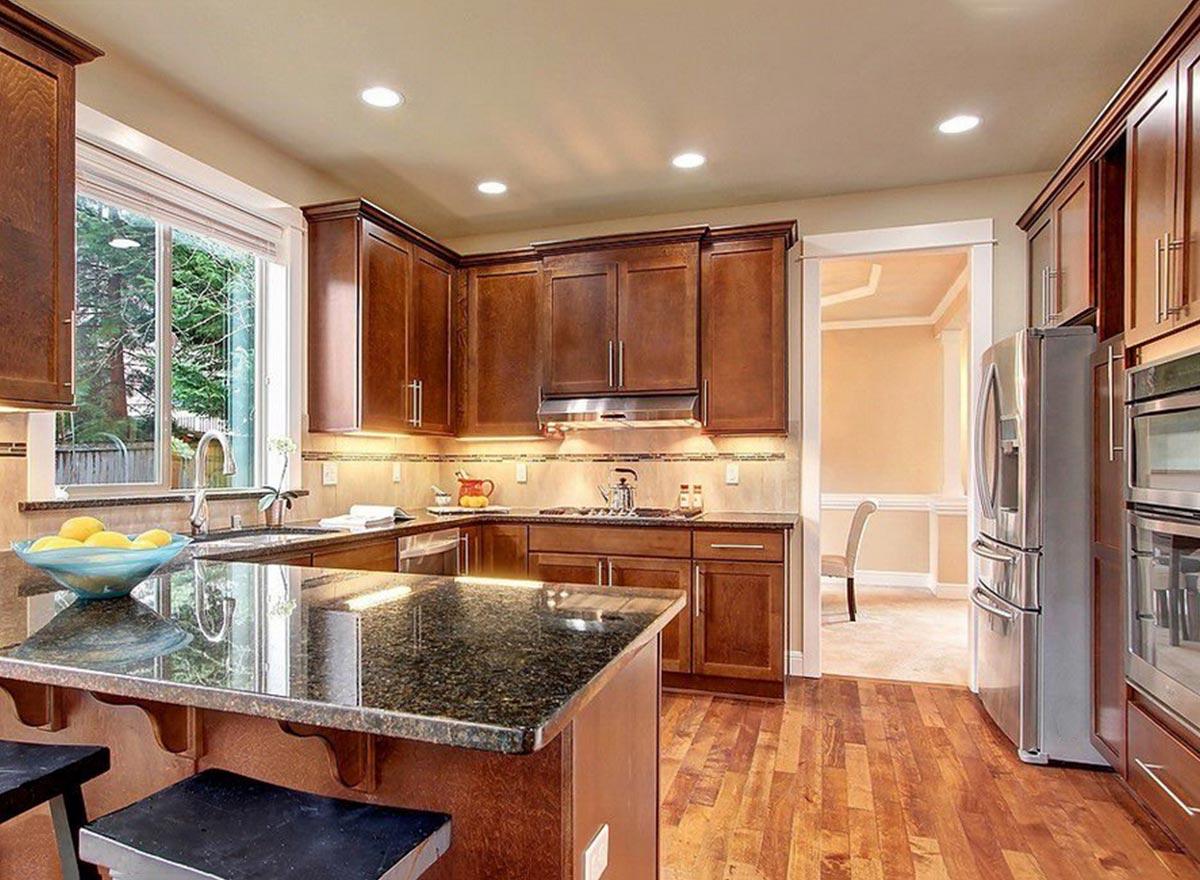

  • The kitchen is roomy and French doors leading to the deck give it a even more open feel.

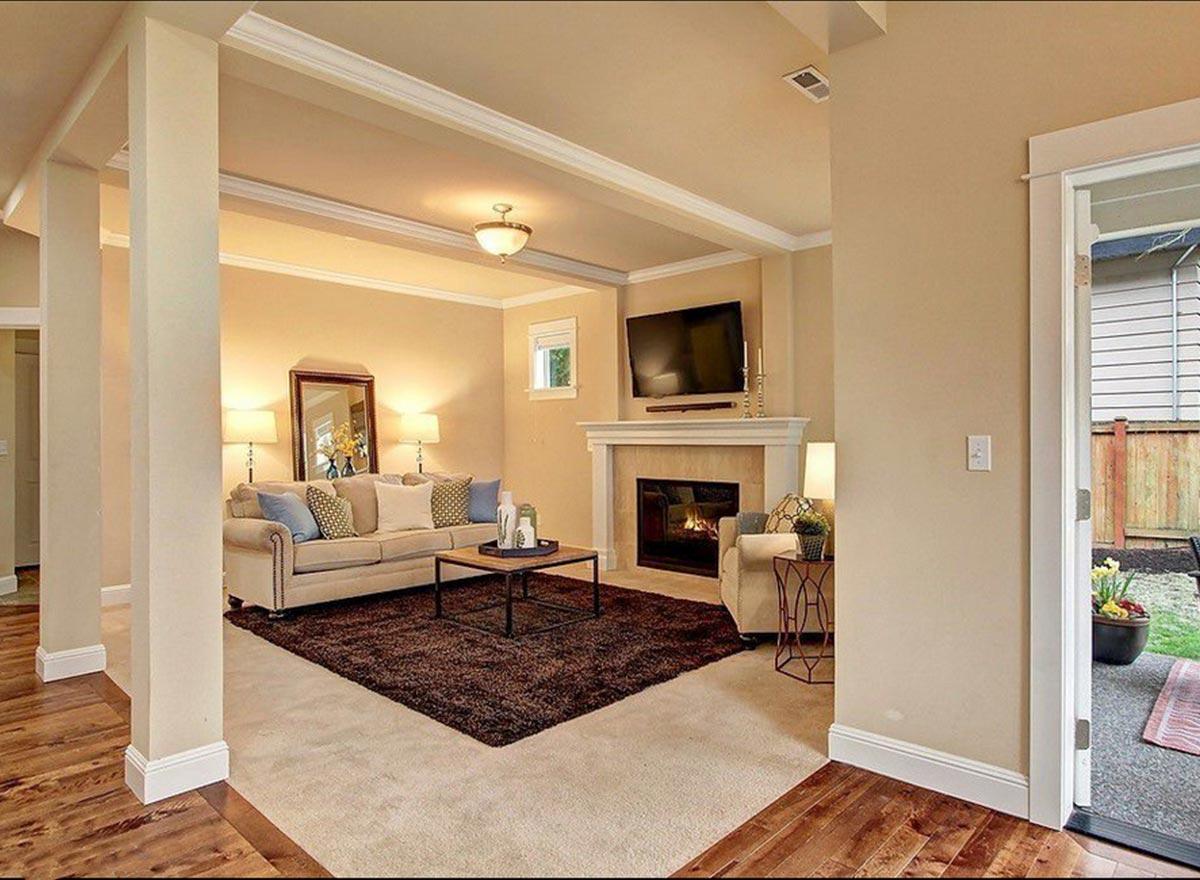

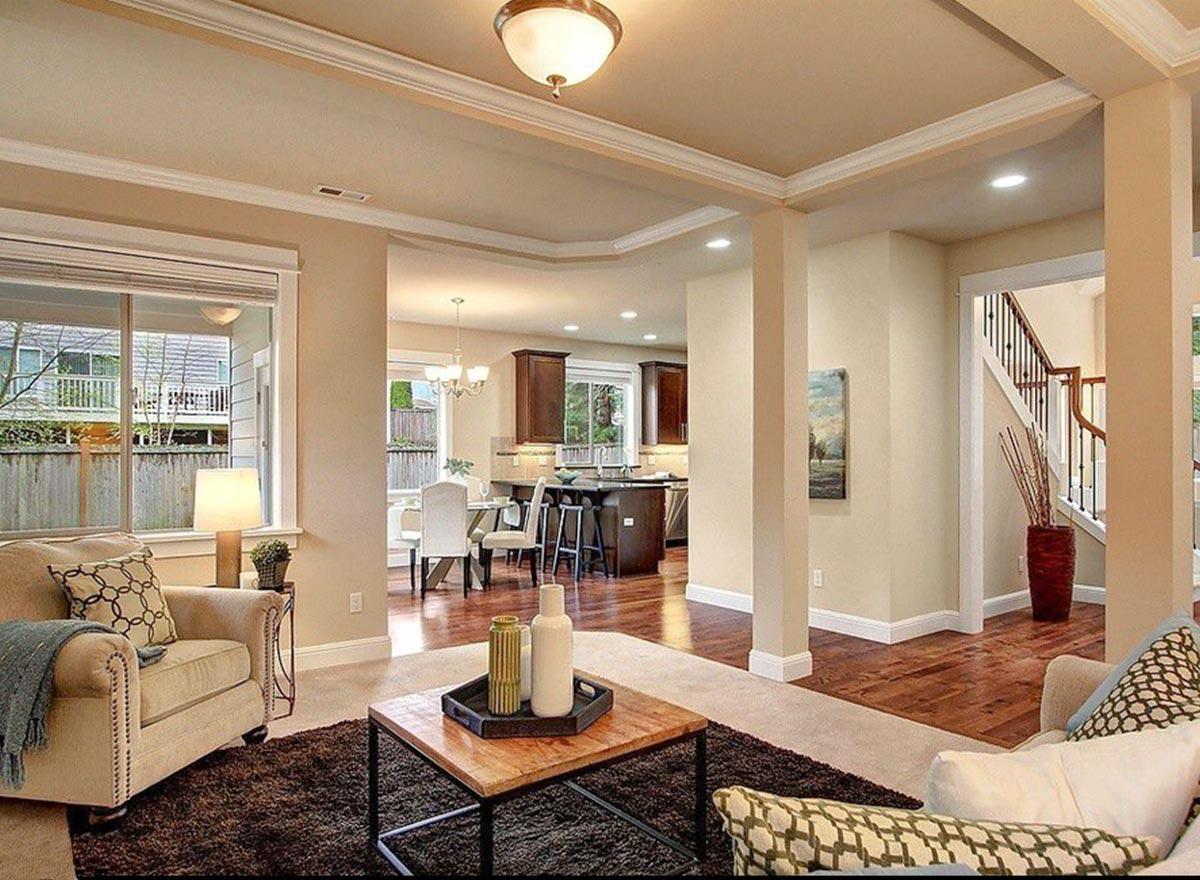

  • The family room is set off by a pair of columns and has a fireplace.

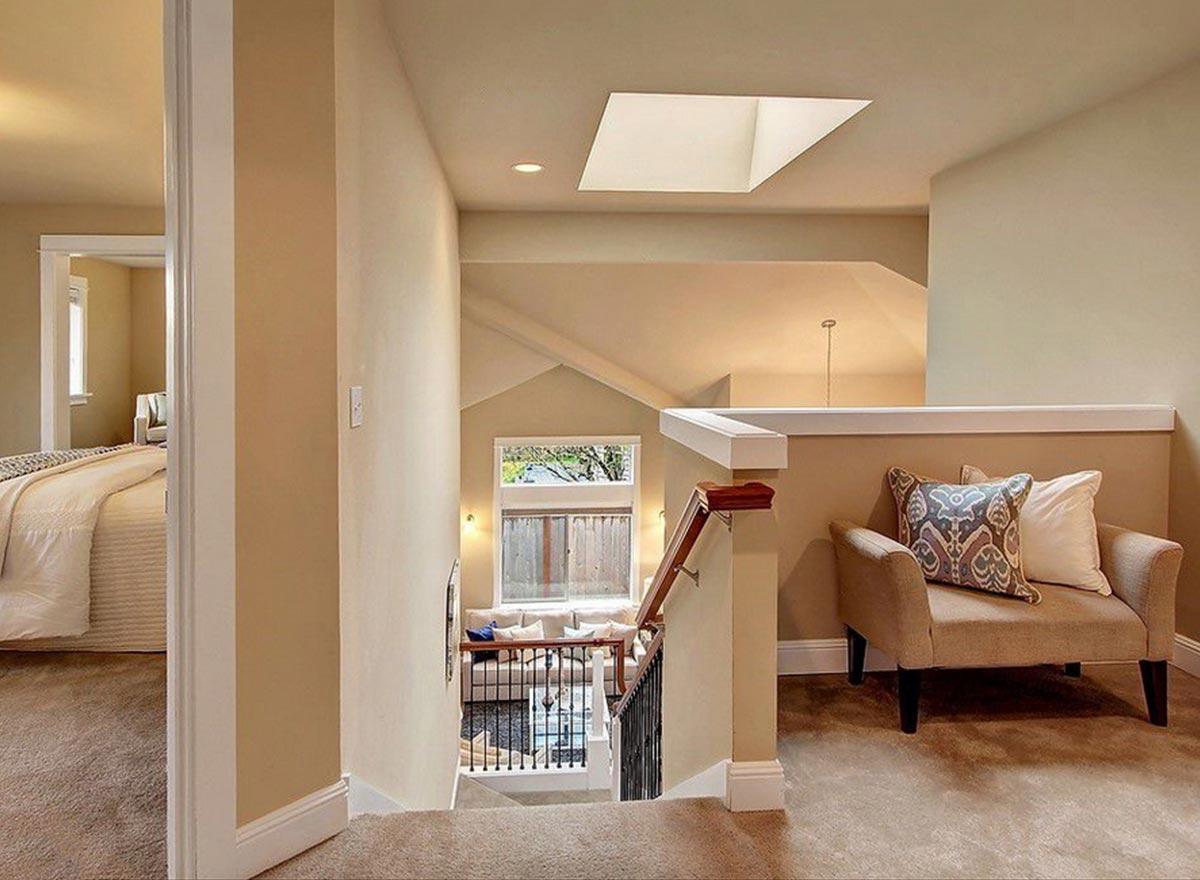

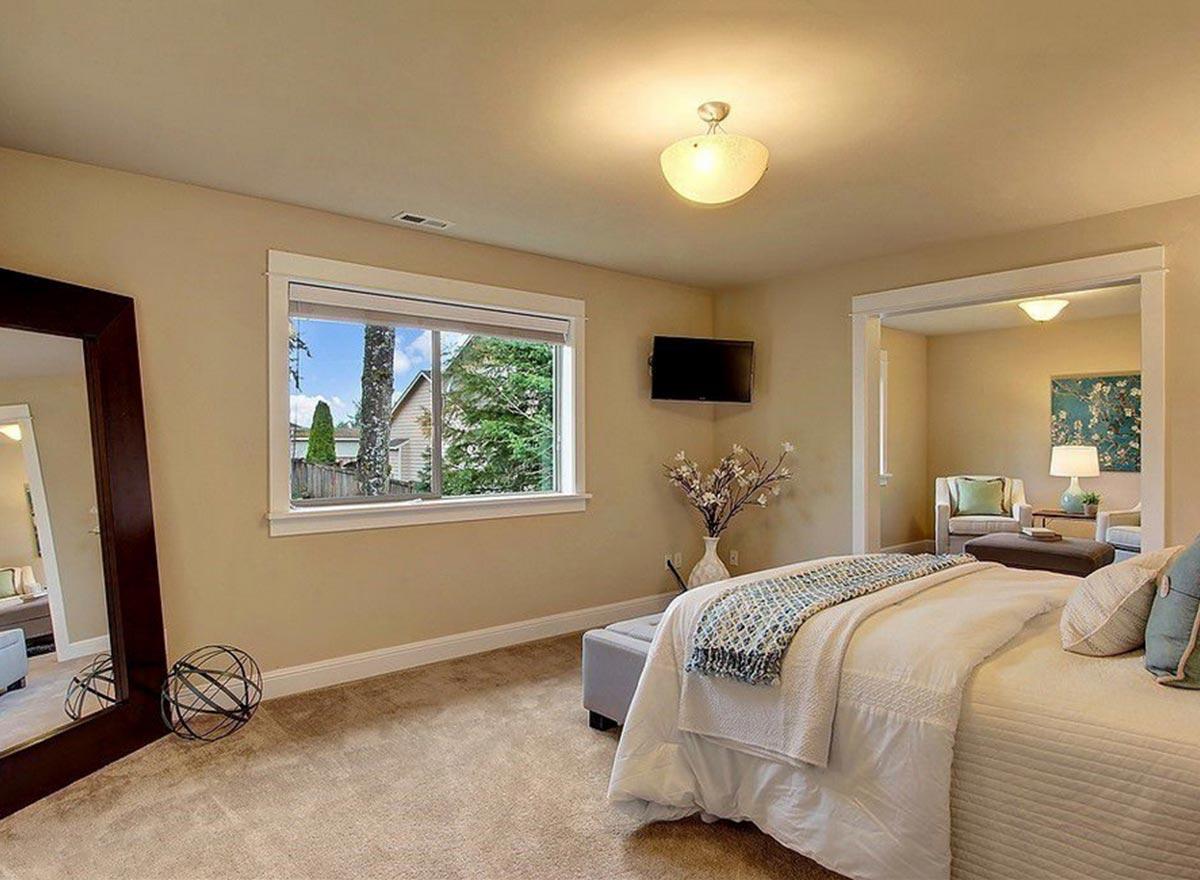

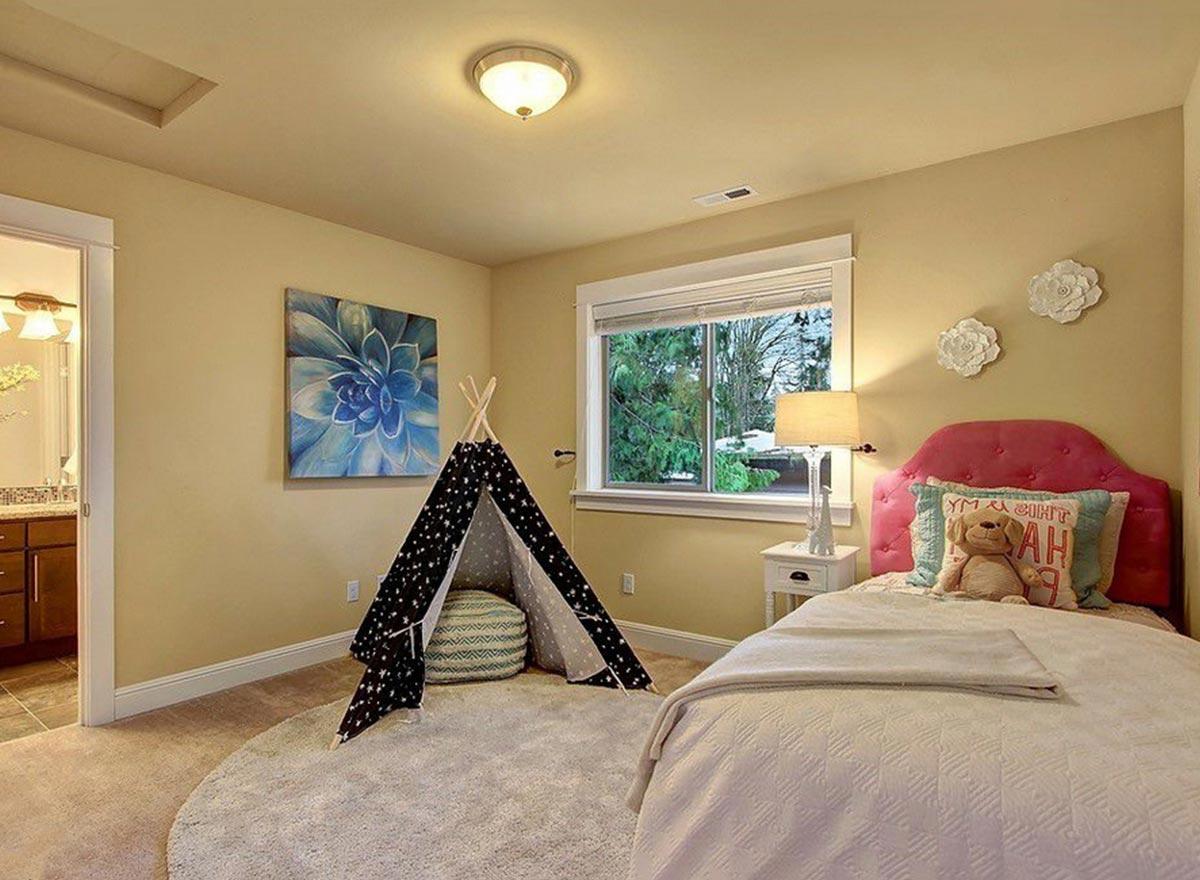

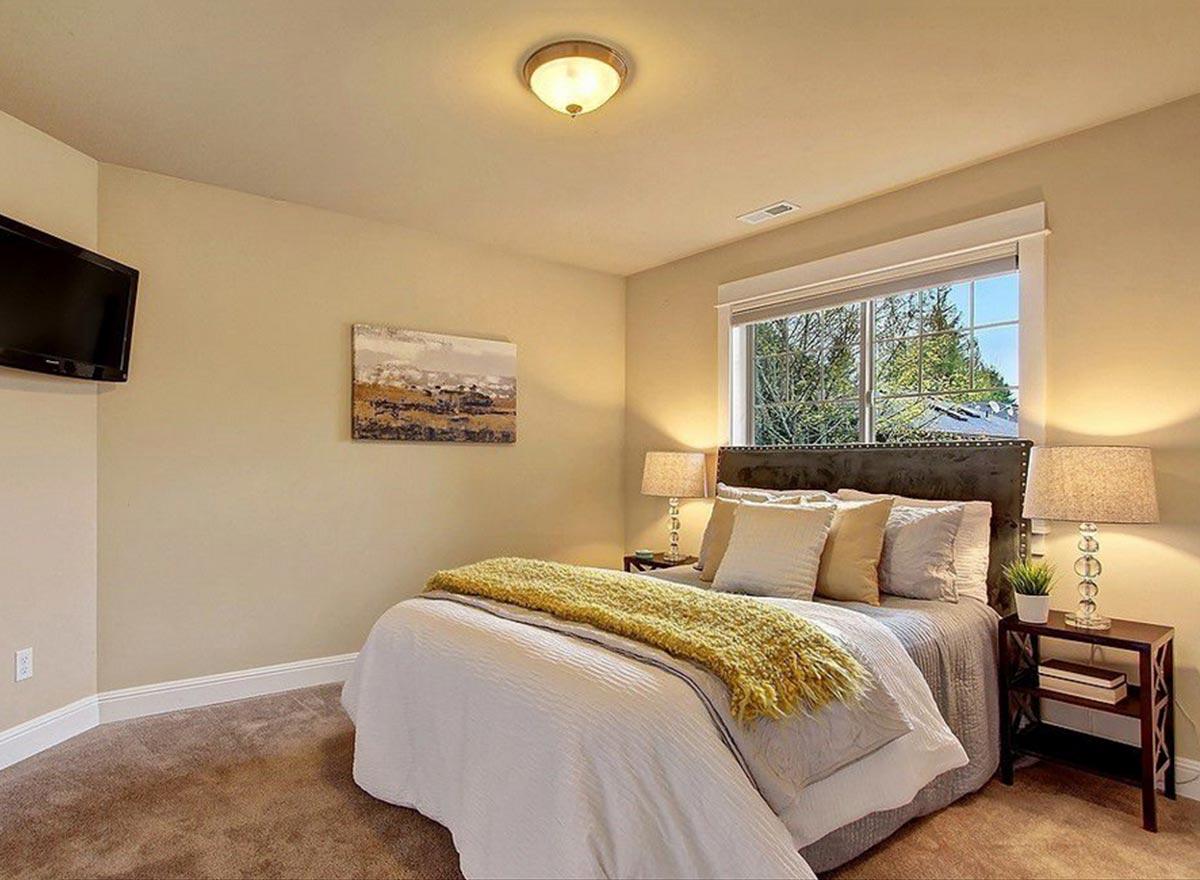

  • Three bedrooms and two baths occupy the upstairs which also has an overlook to the foyer below.
  • Related Plan: Get a crawlspace foundation with house plan 23046JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

What's Included

  • Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

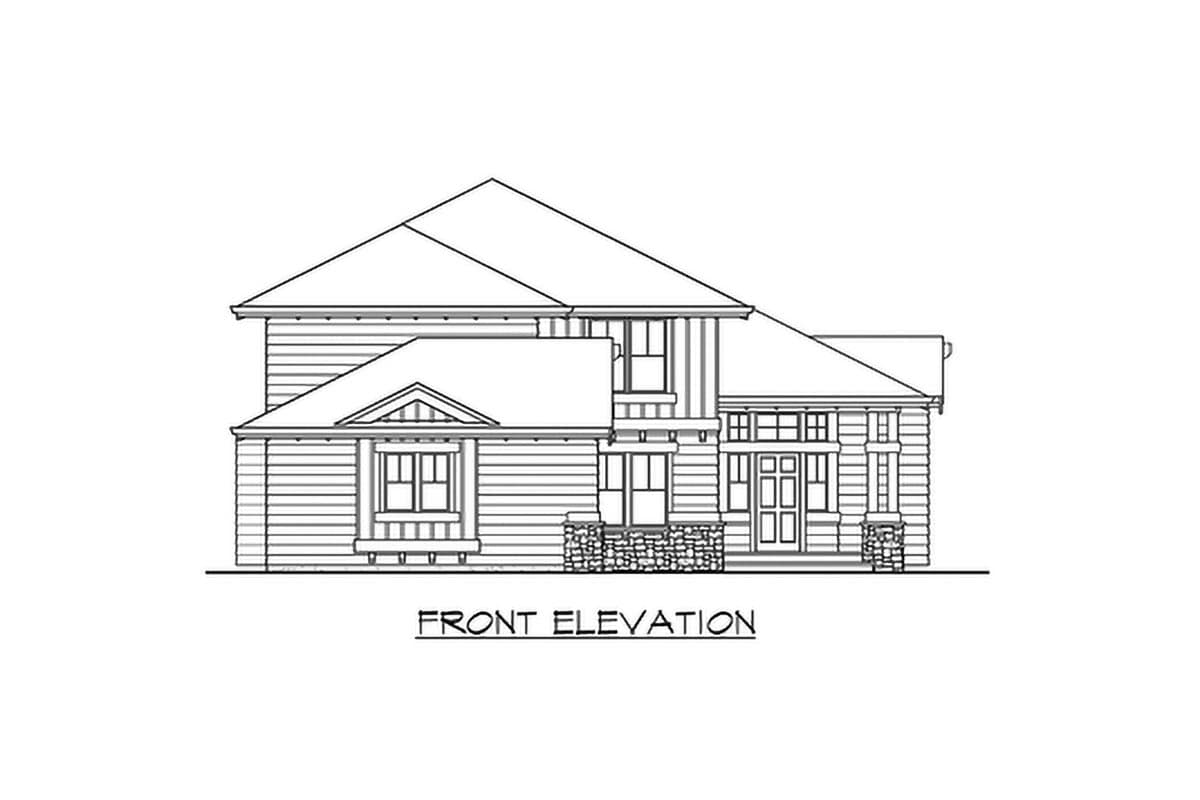

  • Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
View Sample Plan

What's Not Included

  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,676 sq. ft.

Lower Level

1,026 sq. ft.

1st Floor

1,408 sq. ft.

2nd Floor

1,242 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

70' 0"

Max Ridge Height

33' 0"

Garage

Type

Attached

Area

691 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

9'

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick and Truss

Architectural Style

Craftsman

New American

Northwest

Special Features

Den

Master Suite - Upstairs

Plan Collections

Photo Gallery

Sloping Lot

Square Footage Breakdown

Total Heated Area

3,676 sq. ft.

Lower Level

1,026 sq. ft.

1st Floor

1,408 sq. ft.

2nd Floor

1,242 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

70' 0"

Max Ridge Height

33' 0"

Garage

Type

Attached

Area

691 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

9'

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick and Truss

Architectural Style

Craftsman

New American

Northwest

Special Features

Den

Master Suite - Upstairs

Plan Collections

Photo Gallery

Sloping Lot
