Plan 12257JL

Old World Appeal

Name: Plan 12257JL: Old World Appeal
Brand: Architectural Designs
SKU: 12257JL
Price: 1695.0 USD
Availability: InStock

Heated S.F.

5,699

Beds

5 - 6

Baths

4.5 - 5.5

Stories

Cars

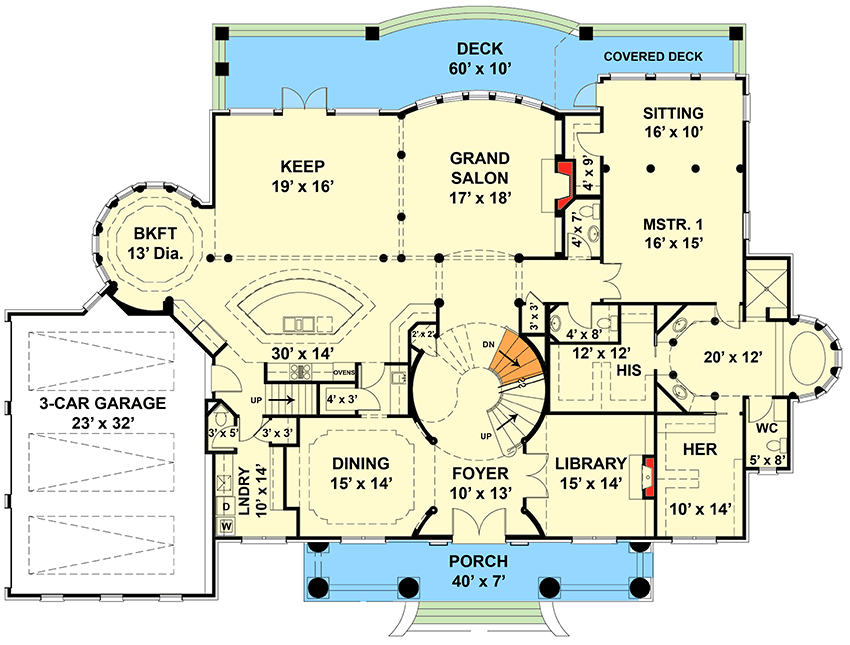

Floor Plan

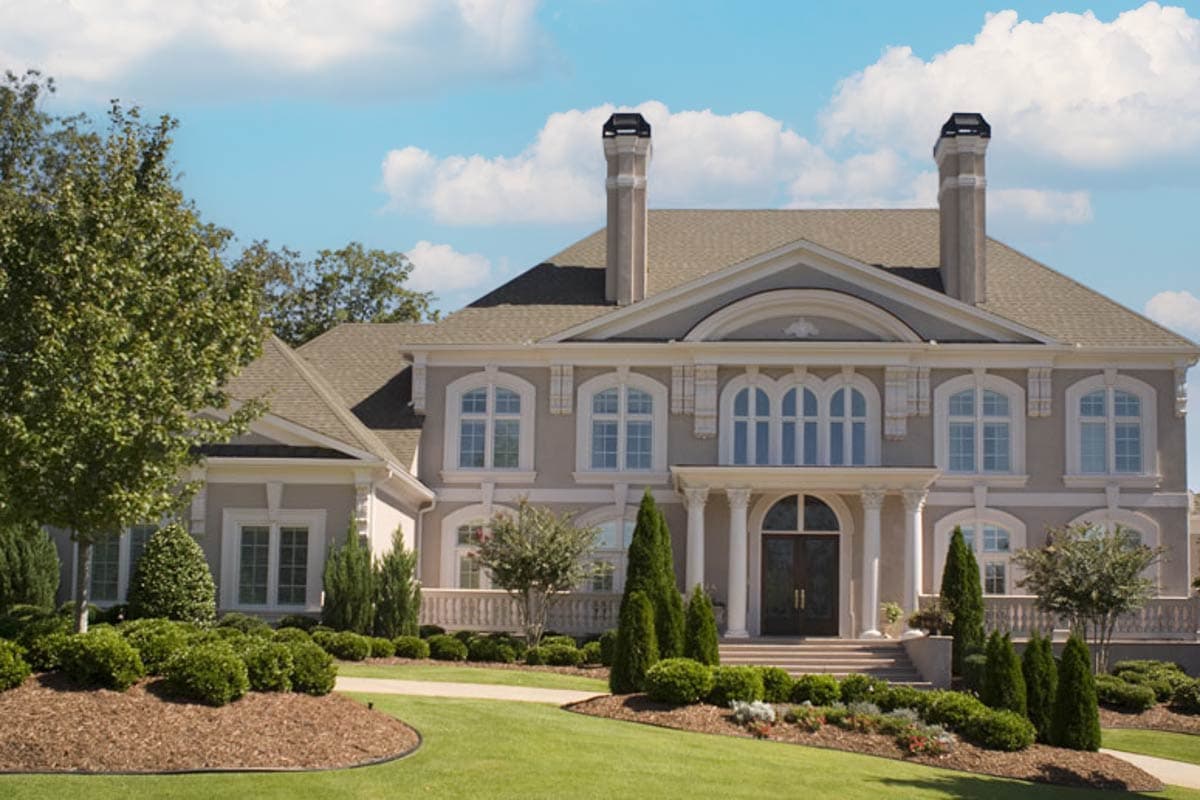

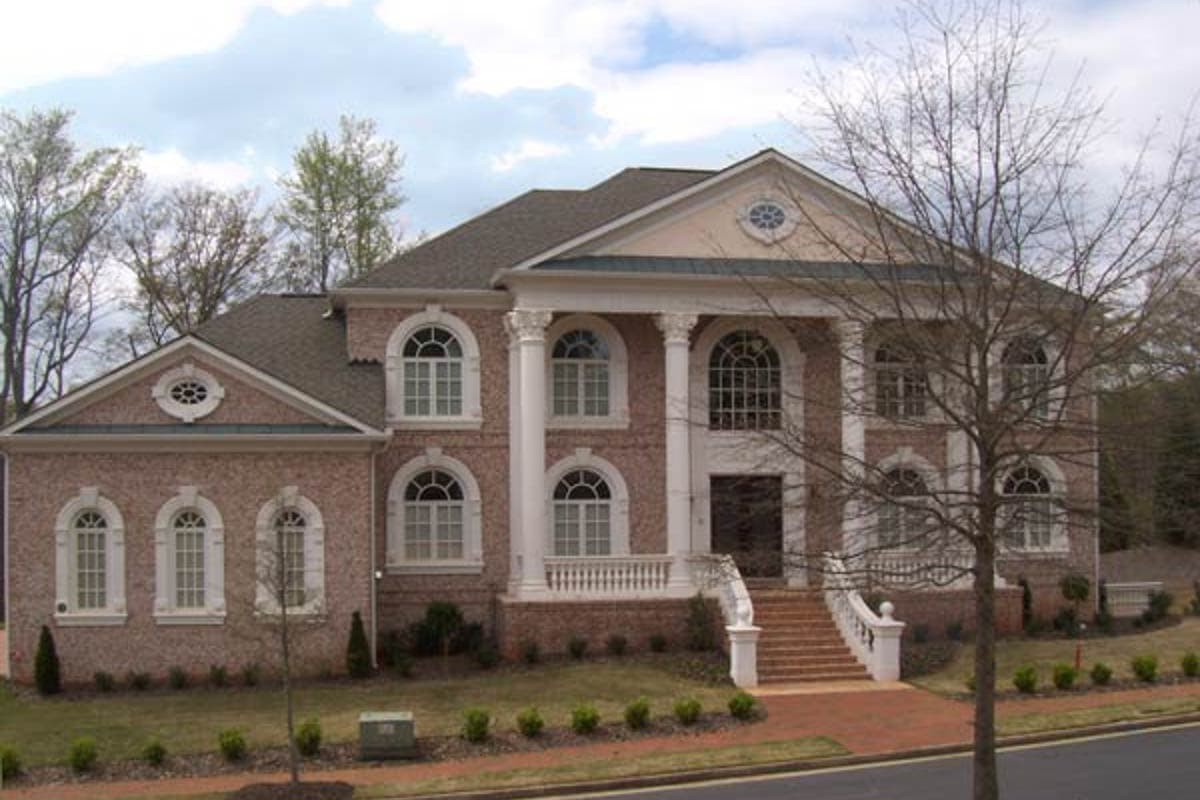

You'll find this luxury home plan to be suffused with Old World appeal. Modified Palladian windows crown the entrance within a magnificent portico, providing the perfect embellishment to a handsome stucco or brick facade.

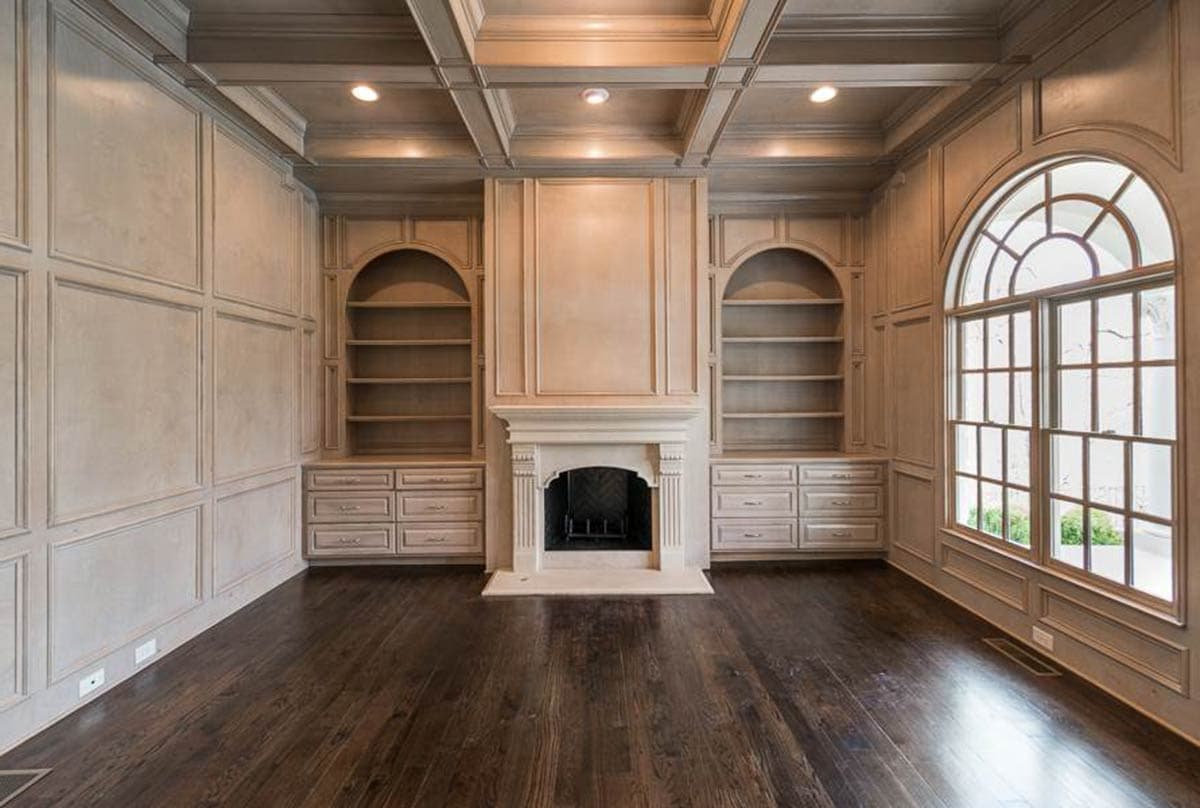

French doors grace the front of the home, opening to a hushed library on the right, and an elegant formal dining room on the left.

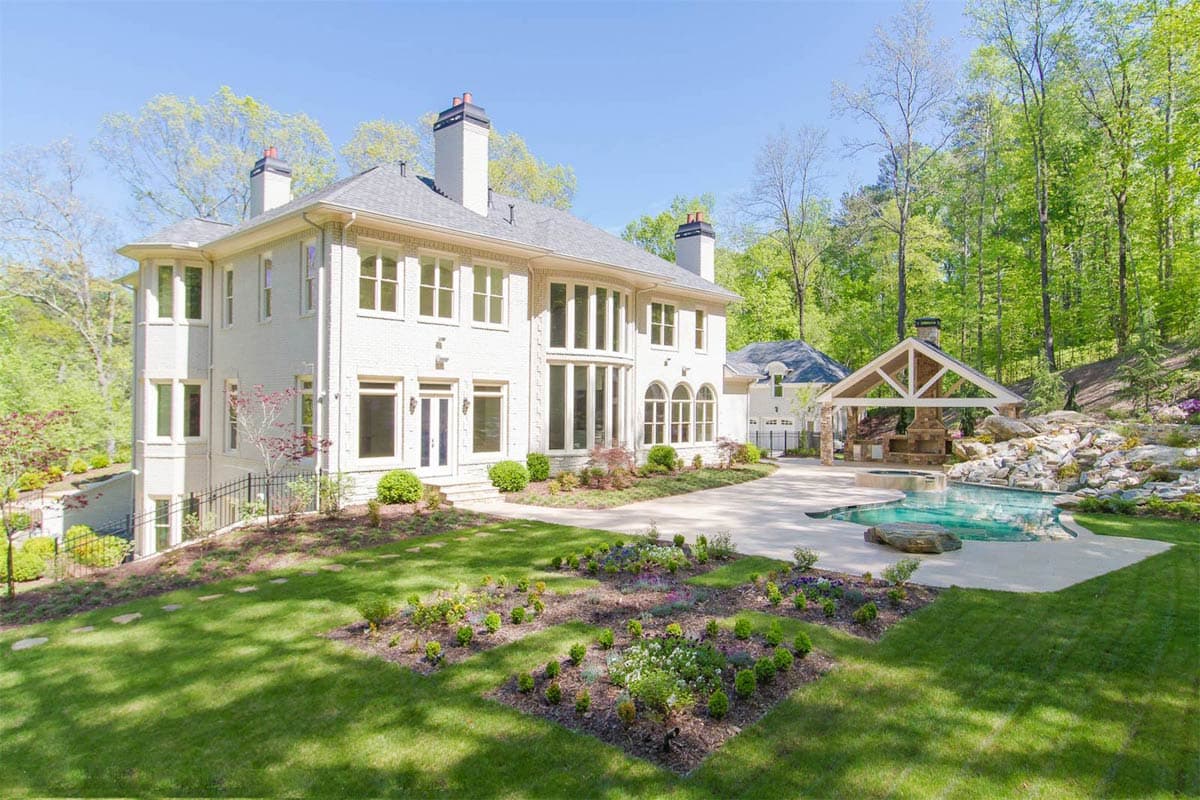

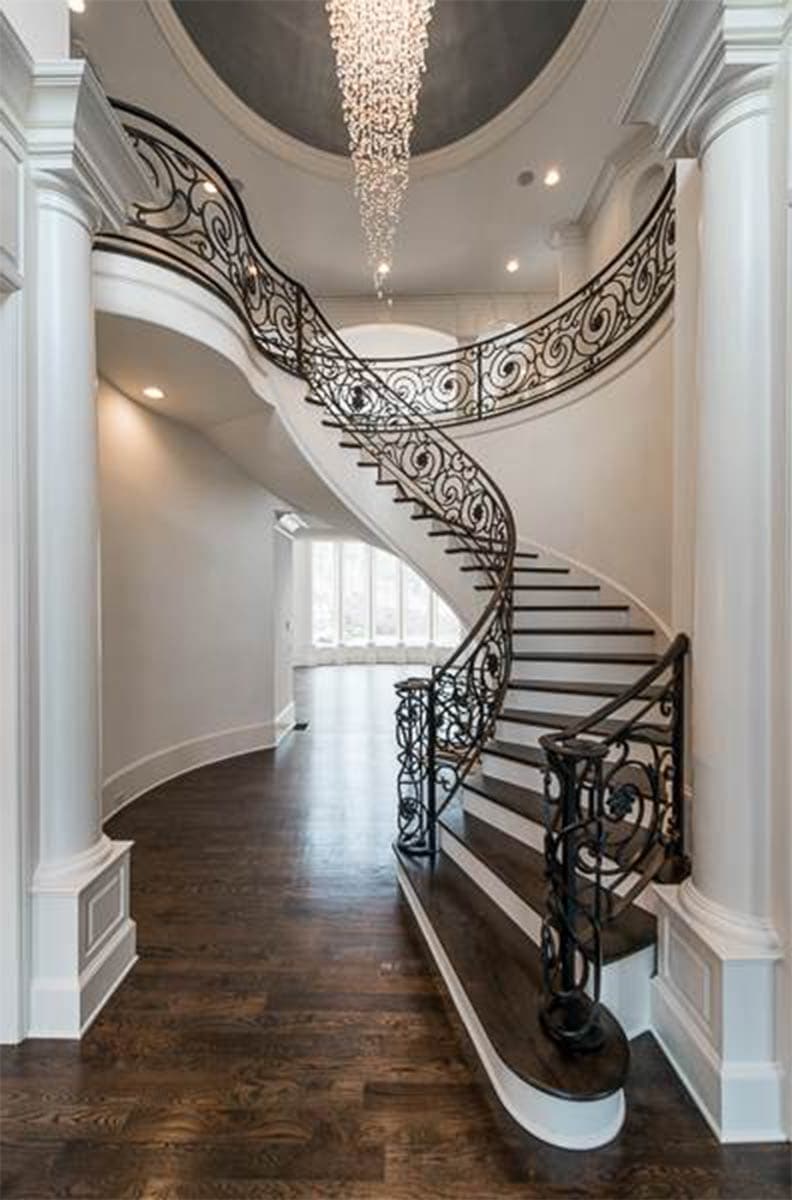

A grand circular staircase uncoils in the foyer. The rear floor hosts a vast guest suite, elegant grand salon, keeping room, and an expansive terrace.

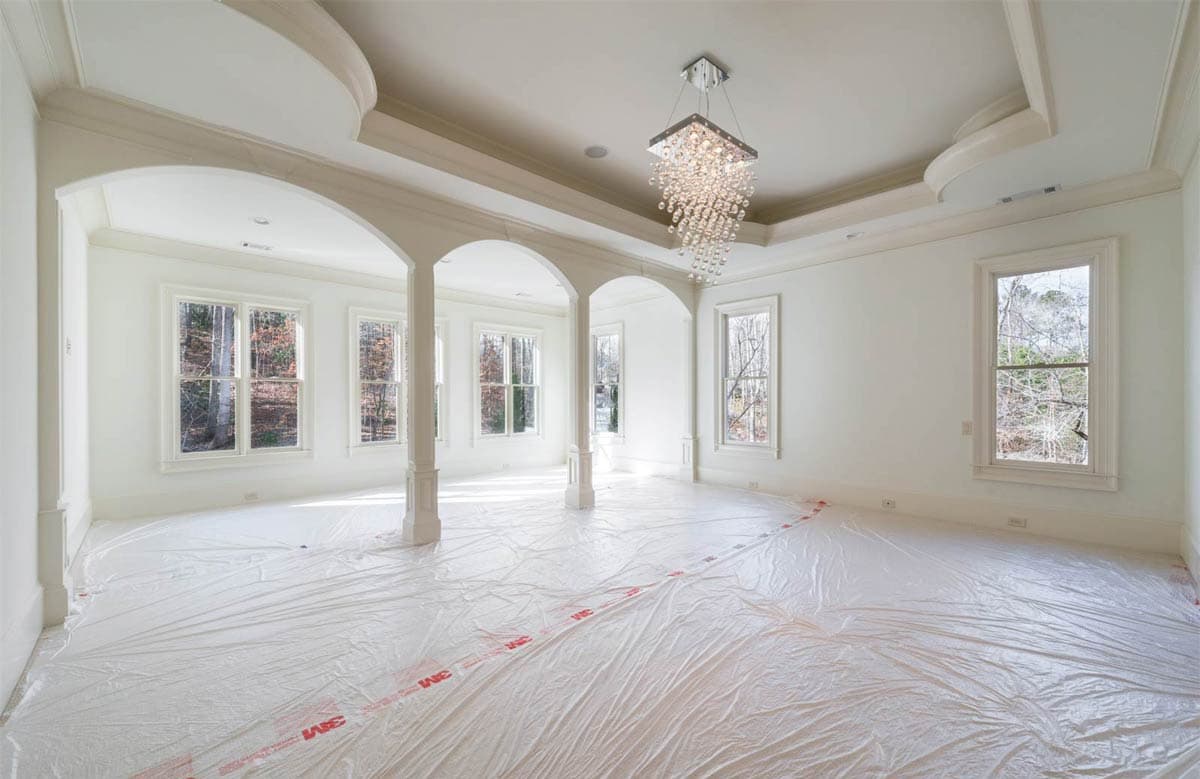

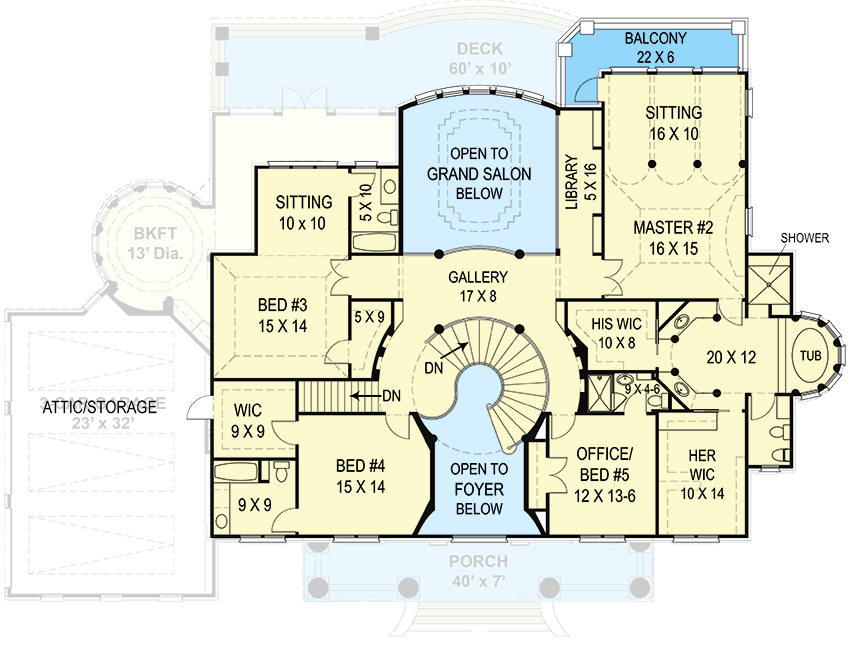

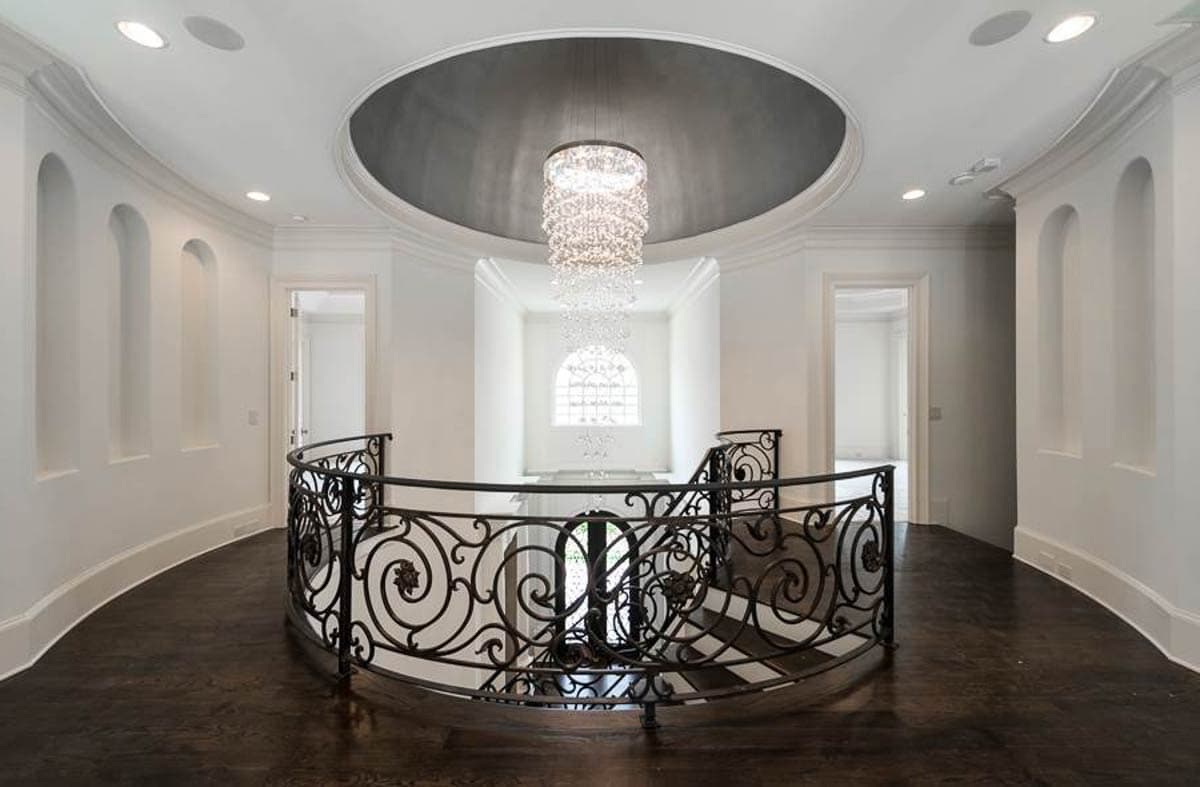

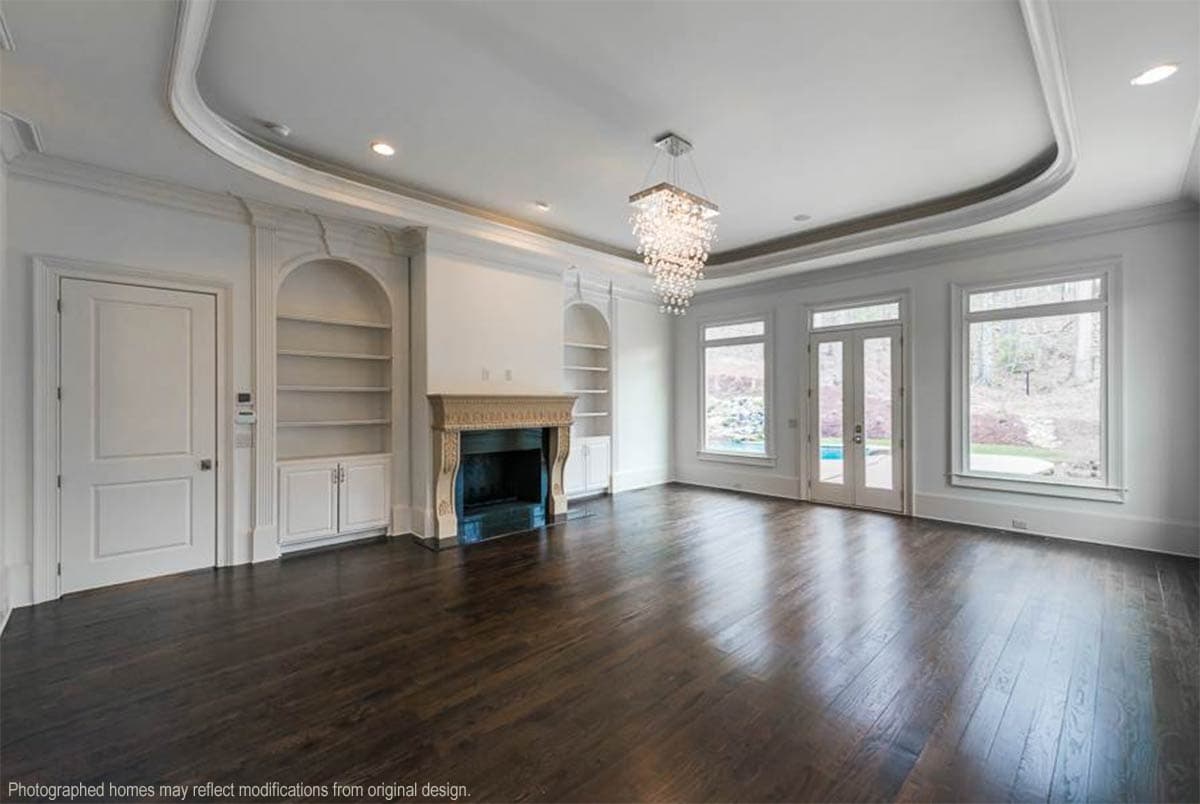

The second floor has a large master suite with sitting area and private balcony and oversized walk-in closets, three additional bedrooms and two more full baths.

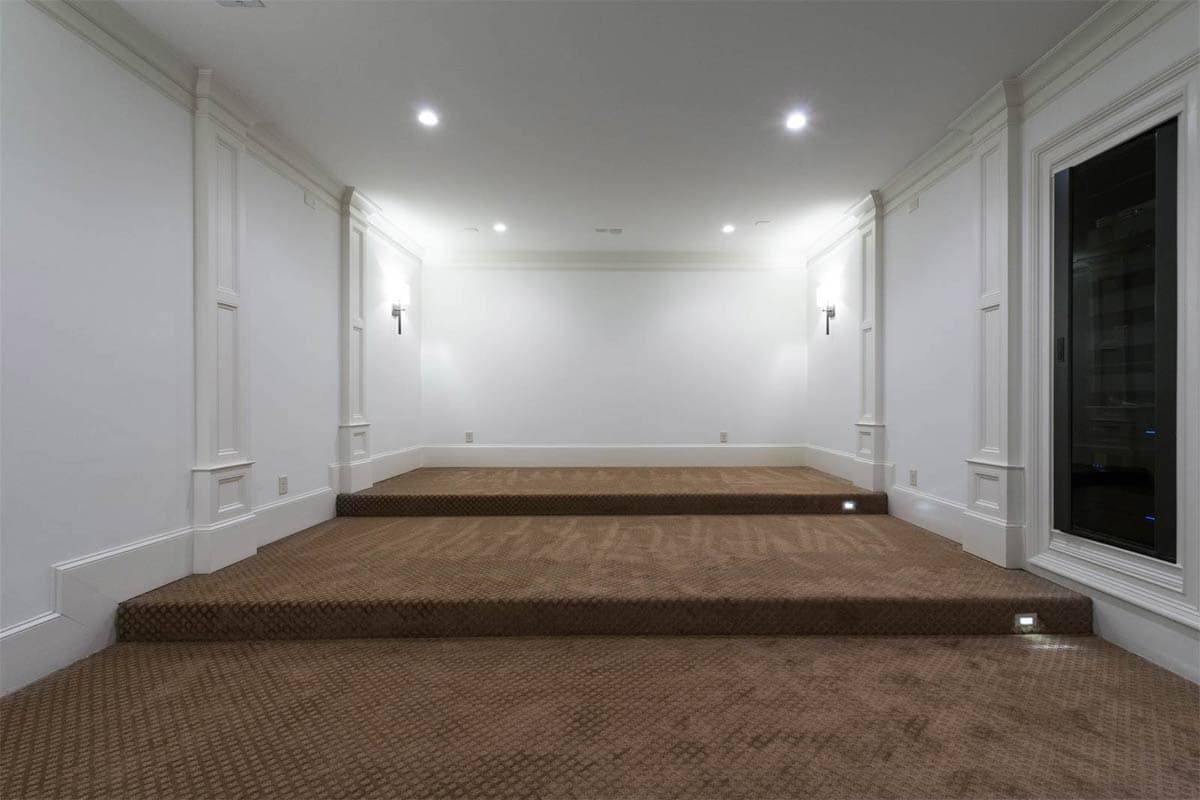

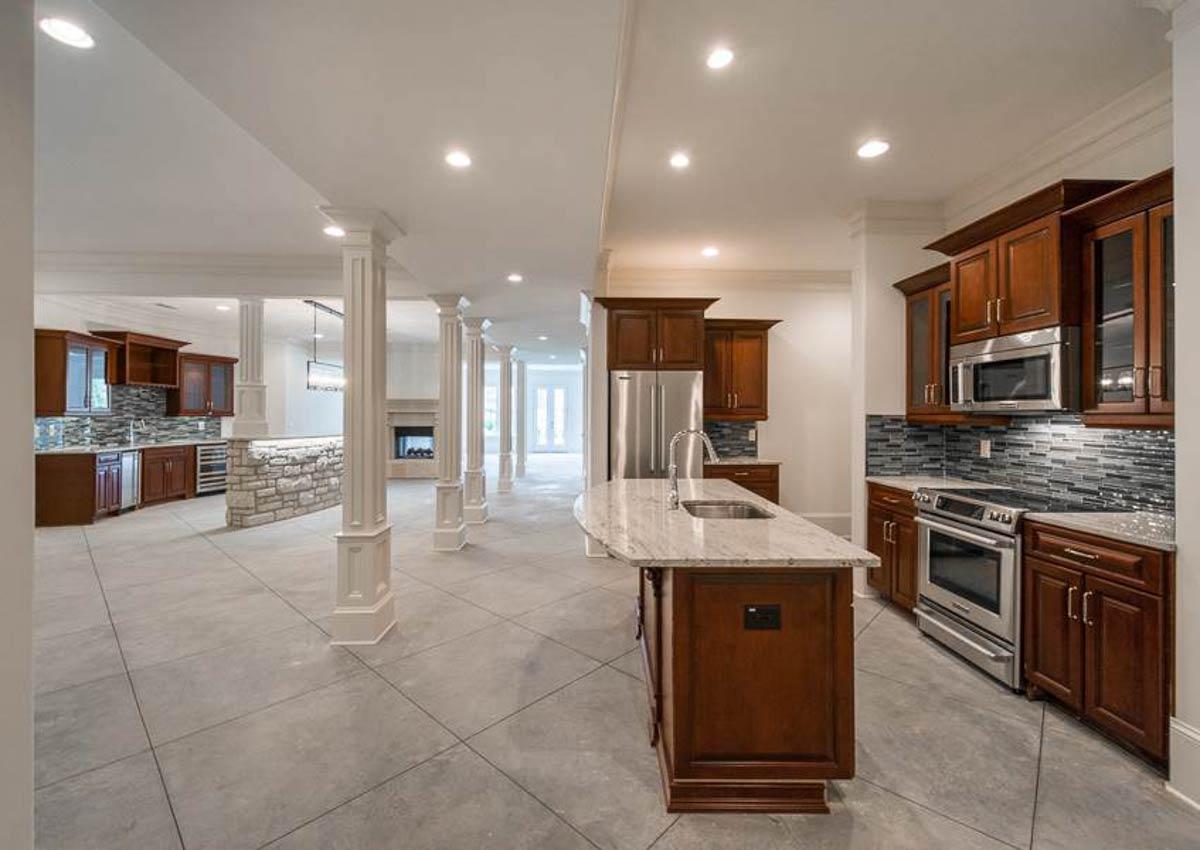

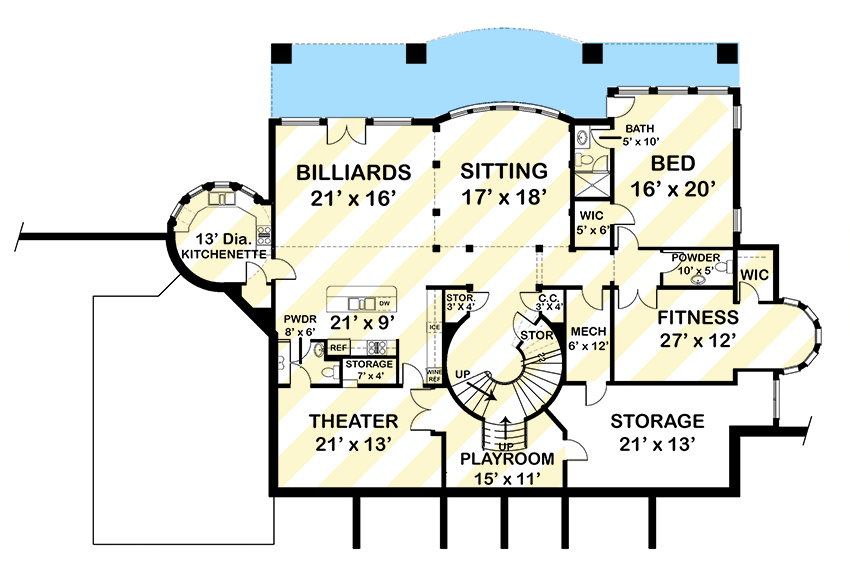

The basement has a billiard room, circular kitchenette, kitchen, sitting room, full bedroom with bath and walk-in closet, theatre, play room, fitness room, two half baths and plenty of storage.

Cover Sheet/Index
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor.
Foundation Plan: Shows the location of all concrete footings, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Overview: Shows roof outlines, pitches, hips, valleys, roof detail notes, etc. Specific details such as fireplaces, stairways, decks, etc.
Building Section: Shows a cross-section of the home. Shows exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
Framing Plans and Beam sizes
