Old World Charm with a Split Bedroom Floor Plan

Plan 62826DJ

  • 1,695

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 1-2

    Cars

  • This 3-bed house plan combines Old World charm with a modern floor plan. On the exterior, the stucco and stone combination gives this plan great curb appeal.
  • The living room has a cathedral ceiling and a wonderful fireplace. The living room, dining room, and kitchen flow seamlessly together in this open floor plan. The amazing kitchen includes a large island with a snack bar and a large walk-in pantry.
  • The master suite is much larger than what is usually found in a home this size. The master bathroom includes his/her vanities and a walk-in closet. On the opposite side of the home, bedrooms 2 and 3 share a conveniently located hall bathroom.
  • The home's 1-car garage accesses the inside through a convenient mudroom that includes a bench and a built-in desk. Choose the 2-car garage option and get 540 sq. ft. of garage space.
  • Related Plan: Get an alternate version in reverse layout with house plan 62806DJ.
  • NOTE: Expect a 3 to 5 day delay if choosing the 2-car garage option.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

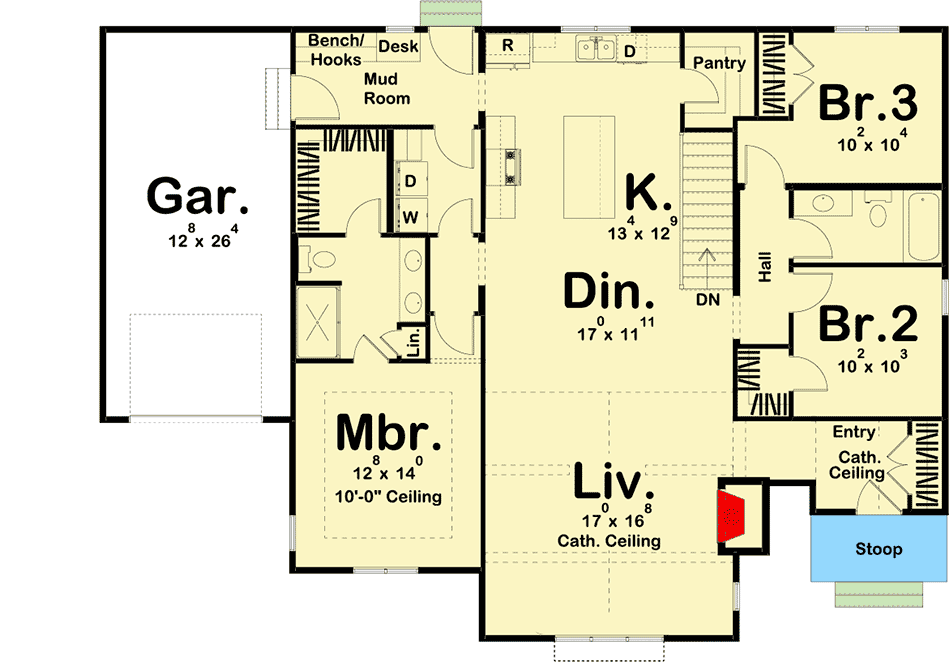

Old World Charm with a Split Bedroom Floor Plan - 62826DJ floor plan - Main Level

2-Car Garage Option

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

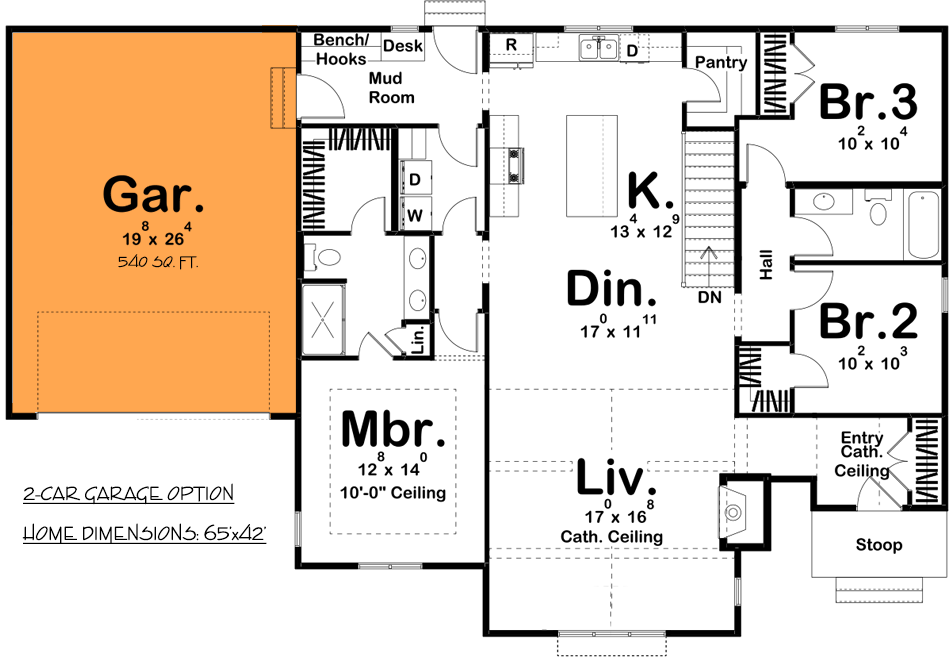

Old World Charm with a Split Bedroom Floor Plan - 62826DJ floor plan - 2-Car Garage Option
