One-Bed Garage Apartment with ADU Potential - 672 Sq Ft

Heated S.F.
672
Beds
1
Baths
1
Stories
2
Cars
2

Floor Plan

Plan 765051TWN

Main Level
Main Level
2nd Floor
2nd Floor

Plan 765051TWN

M-F 9am-5pm EST |

1-203-761-8500

Main Level

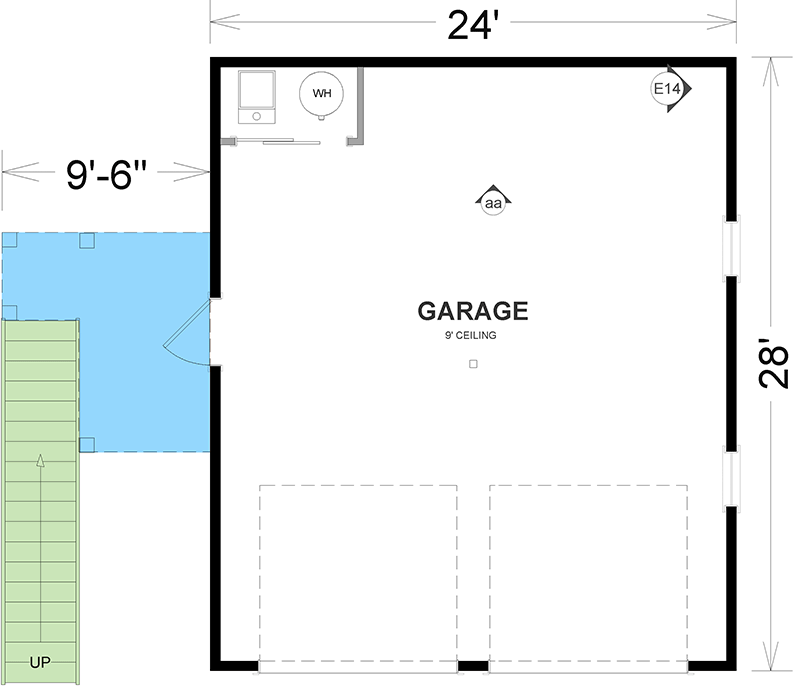

Plan 765051TWN: One-Bed Garage Apartment with ADU Potential - 672 Sq Ft - Floor Plan - Main Level - Carriage, Cottage, Country, Craftsman, Traditional

2nd Floor

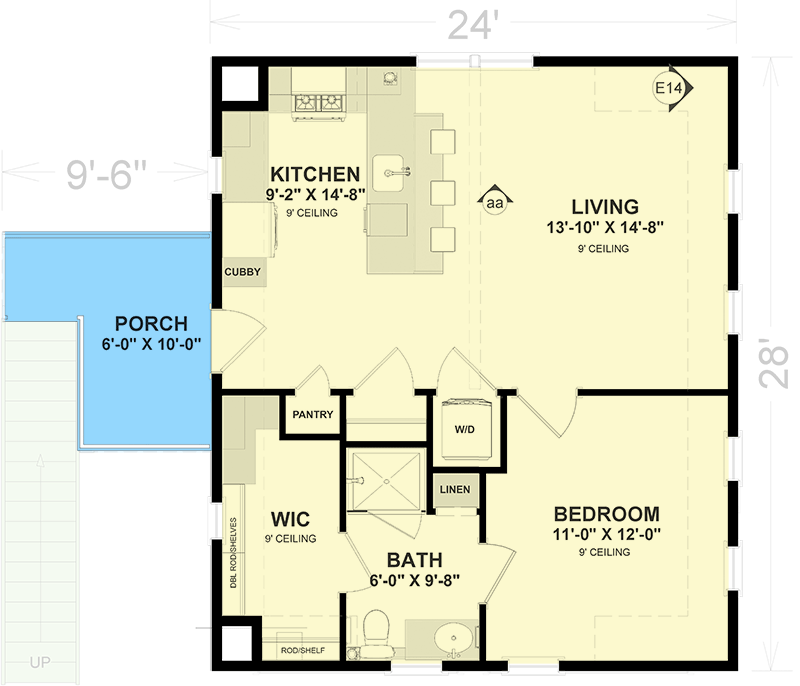

Plan 765051TWN: One-Bed Garage Apartment with ADU Potential - 672 Sq Ft - Floor Plan - 2nd Floor - Carriage, Cottage, Country, Craftsman, Traditional

Plan Details

  • This one bed garage apartment - suitable for use as an ADU, a rental apartment or a backyard retreat - gives you 672 square feet of heated living space set above the 672 square foot 2-car garage. Board and batten siding, as well as timber-framed gables and awnings, add to the immense character.
  • The ground level consists of the double garage, along with the mechanical room.
  • Upstairs, the eat-in kitchen opens to the living space. A vault runs through the middle of the space from back to front.
  • U-shaped counters provide seating for casual meals and increase workspace in the kitchen.
  • The bedroom has direct bathroom access which opens to a walk-in closet.
  • Related Plans: Get an alternate version with garage apartment plans 765018TWN, 765010TWN and 765021TWN.
