Plan 765021TWN
Cute Carriage House Plan with Private Bedroom
Heated S.F.
650
Beds
1
Baths
1
Stories
2
Cars
2
What's Included
Plan Details

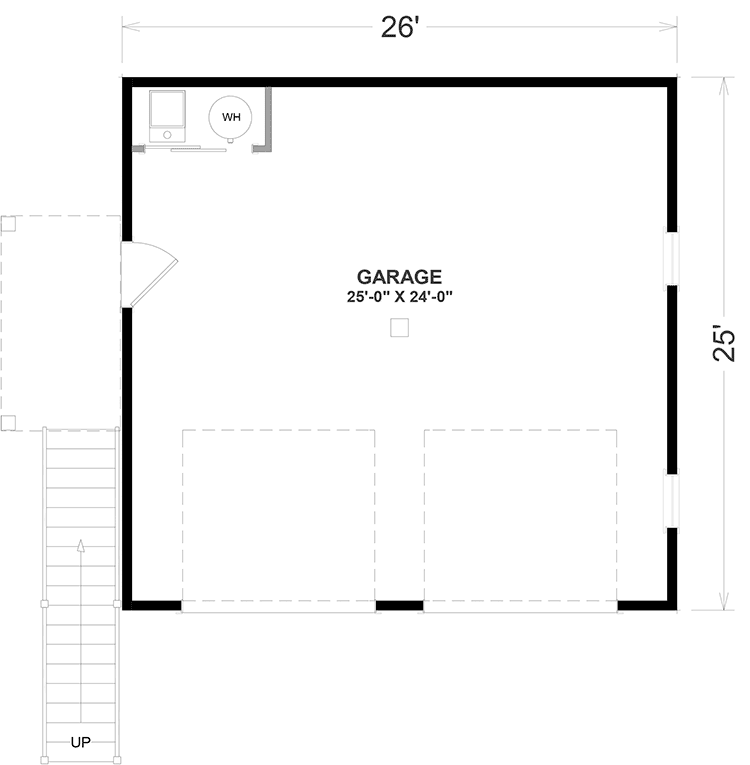

  • This comfy, carriage house plan features 650 sq. ft. of living space above a double garage and attractive board and batten siding
  • The ground level consists of the double garage, along with space carved our for your mechanicals. A door on the left side takes you to stairs that take you to the living quarters.

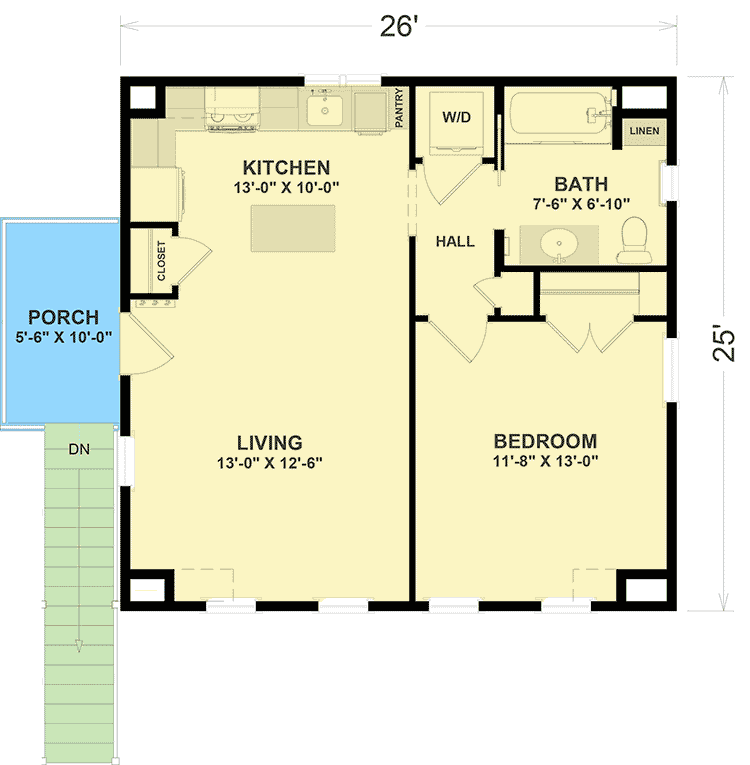

  • An eat-in kitchen opens to the living space, and a coat closet is conveniently located near the entry. The right side of the home is dedicated to the bedroom, full bath and laundry.
  • Related Plans: Get alternate versions with house plan 765010TWN, 765018TWN and 765051TWN.
What's Included
This designer's plans include the following:
  • Cover sheet with general notes
  • Foundation Plan
  • Floor Plans with Dimensions

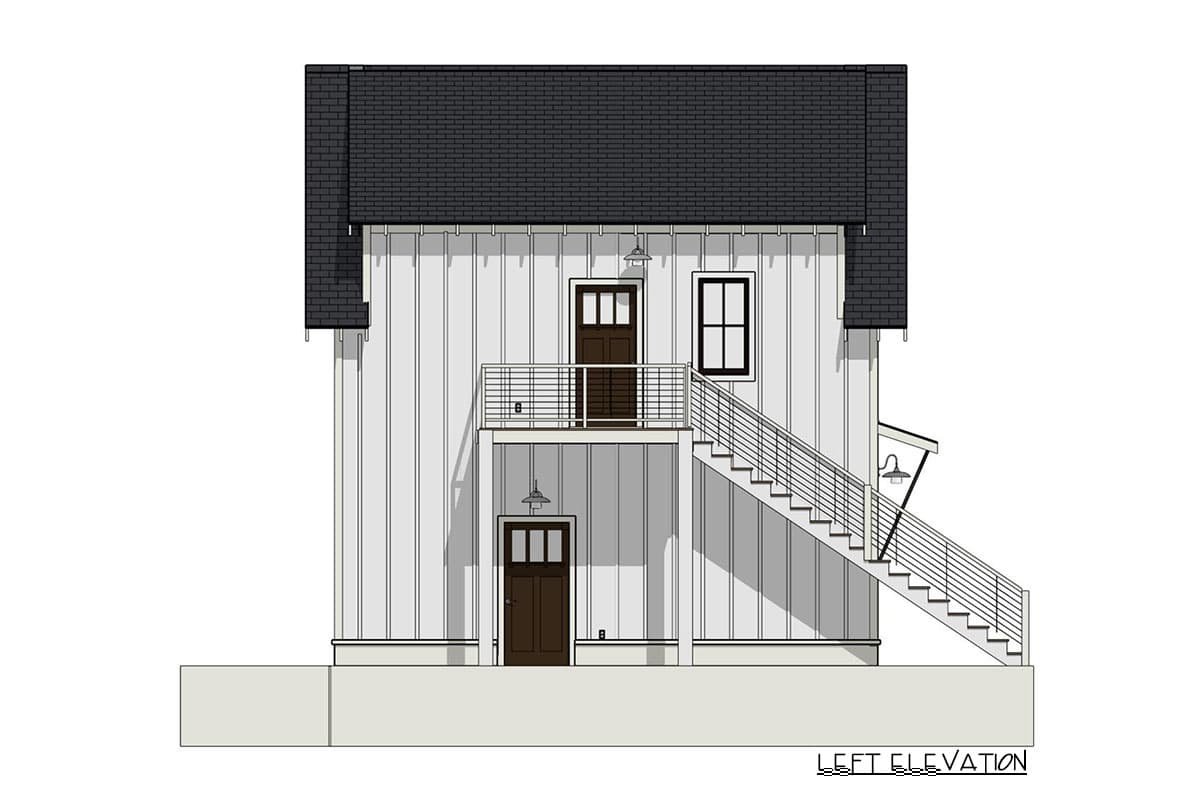

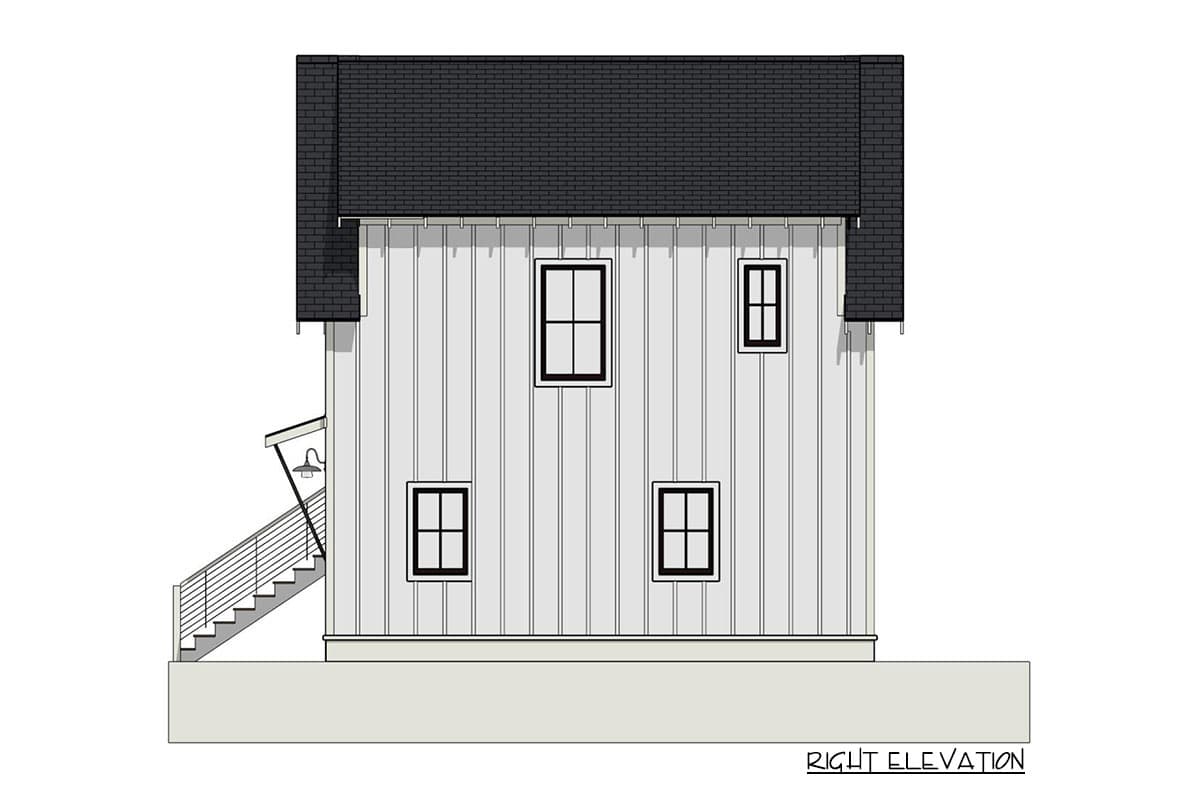

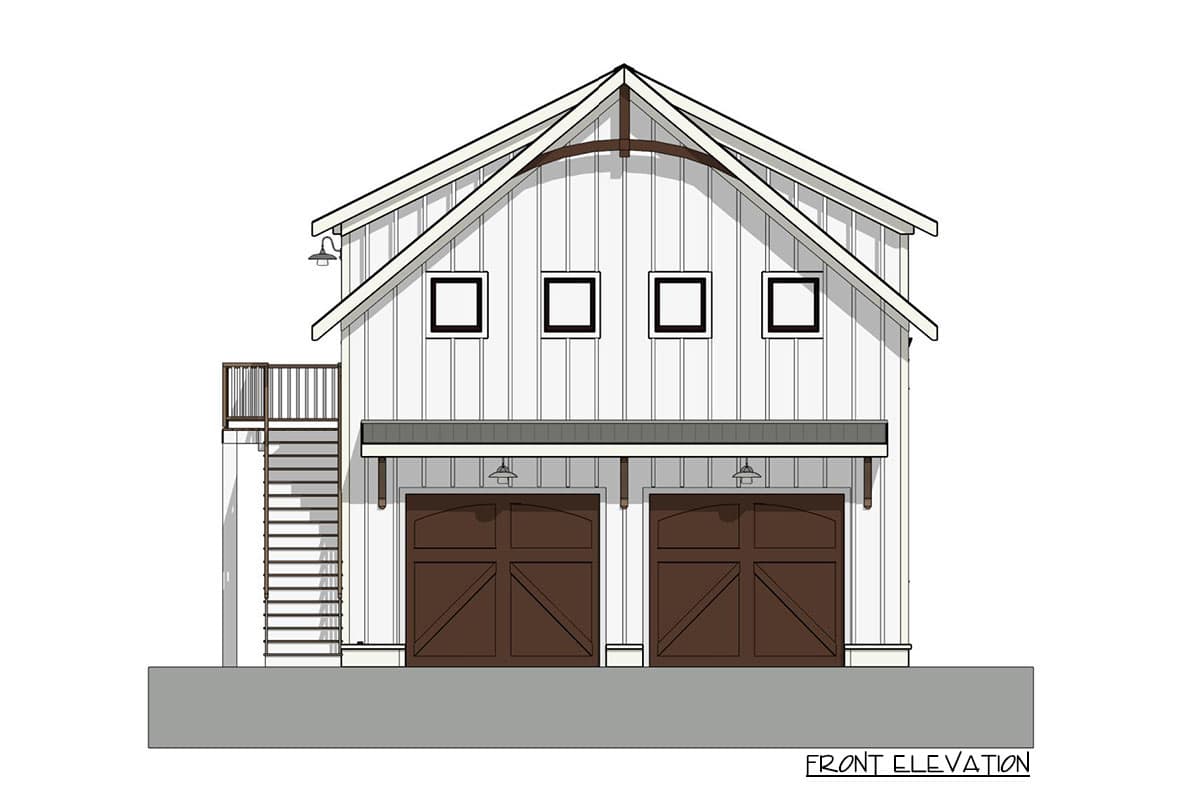

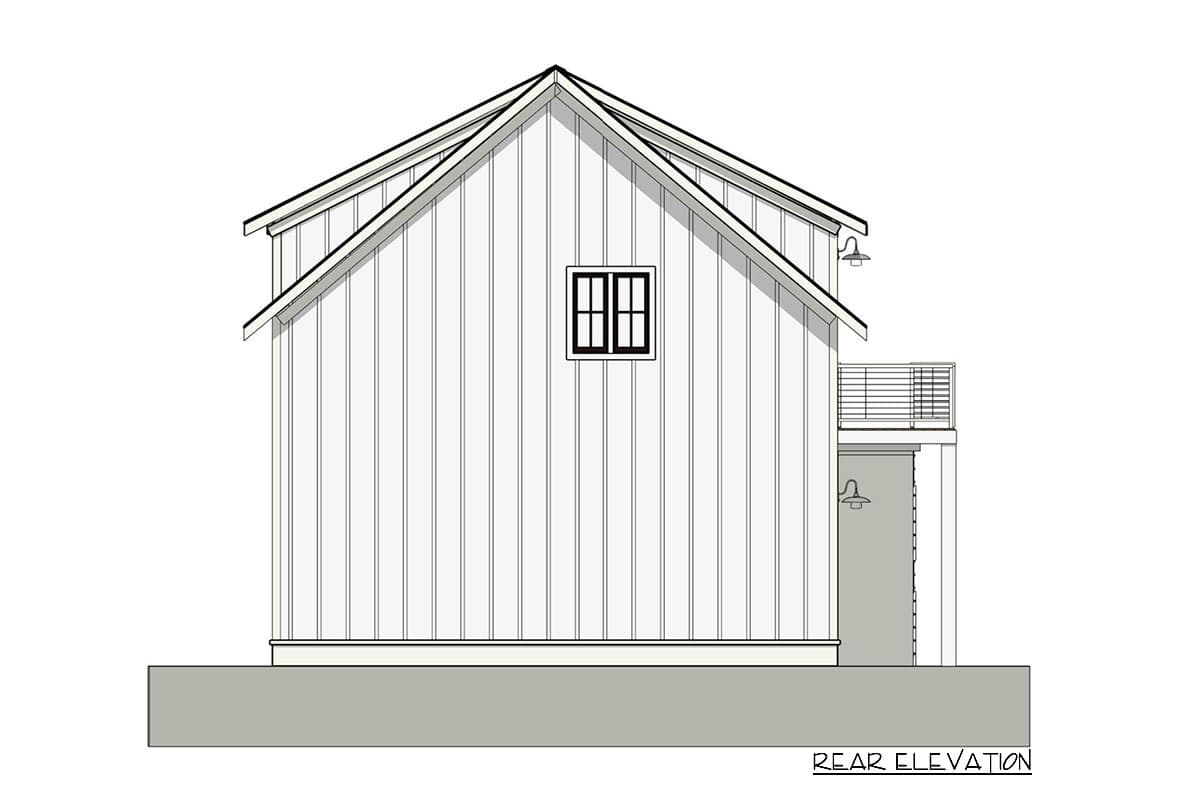

  • Exterior Elevations
  • Cross Section
  • Door & Window Schedules
  • Roof plan
  • Electrical Plans
  • Cabinetry Elevations
  • Floor Framing
  • Roof Framing
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
